Glamox I80A22250. Industry Lighting i80 LED 2x22000 DALI G2 840 NB CL TW

Glamox
Lead time
4 weeks
€1,304.80
Excl. 19% VAT , excl. Shipping Cost
Article
GL-I80A22250

Manufacturer Nr.
I80A22250
i80 LED 2x22000 DALI G2 840 NB CL TW
Add to Wish List Add to Compare

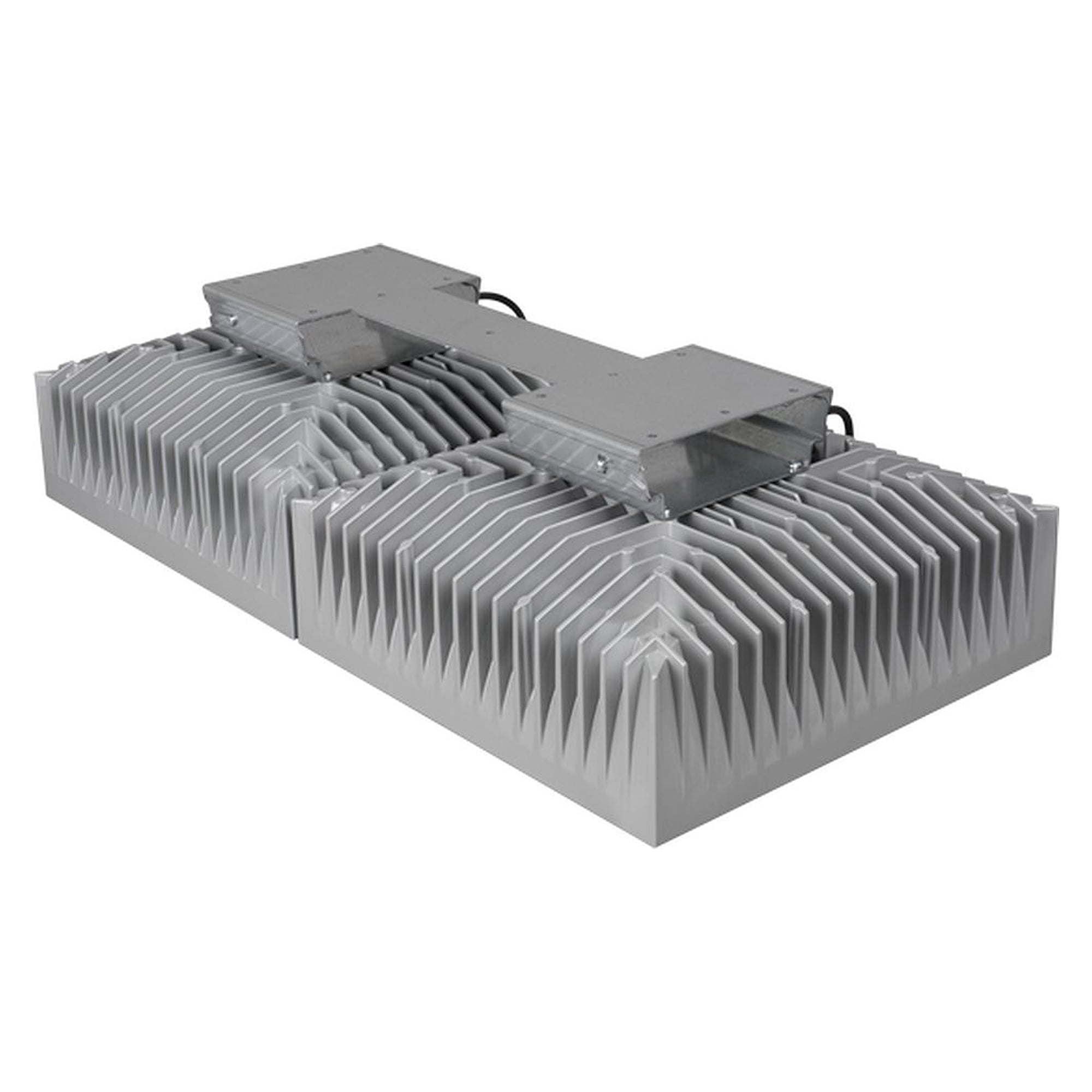

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Square

  • Certificates

    1. Certification
      Ball test

  • Electrical Data

    1. Leakage current (mA)
      0.80
    2. Voltage from (V)
      220
    3. Maximum voltage (V)
      240
    4. Minimum frequency (Hz)
      50
    5. Maximum frequency (Hz)
      60
    6. Main Feed DC (V) Min
      198
    7. Main Feed DC (V) Max
      250
    8. Total consumption (W)
      278
    9. Number of luminaires on a 10A MCB type B (80% load)
      2
    10. Number of luminaires on a 10A MCB type C (80% load)
      4
    11. Number of luminaires on a 16A MCB type B (80% load)
      4
    12. Number of luminaires on a 16A MCB type C (80% load)
      6

  • LMS System

    1. Number of DALI addresses
      2
    2. LMS Protocol
      DALI

  • Completeness

    1. Item is not complete, missing
      QC

  • Technical Data

    1. Minimum ambient temperature (ºC)
      -40
    2. Maximum ambient temperature (°C)
      35
    3. IK classification
      08
    4. IP classification
      66
    5. Corrosion class
      C4

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      44,648
    3. Lumen per Watt (lm/W)
      161
    4. Lamp colour temp (K)
      4000
    5. CRI Colour rendering index
      80
    6. MacAdam step
      3
    7. Energy class light source
      C
    8. Minimum dim level (%)
      10

  • Driver / Ballast

    1. Type of LED Driver
      DALI: Dimming
    2. No Of Ballast
      2

  • Lifetime

    1. L80 Median useful life LED MaxTa (hr)
      100 000
    2. Luminous flux decline (LLMF) 50.000h Ta25
      0.90

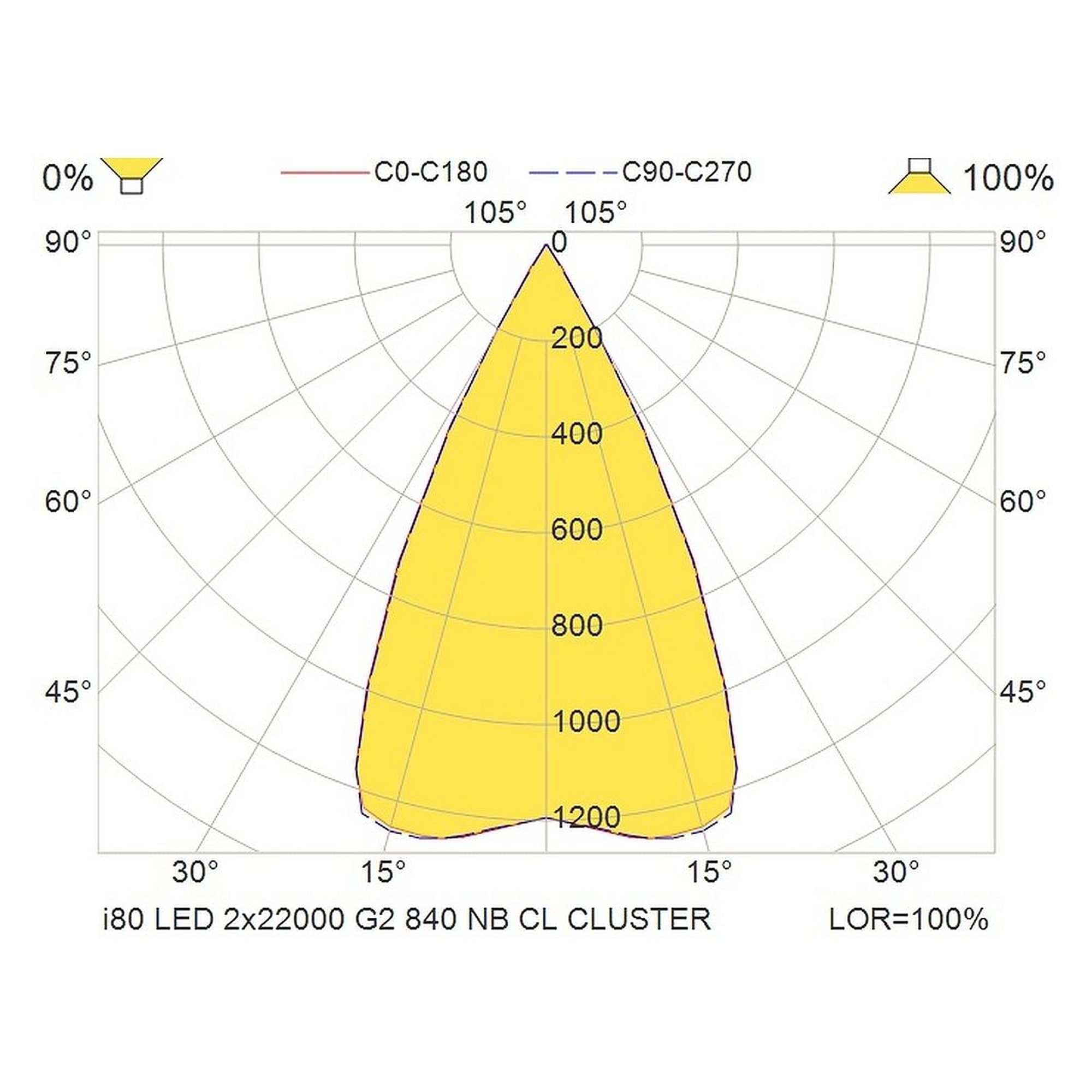

  • Optic

    1. Optic
      NB - Narrow beam
    2. Material of diffuser
      Acrylic
    3. Diffuser material design
      Clear

  • Housing

    1. Main body material
      Aluminium
    2. Body colour
      Grey
    3. Main body colour name
      Aluminium grey

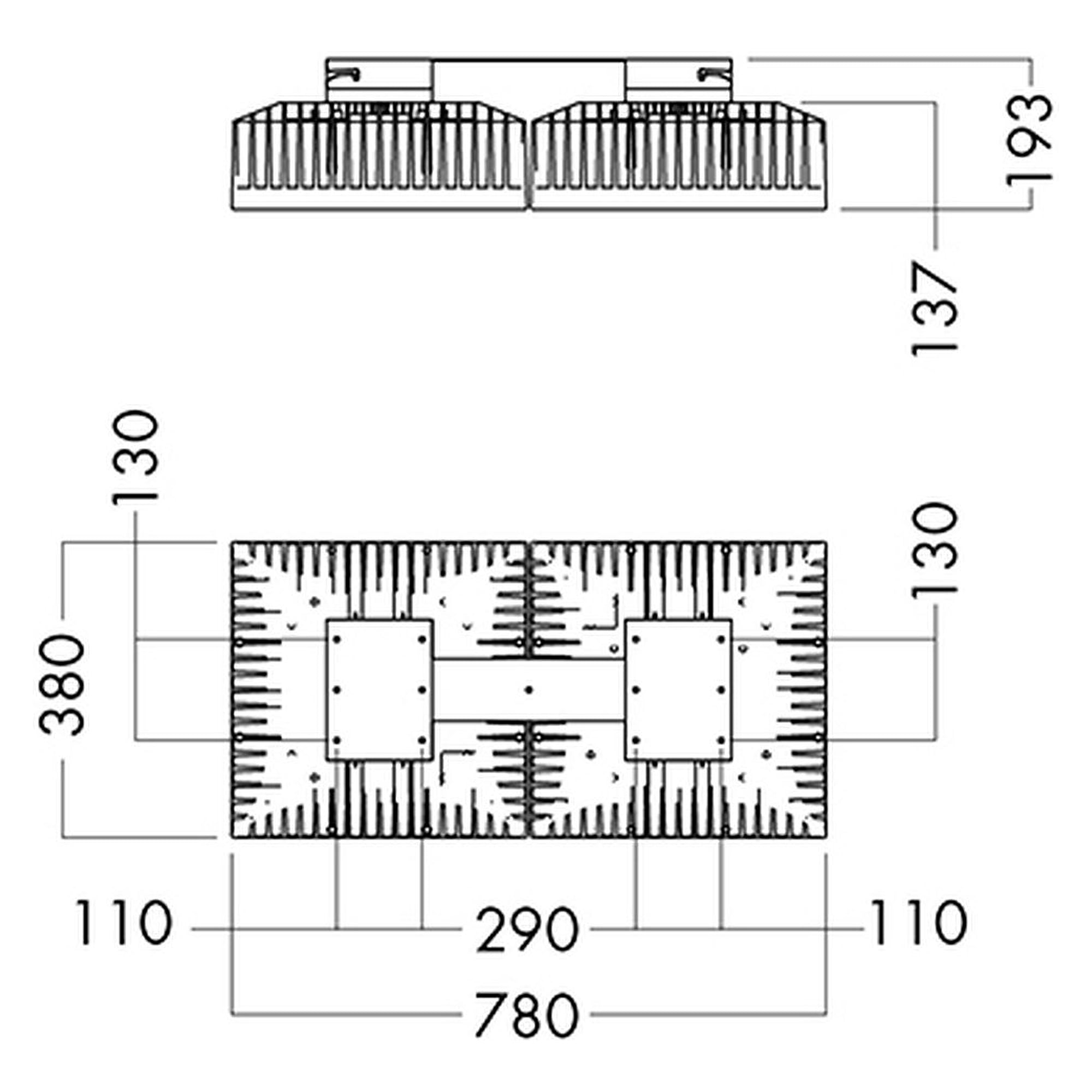

  • Dimensions

    1. Length (mm)
      780
    2. Width (mm)
      380
    3. Height (mm)
      193
    4. Net weight (kg)
      22.67

  • Termination

    1. Plug type
      Wieland M/F

  • Cable

    1. Cable Cross section (mm²)
      1.50
    2. Cable End / Plug Name
      QCW IP68 M
    3. Cable End / Plug Name2
      QCW IP68 F
    4. Cable length (m)
      0.50
    5. Cable material
      RUBBER
    6. No of leads
      5

  • Mounting

    1. Product mounting
      Ceiling Surface

  • Logistic Data

    1. Item gross weight (kg)
      24.64
More Information
Execution TEC
Manufacturer Nr. I80A22250
Manufacturer Glamox
Country of Manufacture Germany
EAN 4741145243353
Lead time 4 weeks
Weight 24.640000
Colour 4000K
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
