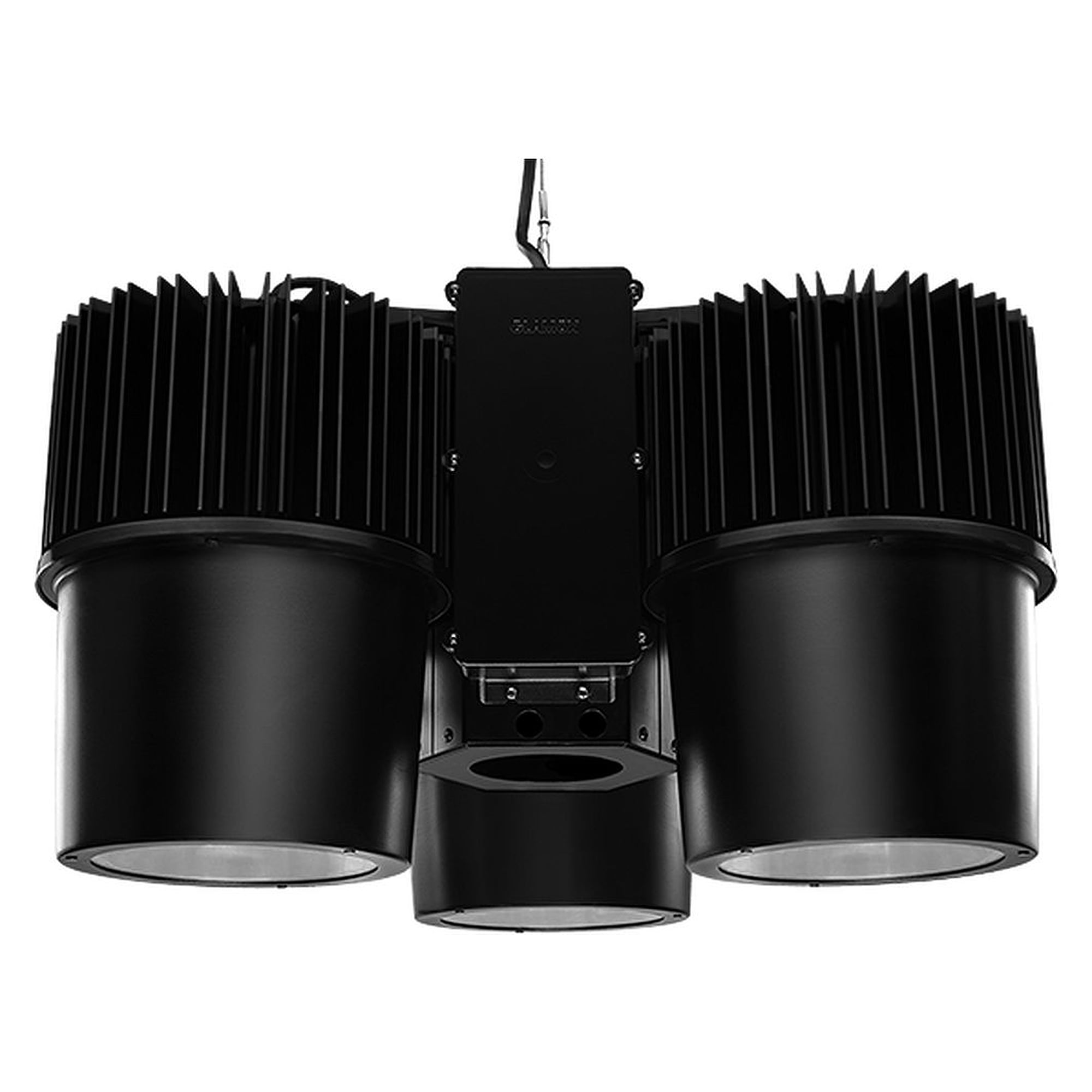

Glamox I90361241. Industry Lighting i90-P LED 60000 DALI 840 XNB CL C4

Name: Glamox I90361241. Industry Lighting i90-P LED 60000 DALI 840 XNB CL C4
Brand: Glamox
SKU: GL-I90361241
Price: 1977.5 EUR
Availability: InStock

Lead time

4 weeks

€1,977.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-I90361241

Manufacturer Nr.

I90361241

i90-P LED 60000 DALI 840 XNB CL C4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox I90361241. Industry Lighting i90-P LED 60000 DALI 840 XNB CL C4
€1,977.50
Excl. 19% VAT , excl. Shipping Cost
Glamox I90331244. Industry Lighting i90-P LED 30000 HF 840 NB HTG C4
€1,435.00
Excl. 19% VAT , excl. Shipping Cost
Glamox I90361246. Industry Lighting i90-P LED 60000 DALI 840 WB HTG C4
€1,991.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Special
Certificates
1. Certification
  Ball test
Electrical Data
1. Leakage current (mA)
  1.15
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  515
7. Number of luminaires on a 16A MCB type B (80% load)
  2
8. Number of luminaires on a 16A MCB type C (80% load)
  3
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Completeness
1. Item is not complete, missing
  Mounting kit for suspension
Technical Data
1. Minimum ambient temperature (ºC)
  -40
2. Maximum ambient temperature (°C)
  60
3. IK classification
  08
4. IP classification
  65
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  58,006
3. Lumen per Watt (lm/W)
  113
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
8. Minimum dim level (%)
  8
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. No Of Ballast
  2

Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

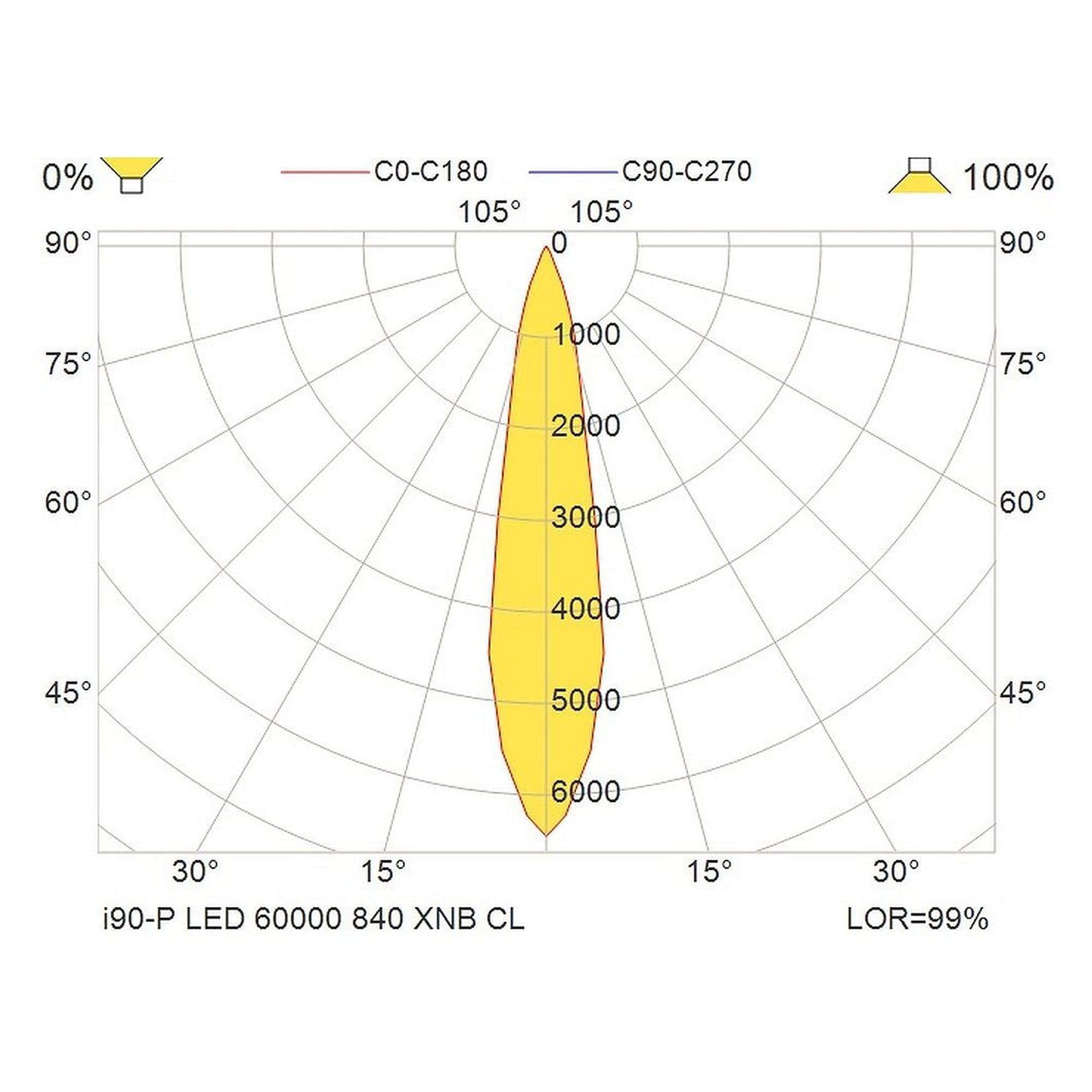

Optic
1. Optic
  XNB - Extreme narrow beam
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Clear
Housing
1. Body colour
  Black
2. Main body colour name
  Black

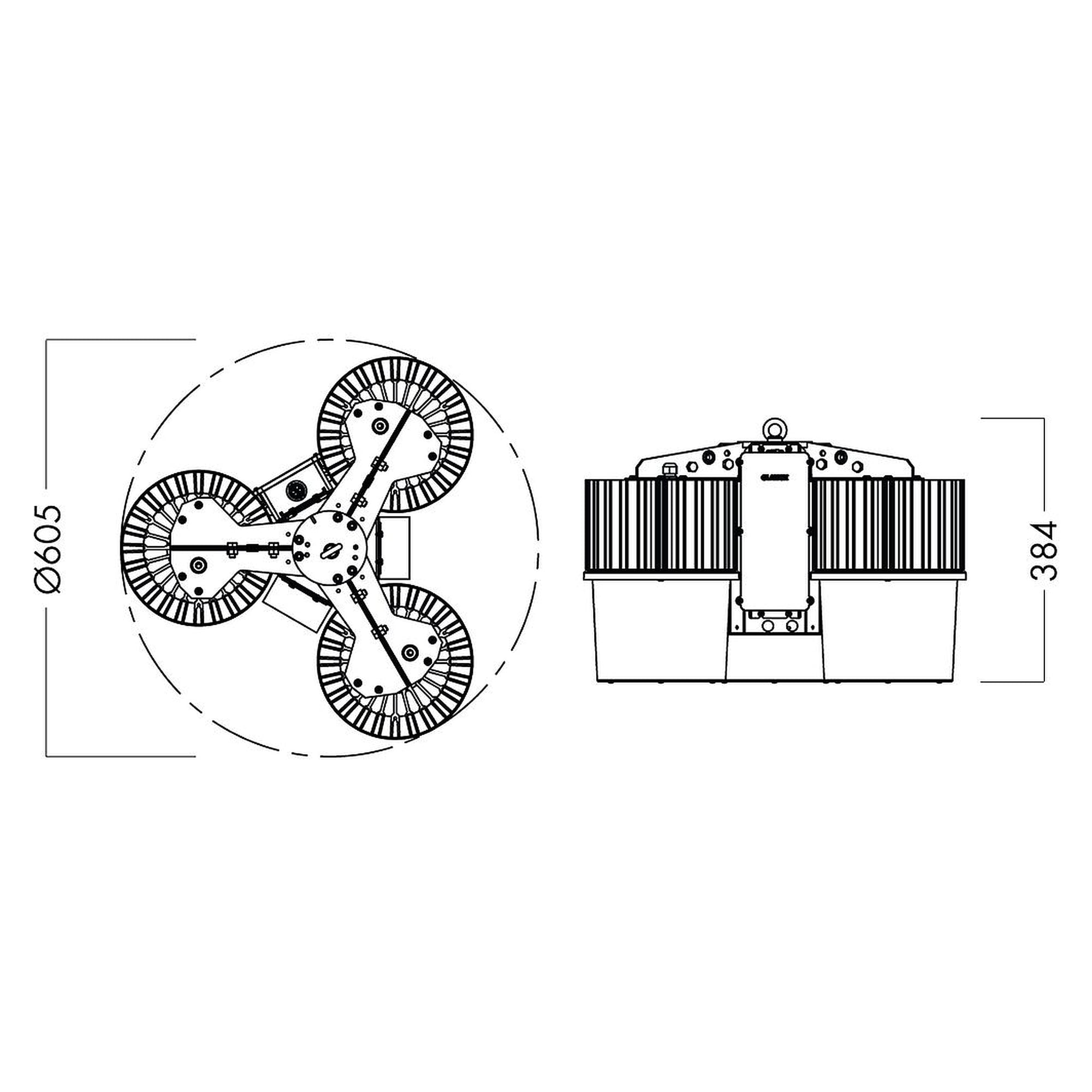

Dimensions
1. Height (mm)
  384
2. Diameter (mm)
  605
3. Net weight (kg)
  25.12
Cable
1. Cable Cross section (mm²)
  1.50
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  4
4. Cable material
  RUBBER
5. No of leads
  5
Mounting
1. Product mounting
  Pendant
Logistic Data
1. Item gross weight (kg)
  27.30

Information

More Information
Execution	TEC
Manufacturer Nr.	I90361241
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145255141
Lead time	4 weeks
Weight	27.300000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
