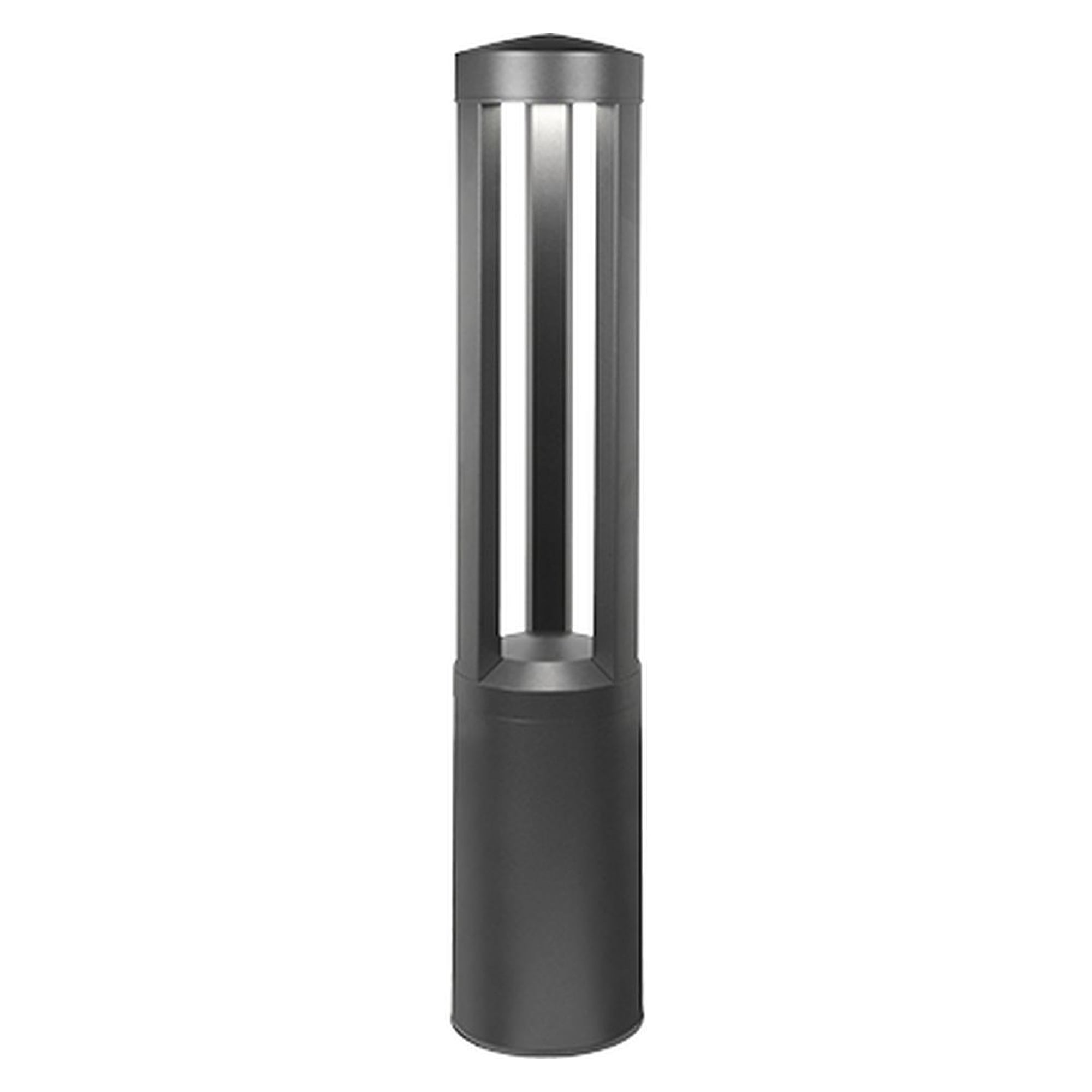

Glamox O37660616. Bollard O37 LED 1500 HF 840 1000MM ANTRACITE

Name: Glamox O37660616. Bollard O37 LED 1500 HF 840 1000MM ANTRACITE
Brand: Glamox
SKU: GL-O37660616
Price: 765.1 EUR
Availability: InStock

Lead time

6 weeks

€765.10

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O37660616

Manufacturer Nr.

O37660616

O37 LED 1500 HF 840 1000MM ANTRACITE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O37660616. Bollard O37 LED 1500 HF 840 1000MM ANTRACITE
€765.10
Excl. 19% VAT , excl. Shipping Cost
Glamox O70114301. O70-S290 LED 1200 DALI 840 WH
€303.80
Excl. 19% VAT , excl. Shipping Cost
Glamox O418018312. Pole O41 LED 6000 HF 830 WB BL
€1,046.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Round
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  07
4. IP classification
  66
5. Corrosion class
  C4

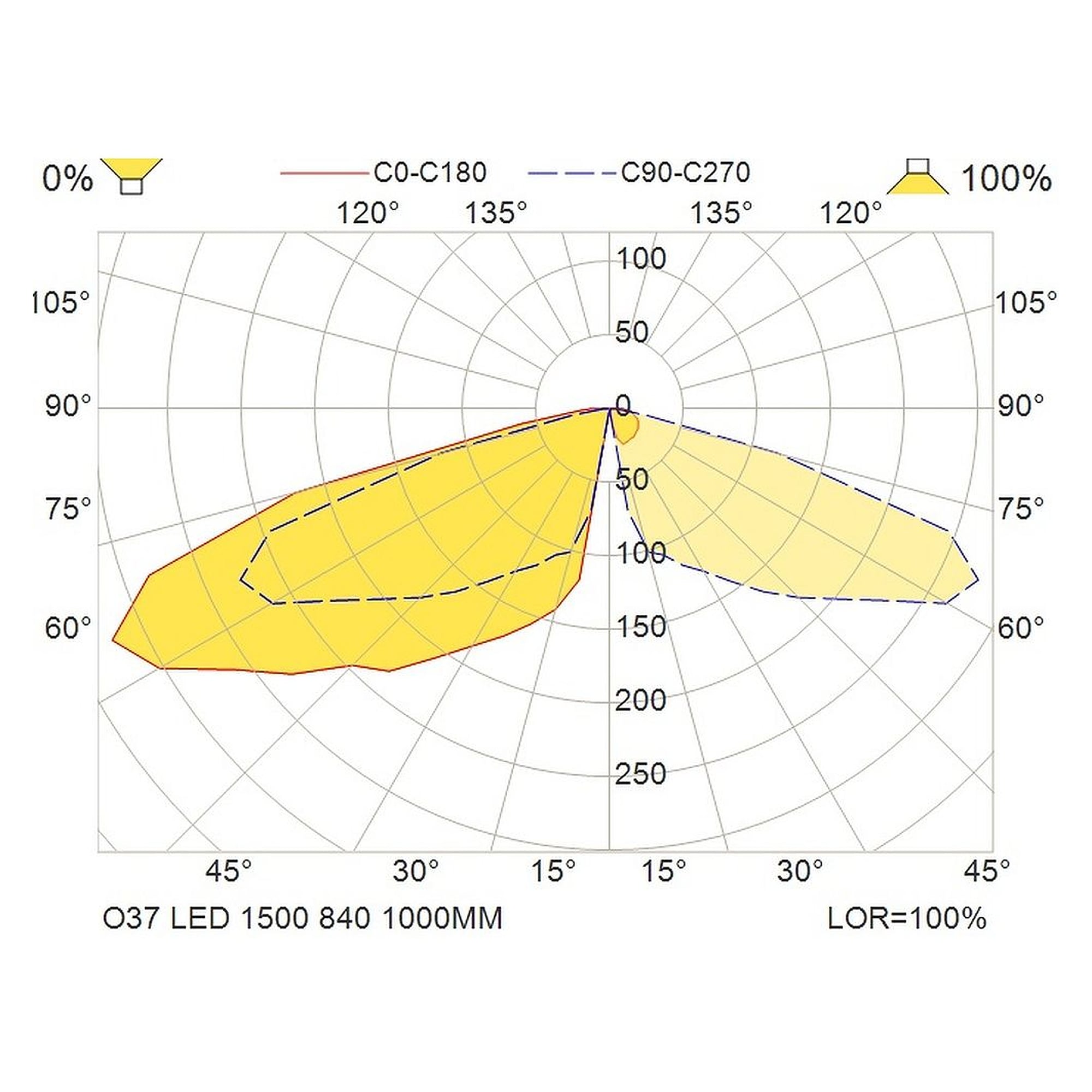

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,450
3. Lumen per Watt (lm/W)
  76
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  100 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  19
8. IEC Protection Class
  II
9. Protection against surges (kV)
  4
10. Number of luminaires on a 10A MCB type B (80% load)
  31
11. Number of luminaires on a 10A MCB type C (80% load)
  53
12. Number of luminaires on a 16A MCB type B (80% load)
  50
13. Number of luminaires on a 16A MCB type C (80% load)
  85

Optic
1. Material of diffuser
  Tempered glass
2. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Anthracite

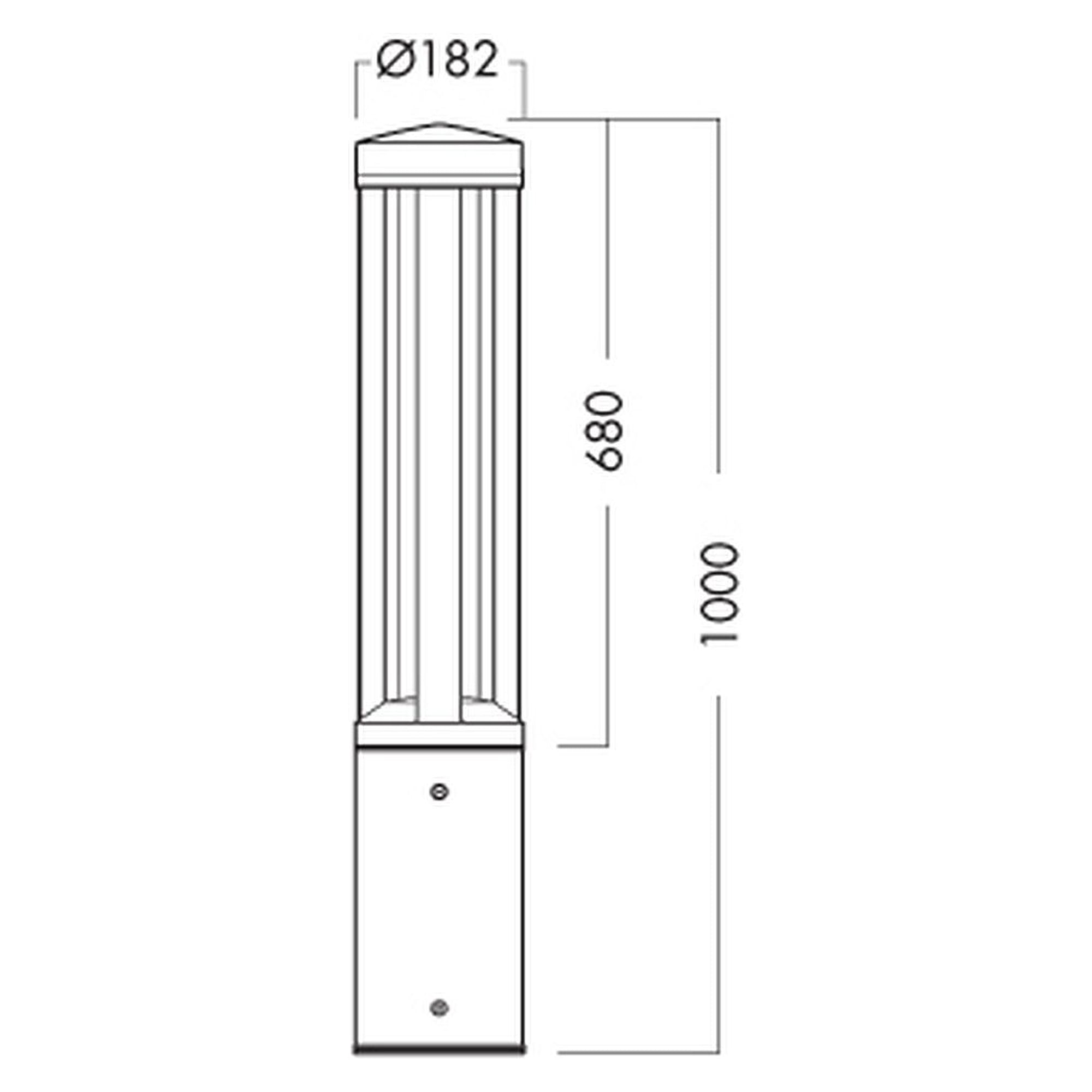

Dimensions
1. Height (mm)
  1,000
2. Diameter (mm)
  182
3. Net weight (kg)
  7.82
Mounting
1. Product mounting
  Surface Ground
Logistic Data
1. Item gross weight (kg)
  8.50

Information

More Information
Execution	TEC
Manufacturer Nr.	O37660616
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	8054378191077
Lead time	6 weeks
Weight	8.500000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
