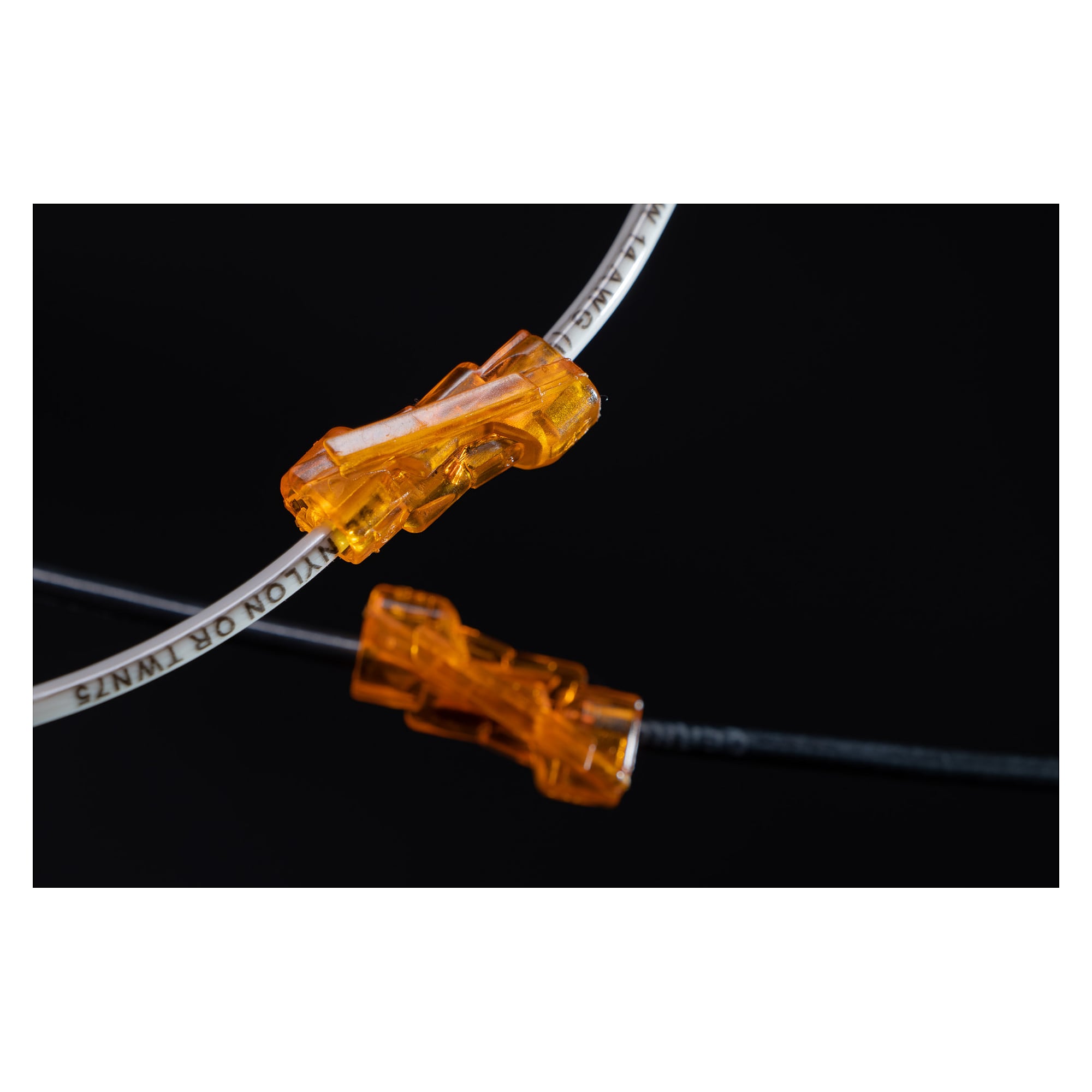

SpliceLine inline wire connector, 2-port, 0.5-4 mm², 32 A, pack of 10 - IDEAL 30-1342S

For one-off repairs and cable extensions in service work: join two solid wires 0.5-4 mm² end to end without crimping or soldering. The small pack of 10 is easy to carry in a tool case.

Benefits

• Inline end-to-end splice, according to the manufacturer it passes easily through standard cable glands and conduit entries
• Tool-free, strip 13 mm and push the conductor in
• Clear polycarbonate housing for visual inspection of the connection
• Rated 32 A / 450 V / 105 °C for solid wire 0.5-4.0 mm²
• Reusable on solid wire of the same or larger gauge
• Meets IEC 60998, UL 486C and UL 467 grounding, CE, UKCA and UL approved

Applications

• Repairing damaged wiring in maintenance
• Extending short conductors in boxes and control cabinets
• Service vans and tool cases

Usage notes

• Solid wire only, copper to copper only
• Only one conductor per port
• When reusing, cut and re-strip the conductor
• To remove a wire, pull while twisting it back and forth
