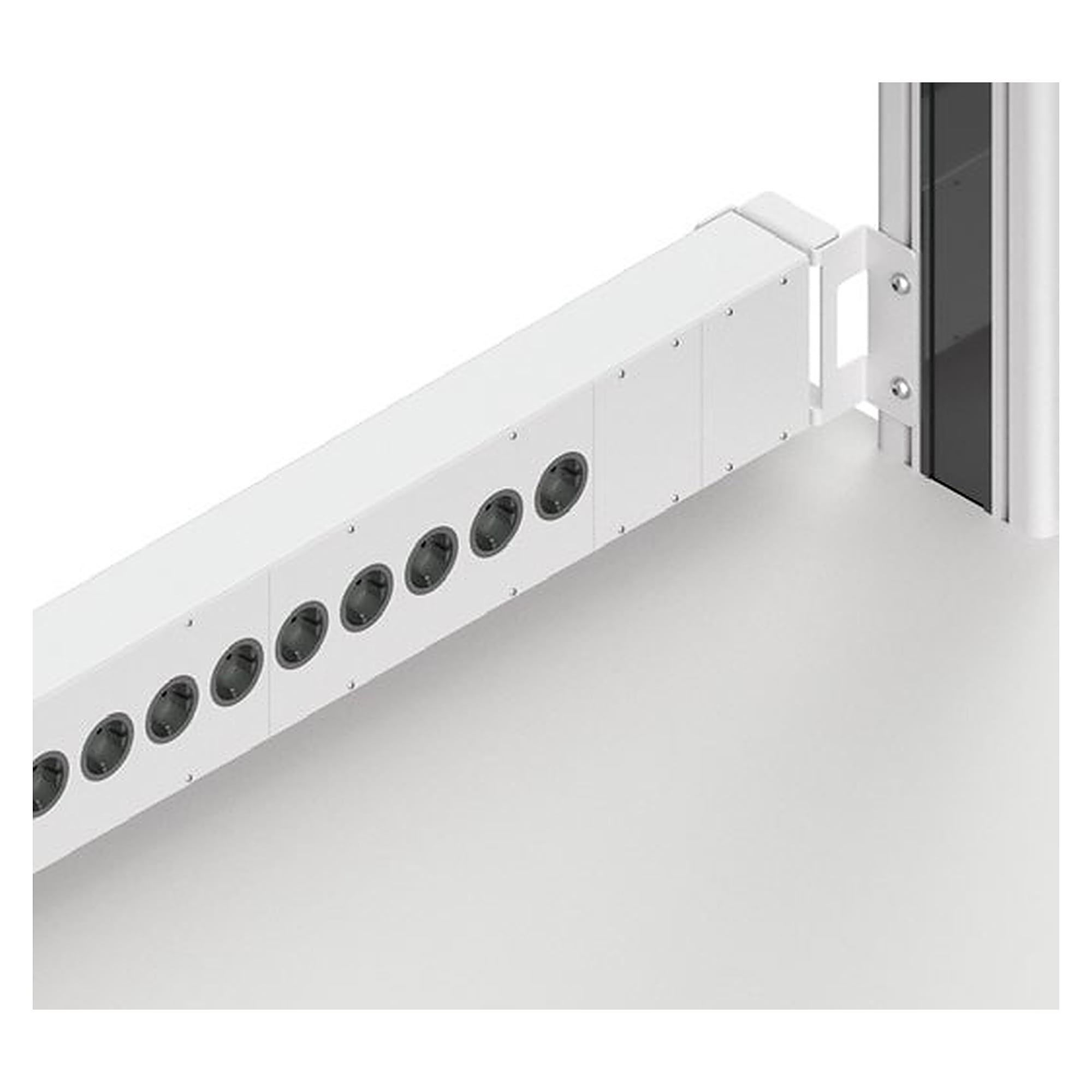

Power supply strip Quadro for insert plates, table width 1300 mm - Karl 14.450.70

Every workstation needs a different supply: sockets, switches, protection, data or compressed air. This power supply strip for the 1300 mm QUADRO table width offers 1100 mm of usable width and is fitted with insert plates from the KARL range exactly as required.

Benefits

• 1100 mm usable width for insert plates.
• For power, data and media supply, insert plates can be swapped or extended at any time.
• Sturdy sheet-steel housing in dado-trunking form, conductive powder-coated, light grey (RAL 7035).
• WINSTA connector system for mains connection and onward wiring.
• Infinitely height-adjustable, H = 140 mm, D = 76 mm.

Matching accessories and variants

• Power insert strip for cable tray with flap: KARL 14.451.70
• Socket module 300 mm: KARL 95.410.70
• Socket module 100 mm: KARL 95.412.70
• Switch module ON/OFF 16 A 2-pole, 100 mm: KARL 95.405.70
• Safety module with circuit breaker and emergency stop, 400 mm: KARL 95.365.70
• Blank plate 100 mm: KARL 95.205.70
• 3 m mains cable with Schuko plug and WINSTA socket: KARL 95.625.98

Applications

• Electrified assembly and test workstations
• Laboratories, test bays and service areas with frequently changing loads
• Workstation rows with continuous power and data supply
