table frame TriMax Light, electrically height-adjustable, 1200x800 mm - Karl 160.122.000.78

Set the working height to person and task at the push of a button: the KARL TriMax Light table frame moves infinitely from 760 to 1160 mm on a spindle lift system and carries 3000 N per frame. Built for 1200 x 800 mm table tops, with an integrated earthing system.

Benefits

• 400 mm stroke (760 to 1160 mm) at a lifting speed of 20 mm/s.
• Desk panel with 3 programmable memory keys, plus lowest and highest position programmable and directly selectable.
• Synchronous control of two table frames possible, for continuous work lines at the same height.
• Lifting columns made of two clear anodised aluminium profiles, C-foot system in jet black (RAL 9005).
• Integrated earthing system.

Matching accessories and variants

• ESD version, conductive: KARL 160.122.100.78

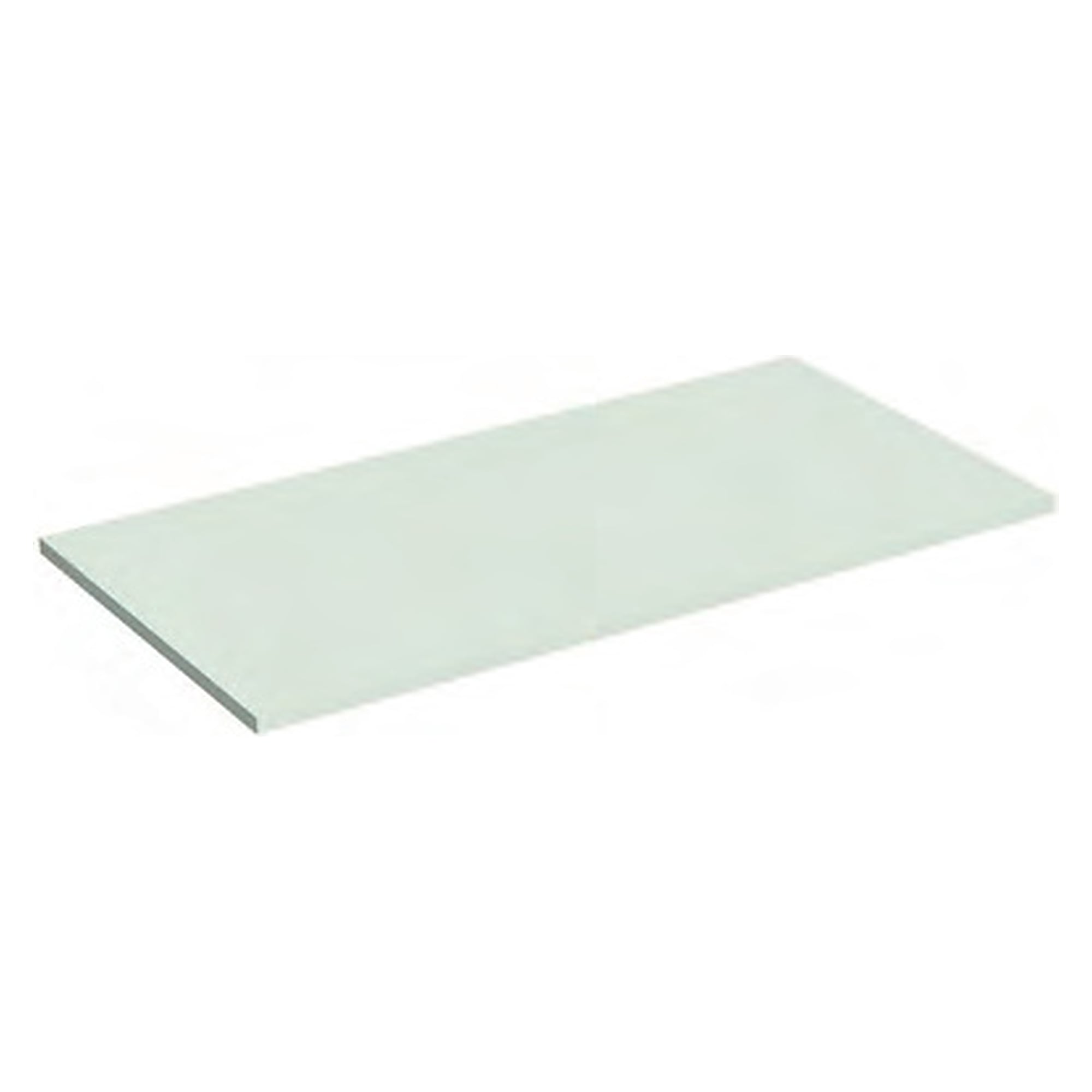

• HPL table top 1200 x 800 mm: KARL 200.121.00
• Cable tray with privacy screen for 1200 mm table width: KARL 190.115.08
• Power cable with Swiss plug (CH): KARL 95.628.98
• Monitor mount set Light: KARL 190.610.70

Applications

• Assembly and test workstations in production
• Quality assurance, test areas and measurement rooms
• Development and prototyping with changing operators in shift work
