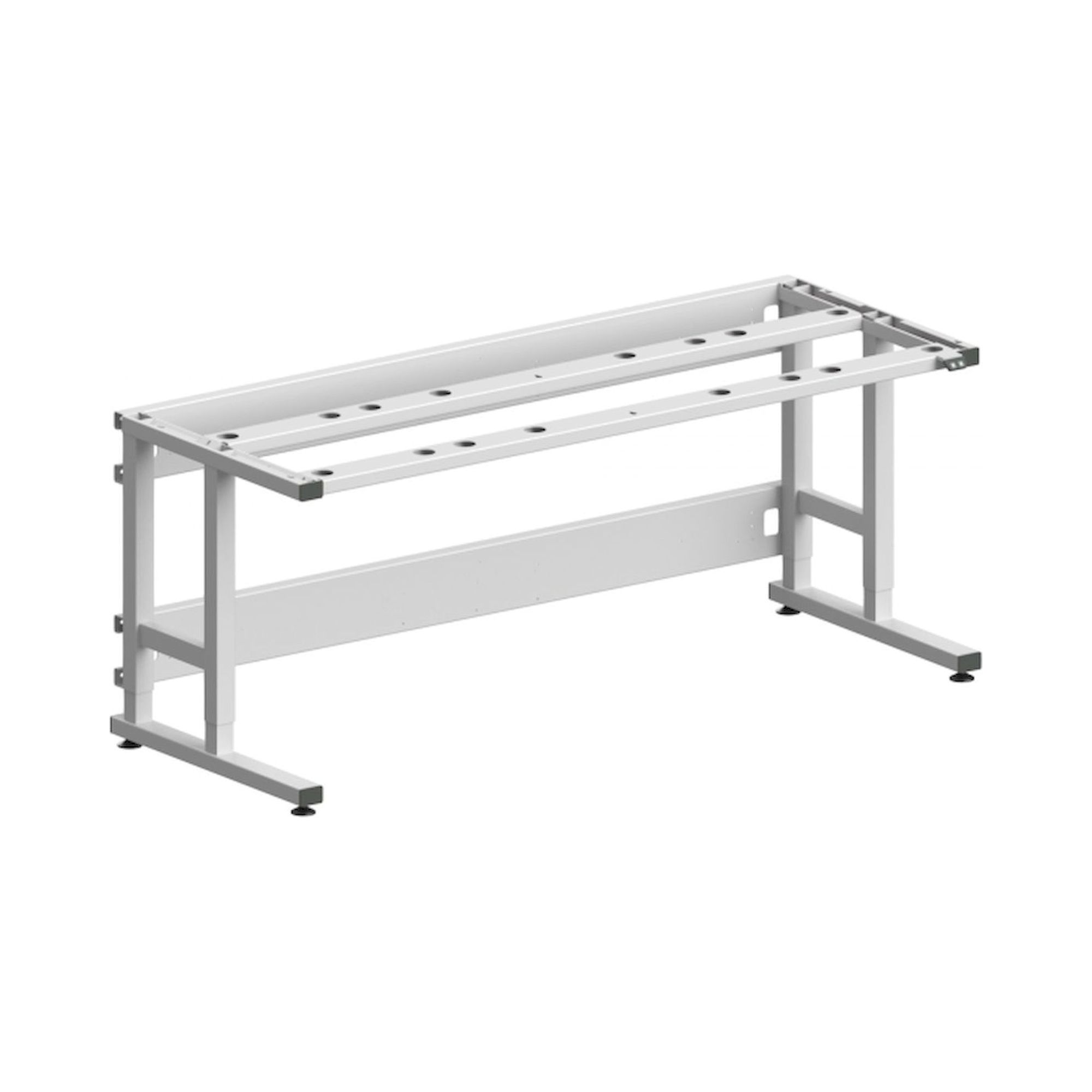

Sintro 930 ESD table frame, height adjustment with electric motor, Memo, 930x750 mm - Karl 26.303.70

Torsion-resistant table frame as the load-bearing base of the workstation. It securely carries the table top and add-on elements and adapts to the required working height.

Design and equipment

• sturdy steel-tube construction
• height adjustment range: 740-1140 mm
• work surface load-rated for 200 kg uniformly distributed load (4 lifting cylinders)
• conductive powder-coated light grey (RAL 7035)
• earthing box with two 10 mm press-stud connectors
• central earthing point for connecting the ESD or protective earth
• drive control via desk panel
• The intelligent control unit features
• 4 programmable position memories.
• The lowest and highest positions can be
• be defined during initial commissioning
• and be reached by means of the up/down keys.
• The table height is shown digitally.
• Height adjustment is operated via a
• corded remote control mounted on the underside of the table.
• A current monitor protects the drive
• against overload and at the same time acts as a
• safety function when the system is raised.
• (incl. 3 m connection cable)
• levelling elements in the foot section

Dimensions: 930x750 mm

ESD-safe design with dissipative connections and a central earthing point to EN 61340-5-1, protecting electronic components from electrostatic discharge.

Manufacturer

Genuine KARL quality, made in Germany.
