ESD-safe Basic 1600 work table, reinforced version, 1600x800 mm - Karl 30.125.35

Sturdy work table for the professional electronics and assembly workstation. The load-rated worktop and torsion-resistant steel frame provide a safe, ergonomic workplace in continuous use.

Design and equipment

• standard height 780 mm
• with reinforcement frame
• conductive powder-coated, water blue (RAL 5021)
• table top ESD direct-coated

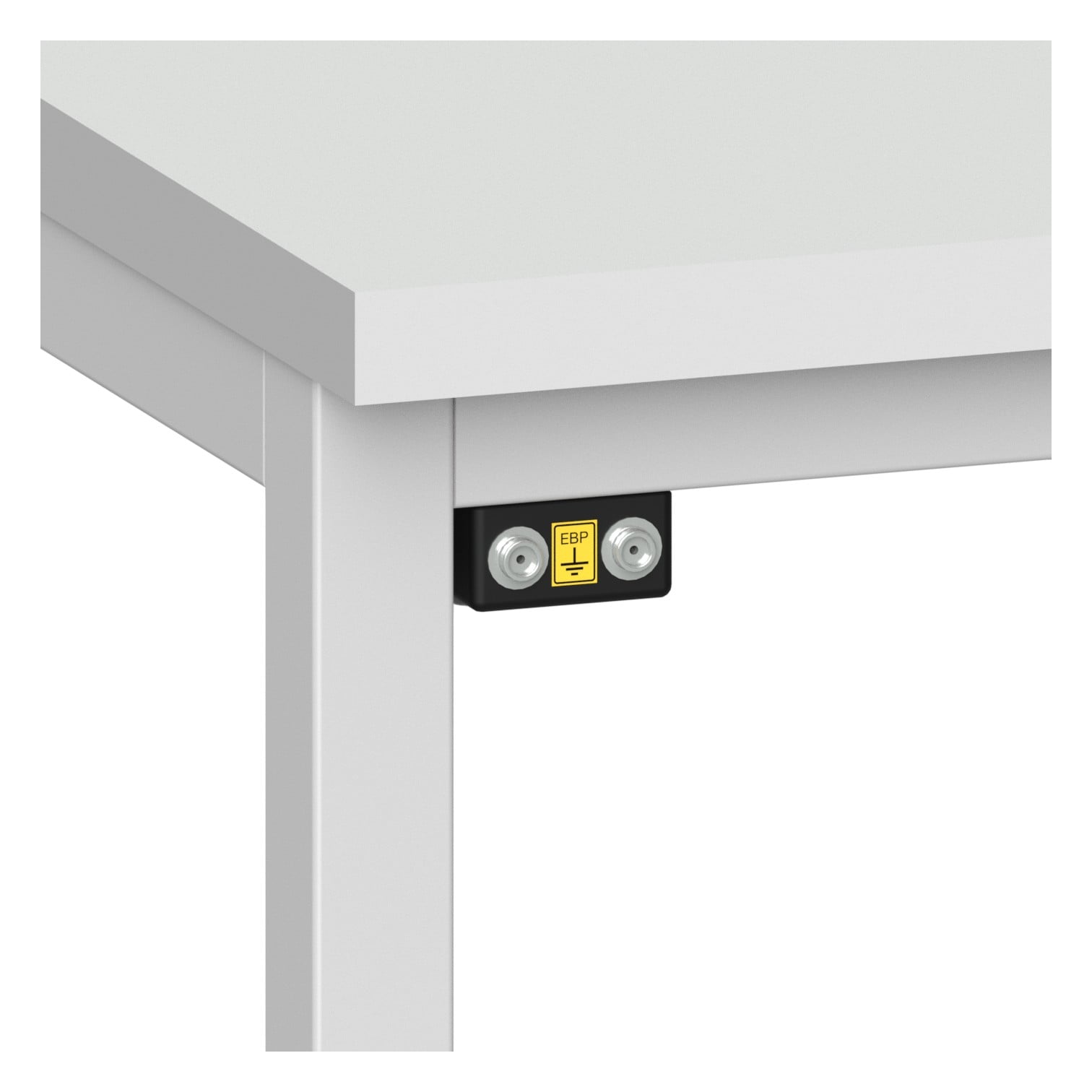

• incl. earthing system with 2 press-stud connectors
• table top 28 mm thick, light grey, volume-conductive carrier board with direct melamine-resin coating, limited abrasion and scratch resistance
• work surface load-rated for 200 kg uniformly distributed load
• Table frame made of sturdy square steel tube (35 x 35 mm)

Dimensions: 1600x800 mm

ESD-safe design with dissipative connections and a central earthing point to EN 61340-5-1, protecting electronic components from electrostatic discharge.

Manufacturer

Genuine KARL quality, made in Germany.
