ESD corner table top square Sintro, conductive ESD high-pressure laminate (EN 438), table depth 900 mm, 1000x1000 mm - Karl 35.930.89

In L-shaped workstations the corner between two tables is often wasted. The SINTRO square corner table top closes this gap for tables with 900 mm depth and creates a continuous surface measuring 1000 x 1000 mm, dissipative like the adjoining ESD table tops.

Benefits

• Square shape, outer dimensions 1000 x 1000 mm, matches SINTRO table tops with 900 mm depth.
• Fixing kit included.
• Very hard, abrasion-resistant HPL laminate in light grey (RAL 7035), highly scratch resistant.
• Volume-conductive core board, resistance to ground RA 1 x 10⁴ to 1 x 10⁹ Ohm (dry measurement to IEC 61340-5-1, 100 V).
• Heat resistant up to 180 °C for short periods, hard-wearing edge banding all round.

Matching accessories and variants

• Trapezoid corner top, same material: KARL 35.928.89
• Same shape for 750 mm table depth: KARL 35.910.89
• Same shape in high-pressure laminate (EN 438): KARL 35.930.88

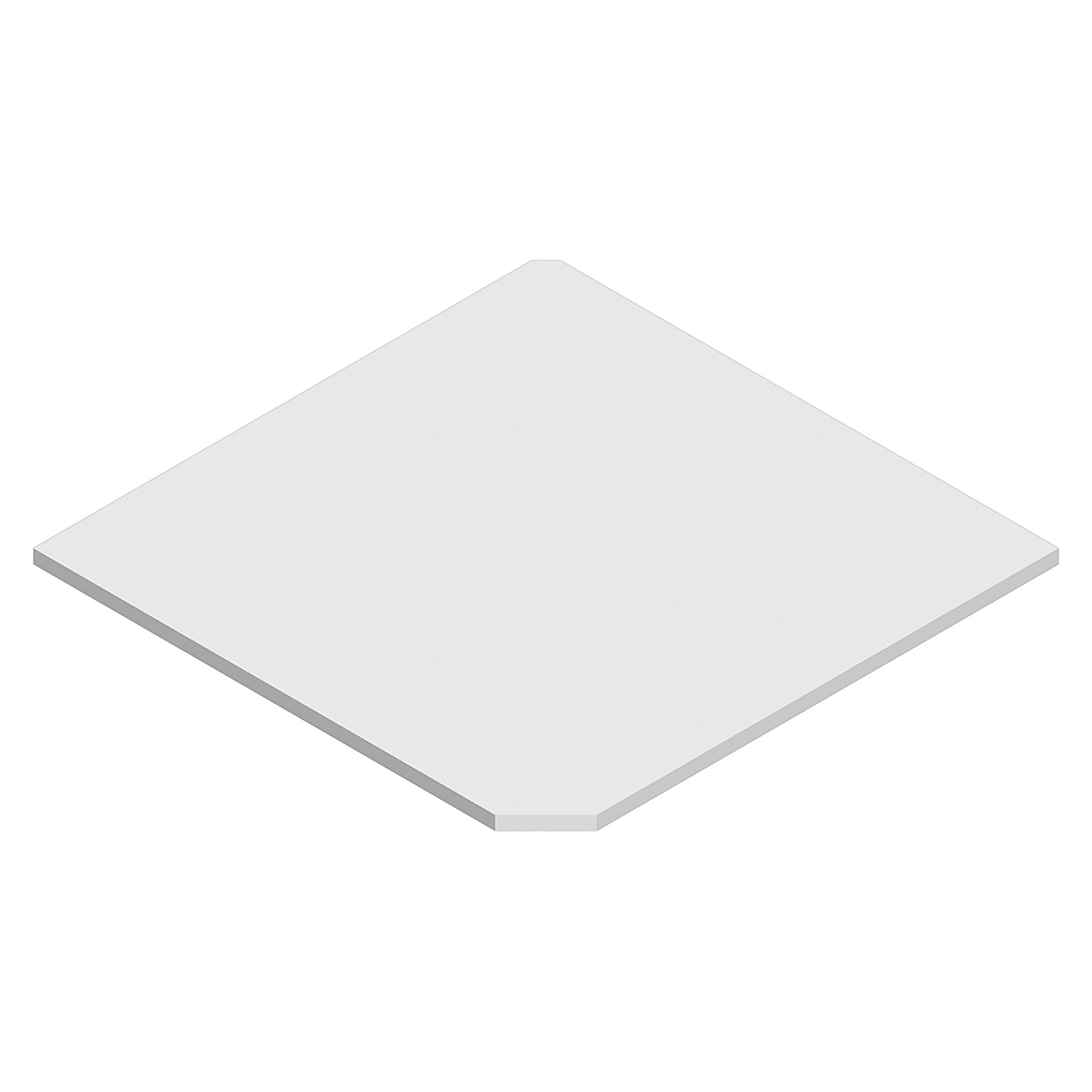

• Same shape in direct-coated ESD board: KARL 35.930.87
• Same shape in beech multiplex, natural: KARL 35.930.85
• Matching SINTRO table top 1230 x 900 mm: KARL 25.920.89

Applications

• L-shaped EPA workstations in electronics manufacturing and repair
• Linked assembly and test stations
• Corner workstations with extra storage area
