ESD ball-roller table top SINTRO pass-through, for workpiece carrier 300x400 mm, 1230x750 mm - Karl 56.810.89

Rotate the workpiece or workpiece carrier right at the workstation without lifting it: this pass-through ball-roller table top (in-line mounting) has ball units across the full 1230 mm table width and is mounted on the SINTRO table frame for ball-roller table tops (height adjustment 740 to 1140 mm). 300 x 400 mm workpiece carriers rotate in 90° steps and are held by integrated clamping elements. The conductive ESD surface integrates the workstation into a complete ESD system to IEC 61340-5-1.

Benefits

• Ball units with chromated Ø 15 mm steel balls across the full table width: carriers enter and leave from both sides.
• Workpiece carriers rotate and lock in 90° steps for ergonomic work on every side of the workpiece.

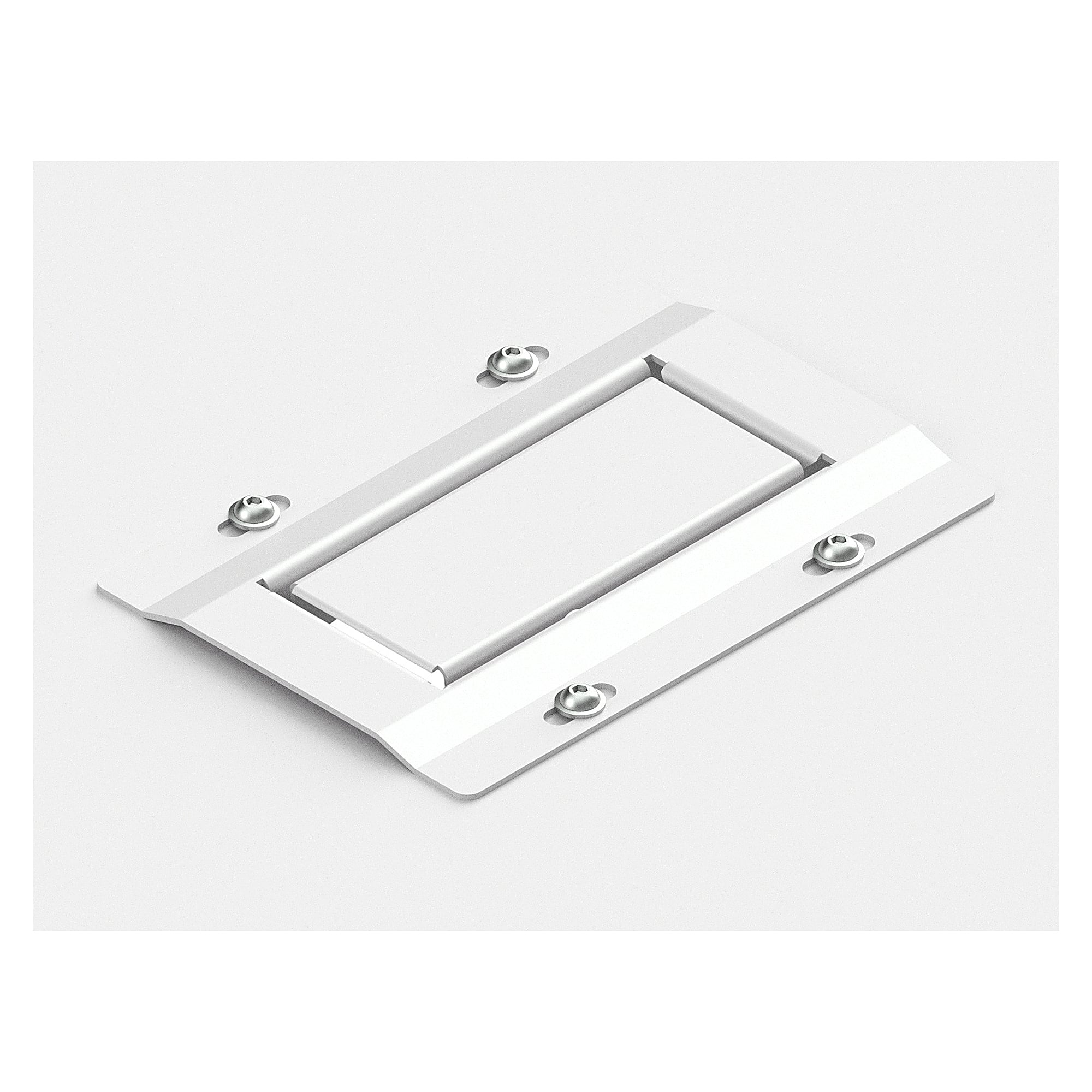

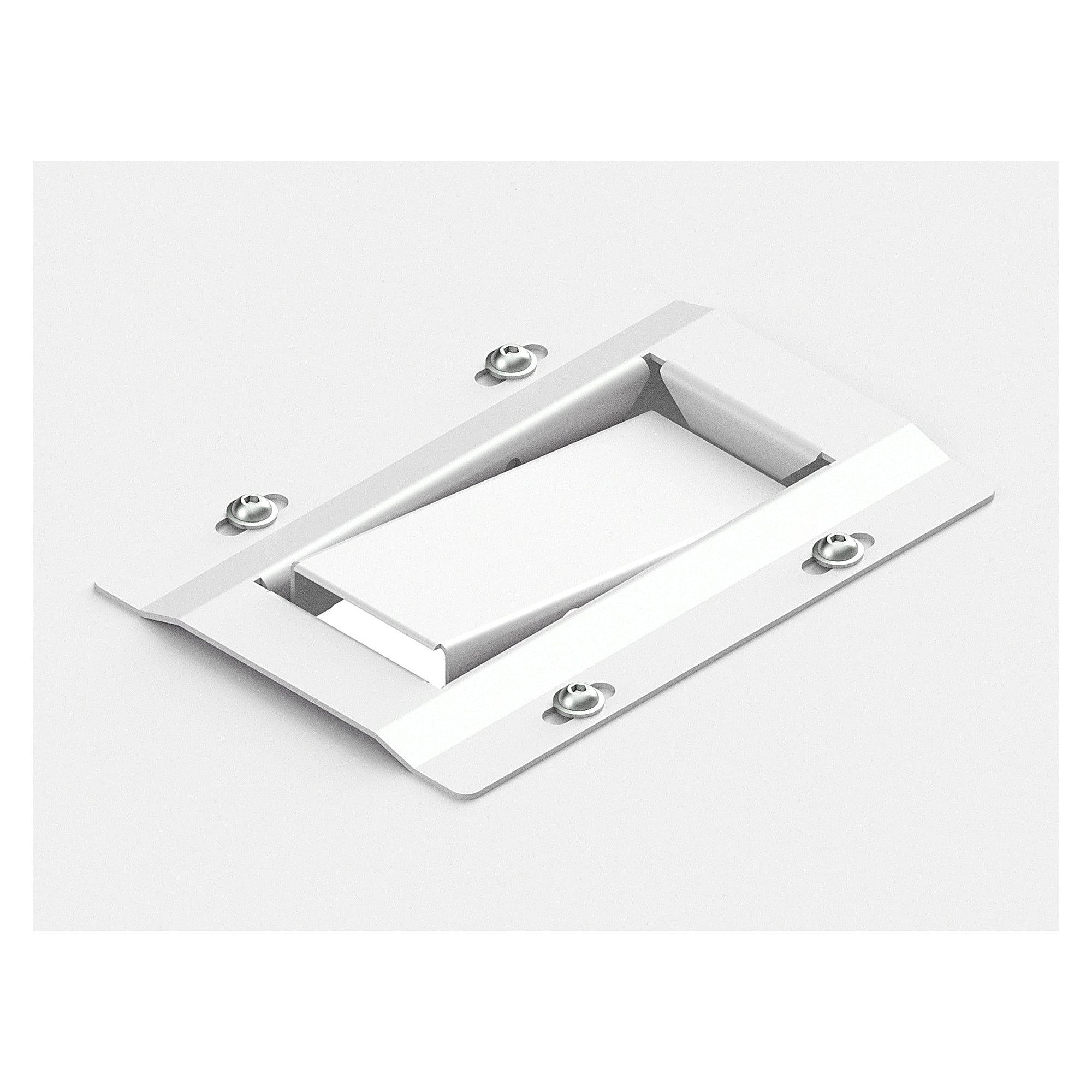

• Integrated clamping elements hold the carrier in position during assembly.
• Light grey work surface in conductive ESD high-pressure laminate (EN 438) with hard-wearing edge banding.

Matching accessories and variants

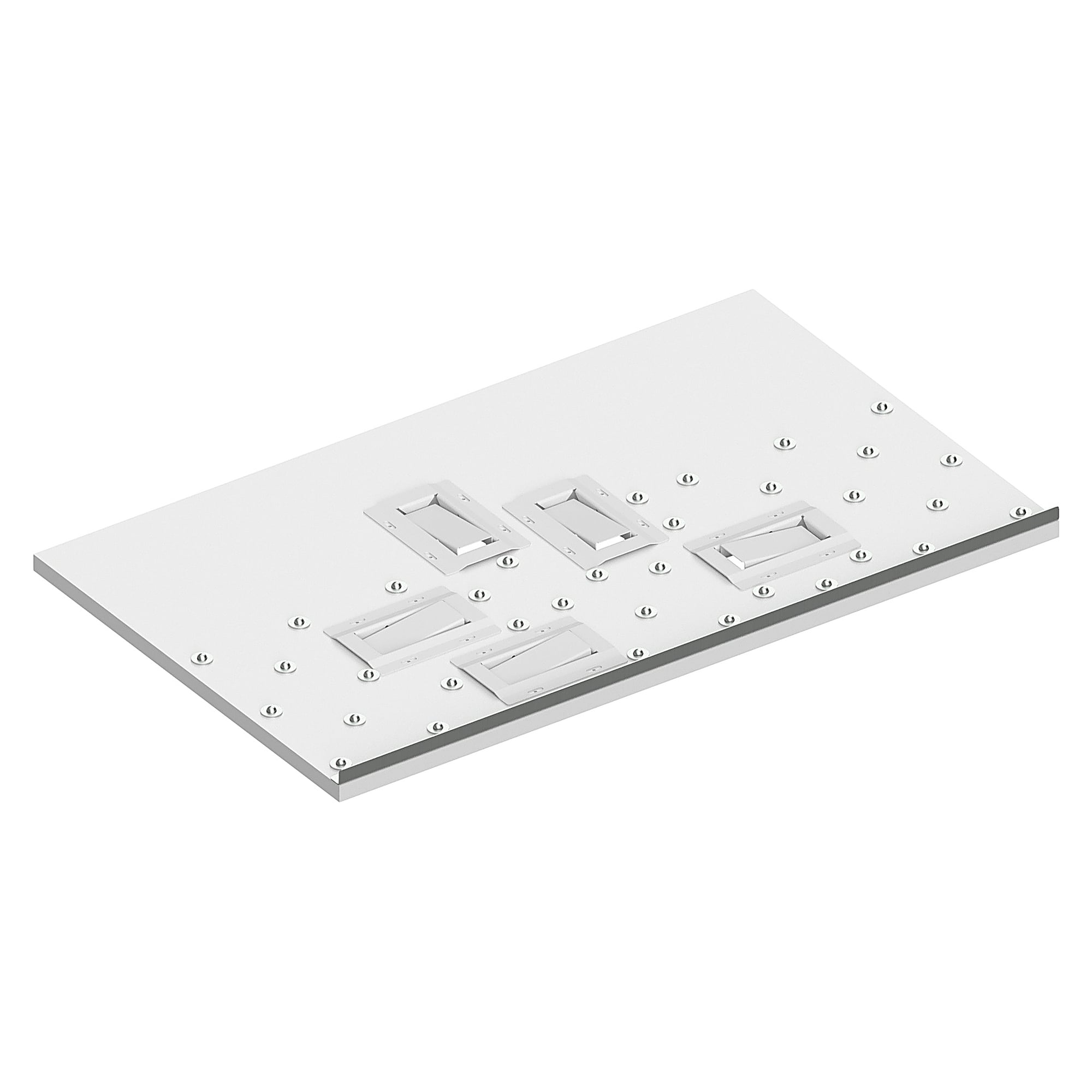

• Standard version without ESD: KARL 56.810.88
• Outfeed right, ball units over 2/3 of the table width: KARL 56.808.89
• Outfeed left, ball units over 2/3 of the table width: KARL 56.809.89
• ESD workpiece carrier 300 x 400 mm with top layer: KARL 59.711.98
• ESD SINTRO table frame for ball-roller table tops 1230 x 750 mm: KARL 26.005.70
• SINTRO corner element, ESD high-pressure laminate: KARL 56.895.89

Applications

• Assembly lines with manual workpiece carrier transport
• Assembly of large units worked on from several sides
• Electronics manufacturing in EPAs
