ESD ball-roller table top SINTRO, left-hand outfeed, for workpiece carriers 400x600 mm, 1530x750 mm - Karl 56.849.89

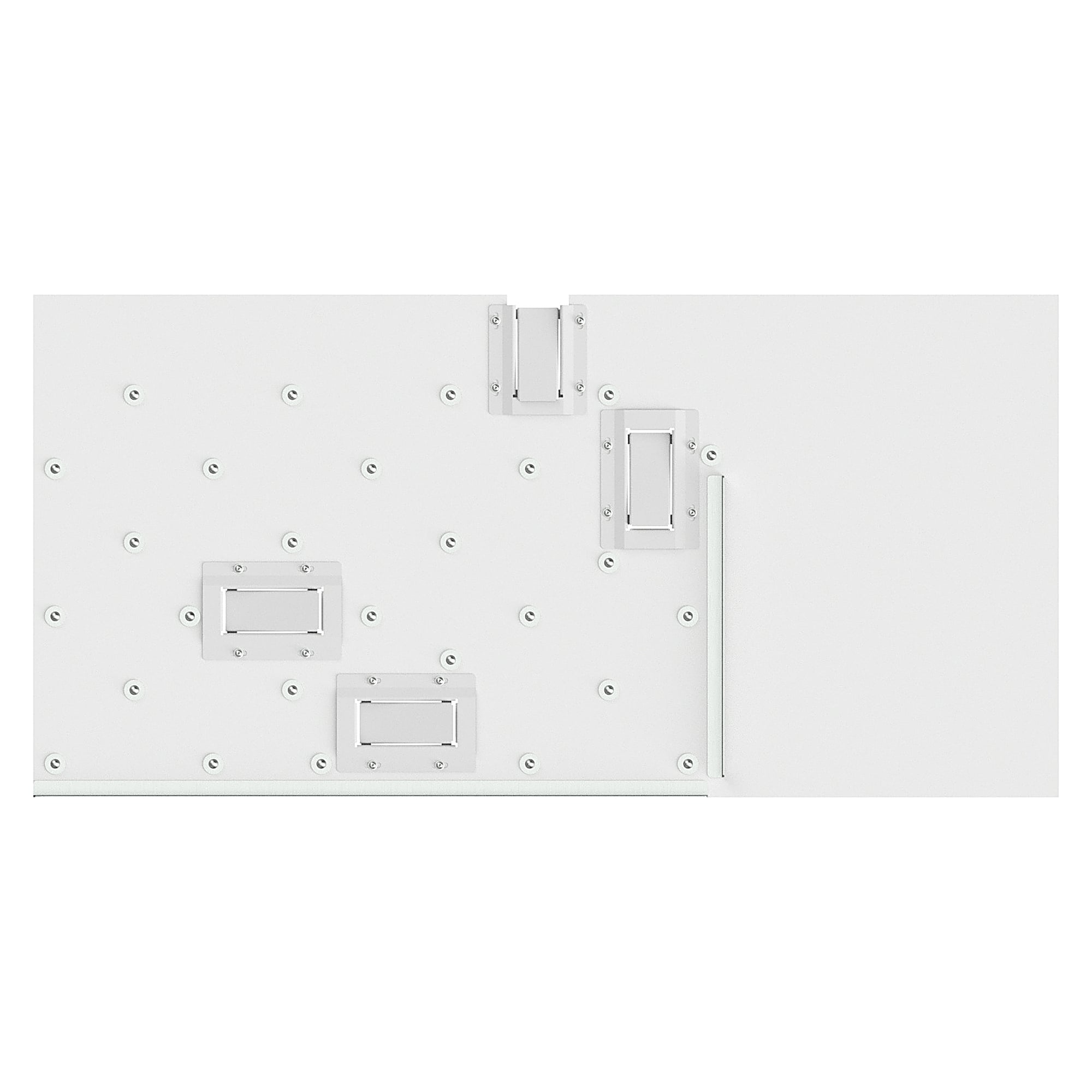

Turn, fix and divert workpiece carriers to the left out of the transfer line right at the workstation: the KARL SINTRO ball-roller table top carries ball elements across 2/3 of the table width and is matched to workpiece carriers 400 x 600 mm. Table width 1530 mm, depth 750 mm, work surface in conductive ESD high-pressure laminate (EN 438).

Benefits

• Workpiece carrier can be turned and fixed in 90° steps, so the workpiece can be worked on from every side.

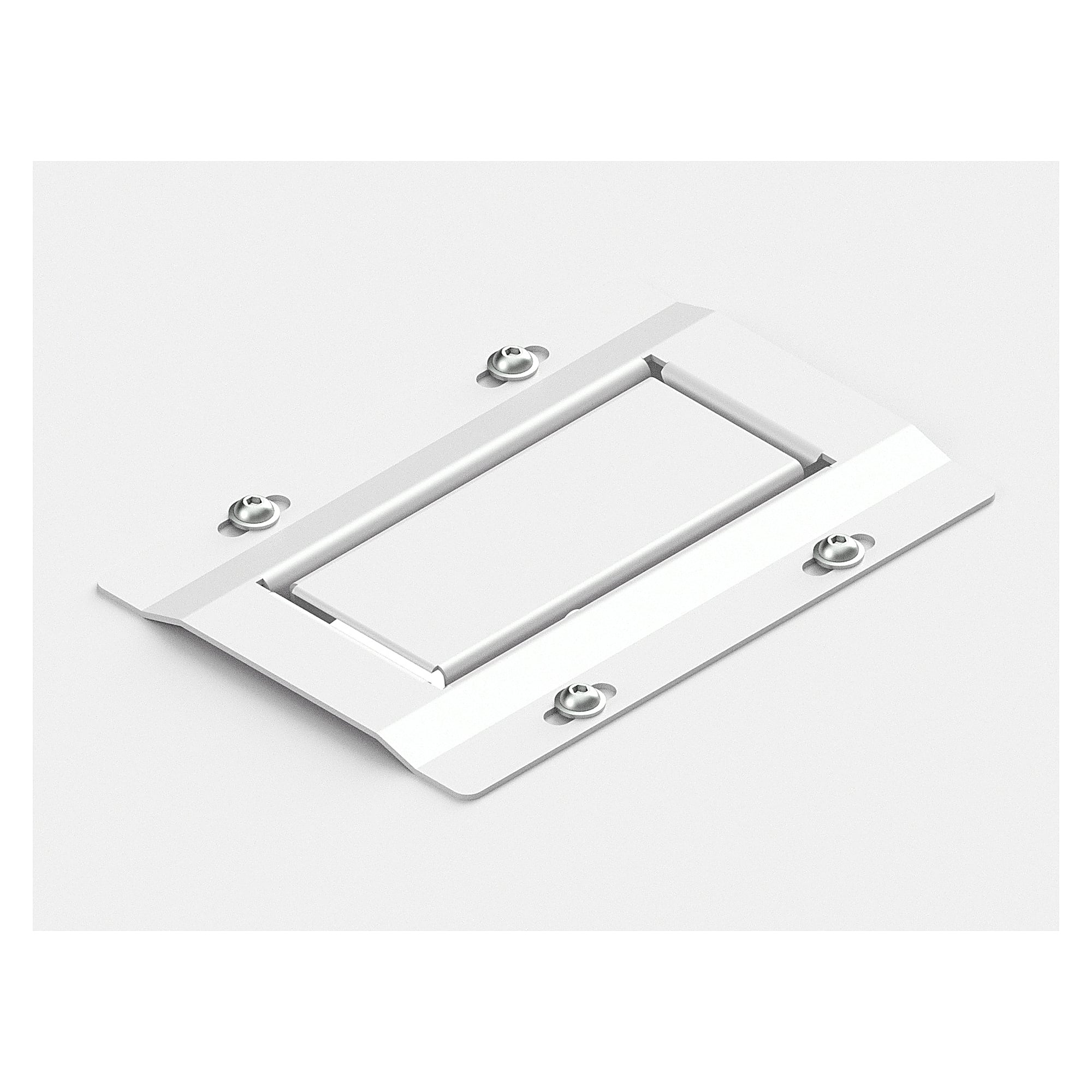

• Integrated clamping elements hold the carrier in position during work.
• Inset ball elements with chromated steel balls Ø 15 mm: the carrier moves and turns with little effort.
• Ball elements across 2/3 of the table width with left-hand outfeed, counterpart to the right-hand version.
• Light grey work surface with hard-wearing edge banding.
• Conductive ESD high-pressure laminate (EN 438): part of a complete ESD system to IEC 61340-5-1.

Matching accessories and variants

• Standard version without ESD: KARL 56.849.88
• Counterpart with right-hand outfeed: KARL 56.848.89
• Pass-through table, ball elements across the full width: KARL 56.850.89
• ESD SINTRO table frame 1530 x 750 mm for ball-roller table tops: KARL 26.025.70
• ESD workpiece carrier 400 x 600 mm with covering: KARL 59.721.98
• SINTRO corner element for workpiece carriers 300 to 600 mm: KARL 56.895.89

Applications

• Assembly workstations in transfer lines where the workpiece is worked on from several sides
• Diverting workpiece carriers to the left to test or rework stations
• EPAs in electronics manufacturing and device assembly
