Flanged-roller rails for transfer systems, set of 2, 815 mm long - Karl 57.505.72

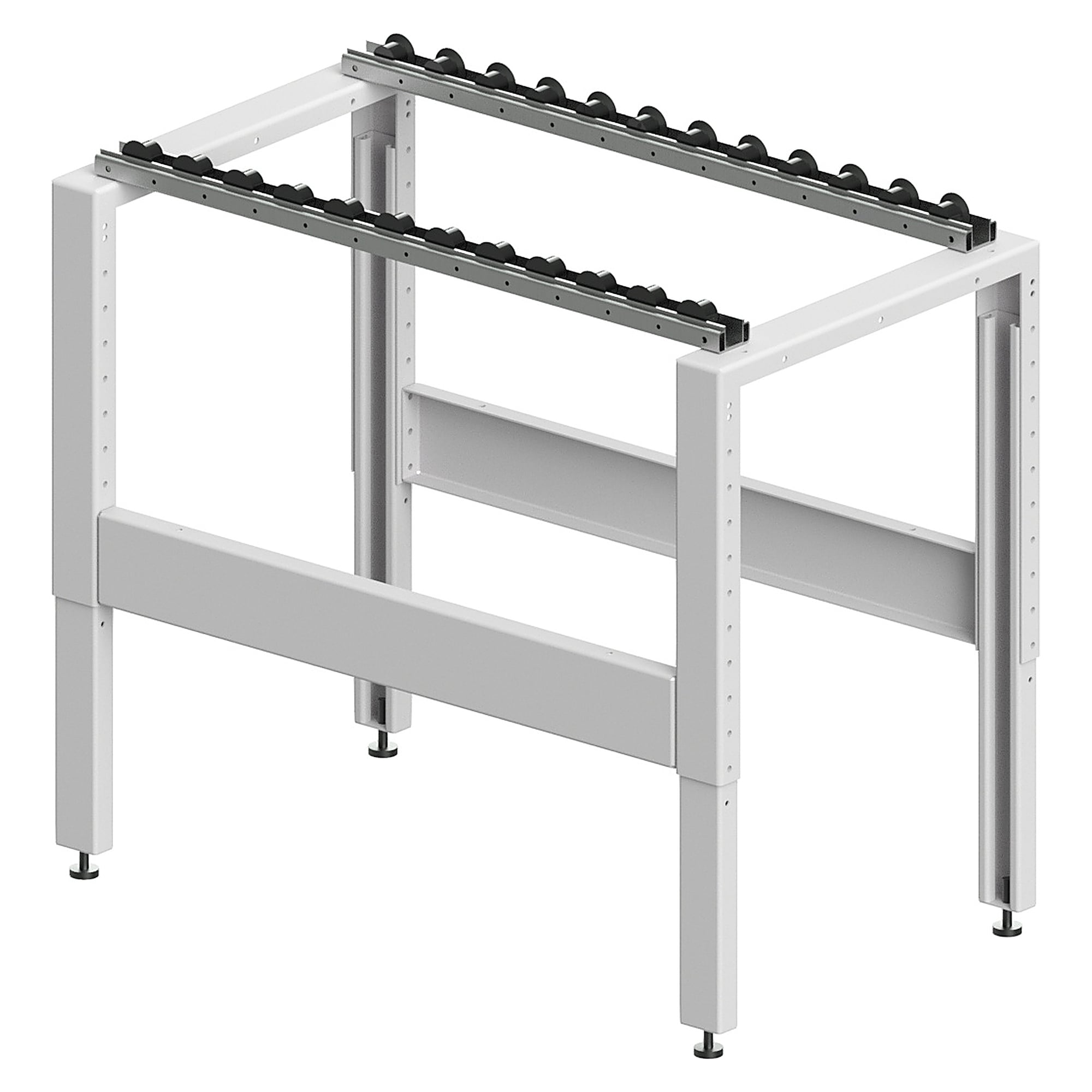

Push workpiece carriers easily from one workstation to the next: together with the KARL transfer frame, these flanged-roller rails form a manual transfer line. Two support rails with integrated plastic flanged rollers guide the carrier laterally and carry 100 kg per running metre.

Benefits

• Flange Ø 41 mm keeps the workpiece carrier on track without extra side guides.
• Rollers Ø 28 mm at a close 66 mm pitch for smooth running, also with small carriers.
• Load rating 100 kg per running metre.
• 815 mm length matches the 815 mm transfer frame.
• Ball transfer outfeed elements can be positioned anywhere along flanged-roller rails.

Matching accessories and variants

• Transfer base frame 815 mm long, track gauge 300 / 400 / 600 mm: KARL 57.005.70 / 57.015.70 / 57.025.70
• End stop for flanged-roller rails, track gauge 300 mm: KARL 59.105.70
• Set of covers for flanged-roller rails (2 pcs): KARL 59.101.70
• Clamping element, track gauge 300 mm: KARL 59.005.70
• ESD version: KARL 57.505.70
• Flanged-roller rails 1225 mm long: KARL 57.535.72

Applications

• Manual transfer lines between assembly and test workstations
• Buffer and staging lines for workpiece carriers
• Electronics manufacturing
