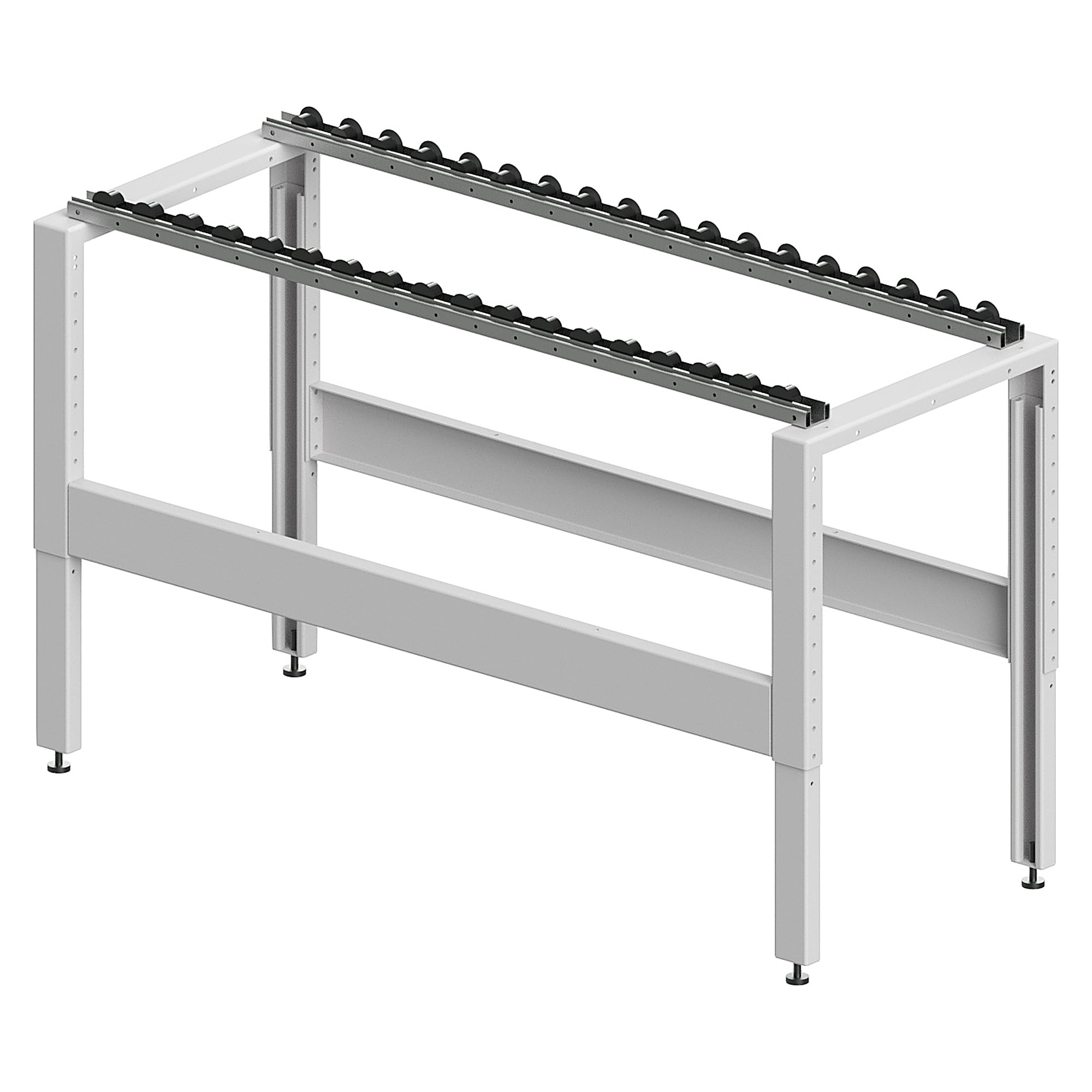

ESD flanged-roller rails for transfer systems, set of 2, 1225 mm long - Karl 57.535.70

Push workpiece carriers easily from one workstation to the next: together with the KARL transfer frame, these flanged-roller rails form a manual transfer line. Two support rails with integrated plastic flanged rollers guide the carrier laterally and carry 100 kg per running metre. In the ESD version the line is part of a complete ESD system to IEC 61340-5-1.

Benefits

• Flange Ø 41 mm keeps the workpiece carrier on track without extra side guides.
• Rollers Ø 28 mm at a close 66 mm pitch for smooth running, also with small carriers.
• Load rating 100 kg per running metre.
• 1225 mm length matches the 1225 mm transfer frame.
• Ball transfer outfeed elements can be positioned anywhere along flanged-roller rails.

Matching accessories and variants

• Transfer base frame 1225 mm long, track gauge 300 / 400 / 600 mm: KARL 57.035.70 / 57.045.70 / 57.055.70
• End stop for flanged-roller rails, track gauge 300 mm: KARL 59.105.70
• Set of covers for flanged-roller rails (2 pcs): KARL 59.101.70
• Clamping element, track gauge 300 mm: KARL 59.005.70
• Standard version without ESD: KARL 57.535.72
• Flanged-roller rails 815 mm long: KARL 57.505.70

Applications

• Manual transfer lines between assembly and test workstations
• Buffer and staging lines for workpiece carriers
• Electronics manufacturing in EPAs
