ESD top cabinet wood version with hinged door, 500x450x1292 mm - Karl 605.431.01

Use the space above the cabinet for storage: this top cabinet from the KARL wood range sits on a cabinet with the same footprint. On a side cabinet 772 mm high the combined height is 2064 mm, the height of KARL tall cabinets, giving a continuous cabinet wall. 3 file heights and two adjustable shelves are included. The ESD version complies with IEC 61340-5-1 and is built for EPAs in electronics manufacturing.

Benefits

• 19 mm light grey particleboard carcass with melamine-resin surface: scratch-resistant, hard-wearing and easy to clean.
• High lateral stability from the compact construction: carcass fully dowelled and glued, all edges with 2 mm ABS banding, 13 mm grooved-in back panel.

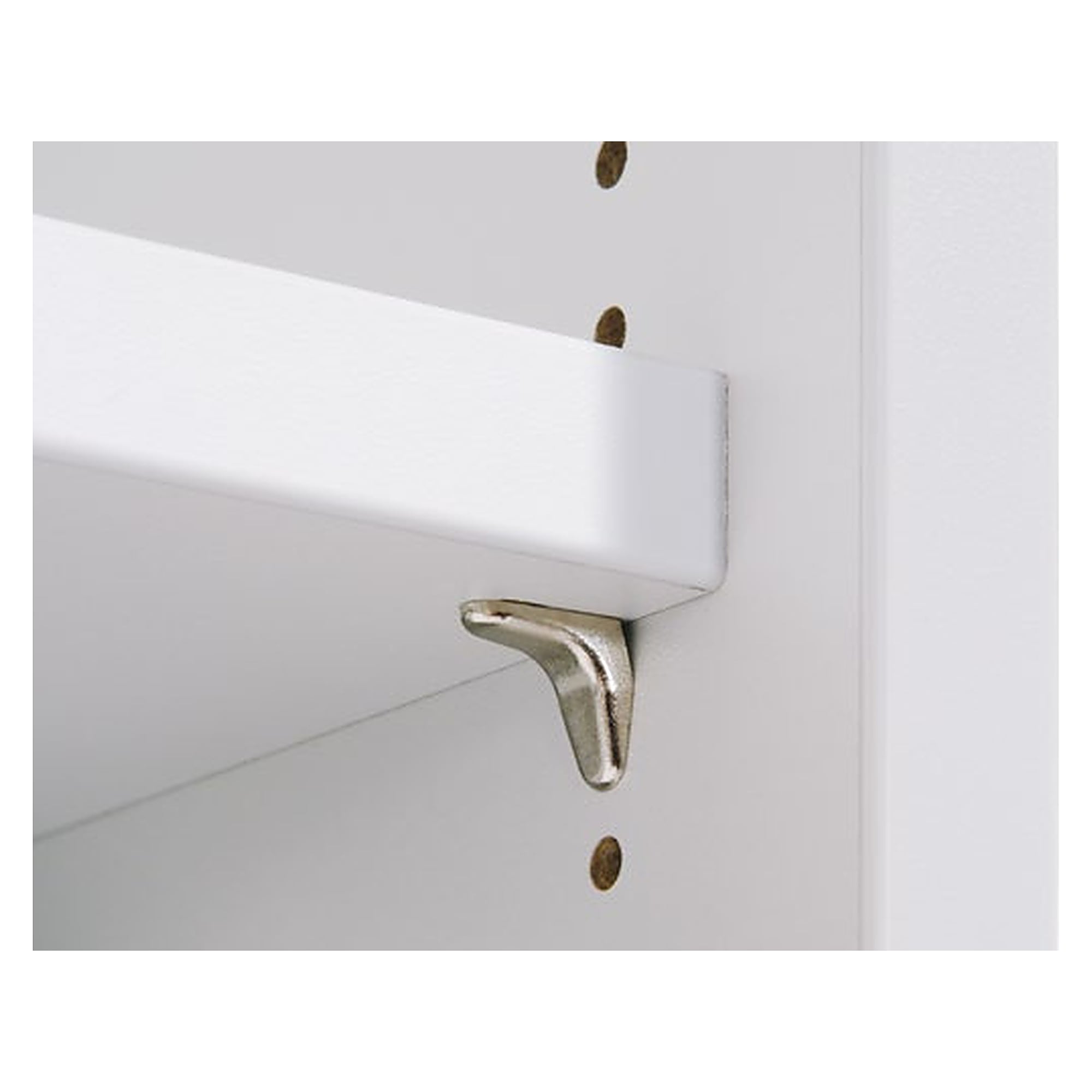

• 2 shelves (28 mm) adjustable in the 32 mm hole pattern of the side panels, metal shelf supports.

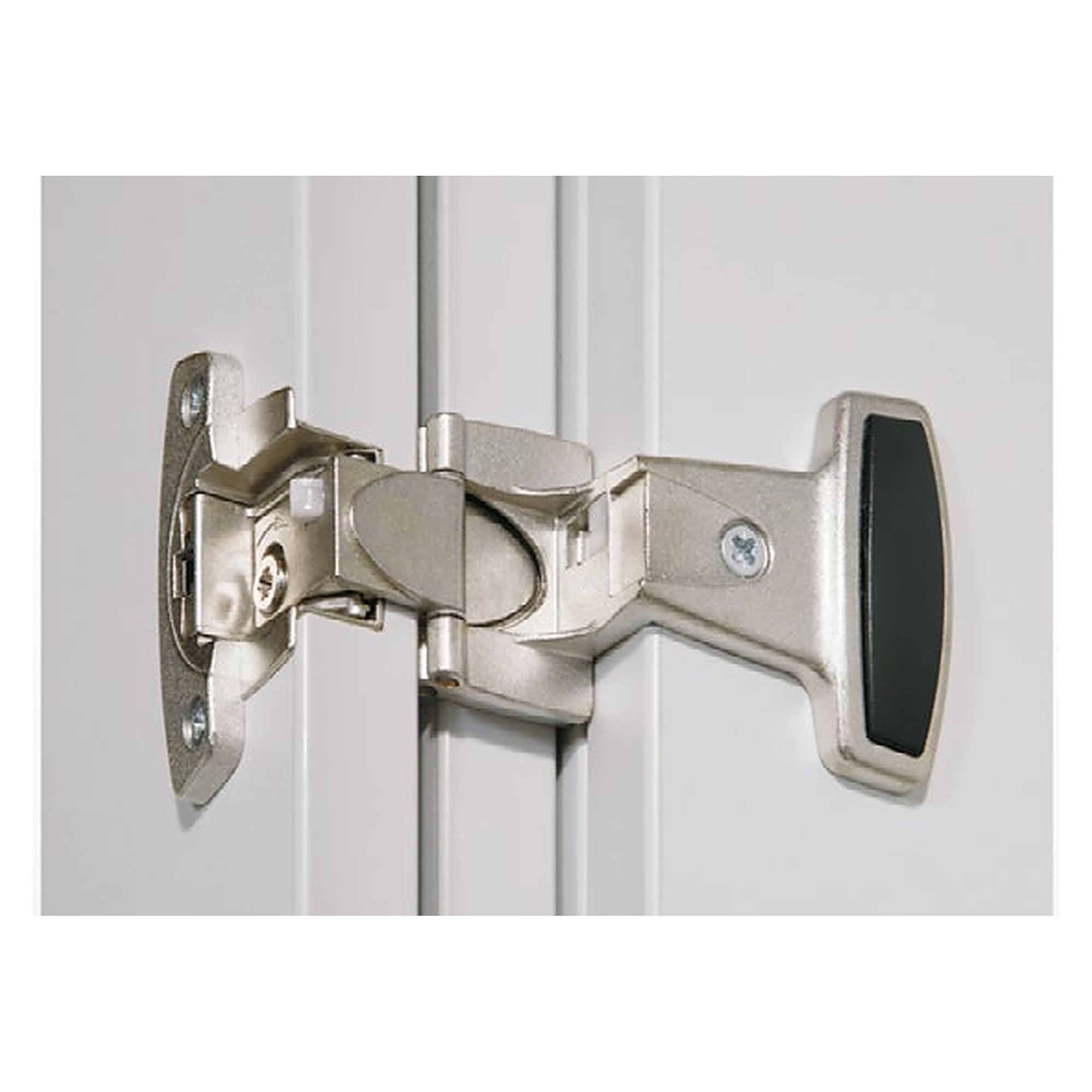

• Hinged door on 270° hinges.

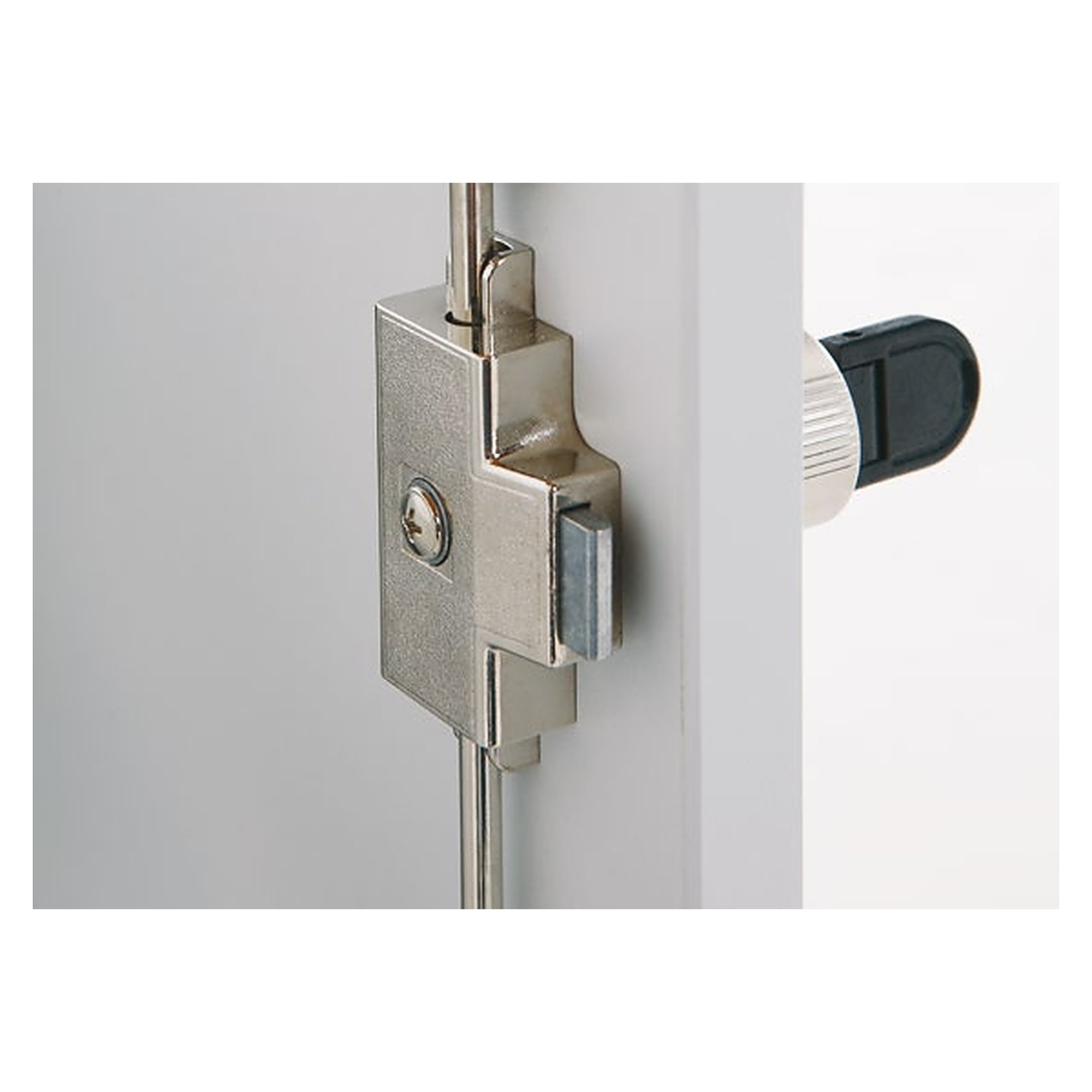

• Espagnolette lock with rotary knob, suitable for master-key systems, with folding key.

Matching accessories and variants

• Standard version without ESD: KARL 605.431.00
• Top cabinet 712 mm high: KARL 605.421.01
• Side cabinet as base unit, 772 mm high: KARL 505.421.01
• Top cabinet with glazed hinged doors: KARL 605.432.01
• Top shelving unit without doors, same height: KARL 605.435.01
• Additional ESD shelf 460 x 400 mm: KARL 705.411.11

Applications

• EPAs in electronics manufacturing, repair and test areas
• Cabinet walls up to 2064 mm for files, documentation and spare parts
• Offices and laboratories in technical environments
