Floor Scale 1500 kg / 3000 kg Readability 0,5 kg / 1 kg - KERN BID 3T-3DLM

The KERN BID 3T-3DLM weighs pallets, containers and bulk goods at floor level up to 3000 kg. As a multi-range scale it switches automatically between 1500 kg / 3000 kg as the load grows, giving 0,5 kg / 1 kg readability. Light and heavy loads are both captured in fine steps on a 1500 x 1500 mm weighing area.

Benefits

• Capacity up to 3000 kg: weighs pallets and heavy containers at ground level.
• Verification-ready (class III, e = 0,5 kg; 1 kg): legally compliant weighing for commercial use.
• Rugged weighing bridge (IP67): anti-slip steel chequer plate with 4 silicone-coated alloy-steel load cells.

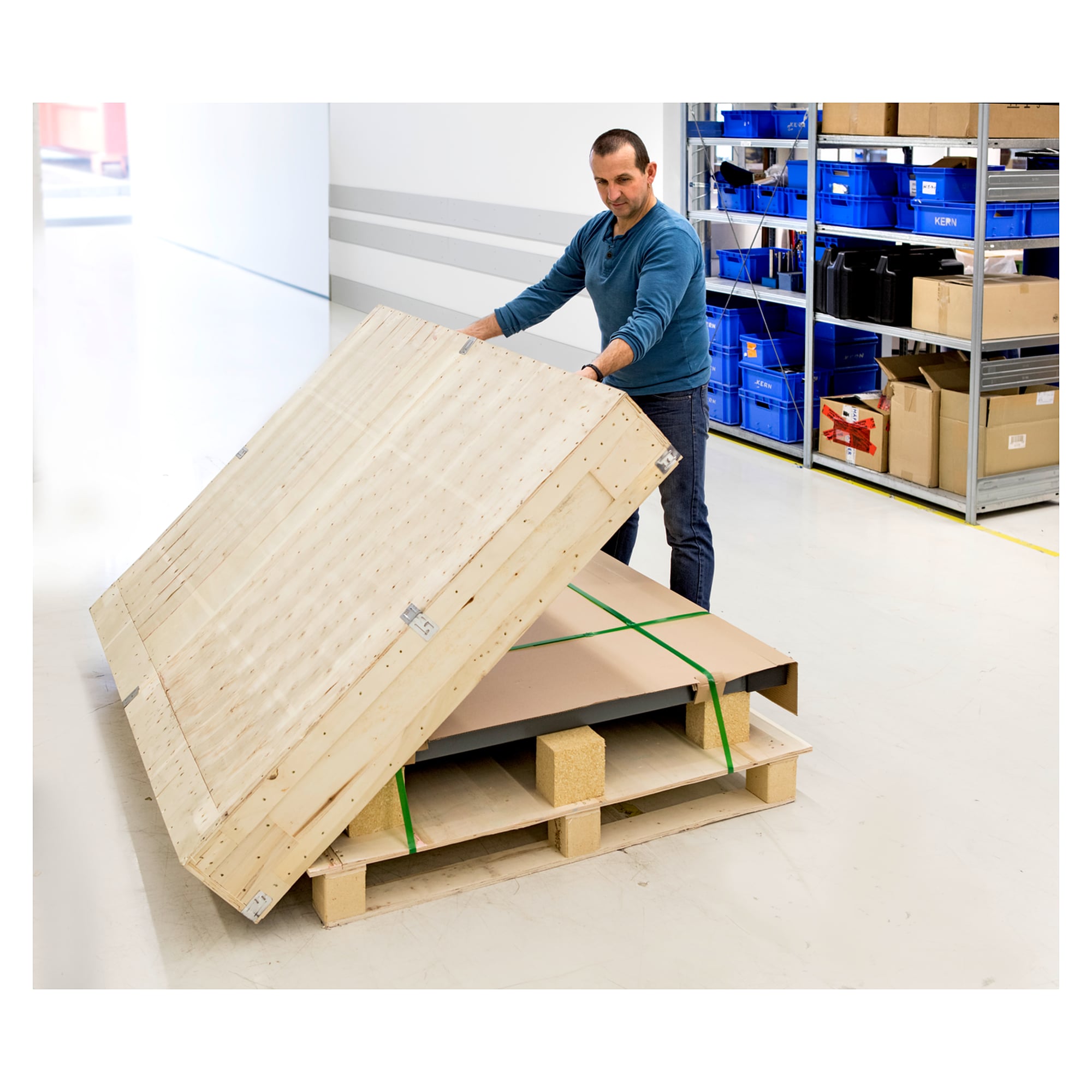

• Easy to service: weighing bridge lifts for cleaning, junction box and levelling accessible from above.
• Data connectivity: RS-232 as standard, optional USB, Ethernet and WLAN to link to a PC or printer.
• Clear LCD: 25 mm digit height, readable from a distance.

Technical data

• Weighing range (Max): 1500 kg; 3000 kg
• Readability (d): 0,5 kg; 1 kg
• Verification scale interval (e): 0,5 kg; 1 kg
• Accuracy class: III
• Minimum load (Min): 10 kg; 20 kg
• Reproducibility: 0,5 kg; 1 kg
• Linearity: ± 1,5 kg; 3 kg
• Weighing system: strain gauge
• Weighing area (W x D): 1500×1500 mm
• Interfaces: RS-232 standard, optional USB, Ethernet, WLAN
• Display: LCD, 25 mm digit height
• Net weight: 155 kg

Applications

Typical uses include warehouse logistics, industry and production, wholesale and freight forwarding, order picking and logistics and shipping.

Compliance and origin

KIB-TM display unit rated IP65, weighing bridge IP67. Compliant with CE and RoHS. Country of manufacture China. EAN 4045761214798, customs tariff number 84238220.
