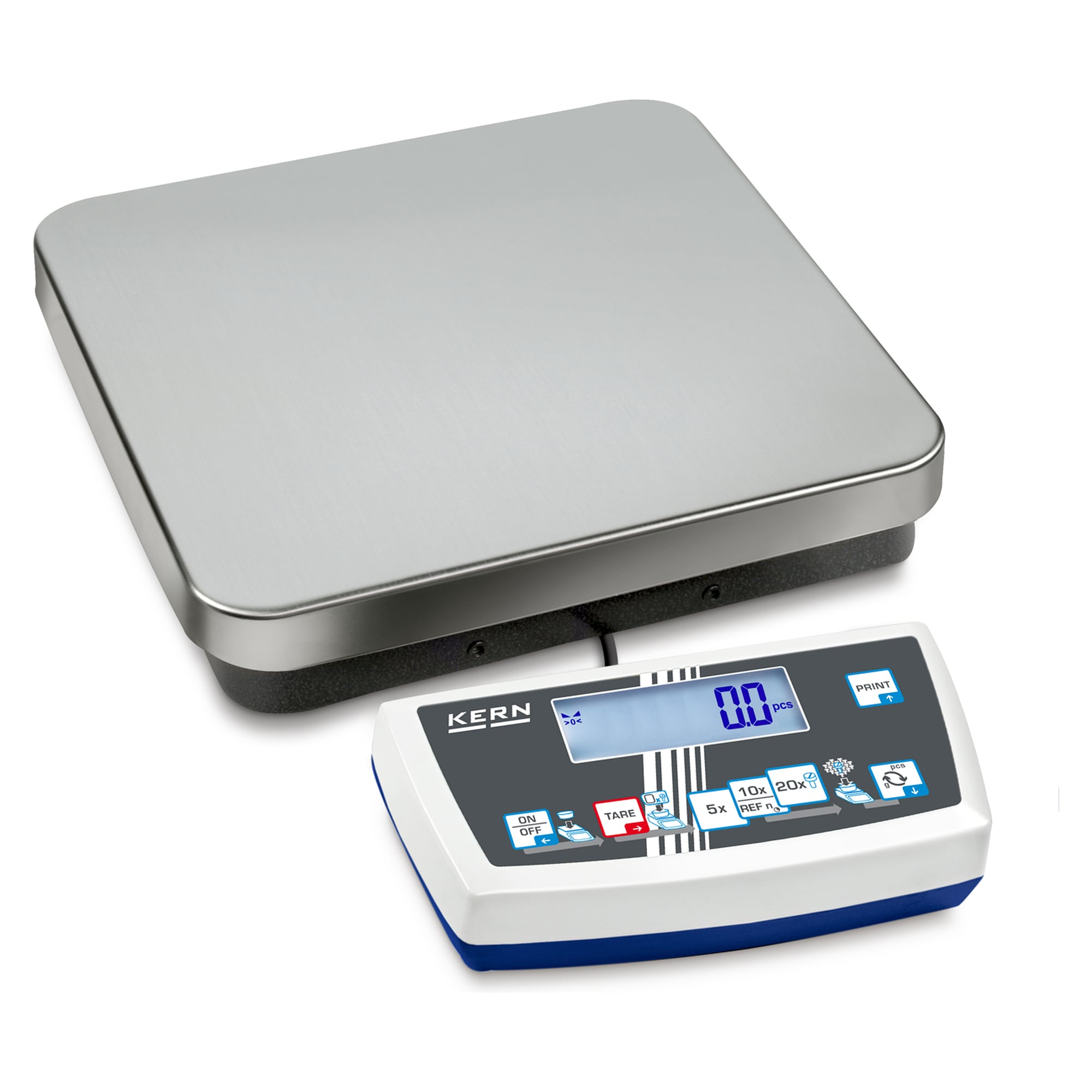

IoT-Line Counting Scale 30 kg Readability 0,0001 kg - KERN CDS 30K0.1
The KERN CDS 30K0.1 IoT-Line counting scale counts up to 30 kg at 0,0001 kg readability with a counting resolution of 300,000 points. The self-explanatory control panel guides the operator through counting in four steps. The KERN Universal Port connects the scale to Industry 4.0 processes via RS-232, USB, Bluetooth or Ethernet.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN CDS 30K0.1 counts parts quickly and without lengthy training. The graphic-supported control panel guides the operator through counting in four steps, and the weighing range extends to 30 kg at 0,0001 kg readability with a counting resolution of 300,000 points.
Benefits
- Operation without a manual: the self-explanatory graphic control panel guides through counting in four steps and prevents operating errors.
- High counting resolution: 300,000 points and a smallest part weight from 100 mg under laboratory conditions capture even fine parts.
- Automatic reference optimisation: the average piece weight is continuously refined during use.
- Industry 4.0 via KUP: the KERN Universal Port accepts adapters for RS-232, USB, Bluetooth, Ethernet or WLAN with no installation effort.
- Remote control via KCP: the KERN Communication Protocol allows querying and control from a computer or control unit.
- Mains-independent use: optional internal battery for up to 24 h of operation with the backlight on.
Applications
Industrial applications, production, series manufacturing, order picking and stocktaking as well as general counting tasks.
Compliance and origin
CE and RoHS compliant. Country of manufacture Germany. EAN 4045761243910, customs tariff number 84238129.
Technical data
| Weighing range (Max) | 30 kg |
|---|---|
| Readability (d) | 0,0001 kg |
| Repeatability | 0,0002 kg |
| Linearity | ± 0,0005 kg |
| Smallest part weight (laboratory conditions) | 100 mg |
| Smallest part weight (normal conditions) | 1 g |
| Weighing system | Strain gauge |
| Weighing surface (W×D) | 308×318 mm |
| Display | LCD, 21 mm digit height |
| Interfaces | KERN Universal Port (KUP), RS-232, USB, Bluetooth, Ethernet and WLAN optional |
| Power supply | Mains adapter 100 V - 240 V AC, 50 / 60 Hz |
| Operating temperature | -10 °C - 40 °C |
| Net weight | 8 kg |
| Weight | 10 kg |
| Manufacturer | Kern |
| EAN | 4045761243910 |
| HS-Code | 84238129 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Material | Plastic |
| Wägebereich max (g) | 30000 |
| Ablesbarkeit (g) | 0.1 |
| Display type | LCD |
| Interface | Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
