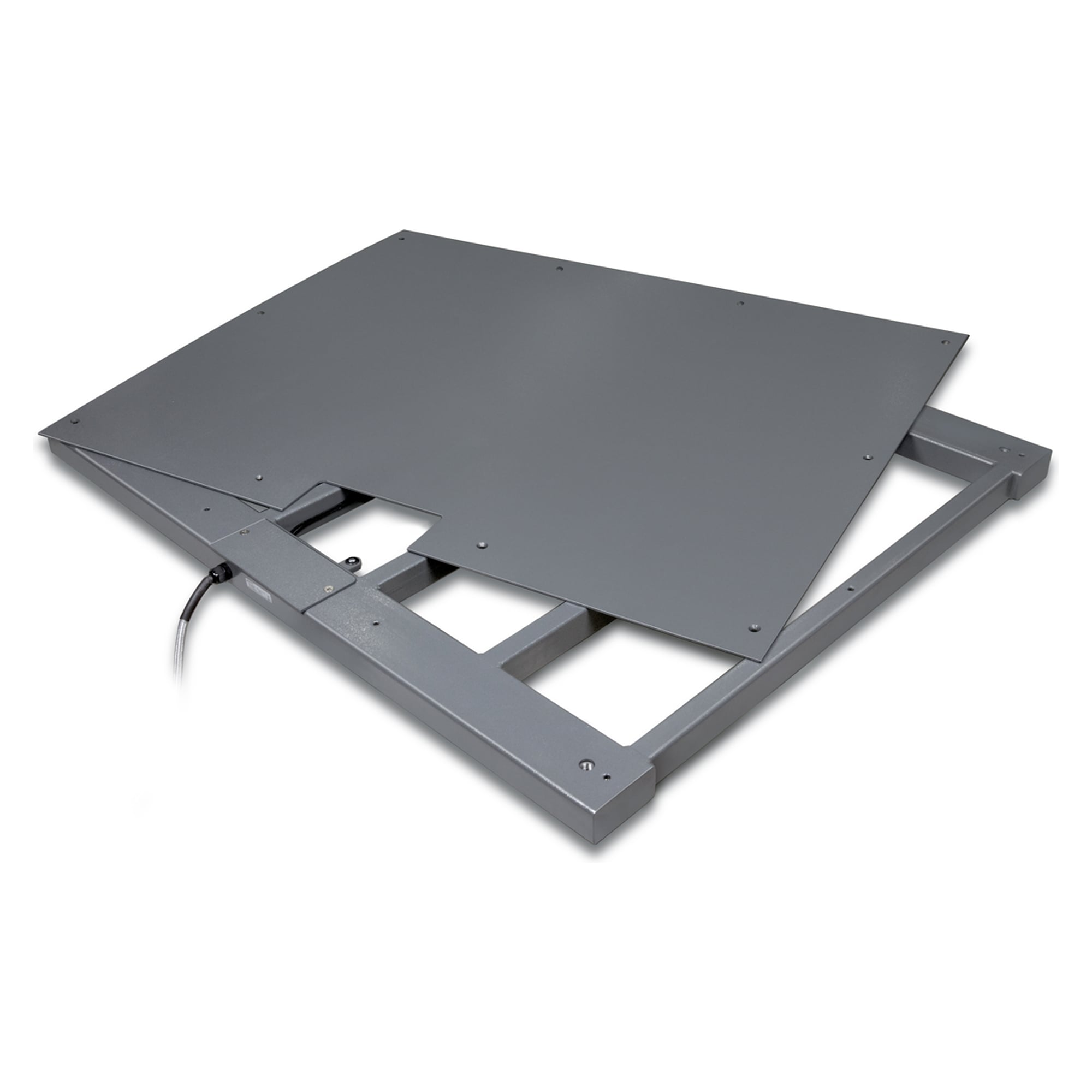

Weighing Platform 600 kg Readability 200 g - KERN KFP 600V20NM

For weighing pallets and containers up to 600 kg on a large, low-profile deck, the KERN KFP 600V20NM weighing platform does the job. It captures loads up to 600 kg at 200 g readability on stainless steel deck on a coated steel frame, supported by a silicone-sealed aluminium load cell.

Benefits

• Verifiable ex works (OIML-R60, class III, e = 200 g): legally compliant weighing in trade.
• IP65 protection: load cell shielded against dust and water.
• Rugged build: stainless steel deck on a coated steel frame for continuous use.
• Accurate set-up: spirit level and foot screws fitted as standard for precise levelling.

Technical data

• Weighing range (Max): 600 kg
• Readability (d): 200 g
• Verification interval (e): 200 g
• Minimum load (Min): 4 kg
• Weighing area (W x D): 1500×1250 mm
• Overall height: 85 mm
• Protection rating: IP65
• Net weight: 150 kg
• Cable length: 5 m
• Load cell connection: 6-Leiter

Compliance and origin

Load cell with OIML-R60 approval (class III, 3000 e) for verification. EAN 4045761493940, customs code 90318080, country of origin CN.
