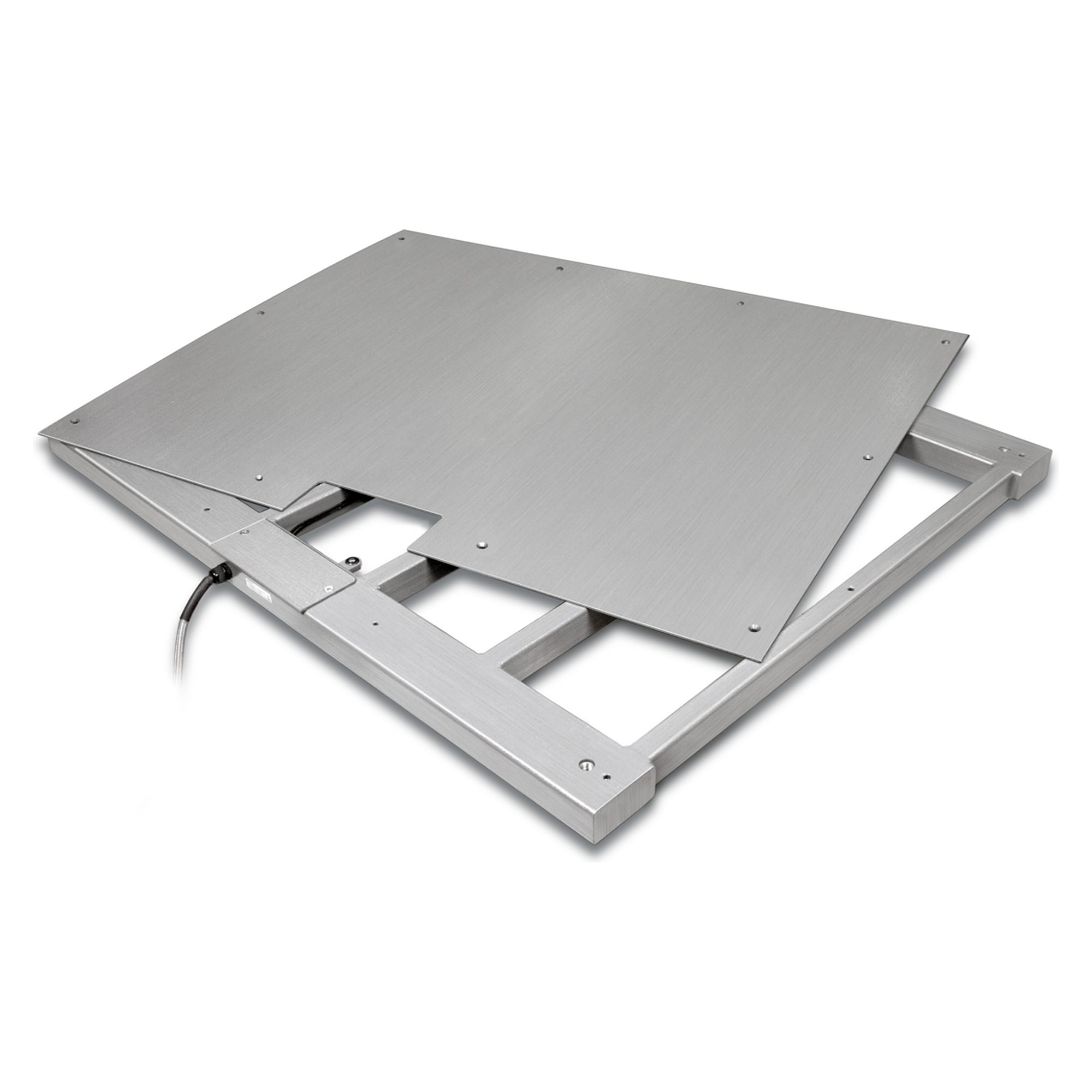

Weighing Platform 600 kg Readability 200 g - KERN KFP 600V40SM

For washdown weighing of pallets up to 600 kg, ready for pit-frame installation, the KERN KFP 600V40SM weighing platform does the job. It captures loads up to 600 kg at 200 g readability on a fully stainless steel, high-rigidity construction, supported by four stainless steel load cells rated IP68.

Benefits

• Verifiable ex works (OIML-R60, class III, e = 200 g): legally compliant weighing in trade.
• IP68 protection: load cell shielded against dust and water.
• Rugged build: a fully stainless steel, high-rigidity construction for continuous use.
• Accurate set-up: spirit level and foot screws fitted as standard for precise levelling.
• Installation-ready and serviceable: optional pit frame, load cells accessible from above.

Technical data

• Weighing range (Max): 600 kg
• Readability (d): 200 g
• Verification interval (e): 200 g
• Minimum load (Min): 4 kg
• Weighing area (W x D): 1000×1000 mm
• Overall height: 85 mm
• Protection rating: IP68
• Net weight: 95 kg
• Cable length: 5 m
• Load cell connection: 6-Leiter

The deck is bolted with stainless steel screws so the load cells stay accessible from above, and an optional pit frame allows flush floor installation.

Compliance and origin

Load cell with OIML-R60 approval (class III, 3000 e) for verification. EAN 4045761493964, customs code 90318080, country of origin CN.
