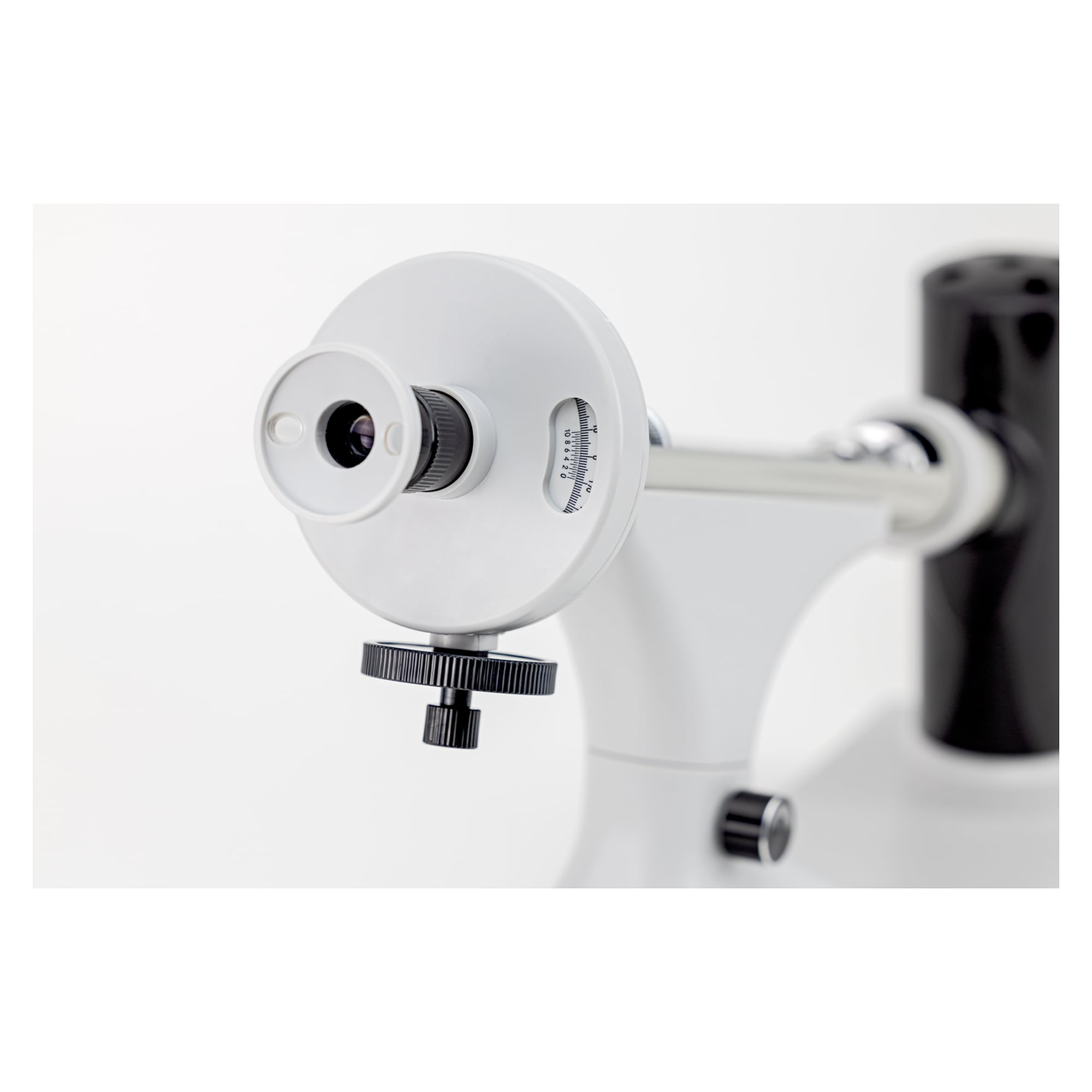

Polarimeter - KERN OAB 20LED
The KERN OAB 20LED is an analog half-shadow polarimeter with a long-life LED light source (589 nm) in place of a sodium lamp. It measures optical rotation from -180° to +180° with 1° graduation and 0,05° vernier reading. Two measuring tubes (100 and 200 mm) with bubble trap and a brightness control are included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN OAB 20LED determines the optical rotation of solutions for incoming and outgoing checks in laboratories, pharmacies and training centres. The half-shadow principle with a 0,05° vernier delivers precise, easy-to-read results, while the LED source at 589 nm replaces the maintenance-heavy sodium lamp.
Benefits
- Long-life LED instead of a sodium lamp: markedly longer service life and low-maintenance operation at a 589 nm measuring wavelength.
- Precise half-shadow measurement: optical rotation -180° to +180°, 1° graduation and a 0,05° vernier for fine reading.

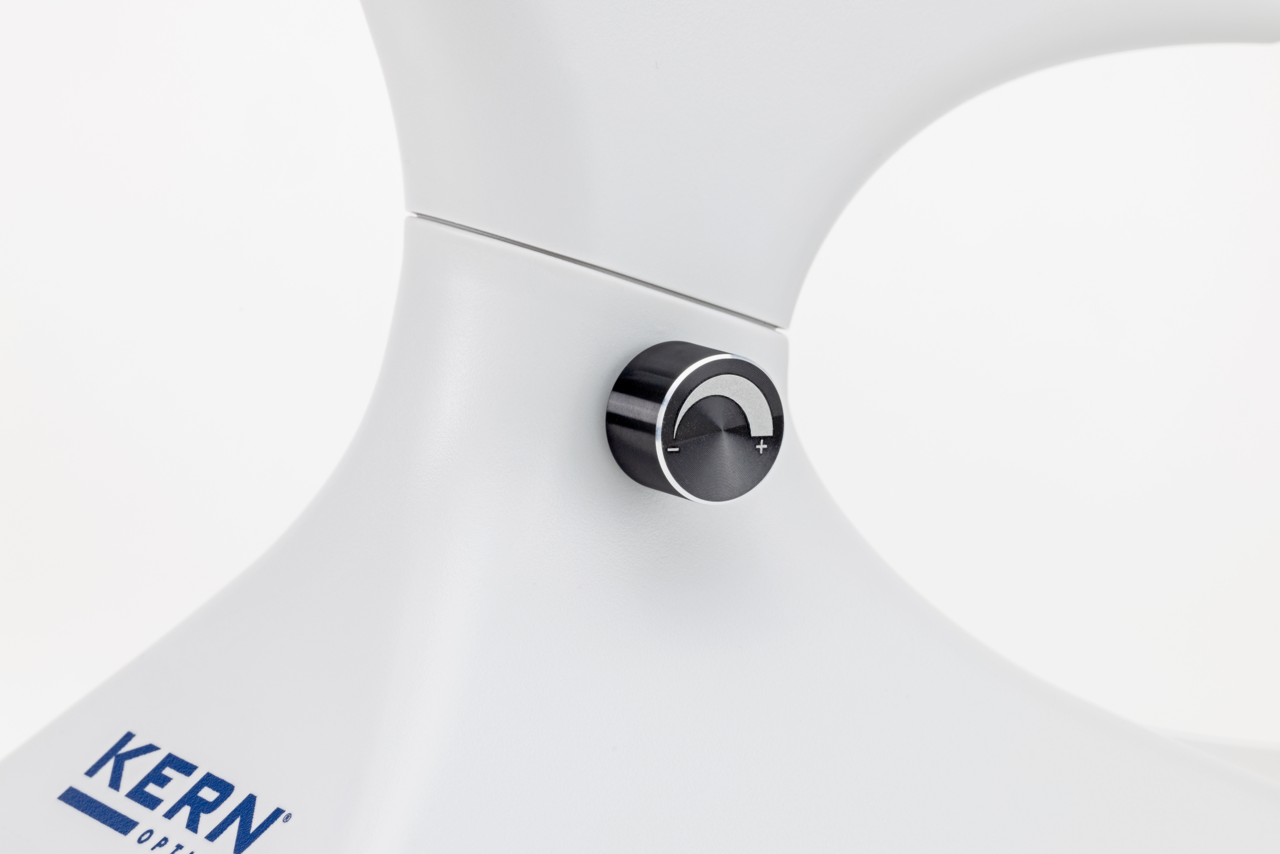

- Adjustable illumination: brightness control to match the sample and ambient conditions.

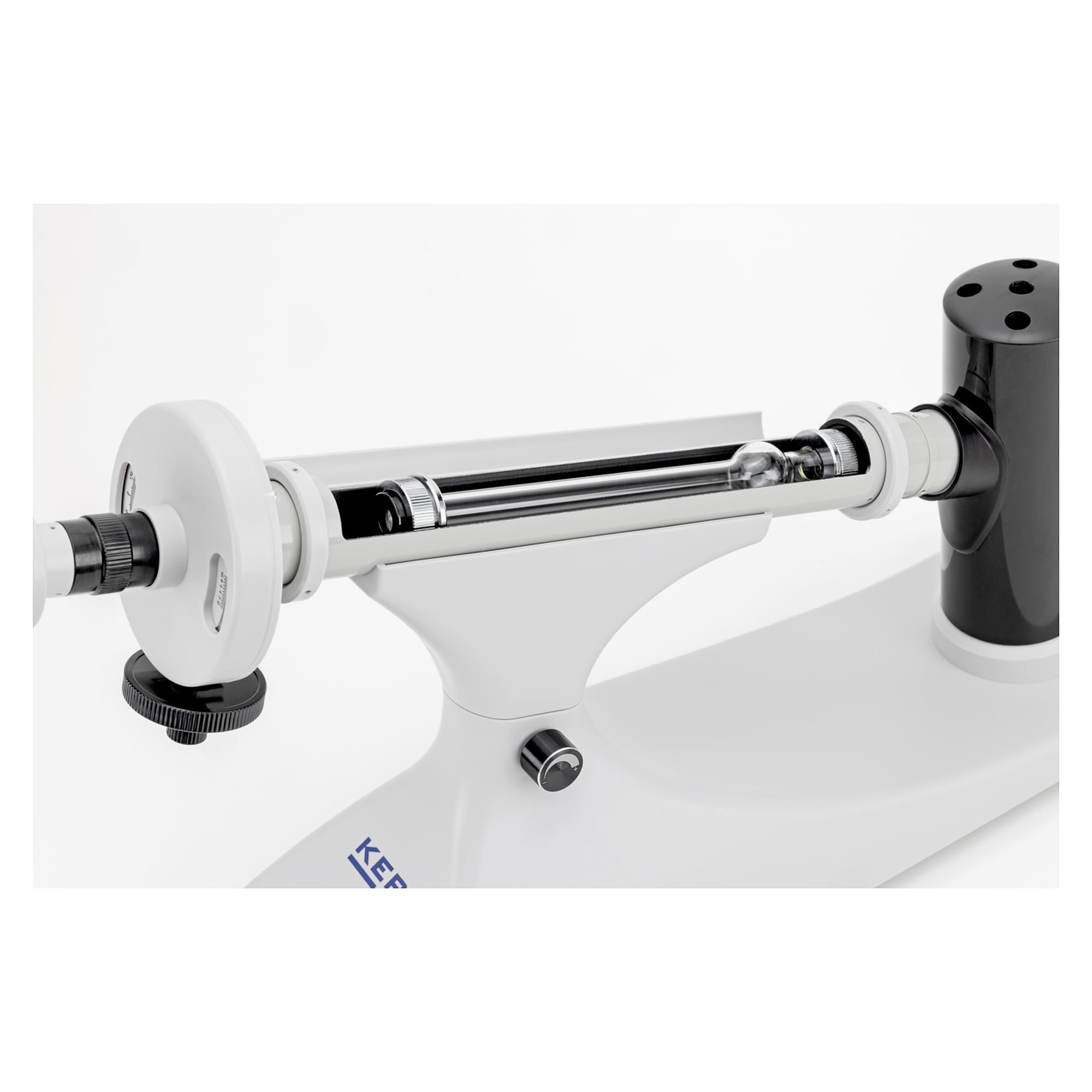

- Flexible sample chamber: takes measuring tubes up to 220 mm, with two tubes (100 and 200 mm) and bubble trap included for easy filling.
- Comfortable reading: 3x magnifier on the scale, plus spare lenses and sealing rings in the delivery.
Applications
Pharmacies, hospitals, the beverage, food and chemical industries as well as laboratories and training - for example to determine the concentration of sugars and polysaccharides or to study cane-sugar inversion.
Compliance
EAN 4045761476196, customs tariff code 90271010.
Technical data
| Measuring principle | half-shadow (analog) |
|---|---|
| Optical rotation | -180° to +180° |
| Graduation | 1° |
| Vernier | 0,05° |
| Wavelength | 589 nm (LED) |
| Magnifier | 3x |
| Measuring tubes | up to 220 mm, supplied with 100 and 200 mm with bubble trap |
| Power supply | built-in adapter 100 - 240 V AC, 50 / 60 Hz |
| Net weight | 2,8 kg |
| Weight | 4.4 kg |
| Manufacturer | Kern |
| Manufacturer Nr. | OAB 20LED |
| EAN | 4045761476196 |
| HS-Code | 90271010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
