Polarising Microscope - KERN OPO 185
The KERN OPO 185 is a fully equipped polarising microscope for analysing minerals, crystals and isotropic materials with combined LED reflected and transmitted light. A 360° rotating stage with 1° graduation and a swing-out Abbe condenser for full Koehler illumination are standard. Objectives from 4x to 50x and the trinocular tube allow documentation and analysis.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
To analyse minerals, crystals and isotropic materials through the polarisation of light, the KERN OPO 185 is a professional polarising microscope with combined LED reflected and transmitted light and a precise 360° rotating stage.
Benefits

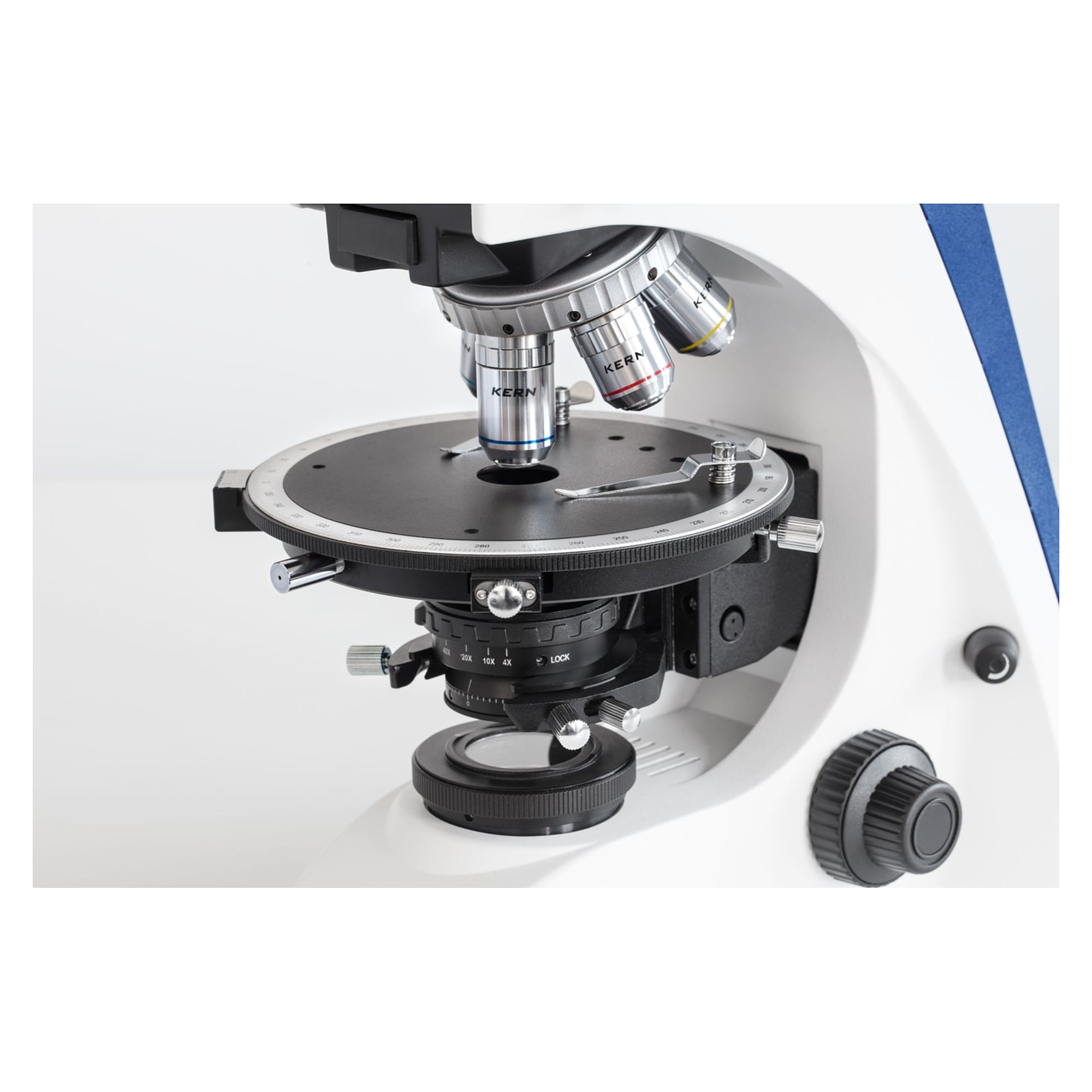

- 360° rotating stage with fine graduation: 1° graduation, 6' fine graduation and lock function for exact angle measurements.
- Combined reflected and transmitted light: 5W LED each for polarising specimens.

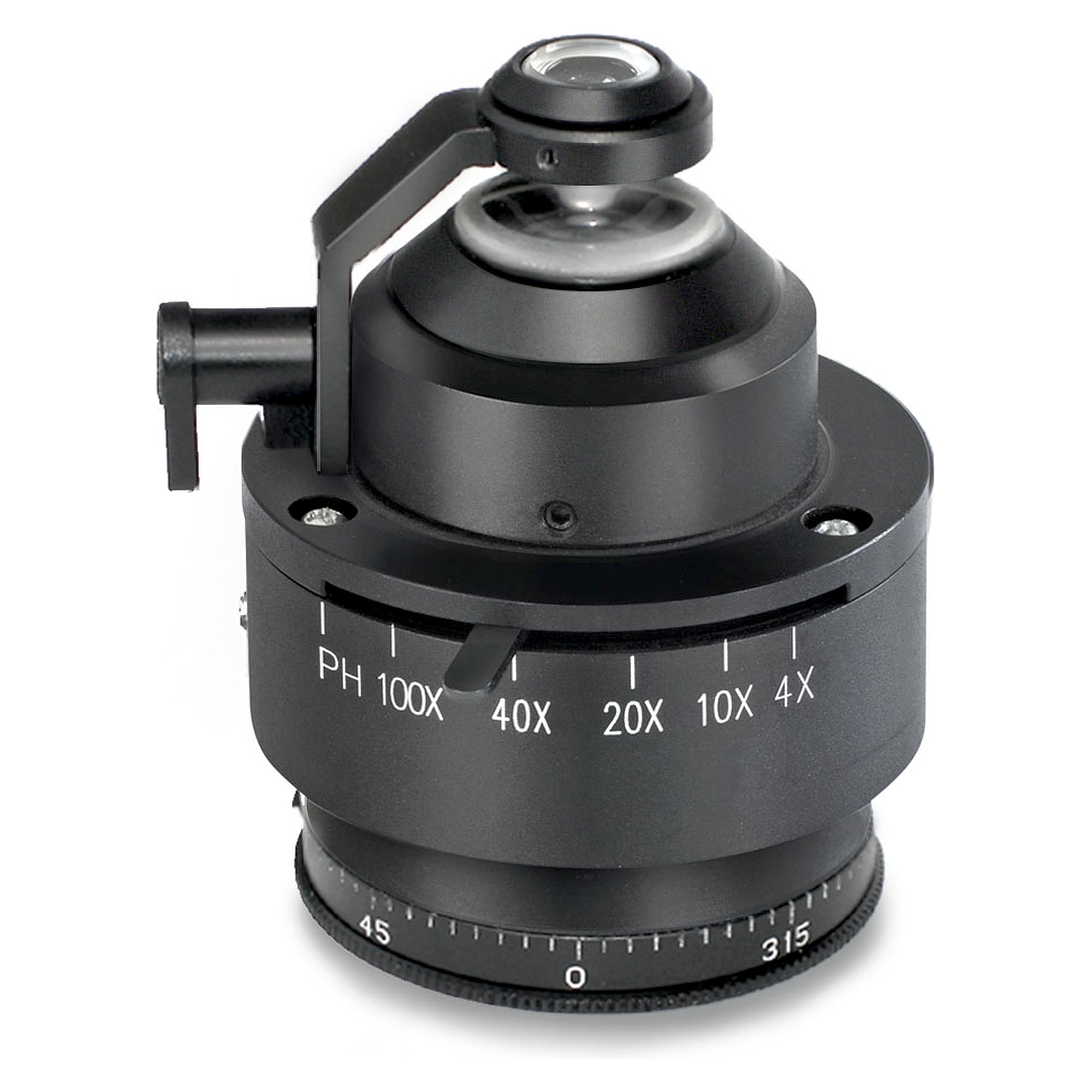

- Swing-out Abbe condenser 0,9/0,13: full Koehler illumination, centrable and height-adjustable.
- Five objectives 4x to 50x: wide magnification range for demanding specimens.
- Trinocular tube: camera connection for documentation and analysis.
Applications
Mineralogy, texture examination, materials testing and the study of crystals, as well as other demanding specimens with polarising properties.
Compliance and origin
EAN 4045761490048, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | infinity |
|---|---|
| Tube | trinocular, 30° inclination |
| Objective magnification | 4x / 10x / 20x / 40x / 50x |
| Nosepiece | 5 threaded positions |
| Eyepiece | HWF 10x, 20 mm field of view |
| Interpupillary distance | 50 mm - 75 mm |
| Reflected illumination | LED, 5W |
| Transmitted illumination | LED, 5W |
| Power supply | mains adapter 100 V - 240 V, 50 / 60 Hz |
| Net weight | 13 kg |
| Weight | 16 kg |
| Manufacturer | Kern |
| EAN | 4045761490048 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
