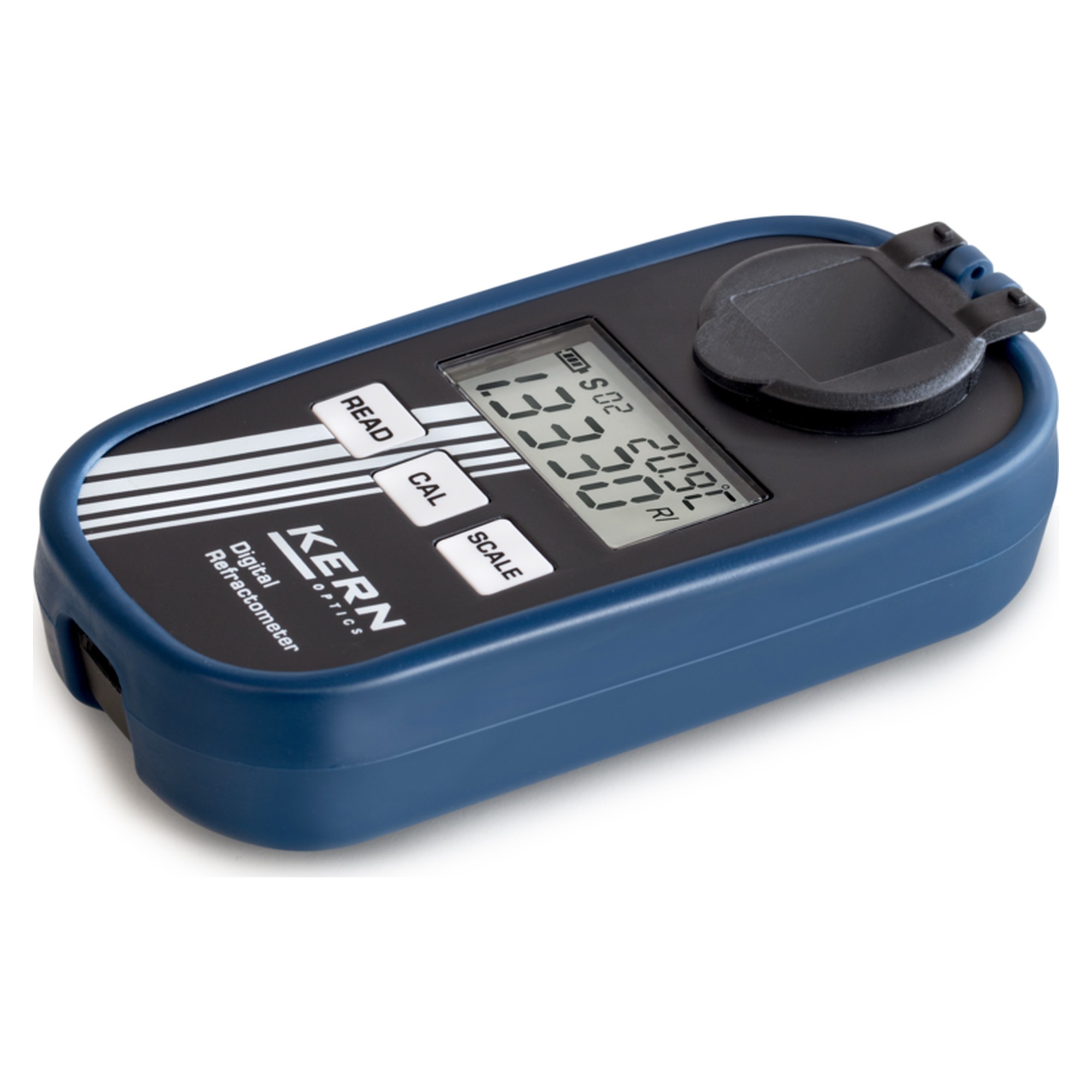

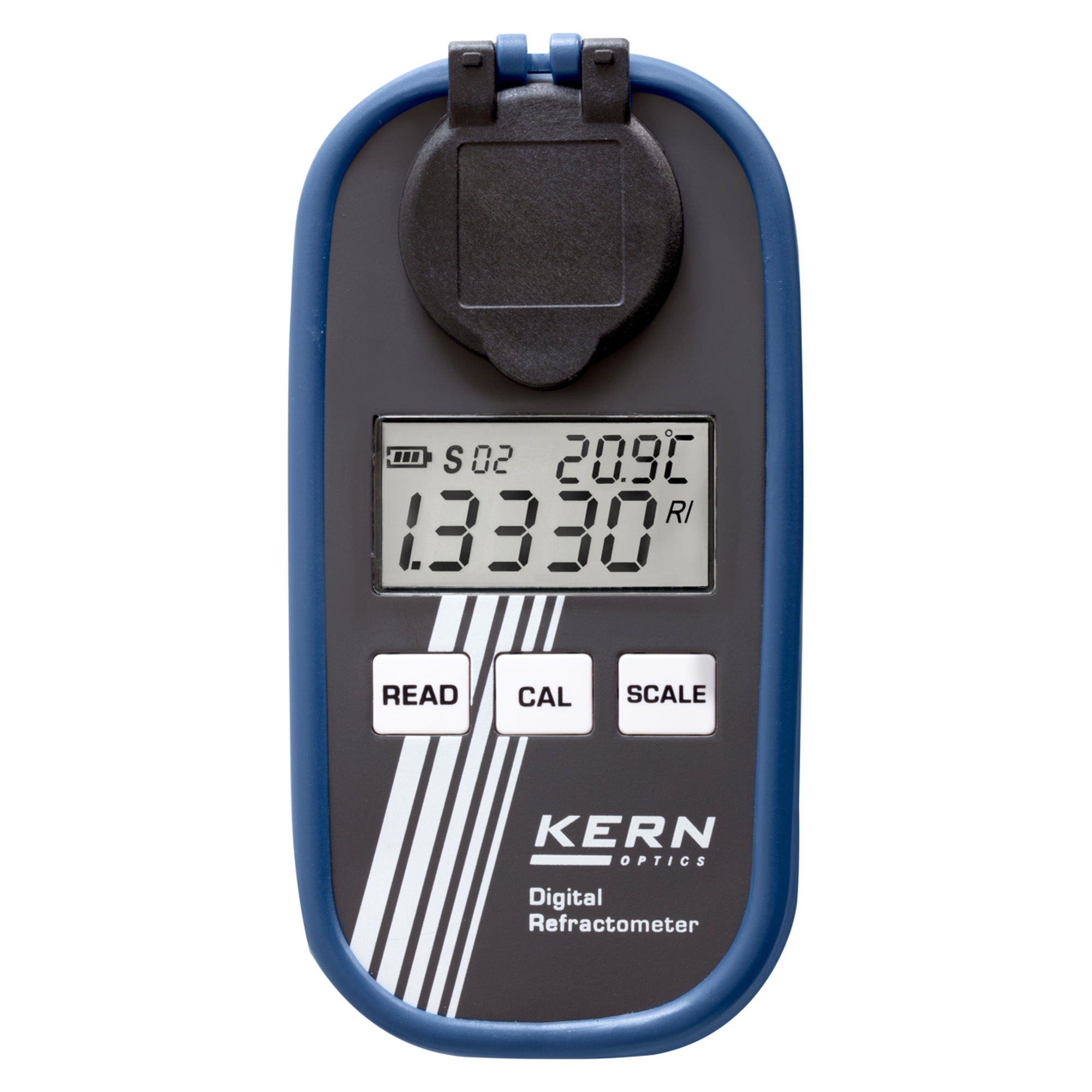

Digital Refractometer - KERN ORM 1BR

When brewing, the KERN ORM 1BR determines the sugar content of the still unfermented wort and shows it without conversion as specific gravity (1.000 to 1.130) or degrees Plato (up to 31 °P); Brix or refractive index as an alternative.

Benefits

• Wort reading direct: specific gravity 1.000 to 1.130 and degrees Plato 0 °P to 31 °P with no conversion.
• Four scales in one device: original gravity, Plato, Brix (0 % to 50 %) and refractive index.
• Rugged and handy: IP65 housing, can be rinsed under running water.
• Automatic temperature compensation (ATC): fast measurement with no manual conversion, with temperature display.
• IP65 rating: dust and splash proof, can be rinsed under running water.
• Easy calibration: at any time with ordinary distilled water, averaging measurements possible.

Technical data

• Brix scale: 0 % - 50 %, graduation 0,1 %, accuracy ±0,2 %
• Refractive index scale: 1,3330 nD - 1,4200 nD, graduation 0,0001 nD, tolerance ±0,0003 nD
• Original gravity scale (specific gravity): 1,000 - 1,130, graduation 0,001, tolerance ±0,002
• Plato scale: 0 °P - 31 °P, graduation 0,1 °P, tolerance ±0,3 °P
• Automatic temperature compensation (ATC): yes
• Protection rating: IP65
• Power supply: 1 x AAA battery (alkaline)
• Auto power-off: 60 s
• Weight: 0,15 kg

Applications

Beer brewing and alcohol production, in particular measuring wort gravity in the unfermented state.

Compliance and origin

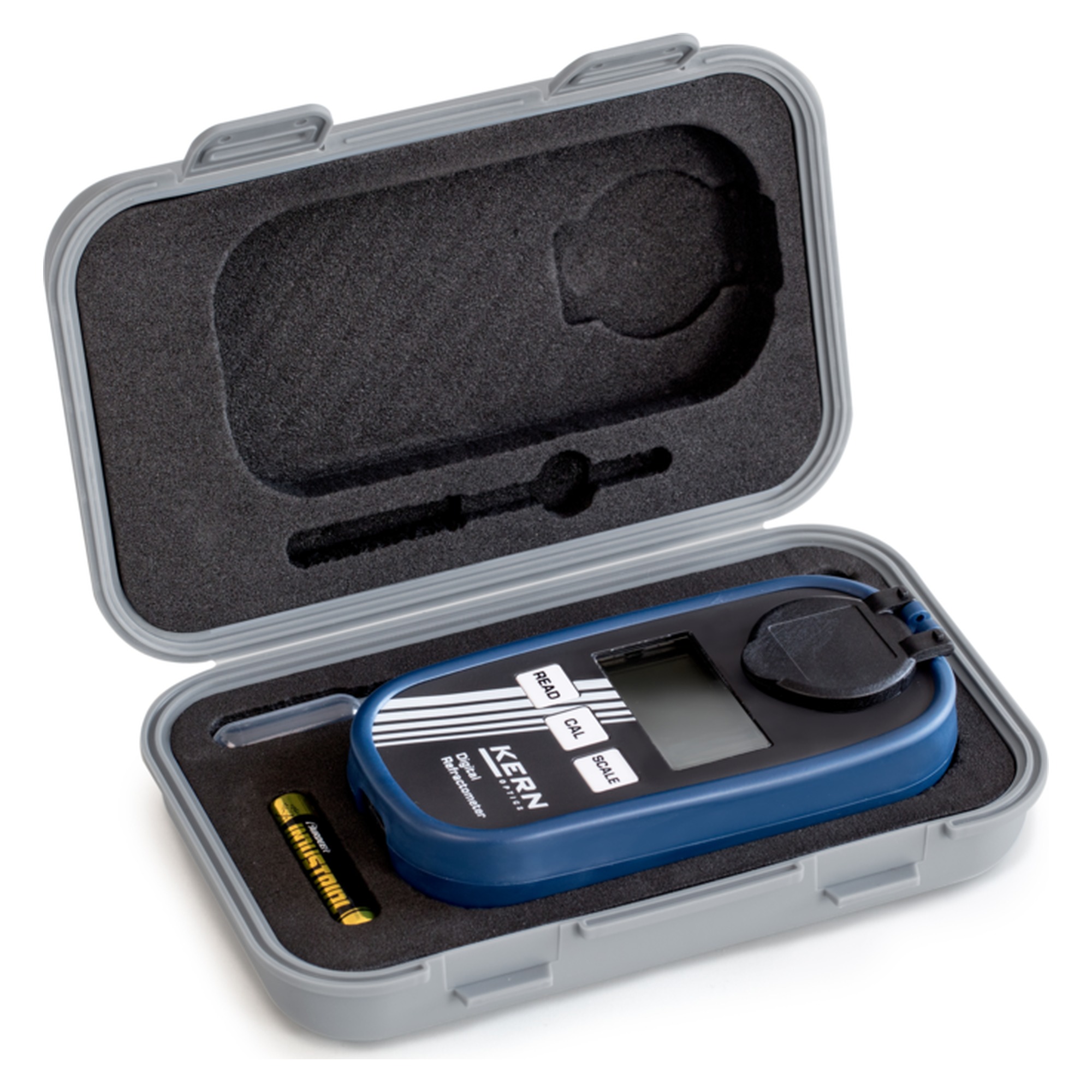

EAN 4045761335455, customs tariff code 90275000, country of origin China. Supplied in a storage case with the accessories listed above.
