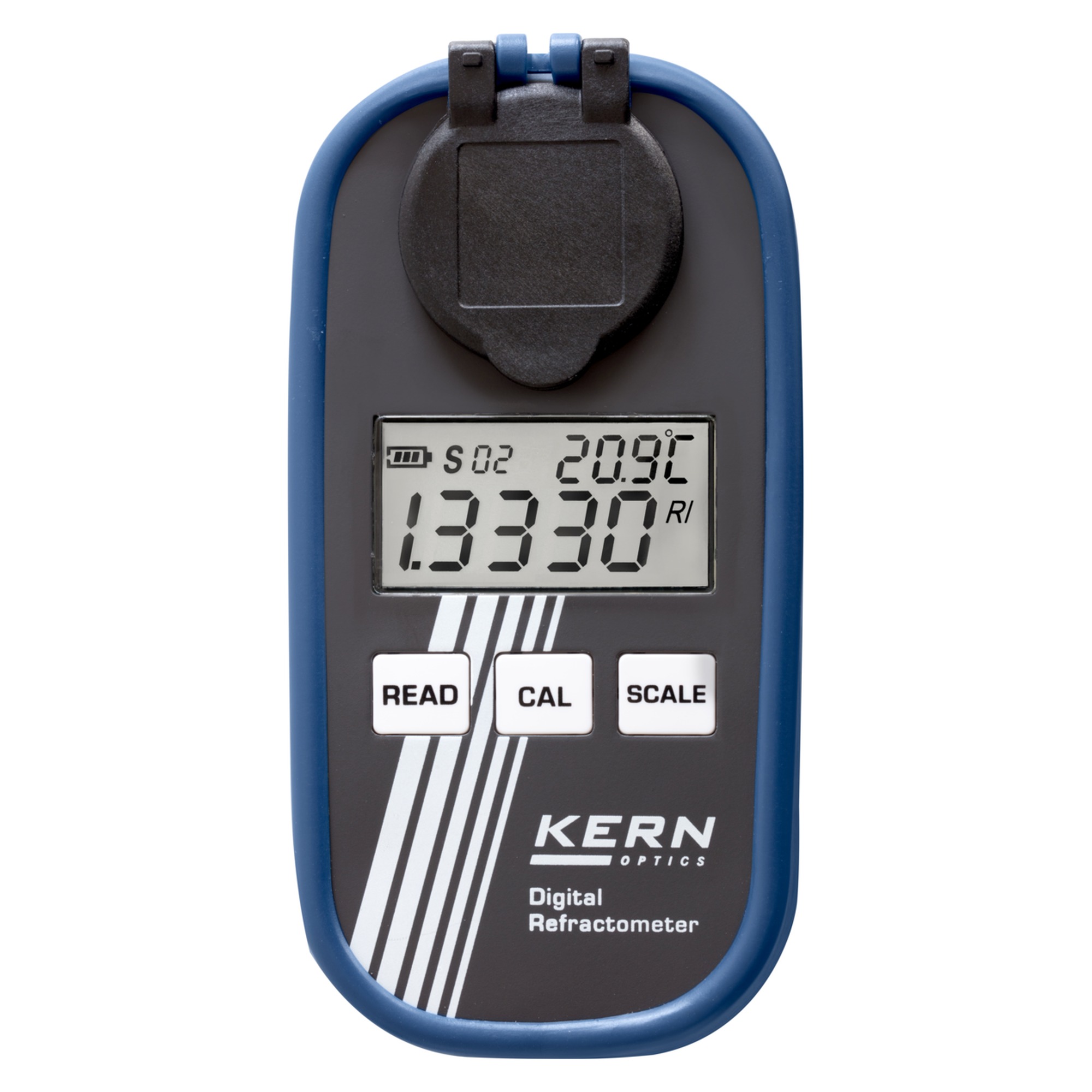

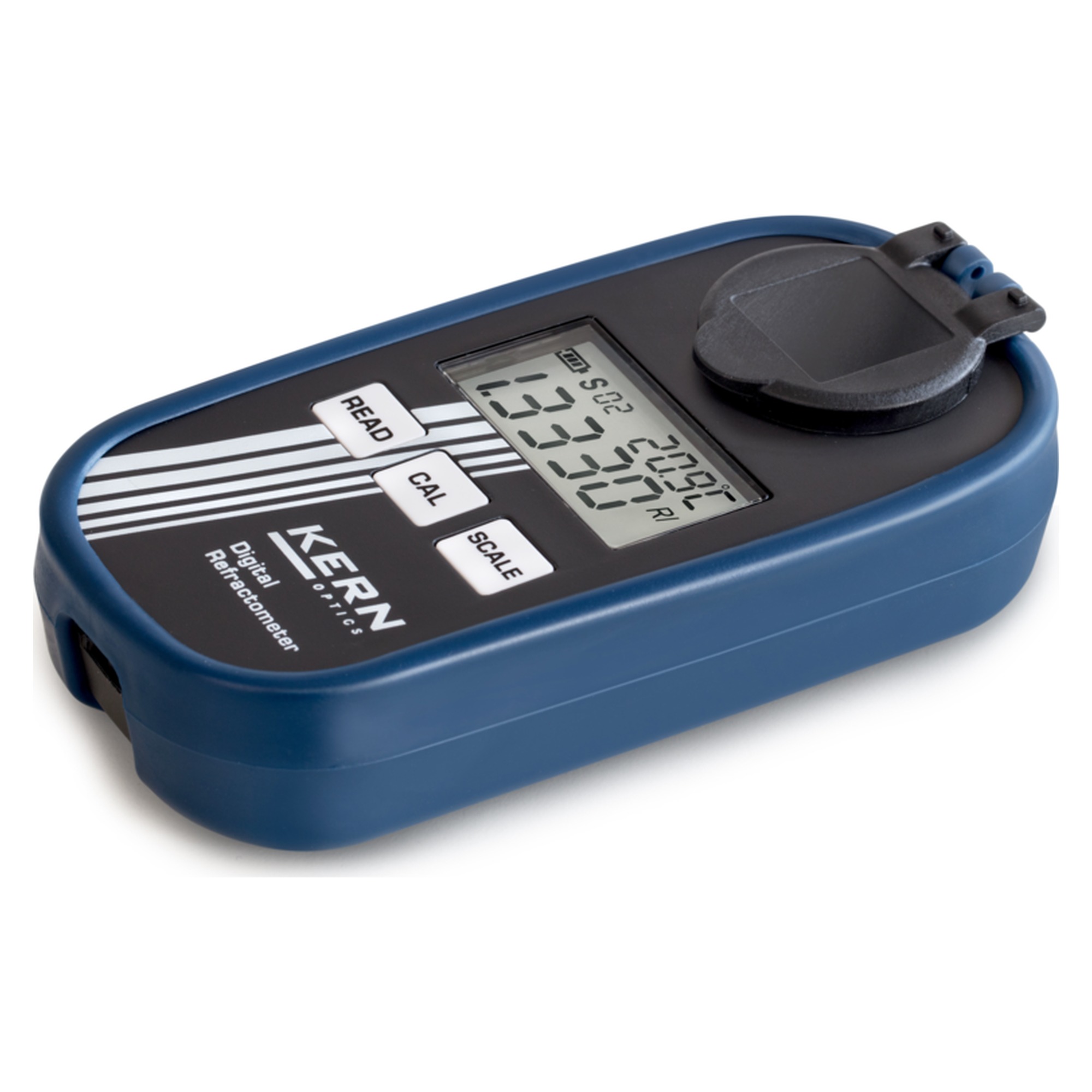

Digital Refractometer - KERN ORM 2WN

For winemakers with very sugar-rich musts, the KERN ORM 2WN extends the Oechsle range to 230 °Oe and shows the value straight on the display. KMW, volume percent and a Brix scale to 50 % are also part of the scope.

Benefits

• Extended Oechsle scale: range up to 230 °Oe for very sugar-rich musts
• KMW and volume percent: added winemaker values alongside Brix to 50 %
• ATC: direct readout without manual temperature conversion
• Averaging: stable results even with variable samples
• IP65 rating: prism rinsable under running water, net weight 0,15 kg

Technical data

• Scales: Brix, Oechsle, KMW (Babo), volume percent
• Brix: 0 % - 50 % (division 0,1 %, accuracy ±0,2 %)
• Oechsle: 0 °Oe - 230 °Oe (division 1 °Oe, tolerance ±2 °Oe)
• KMW (Babo): 0 °KMW - 25 °KMW (division 0,1 °KMW, tolerance ±0,2 °KMW)
• Volume percent: 0 % - 22 % (division 0,1 %, tolerance ±0,2 %)
• Automatic temperature compensation (ATC): yes
• Protection rating: IP65 (dust and splash protected)
• Power supply: 1x AAA battery (alkaline)
• Auto power-off: 60 s
• Net weight: 0,15 kg
• Gross weight: 0,35 kg

Applications

For measuring sugar content in fruit, the expected alcohol yield and grape ripeness, with an extended Oechsle range up to 230 °Oe. Used in viticulture and fruit growing, winemaking and must and spirit production.

Compliance and origin

EAN 4045761335622. Customs tariff number 90275000. Origin China.
