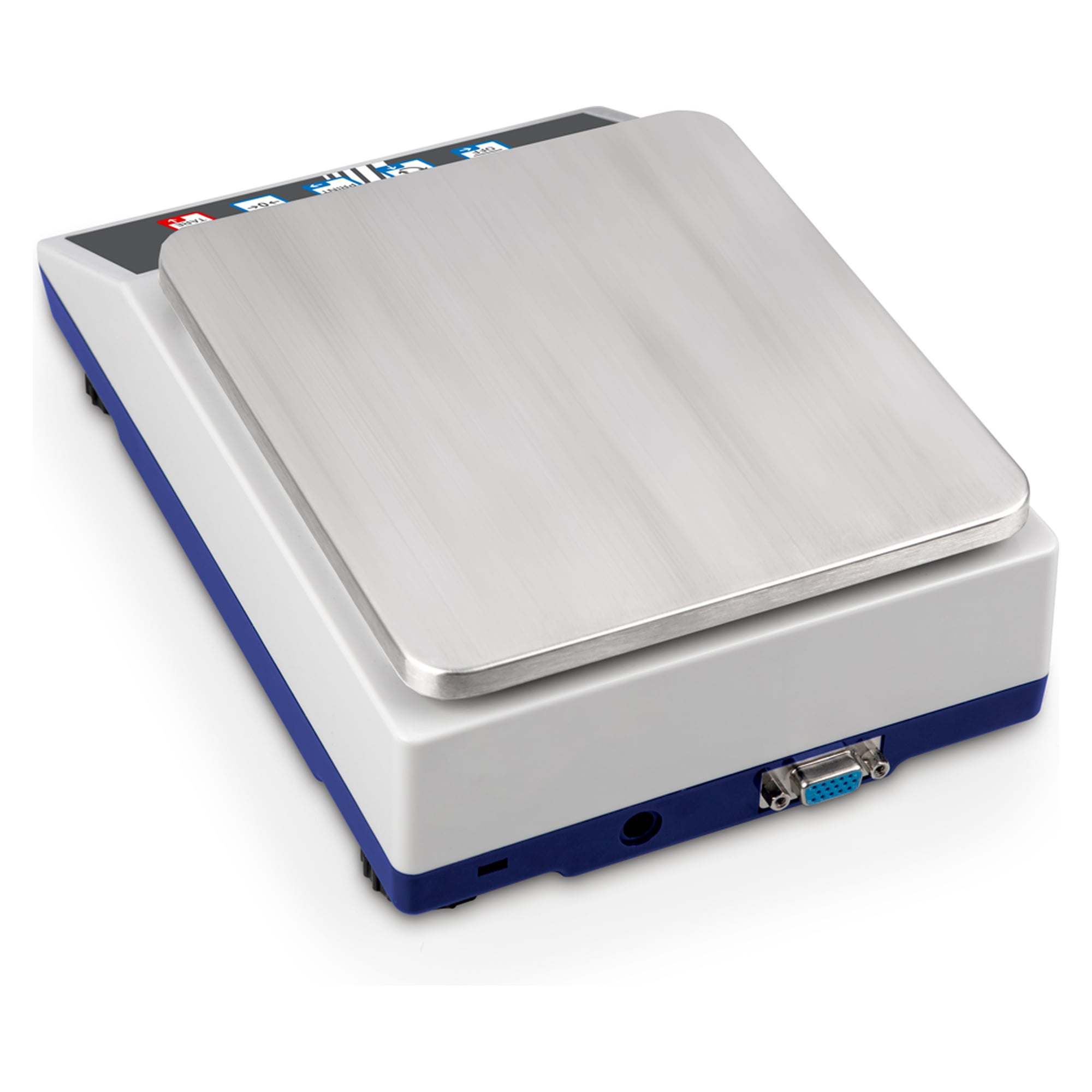

IoT-Line Compact Laboratory Balance 10 kg Readability 0,0001 kg - KERN PCB 10000-1

For a lab that weighs to a documented value every day and wants the reading to feed straight into its systems, the KERN PCB 10000-1 offers a 10 kg weighing range at 0,0001 kg readability. Its built-in KERN Universal Port (KUP) lets you add RS-232, USB, Bluetooth, WLAN or Ethernet later, with no need to open the housing.

Benefits

• Retrofittable interfaces: KERN Universal Port (KUP) for RS-232, USB, Bluetooth, WLAN or Ethernet, clipped on without opening the housing
• Reproducible results: repeatability 0,0001 kg, linearity ± 0,0003 kg, stabilization time 3 s
• Dependable piece counting: minimum piece weight 200 mg under lab conditions
• Process control: tolerance weighing with an optical signal, PRE-TARE and recipe function
• Runs off the mains or battery: optional internal Li-Ion battery, up to 48 h of operation

Technical data

• Weighing range (max.): 10 kg
• Readability (d): 0,0001 kg
• Repeatability: 0,0001 kg
• Linearity: ± 0,0003 kg
• Minimum piece weight, counting (lab conditions): 200 mg
• Weighing system: Strain gauge
• Stabilization time: 3 s
• Weighing surface: 150×170 mm
• Housing dimensions (W×D×H): 163×245×65 mm
• Interfaces: KERN Universal Port (KUP), RS-232, USB, Bluetooth, WLAN, Ethernet (each optional)
• Power supply: Mains adapter, optional internal Li-Ion battery
• Operating temperature: -10 °C to 40 °C
• Net weight: 1,4 kg

Applications

The PCB 10000-1 is designed for laboratory work, research and development, teaching and industrial weighing tasks.

Compliance and origin

EAN 4045761243156. Customs tariff code 84238129. Country of origin: China.
