Precision Balance 6200 g Readability 0,01 g - KERN PDS 6000-2

The KERN PDS 6000-2 handles laboratory weighing and dosing tasks with 0,01 g readability across a range up to 6200 g. Its electromagnetic force compensation weighing cell delivers repeatable results (0,03 g repeatability) and logs every measurement to GLP/ISO with date, time and ID number. The range up to 6200 g also covers larger batches reliably.

Benefits

• Fine resolution: 0,01 g readability with a range up to 6200 g.

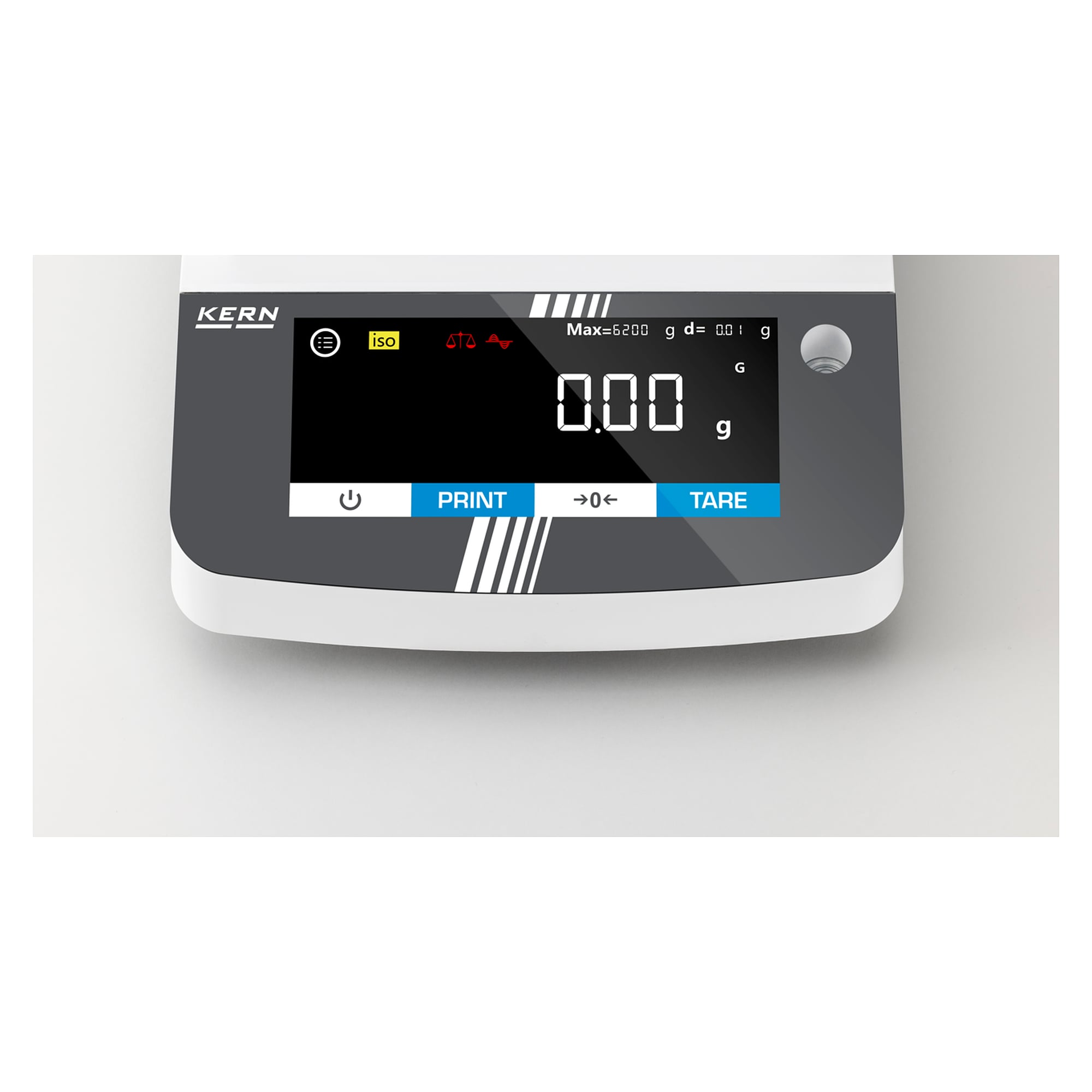

• Touch display: unit switching and adjustment started directly on screen.
• Windows Direct: weighing values transferred to Windows applications via USB without manual entry.
• FDA 21 CFR Part 11 support: data integrity covering result, sample ID, user name and balance ID.

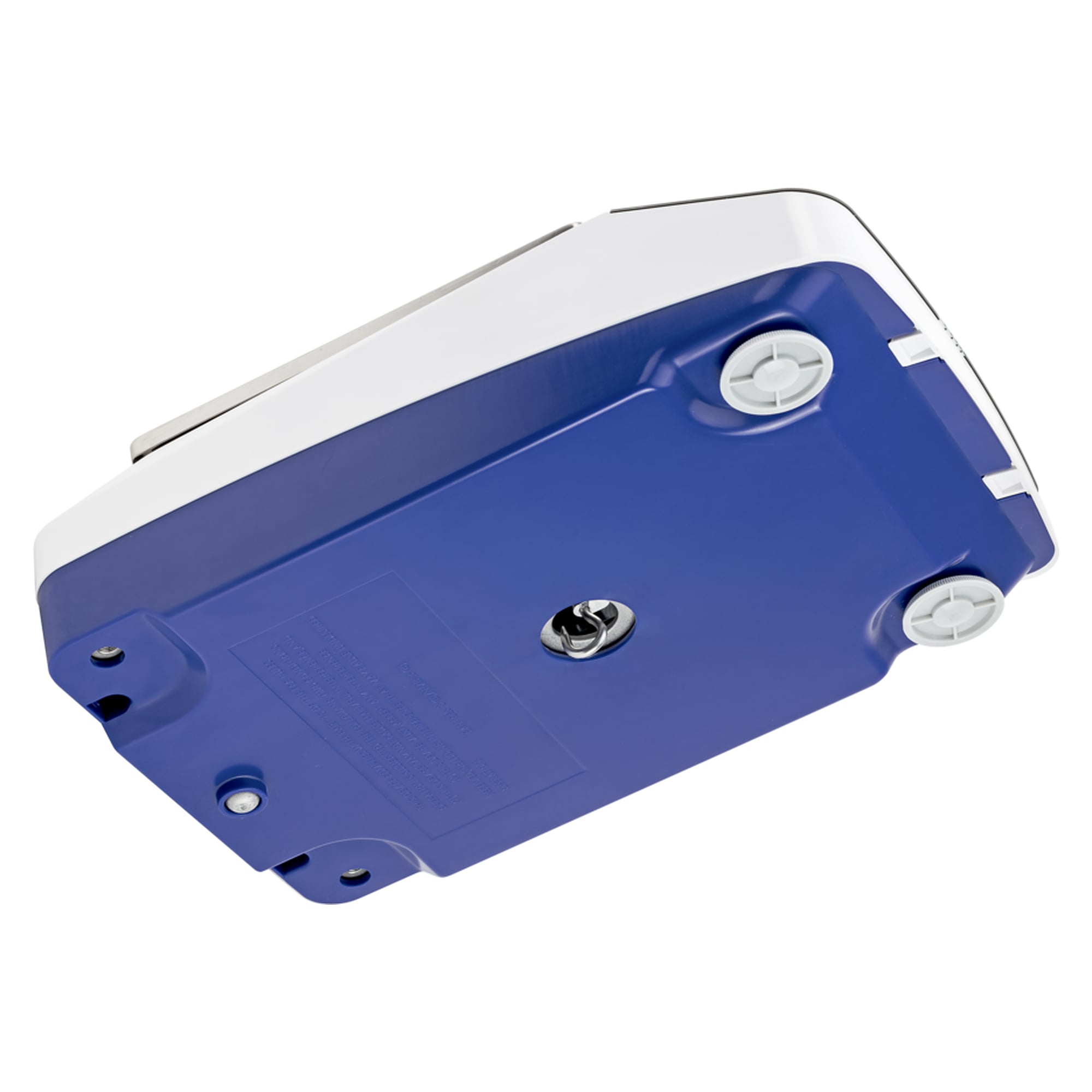

• Below-balance weighing: hook on the underside as standard for density work and bulky loads.

Technical data

• Weighing range (Max): 6200 g
• Readability (d): 0,01 g
• Repeatability: 0,03 g
• Linearity: ± 0,05 g
• Weighing system: Electromagnetic force compensation
• Stabilization time: 3 s
• Weighing pan: 185×185 mm
• Dimensions (W×D×H): 213×322×101 mm
• Housing material: ABS plastic
• Interfaces: RS-232 and USB (device), standard
• Net weight: 3,6 kg

Applications

The PDS 6000-2 suits laboratories, pharmaceutical applications and quality control, as well as the chemical, food and plastics industries.

Compliance and origin

EAN 4045761481930. Customs tariff number 90160010. Country of origin: China.
