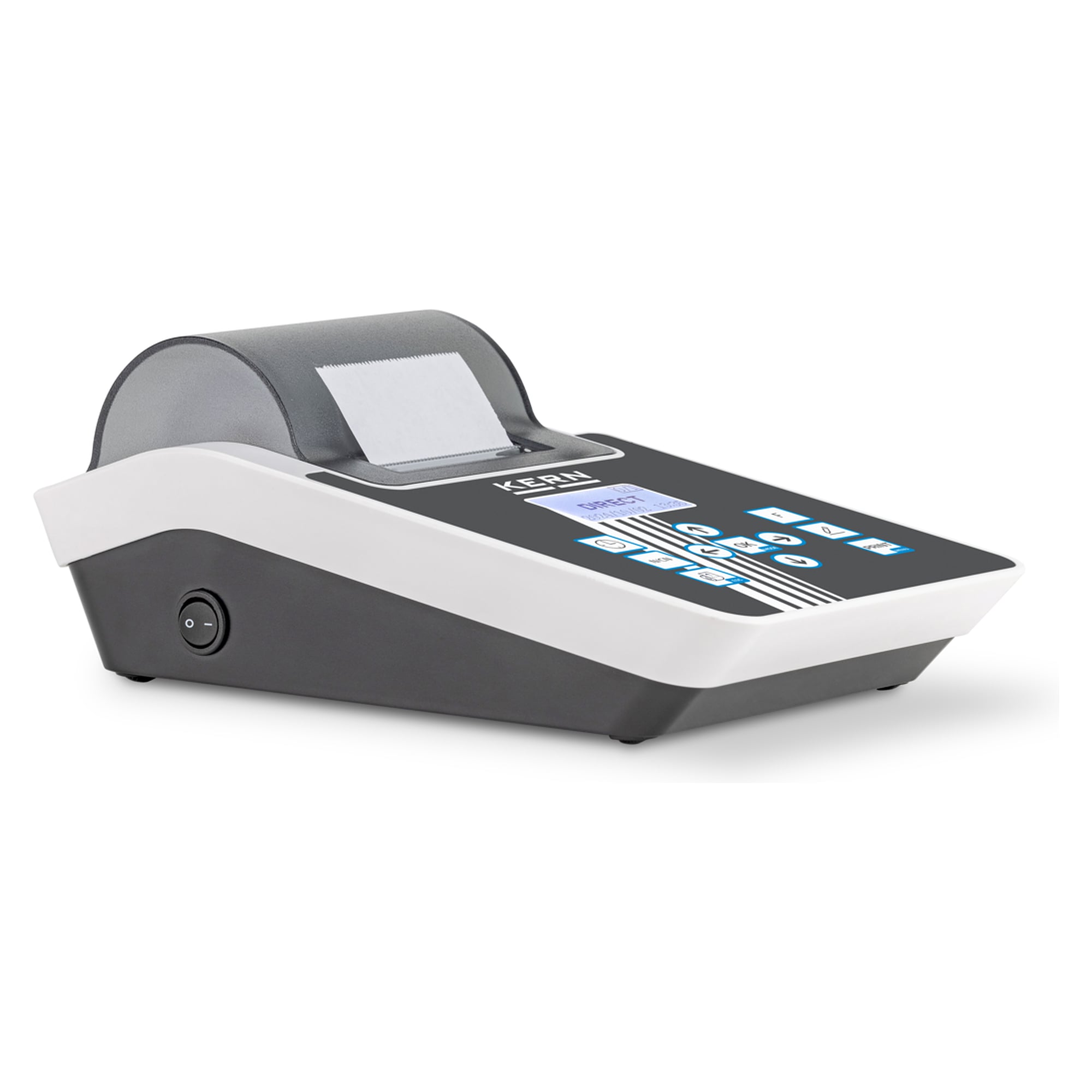

Dot-Matrix Printer for KERN YKT - KERN YKT-01

The KERN YKT-01 dot-matrix printer documents weighings reliably right at the workplace and produces GLP-compliant printouts with a time stamp. It connects directly to compatible KERN balances via the standard RS-232 interface.

Benefits

• GLP-compliant: durable paper and dot-matrix printing for audit-proof records
• Time stamp: date and time printed for every weighing
• Identification: name, batch number and ID individually assignable
• Tare, gross, net: displayed and printed for easy documentation
• Evaluation functions: multiple weighing, formulation, totalising and statistics
• Long service life: rated for 1 million lines

Technical data

• Dimensions (W×D×H): 114,6×188,2×86,6 mm
• Print method: 8 print magnets, dot matrix
• Print speed: 1,7 lines/s
• Character size (W×H): 1,7×2,6 mm
• Service life: 1 million lines
• Ribbon cassette: EPSON ERC-22 or ERC-09B

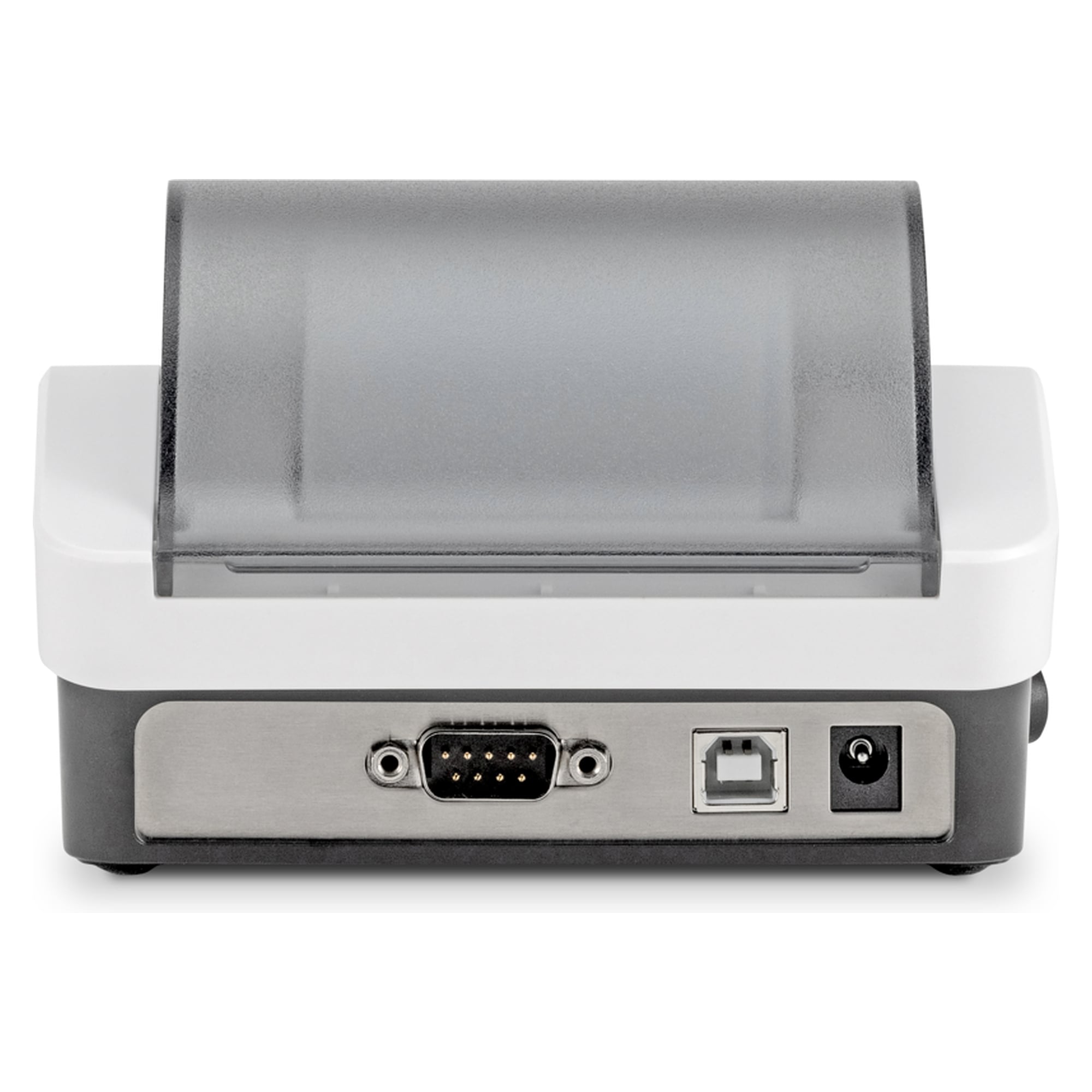

• Interface: RS-232 as standard
• Power supply: plug-in adapter 100 to 240 V AC, 50/60 Hz
• Ambient temperature: 5 to 45 °C
• Humidity: 10 to 80 %
• Net weight: 0,65 kg

Compliance and origin

EAN 4045761484849. Customs tariff number 84239010. Country of origin China.
