Sensor cable 5-pin PUR 5 m, M12 socket to open ends A-coded, 24V DC - LED2WORK 200100-10

Powers LED2WORK 24V DC luminaires with an M12-A port and, thanks to the fifth core, enables the signal function of the RGB and RGB-W models. One end carries a ready M12-A socket, the other five open wire ends for free connection, sealed to IP68 once mounted.

Key benefits

• 5-core: enables the signal function of RGB and RGB-W luminaires
• M12 A-coded socket to five open wire ends for flexible wiring
• 5 m of black PUR cable
• Protection rating IP65, IP67 and IP68 when fitted
• Wide operating range from -30 °C to +90 °C

Technical data

• Model: sensor cable, open / M12 socket, 5-pin
• Design: PUR, black
• Coding: A-coded
• Cable length: 5 m

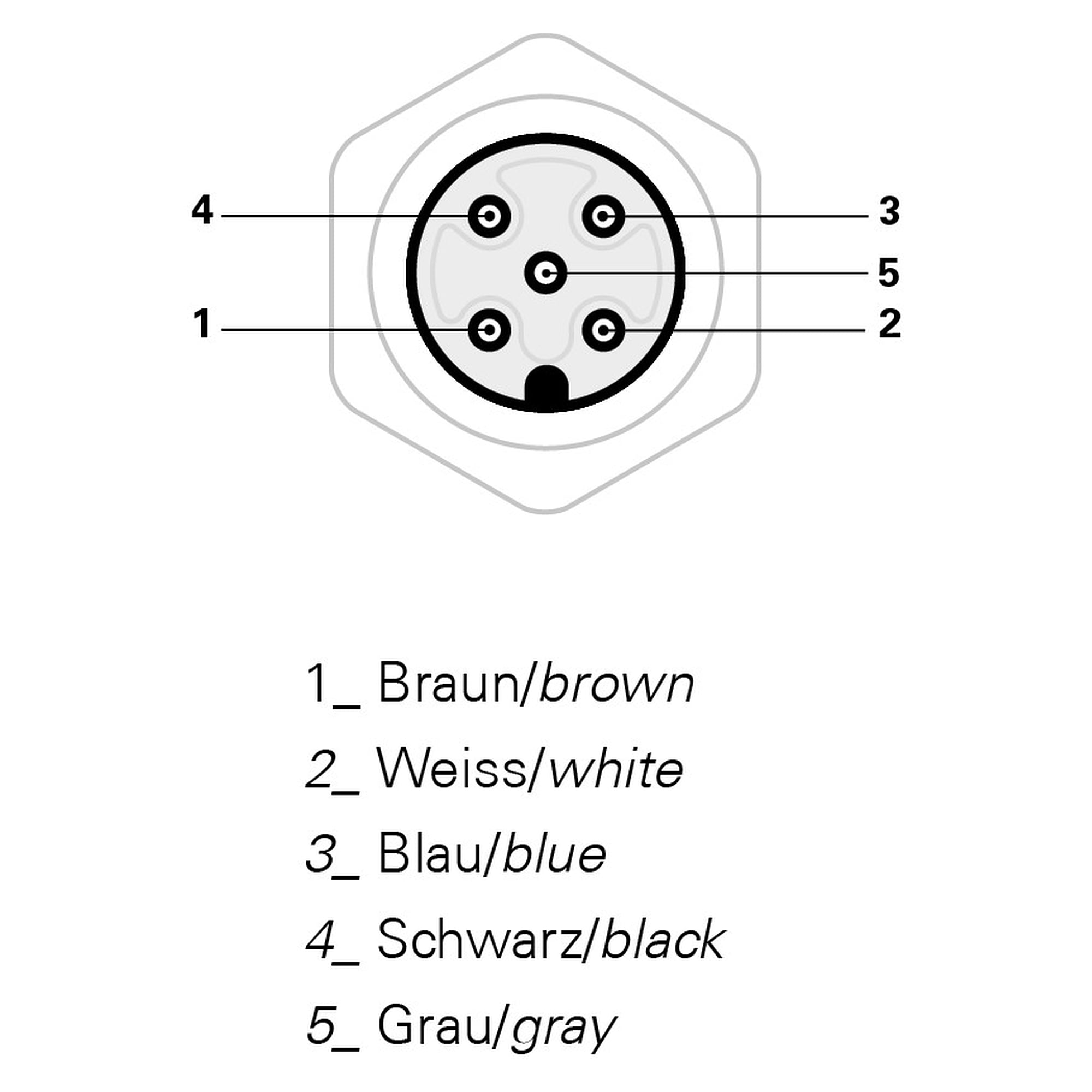

• Number of pins: 5
• Cable ends: open ends, 5 cores / M12 socket straight
• Rated voltage: 250 V
• Current load per pin: 4000 mA
• Operating temperature: -30 °C to +90 °C
• Protection rating (fitted): IP65, IP67, IP68
• Cable material: PUR
• Contact material: metal, CuSn, gold-plated
• Coupling nut material: metal, CuZn, nickel-plated
• Seal material: FPM / FKM
• Standards: IEC 61076-2-101
• Weight: 150 g
• Certifications: CE, RoHS, UL

Applications

For connecting LED2WORK 24V DC luminaires with an M12-A port, including RGB and RGB-W luminaires. Their signal function requires a 5-pin cable like this one.
