Sensor cable 8-pin PUR 5 m, M12 socket to open ends A-coded, 24V DC - LED2WORK 200100-17

Connects LED2WORK DOMELED luminaires reliably to the supply. The eight cores carry all of these luminaires' signal and supply lines. One end carries a ready M12 socket, the other eight open wire ends for free connection.

Key benefits

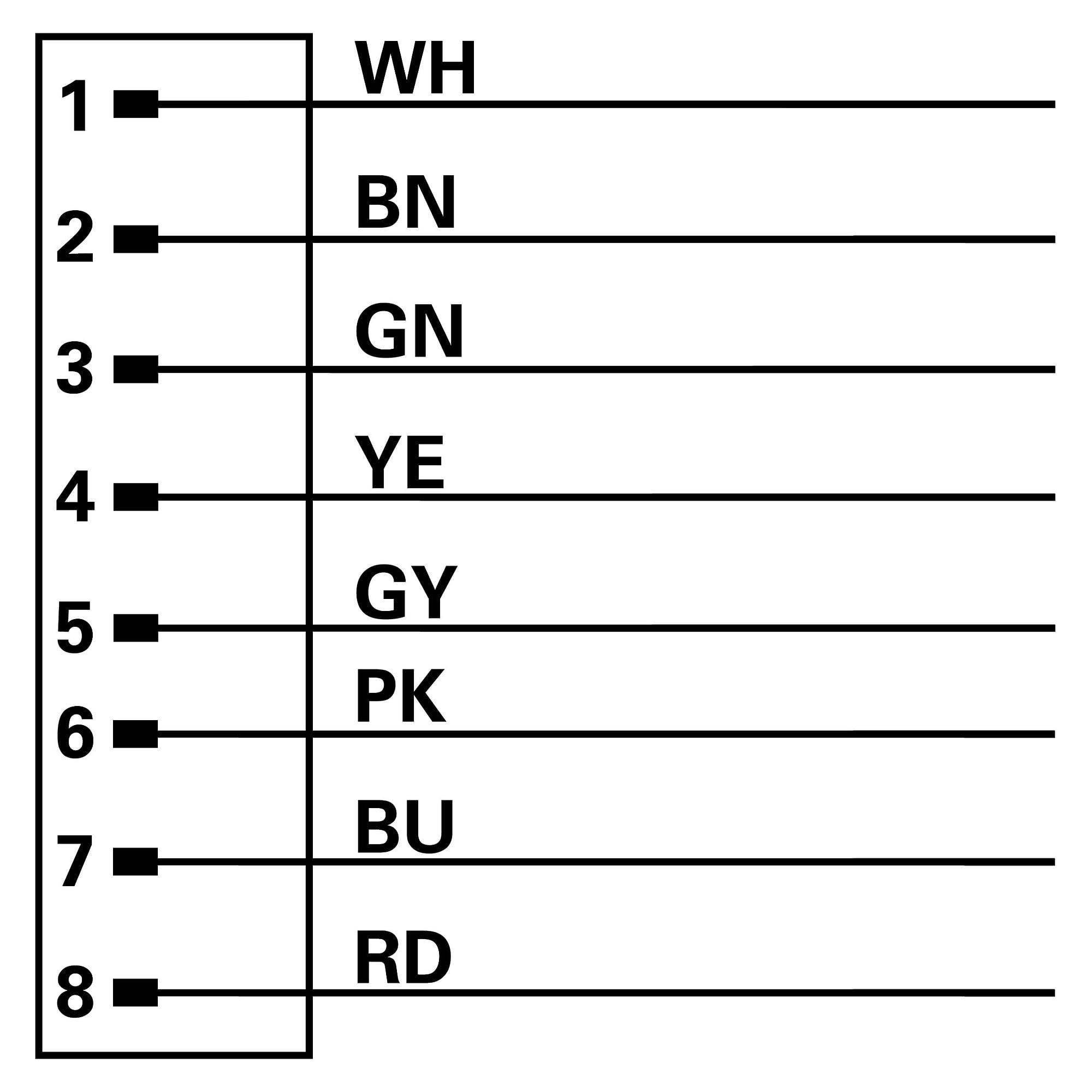

• 8-core: matched specifically to the pin assignment of DOMELED luminaires
• M12 A-coded socket to eight open wire ends for flexible wiring
• 5 m of black PUR cable
• Wide operating range from -30 °C to +90 °C
• Certified to CE, UKCA and cULus

Technical data

• Model: sensor cable, open / M12 socket, 8-pin
• Design: PUR, black
• Coding: A-coded
• Suitable for: DOMELED
• Cable length: 5 m
• Number of pins: 8
• Cable ends: open ends, 8 cores / M12 socket straight
• Rated voltage: 24 V
• Operating temperature: -30 °C to +90 °C
• Cable material: PUR
• Weight: 150 g
• Certifications: CE, UKCA, cULus

Applications

For connecting LED2WORK DOMELED luminaires with an 8-pin M12 port. The open wire ends allow wiring to a controller or supply.
