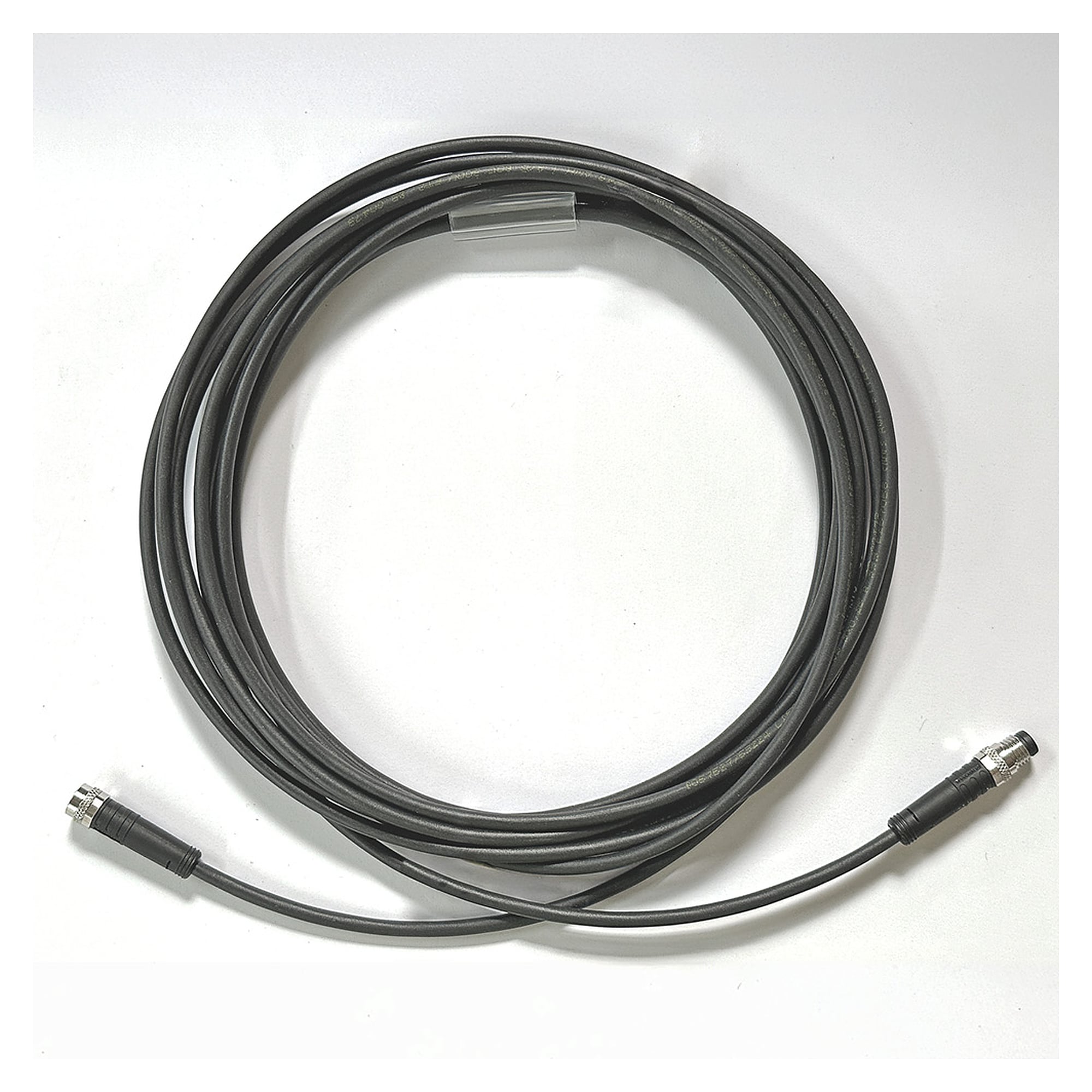

Sensor cable PUR 5 m, M8 socket to M8 plug, 3-pin, 24V DC - LED2WORK 200100-27

Link TUBELED_25 luminaires to each other or extend the connection over 5 m. The black PUR sensor cable carries a straight M8 socket and an M8 plug, both A-coded, for a plug-and-play 24V DC connection with no wiring.

Key benefits

• M8 socket and plug for a plug-and-play connection with no wiring
• A-coded to prevent incorrect connection
• 5 m length for medium connection and link runs
• Rugged PUR jacket for continuous industrial use
• For the TUBELED_25 series (not TUBELED_25 RGB-W and IO-Link)

Technical data

• Model: sensor cable, M8 socket/M8 plug 3-pin
• Design: sensor cable, PUR, black
• Coding: A-coded
• Cable length: 5 m

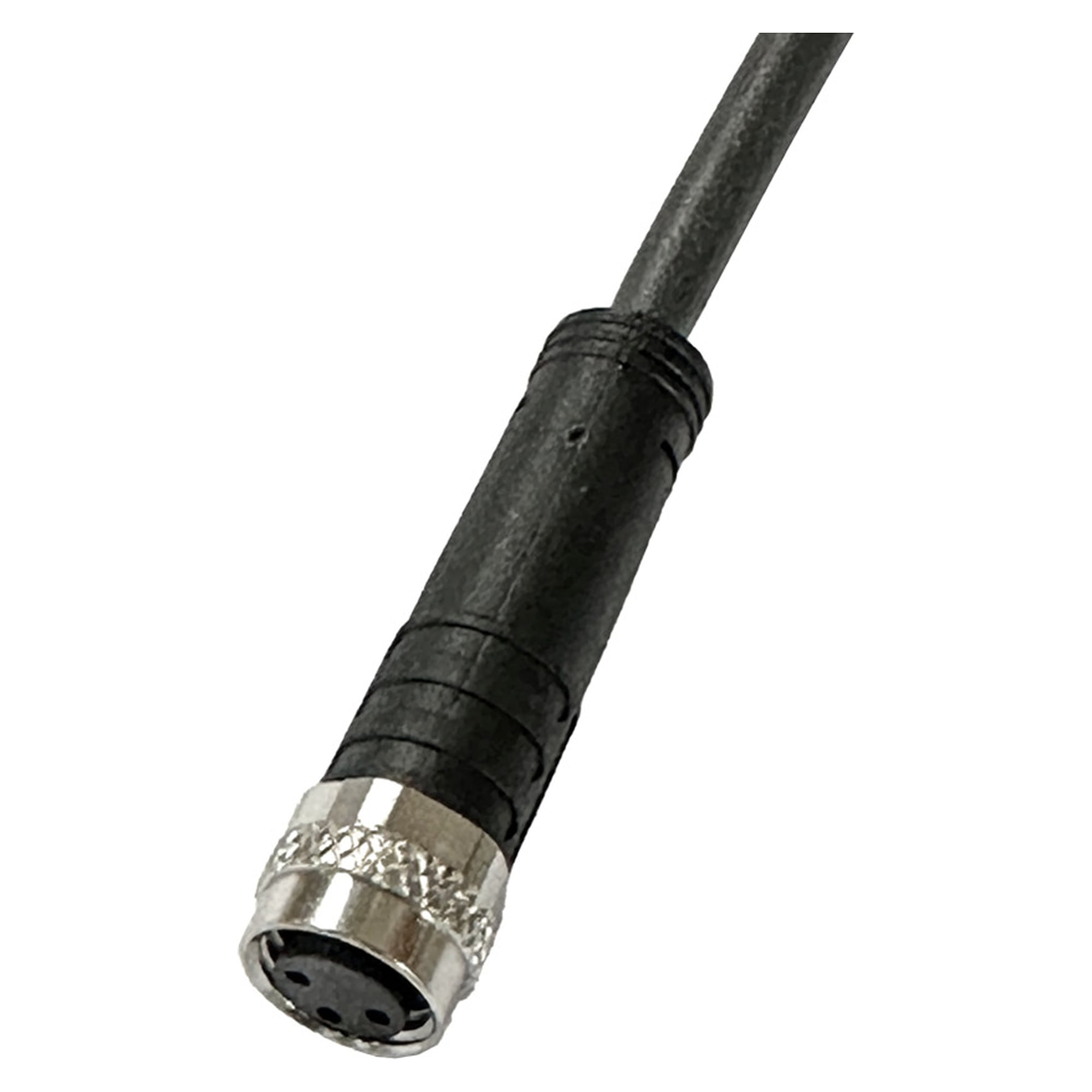

• Connection to luminaire: M8 socket connector, straight

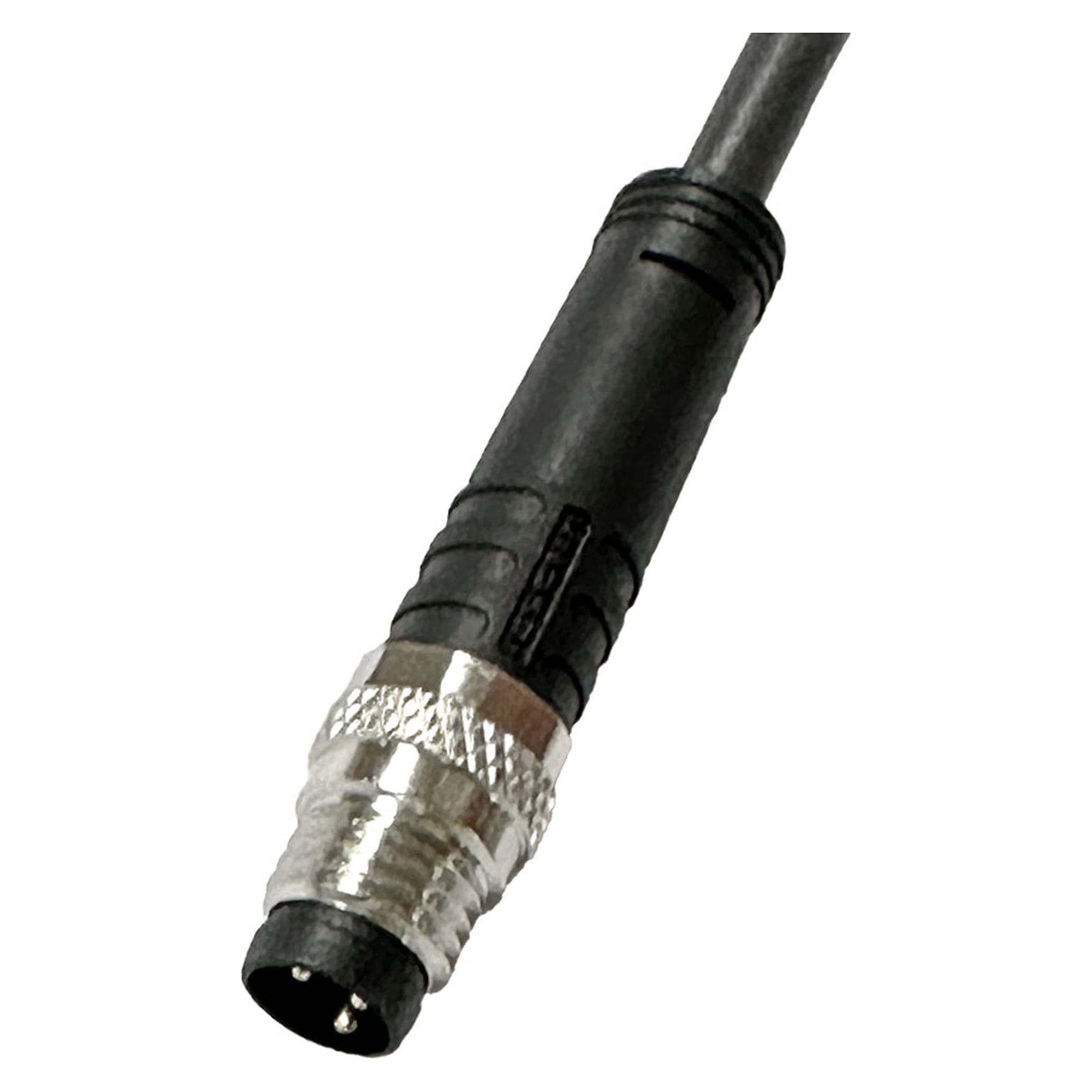

• Cable ends: M8 plug, straight
• Rated voltage: 24V
• Number of pins: 3
• Cable material: PUR
• Suitable for: TUBELED_25 (not TUBELED_25 RGB-W and IO-Link)
• Weight: 200 g
• Certifications: CE
• Made in: Germany

Applications

Plug-and-play connection or extension between TUBELED_25 luminaires and the 24V DC supply on machines and workstations.
