PIR motion sensor 24V DC, IP54, M12 connection, range approx. 5 m - LED2WORK 210700-07

The PIR SENSOR controls 24V DC luminaires based on motion and switches the lighting on and off automatically. This cuts energy use at workstations and machines where light is only needed when someone is present.

Key benefits

• Energy-aware light control through automatic switching
• Maximum current load 4000 mA at 96 W power
• IP54 rating for indoor applications
• Motion detection up to approx. 5 m in a 360 degree cone with a 90 degree opening angle
• Connection via M12-A plug and socket with a 150 mm lead

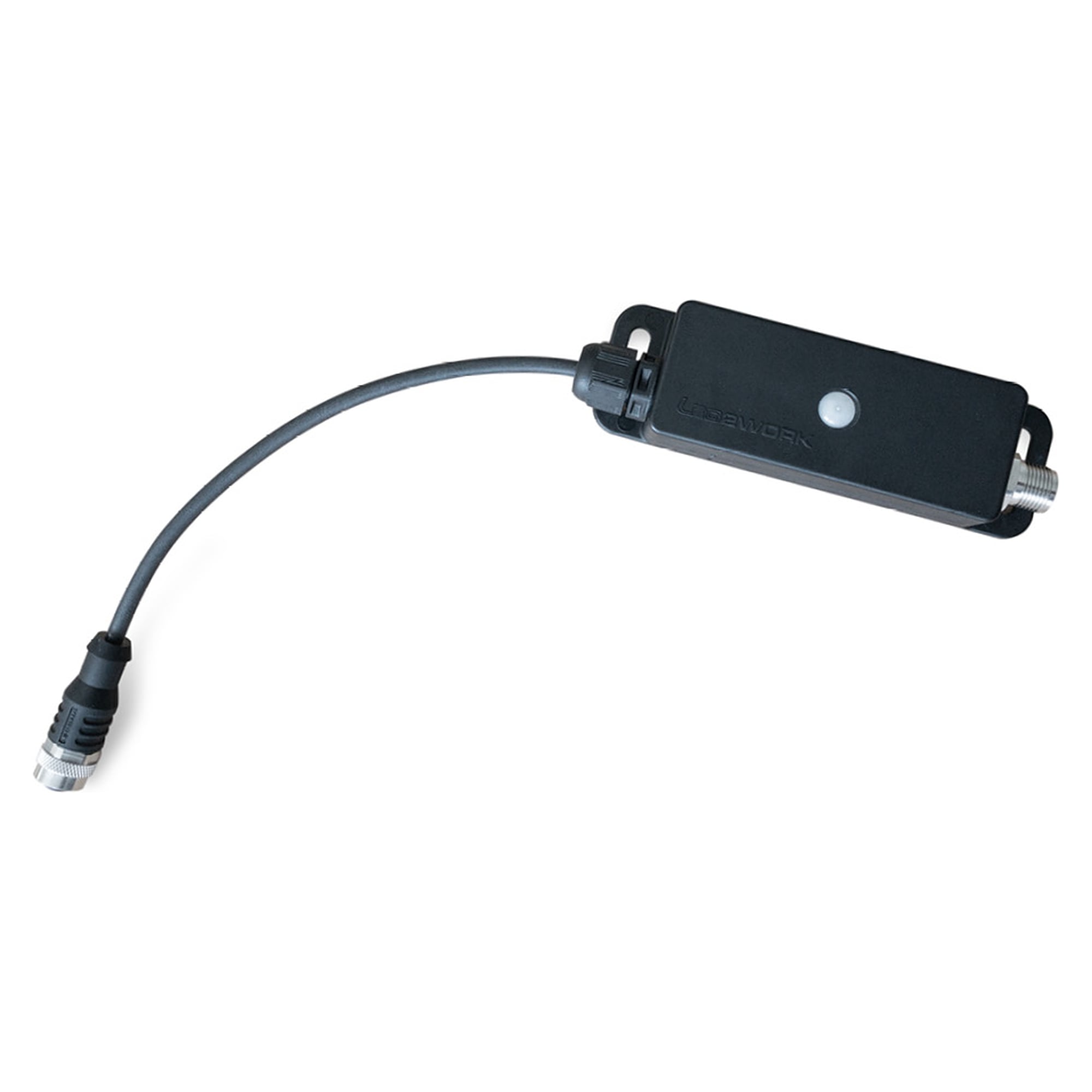

• Surface-mounted unit with slot-hole fixing

Technical data

• Model: PIR SENSOR
• Design: surface-mounted unit with slot-hole fixing
• Power: 96 W
• Max. current load: 4000 mA
• Input voltage: 24V DC plus/minus 10 %
• Input/output: plug M12A / socket M12A with 150 mm lead
• Material: plastic housing
• Protection rating: IP54
• Operating temperature: -20 °C to +50 °C
• Storage temperature: -20 °C to +75 °C

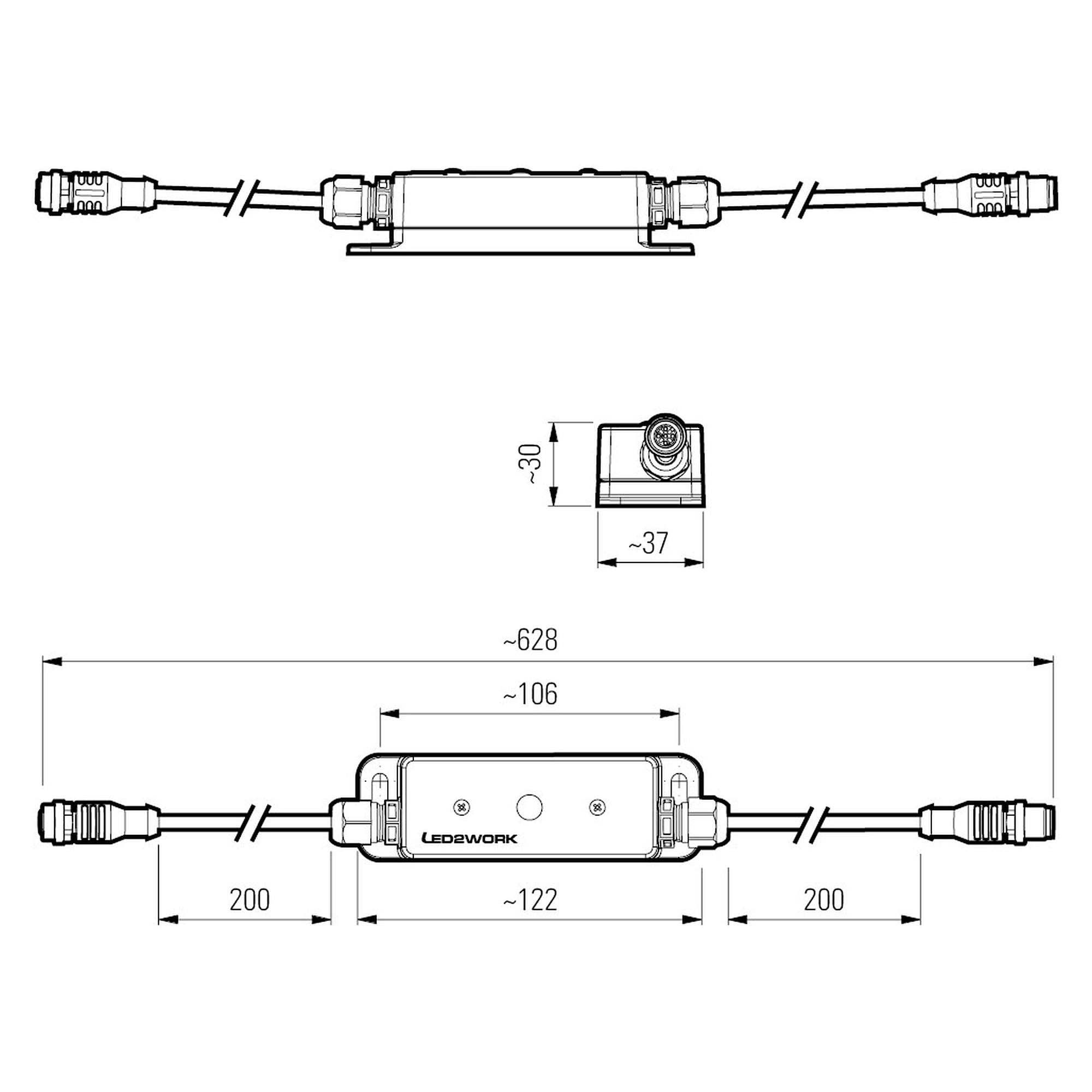

• Dimensions: 122 mm x 33 mm x 29 mm
• Weight: 210 g
• Certifications: CE, UKCA

Applications

For motion-dependent control of LED2WORK 24V DC luminaires at workstations, storage areas and machines indoors.
