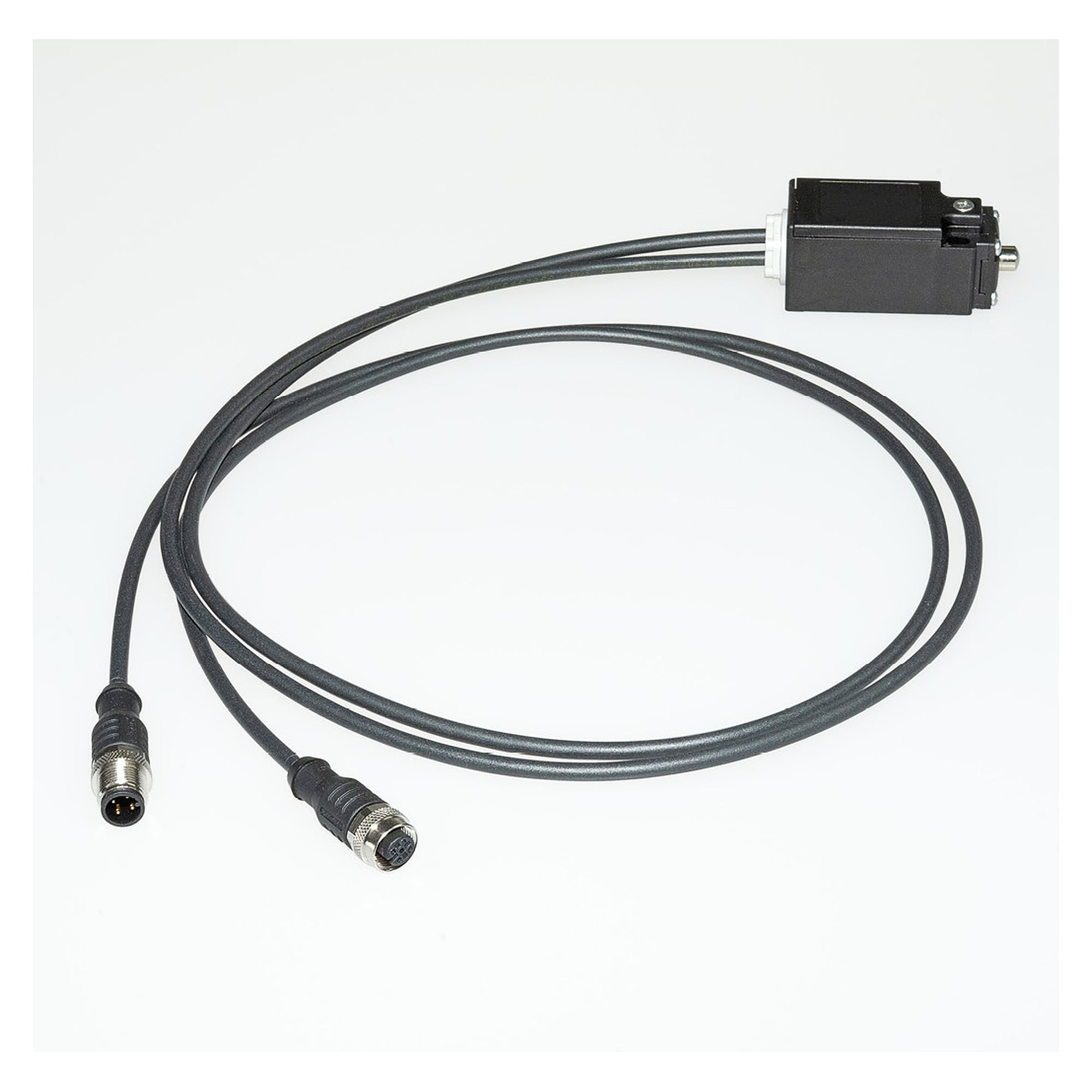

Door contact switch M12 plug/socket, 24V DC, 1 NO + 1 NC - LED2WORK 210800-01
Compact door contact switch for position monitoring of doors and flaps in industrial applications. With one NO and one NC contact, 24V DC and a ready-to-use M12 connection with 1 m lead, rated for 20 million switching cycles.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The door contact switch reliably monitors the position of doors and flaps on machines and equipment, switching connected 24V DC lights or signals accordingly.
Key benefits
- One normally closed (NC) and one normally open (NO) contact for flexible switching logic.
- Ready-to-use M12 connection with 1 m lead for fast integration.
- Mechanical service life of 20 million switching cycles for long uptime.
- IP65 protection rating when mounted, suitable for 24V DC luminaires.
- Proven Pizzato FR 501-M2 switch body.
Applications
Position monitoring of doors, flaps and hoods on machine tools and automated equipment, for example to switch interior lighting on demand when the door is opened.
Technical data
| Model | door contact switch |
|---|---|
| Design | Pizzato FR 501-M2 |
| Suitable for | 24V DC luminaires |
| Contacts | 1 NO + 1 NC |
| Operating voltage | 24V DC |
| Number of poles | 4 |
| Connection type | M12 |
| Conductor cross-section | 0.34 mm² |
| Lead length | 1 m |
| Mechanical service life | 20 million switching cycles |
| Protection rating (mounted) | IP65 |
| Ambient temperature | -10 °C to +60 °C |
| Weight | 1 kg |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 210800-01 |
| HS-Code | 85369010 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Beam angle | 10° |
| Protection class (IP) | IP65 |
