Pendulum bridges

Pendulum bridges are specialized connecting components designed for rodless pneumatic cylinders that enable lateral load compensation and smooth operation across extended stroke lengths. These mechanical bridge assemblies compensate for misalignment between the cylinder carriage and the external load while maintaining precise positioning accuracy. Primary applications include automated material handling systems in automotive assembly lines, packaging machinery requiring precise linear positioning, and conveyor systems where space constraints prevent conventional rod-type cylinders. Industries utilizing pendulum bridges extensively include automotive manufacturing for welding fixture positioning, pharmaceutical packaging for precise product placement, and electronics assembly where clean operation and compact design are essential for maintaining production throughput.

Selection of pendulum bridges depends primarily on cylinder bore diameter compatibility ranging from 18mm to 63mm, with corresponding load capacity requirements and mounting space constraints. The LZ series offers two distinct width configurations designated as PBB (wide) and PBS (narrow), where the wide variant provides higher lateral load capacity for heavy-duty applications while the narrow version optimizes space utilization in compact installations. Critical selection factors include maximum lateral load rating typically ranging from 50N to 500N depending on bridge width, required stroke length compatibility with the rodless cylinder system, and mounting interface specifications. Operating pressure capabilities generally span 2 to 10 bar with consideration for dynamic loading conditions, while environmental factors such as temperature range and contamination exposure determine material selection and sealing requirements for optimal service life.

Pneumatic pendulum bridges must comply with ISO 15552 for pneumatic cylinder dimensional standards and ISO 4414 for pneumatic fluid power safety requirements, ensuring dimensional compatibility and operational safety across different manufacturer systems. European machinery applications require conformity with EN ISO 13849 for safety-related parts of control systems and potentially ATEX directive 2014/34/EU for explosive atmosphere applications depending on installation environment. Quality management follows ISO 9001 manufacturing standards while material specifications typically conform to DIN EN 10025 for structural steels or DIN EN 755 for aluminum alloy components. Additional certification requirements may include IP65 ingress protection rating per IEC 60529 for harsh industrial environments, with specialized applications requiring FDA compliance for food contact surfaces or USP Class VI certification for pharmaceutical cleanroom installations where product purity is critical.

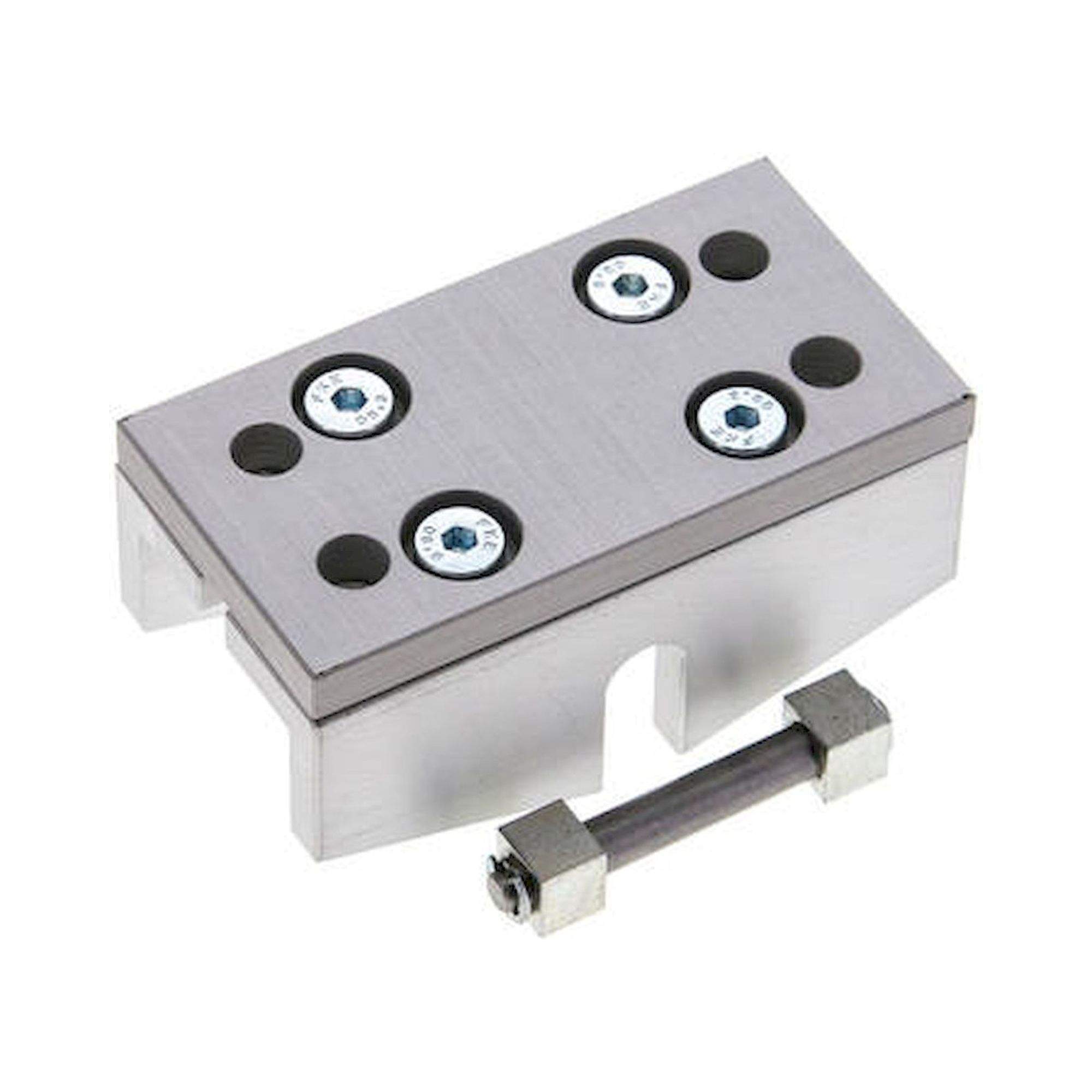

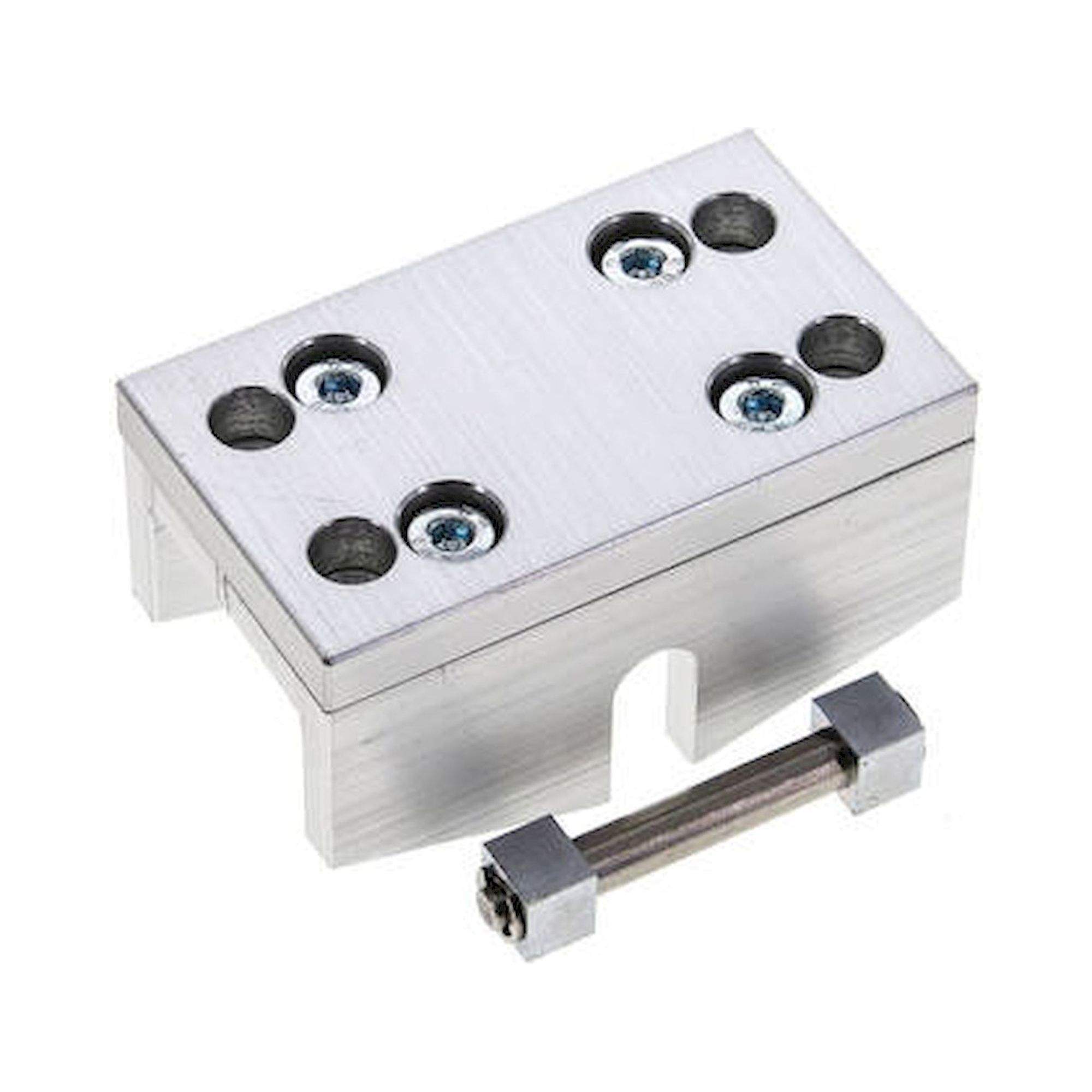

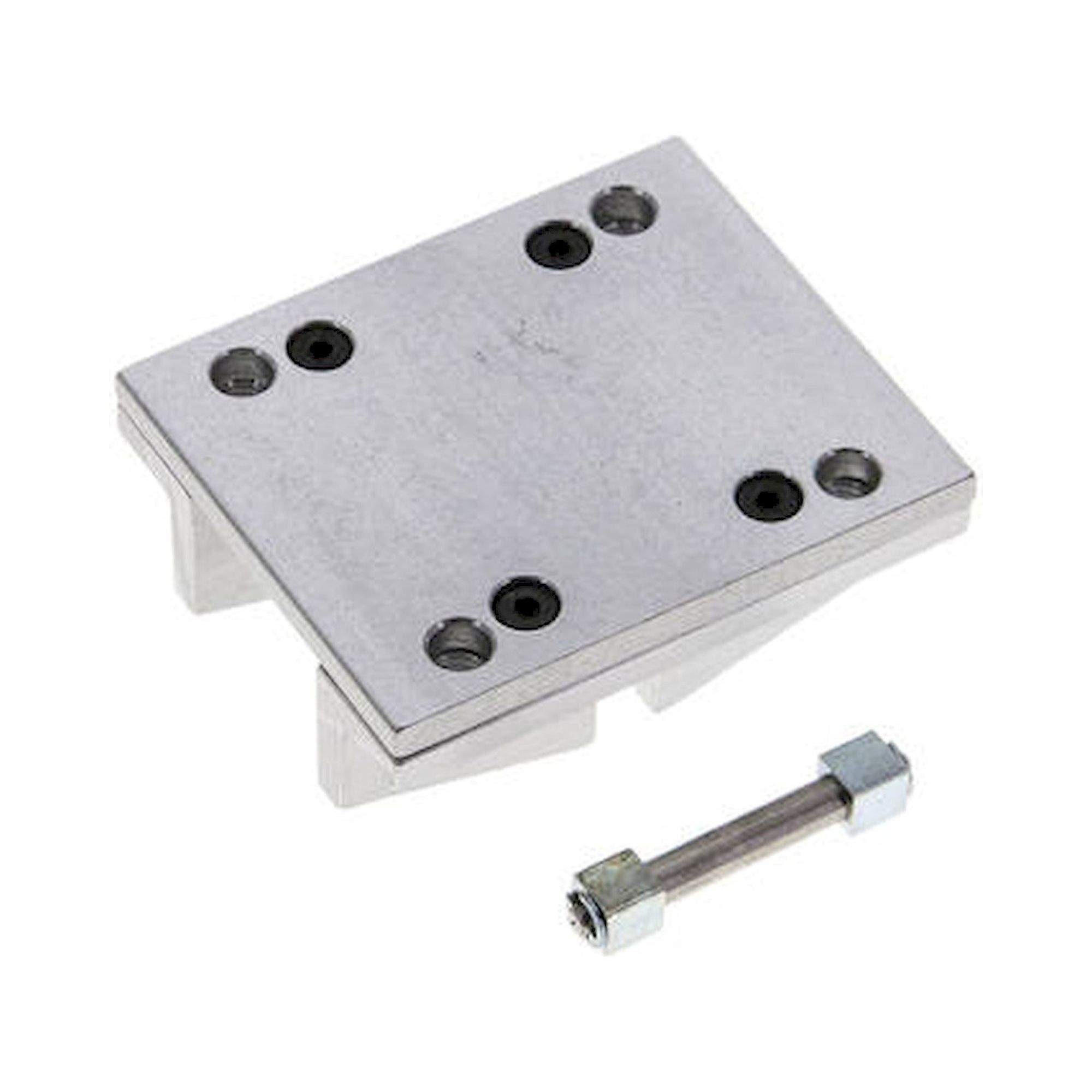

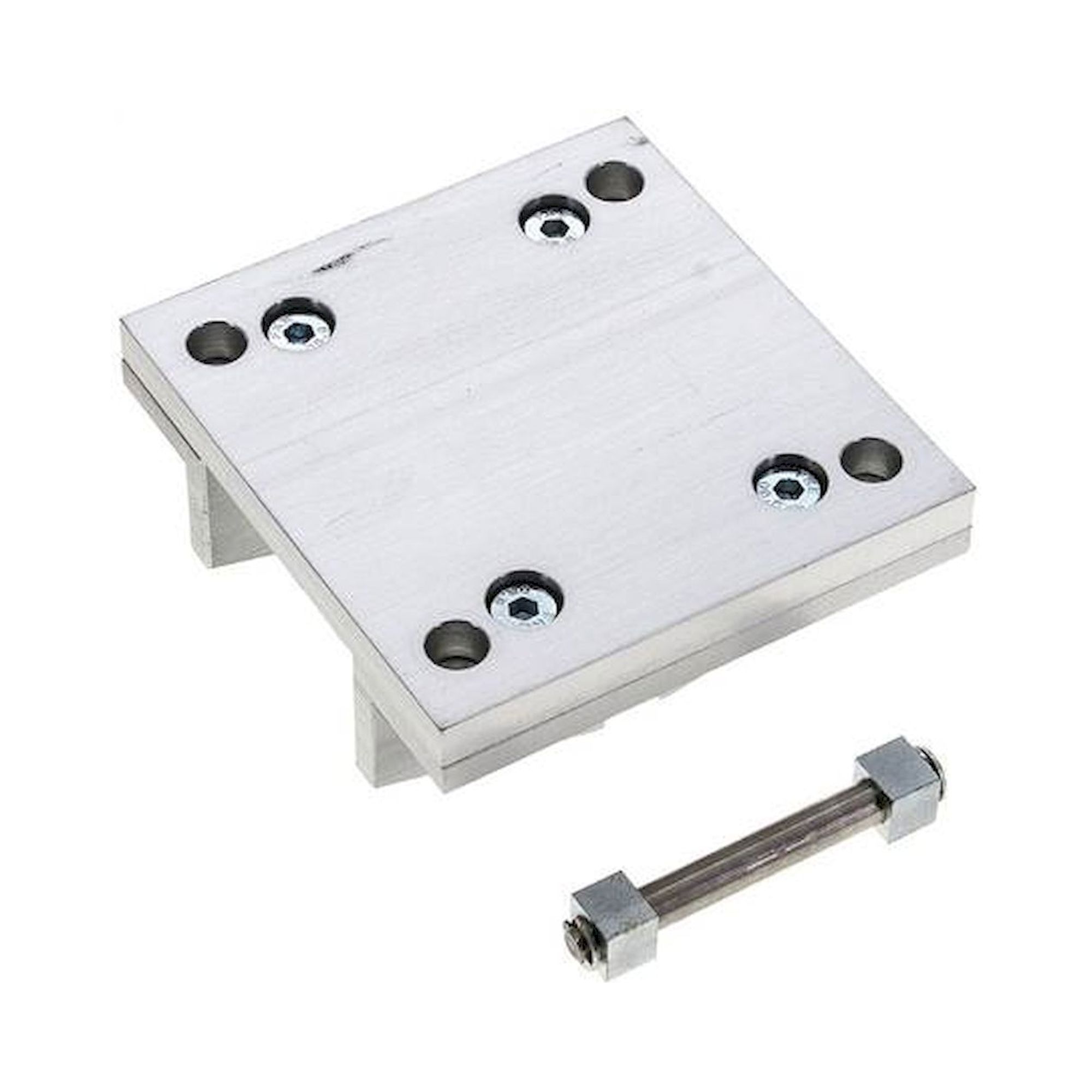

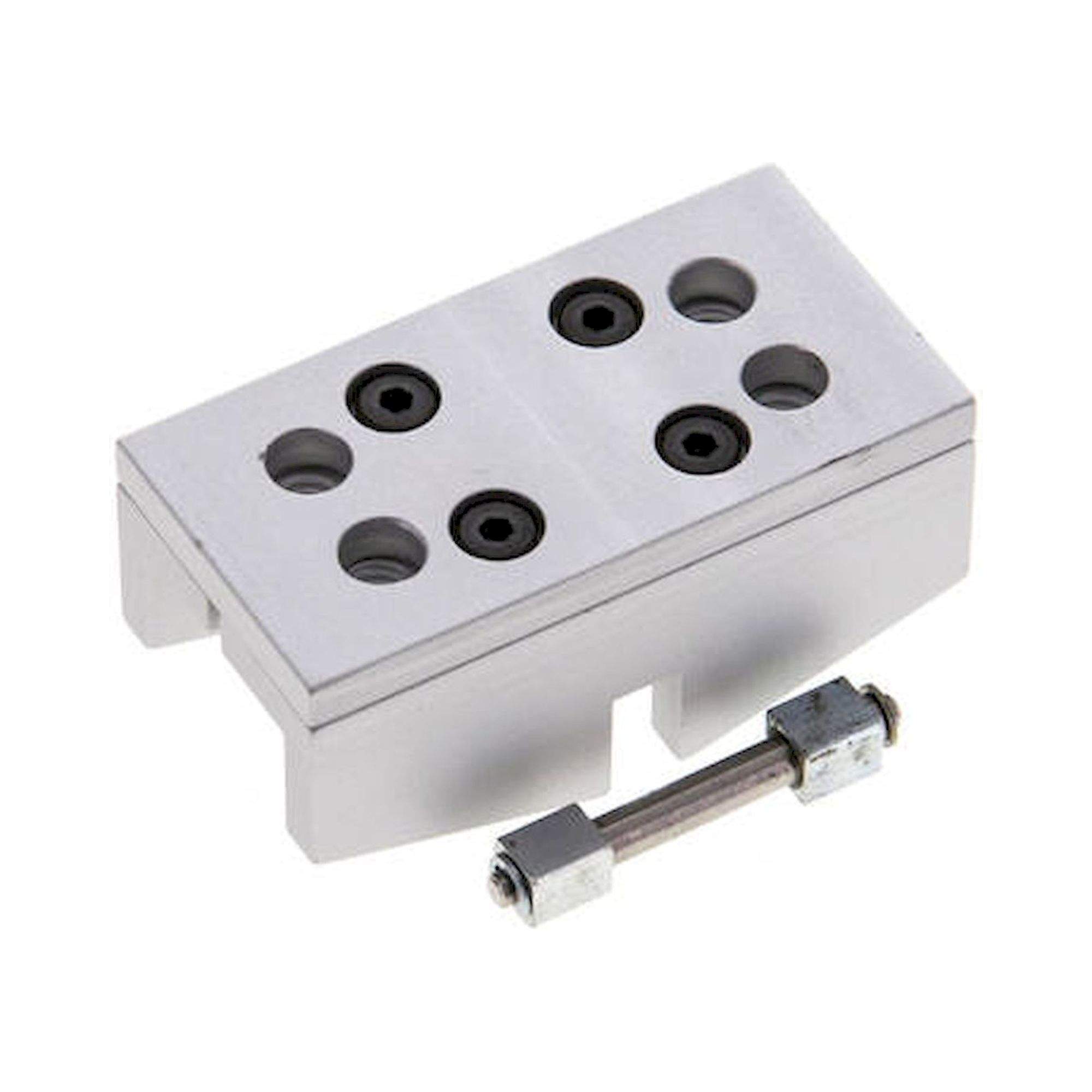

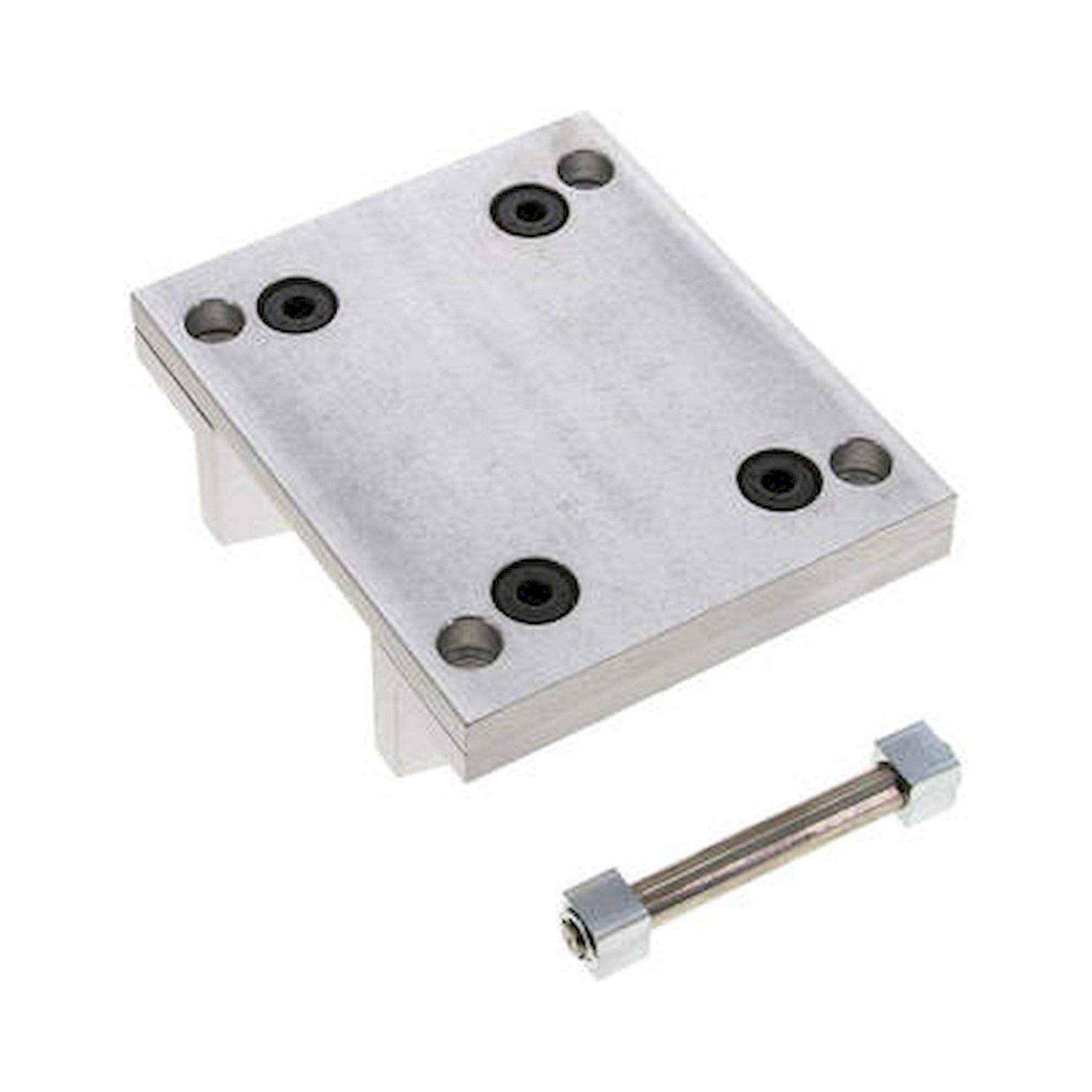

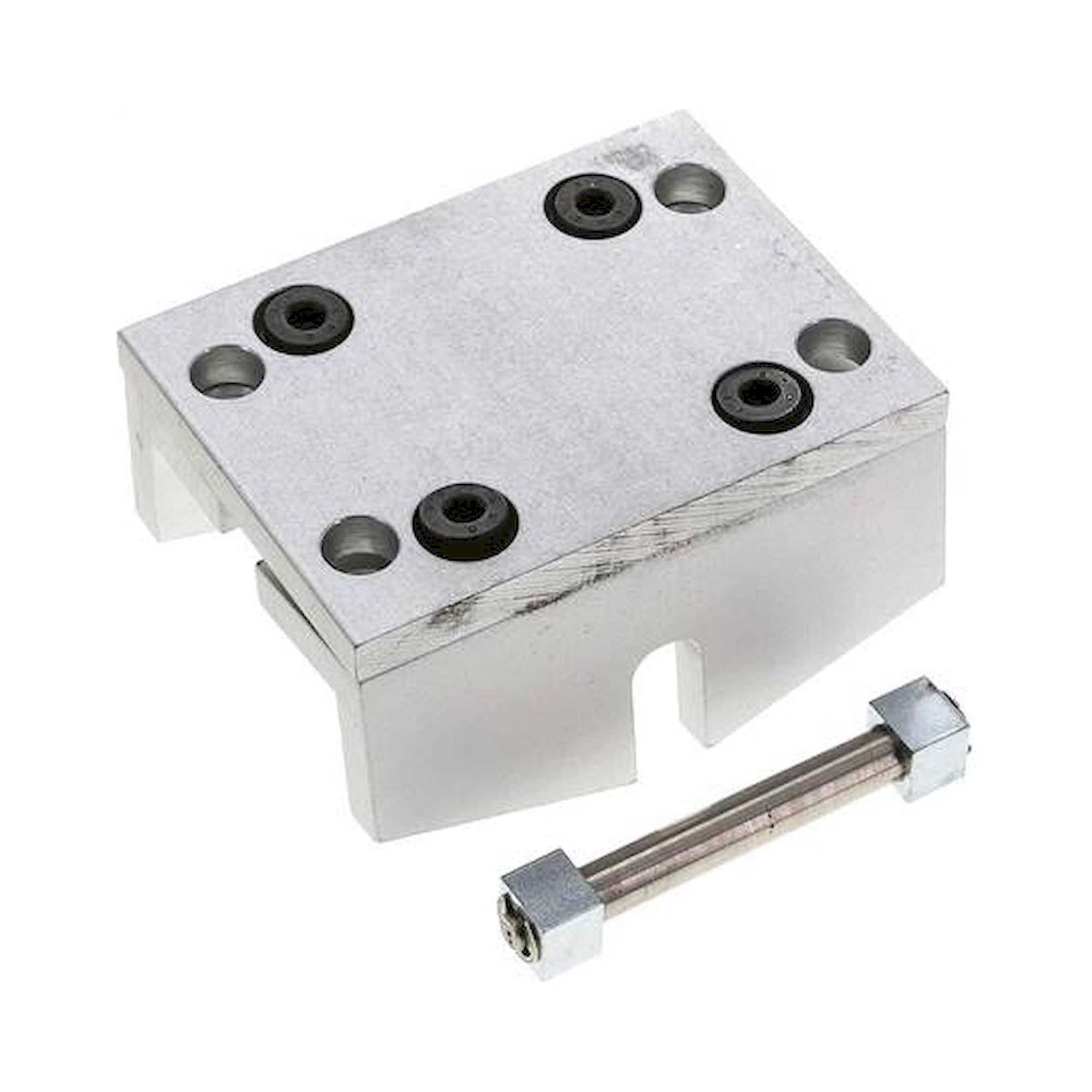

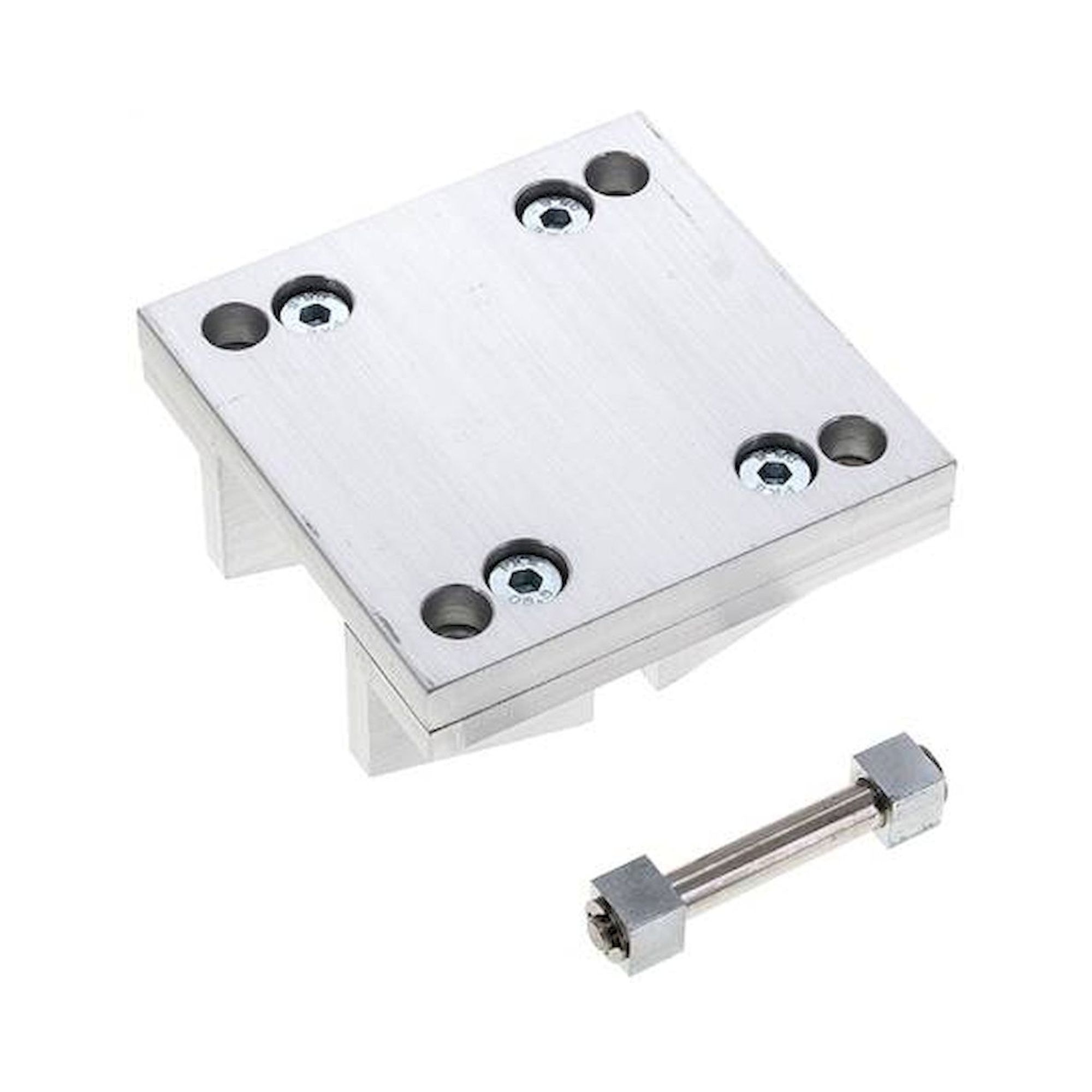

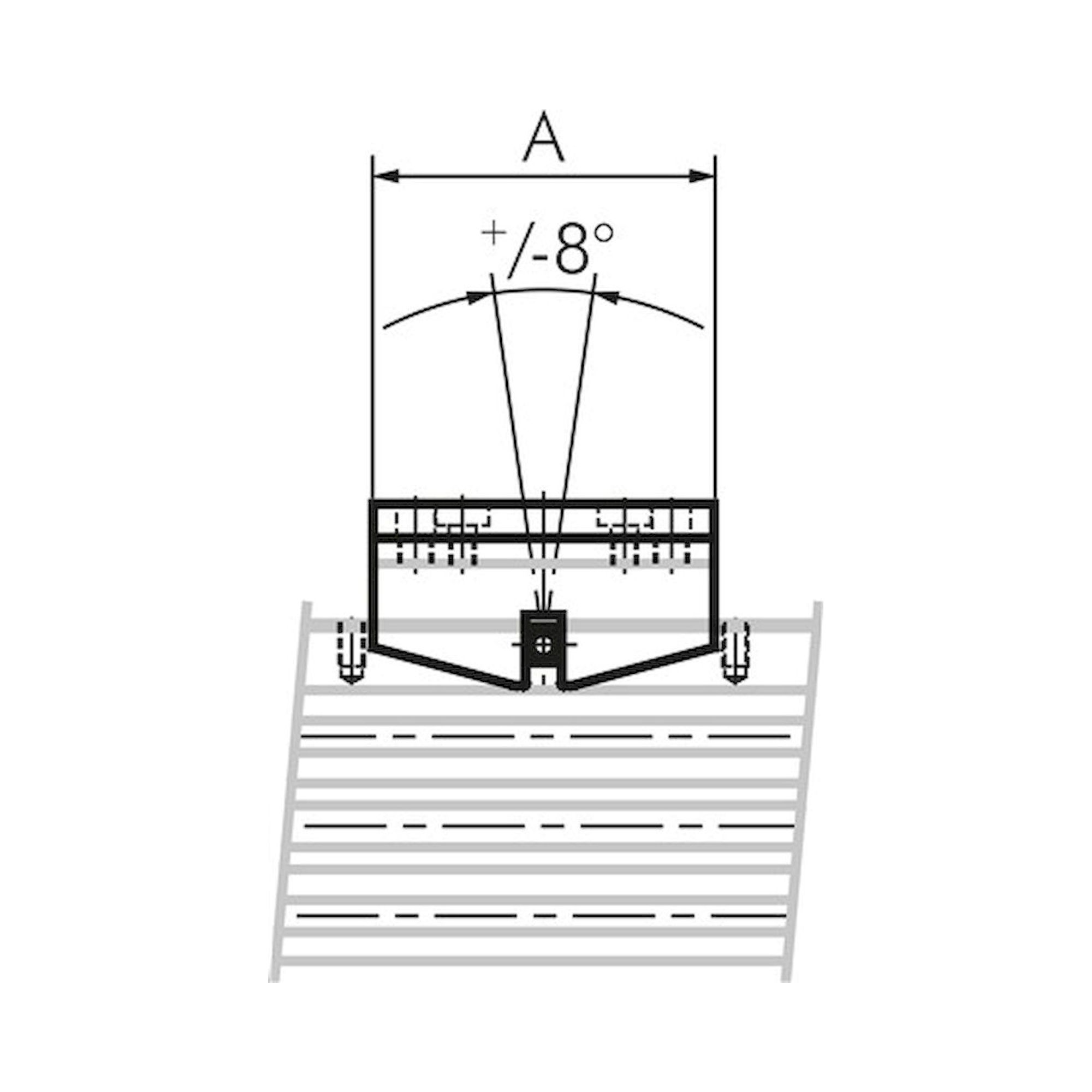

The fundamental difference between PBB (wide) and PBS (narrow) pendulum bridge variants lies in their lateral load capacity and spatial requirements, with PBB designs providing approximately 40-60% higher load ratings due to increased bearing surface area and structural reinforcement. Wide PBB variants typically measure 25-35mm in overall width depending on cylinder bore size, offering superior moment load resistance up to 500Nm for heavy-duty applications, while narrow PBS variants maintain 15-20mm width profiles optimized for space-constrained installations with reduced load capacity. Both configurations maintain identical bore diameter compatibility across the 18mm to 63mm range but differ in mounting hole patterns and connection interface dimensions. The PBS narrow design prioritizes compact integration in densely packed machinery layouts while sacrificing some lateral stiffness, whereas PBB wide variants excel in applications requiring maximum positioning accuracy under variable loading conditions.

Pendulum bridge installation requires precise alignment between the rodless cylinder mounting surface and the external load connection points, with typical mounting tolerance requirements of ±0.1mm for proper operation and extended service life. System compatibility depends on matching the bridge bore diameter exactly to the rodless cylinder specification, with available sizes spanning 18mm, 25mm, 32mm, 40mm, 50mm, and 63mm to accommodate standard pneumatic cylinder ranges. Connection interfaces typically utilize M6 to M12 threaded mounting holes with 8mm to 16mm bolt circle diameters depending on bridge size, requiring adequate clearance for assembly and maintenance access. Pneumatic connections generally employ standard G1/8 or G1/4 BSP threads for pressure and exhaust ports, with installation height clearance of minimum 50mm above the cylinder centerline to accommodate bridge articulation during operation while maintaining proper lubrication access for long-term reliability.

Pneumatic pendulum bridges typically operate within pressure ranges of 2 to 10 bar with safety factors of 4:1 minimum according to ISO 4414 pneumatic safety standards, ensuring reliable operation under maximum system pressure conditions. Operating temperature specifications generally span -20°C to +80°C for standard applications, with specialized high-temperature variants rated up to +150°C for demanding industrial environments such as foundries or heat treatment operations. Environmental protection follows IP54 to IP65 ingress protection ratings per IEC 60529, providing adequate protection against dust infiltration and water spray in typical factory environments. Material selections include corrosion-resistant aluminum alloys meeting DIN EN 755 specifications for standard applications, with stainless steel variants conforming to DIN EN 10088 available for food processing or chemical environments requiring enhanced chemical resistance and cleanability for maintaining hygiene standards.

Pneumatic pendulum bridges require visual inspection every 500,000 cycles or quarterly intervals, whichever occurs first, to check for bearing wear, seal integrity, and mounting bolt torque specifications typically ranging from 8 to 25 Nm depending on bridge size. Lubrication maintenance involves applying pneumatic-compatible grease to bearing surfaces every 1,000,000 cycles or semi-annually using ISO VG 32 synthetic lubricants suitable for -20°C to +80°C operating conditions. Expected service life ranges from 5,000,000 to 10,000,000 cycles under normal operating conditions with proper maintenance, though this varies significantly based on lateral loading severity and environmental contamination levels. Critical inspection points include bearing clearance measurements using precision gauges, seal replacement intervals of 2-3 years in continuous duty applications, and verification of mounting alignment within ±0.1mm tolerance to prevent premature failure and maintain positioning accuracy throughout the operational lifecycle.
