Rodless cylinders
Stops LZF/LZFF/LZKF
Stops of the LZF, LZFF, and LZKF series mechanically limit the travel of rodless guide cylinders at the end positions. For each bore diameter, a fixed stop (AS) and an adjustable stop (ASV) are available. The adjustable type allows fine-setting of the end position without dismounting the cylinder. The programme covers guide cylinder sizes of 18, 25, 32, 40, 50, and 63 mm.
- Net prices plus VAT
Buying guide
How to choose Stops LZF/LZFF/LZKF
What matters when choosing: properties, comparison and typical applications.
Product overview stops LZ
| Type | Version | Cylinder sizes (mm) |
|---|---|---|

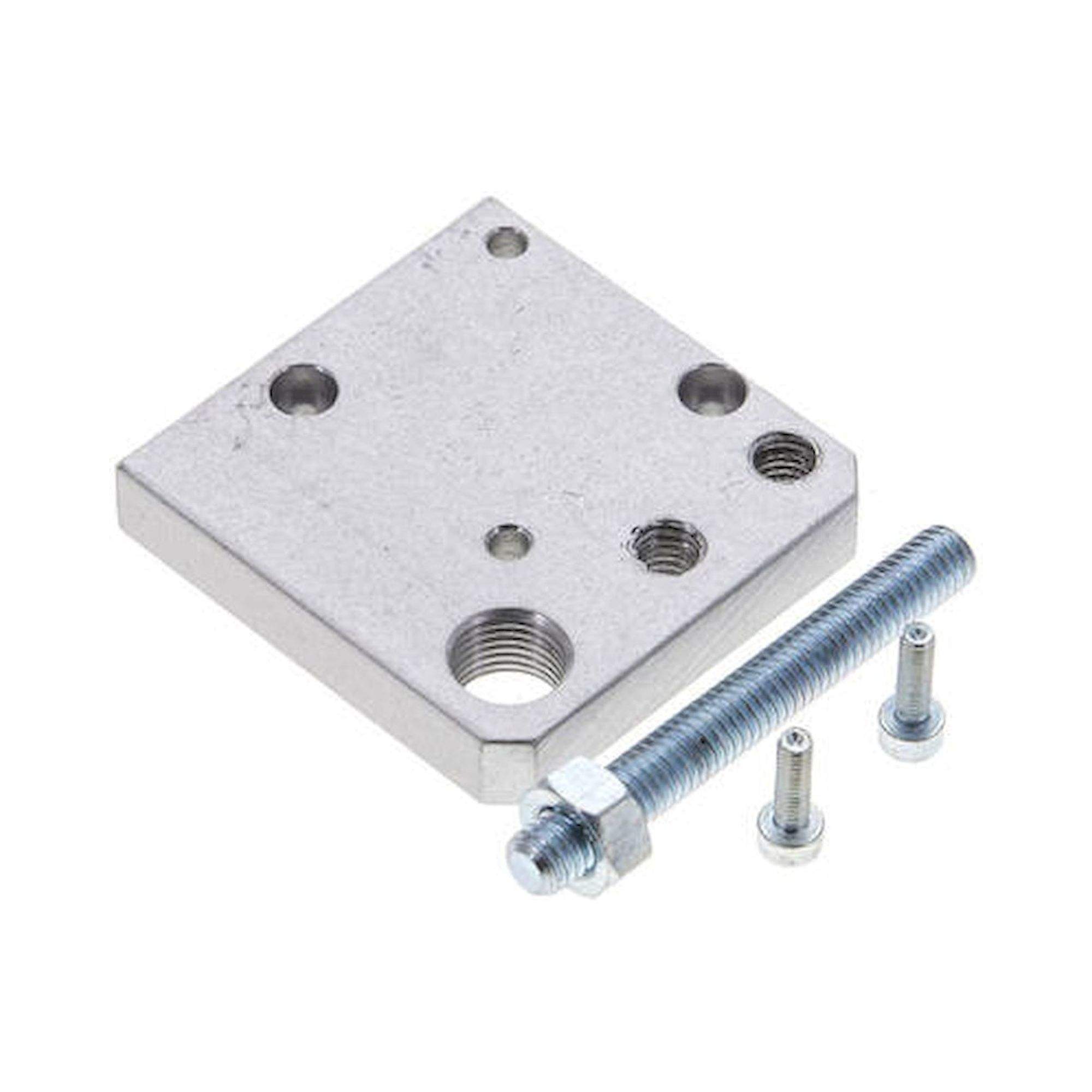

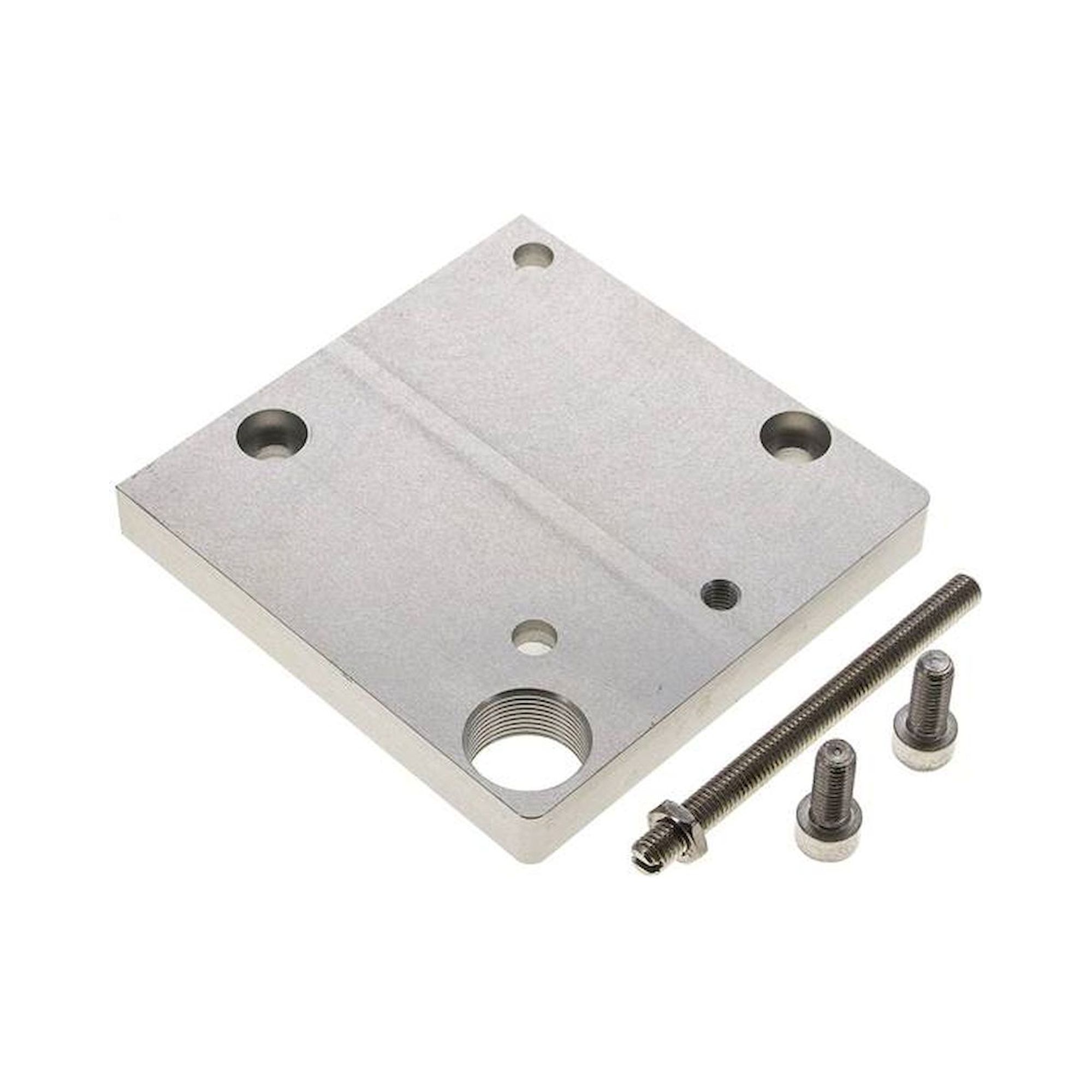

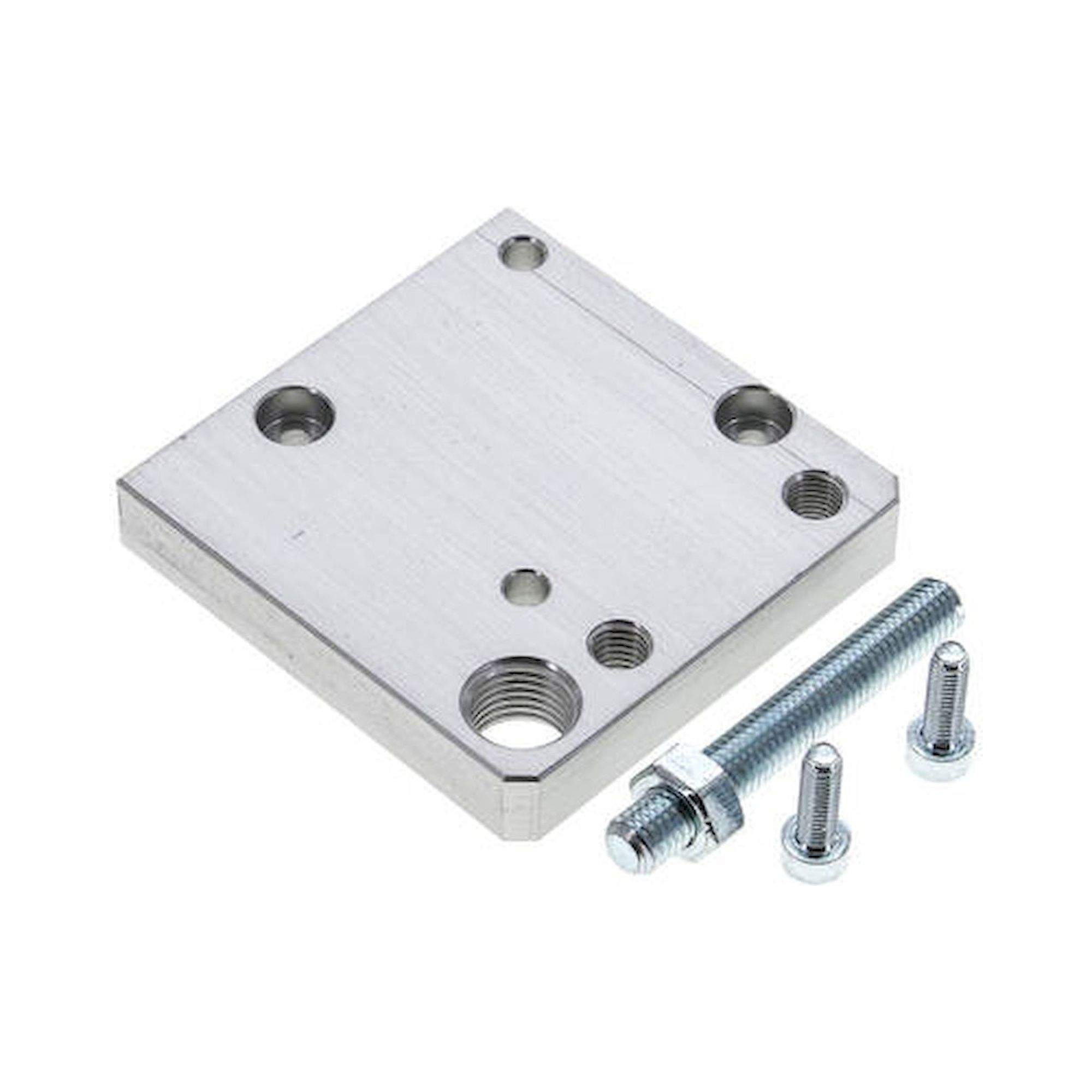

| LZ .. AS | Fixed | 18, 25, 32, 40, 50, 63 |

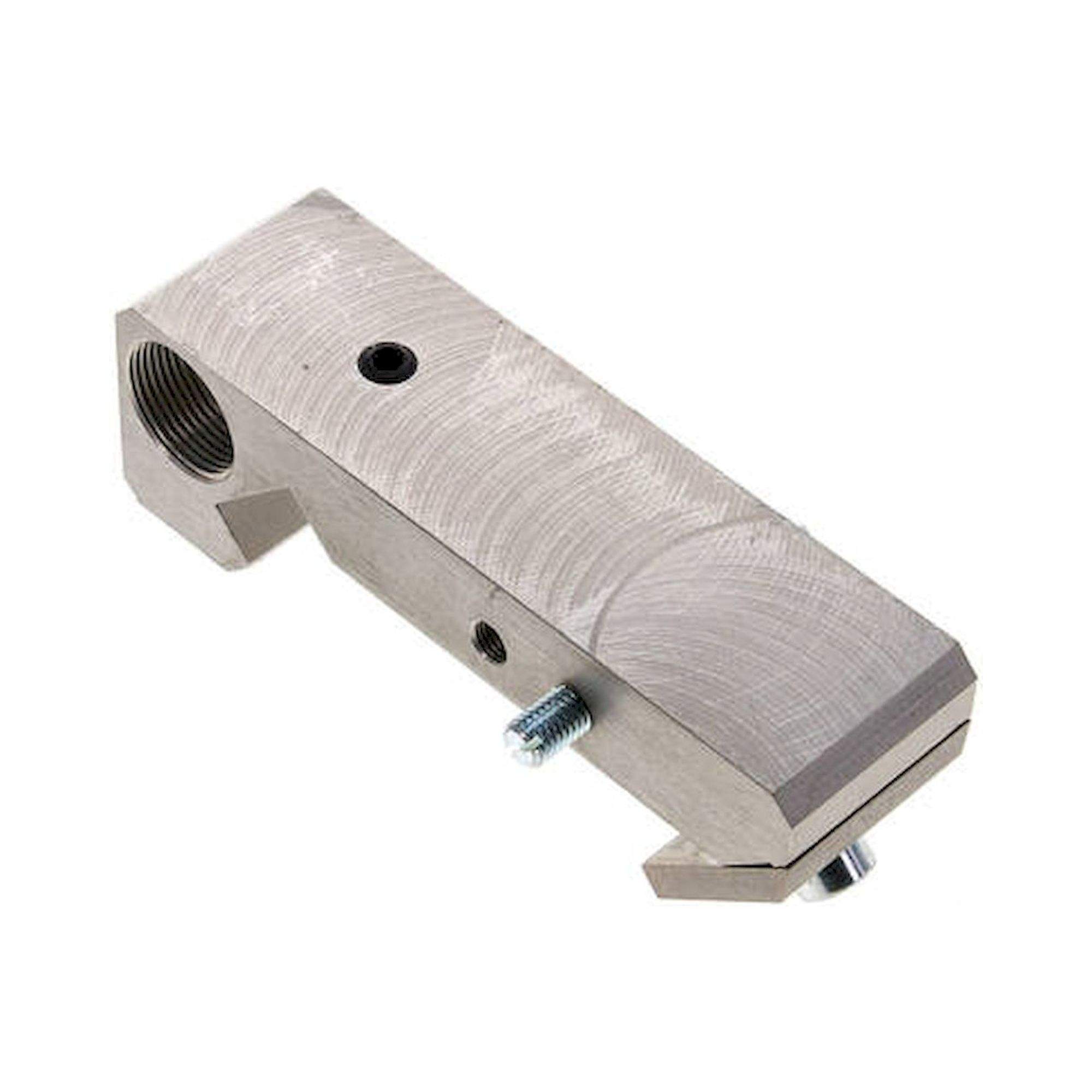

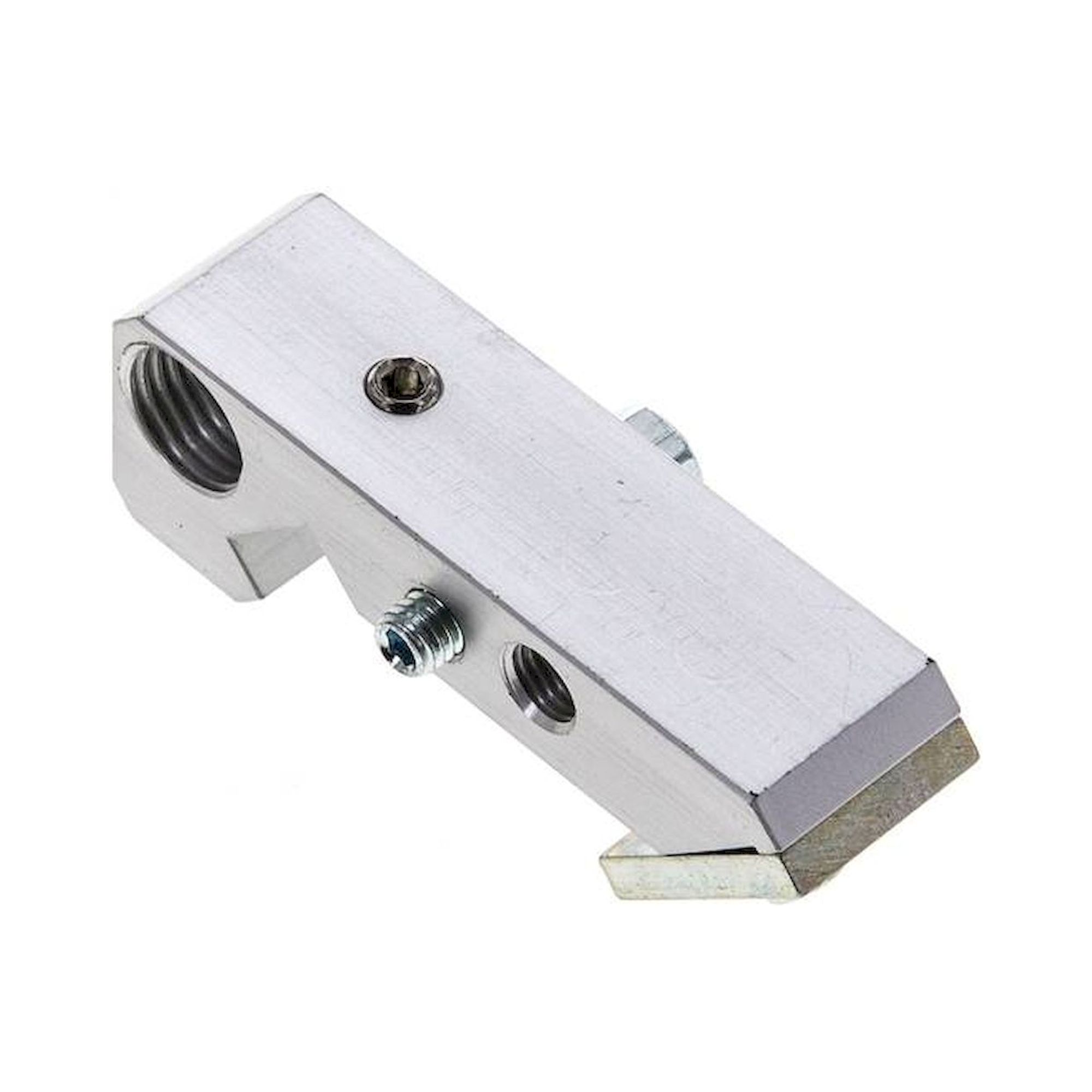

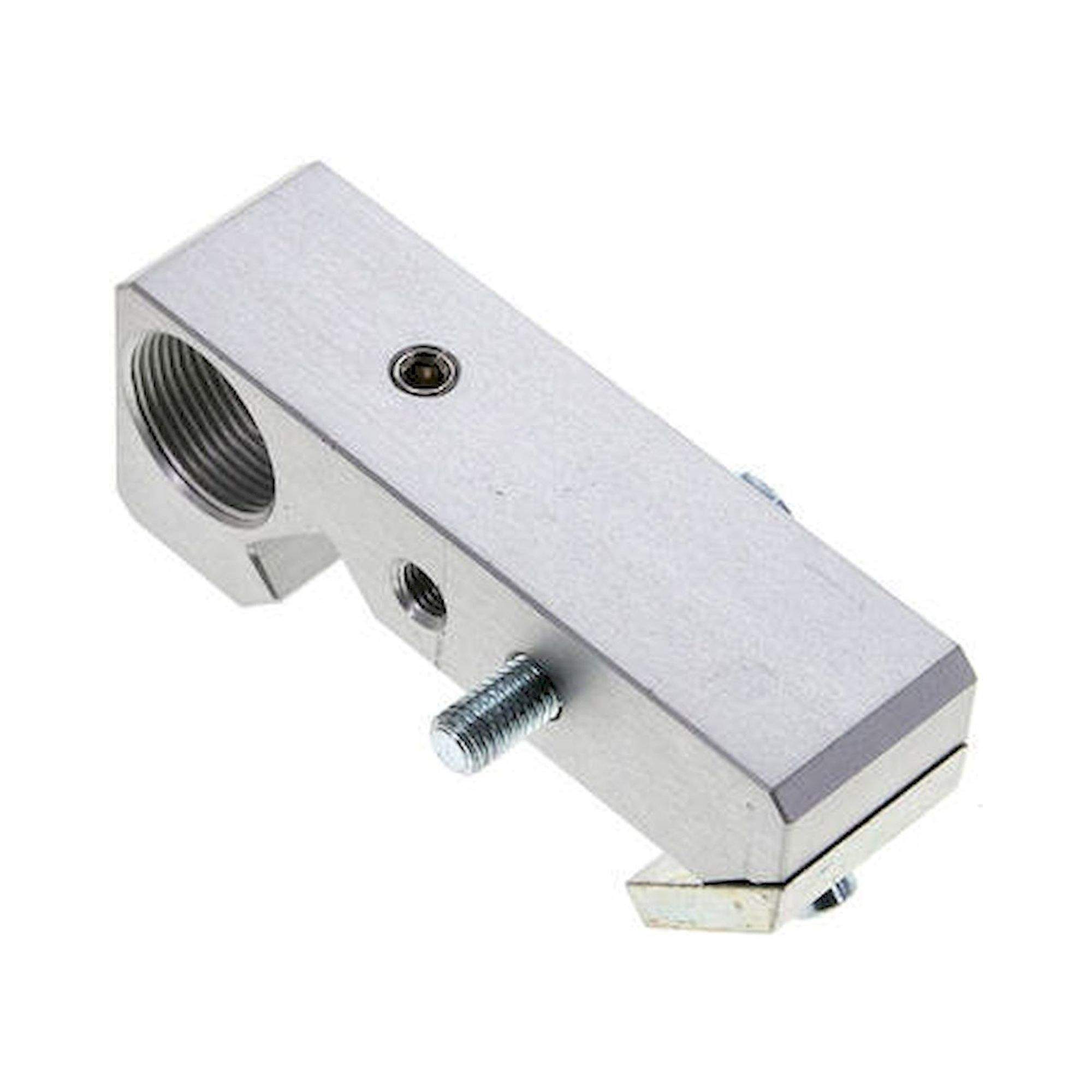

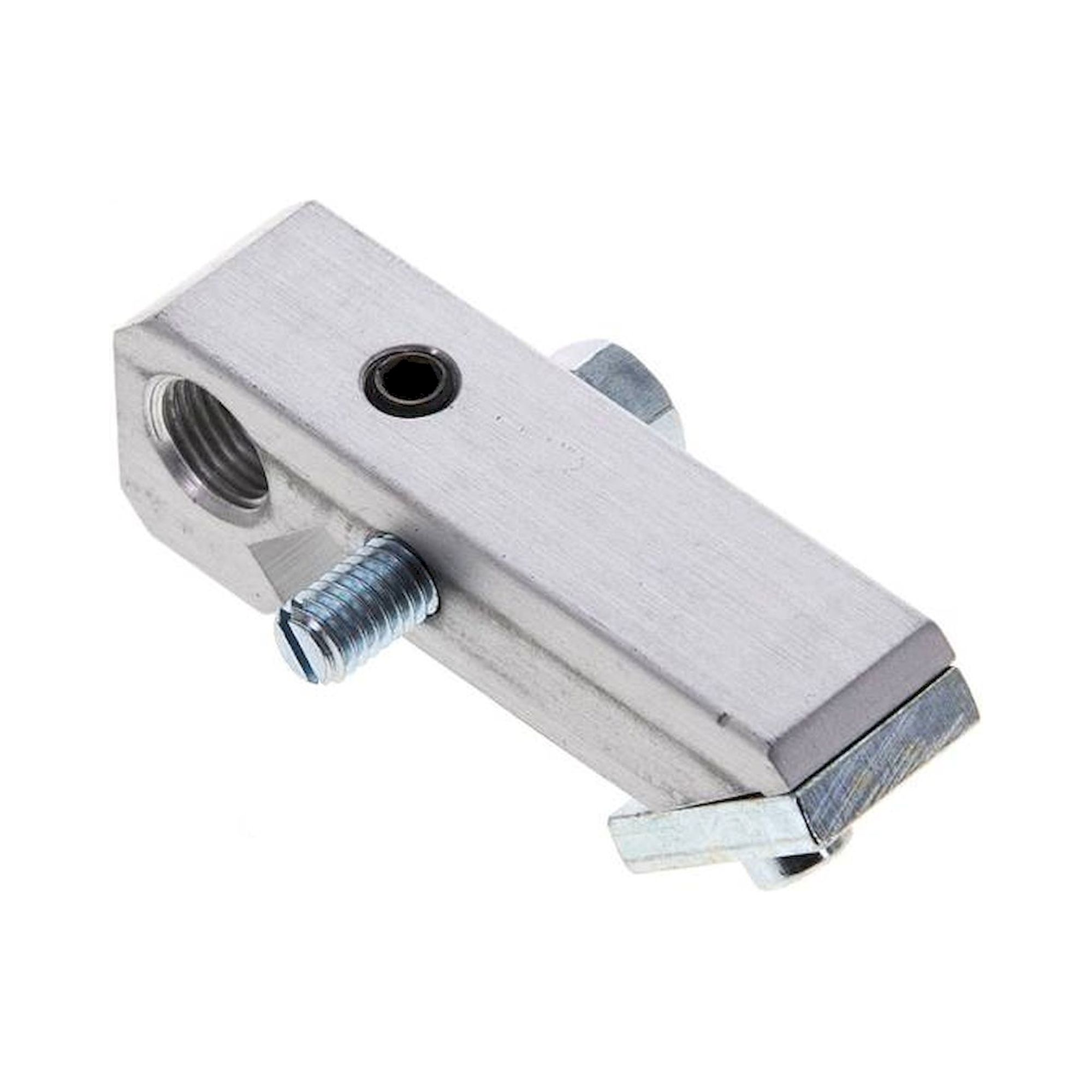

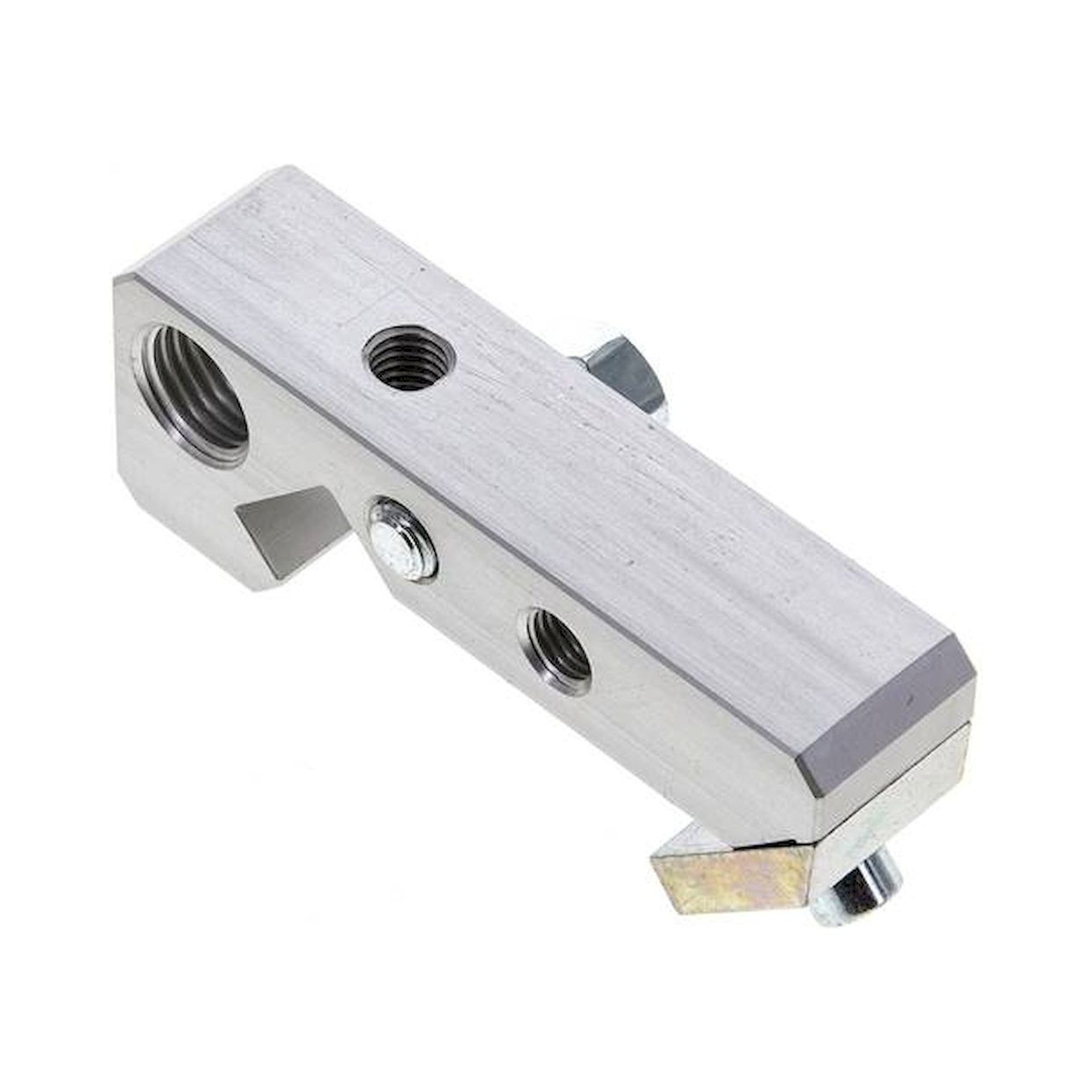

| LZ .. ASV | Adjustable | 18, 25, 32, 40, 50, 63 |
Selection: fixed vs. adjustable
Fixed stop (AS) - defined end position, no readjustment needed, low cost
Adjustable stop (ASV) - fine-tuning of the end position in the installed state
Cylinder sizes 18-63 mm - all common LZ/LZK guide cylinder sizes covered
Typical applications
Typical applications: End-position limiting on rodless cylinders in transfer systems, positioning of tool carriers at defined rest points, and as a mechanical safeguard where the pneumatic circuit alone does not provide sufficient end-position precision.
