Round cylinder ISO 6432

Double-acting

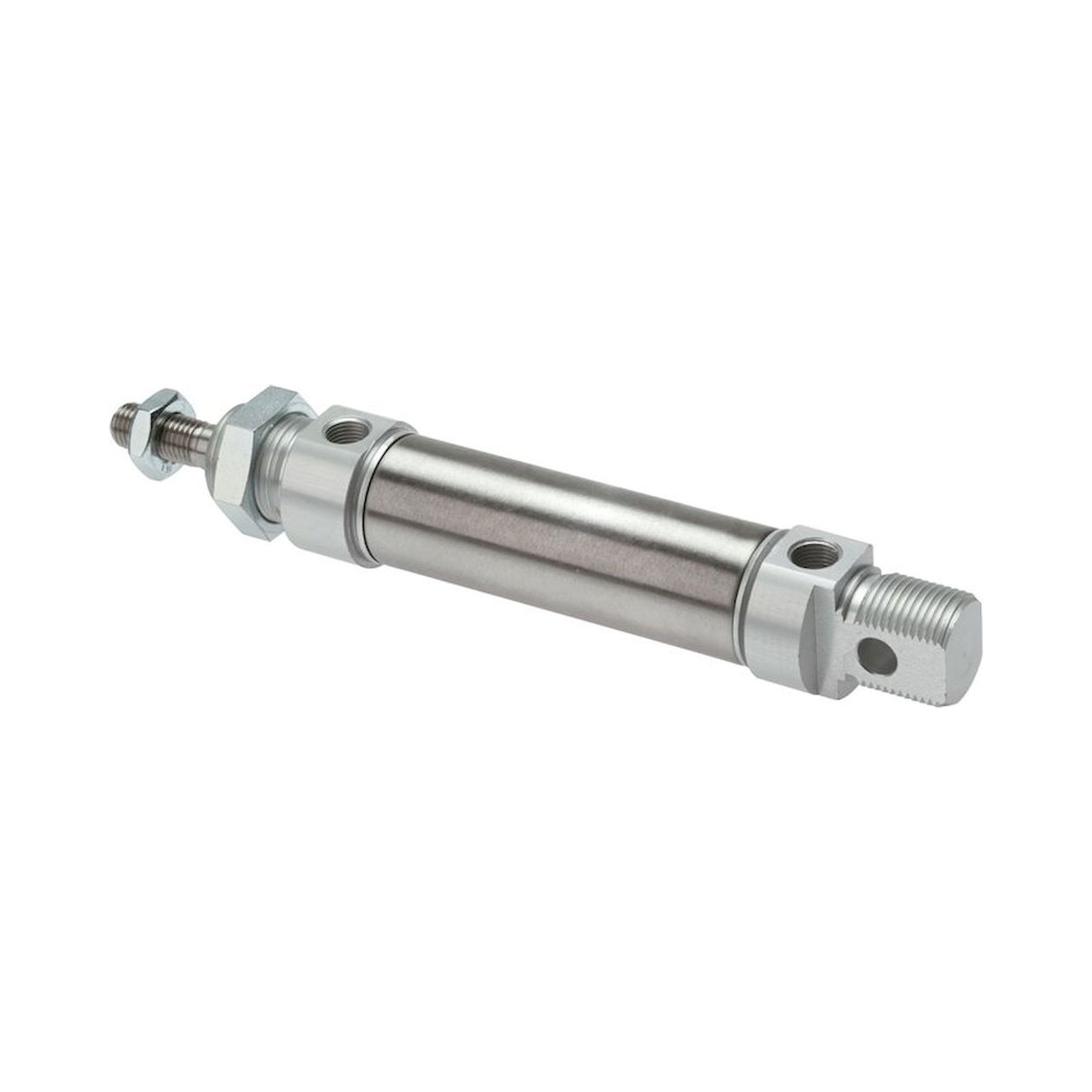

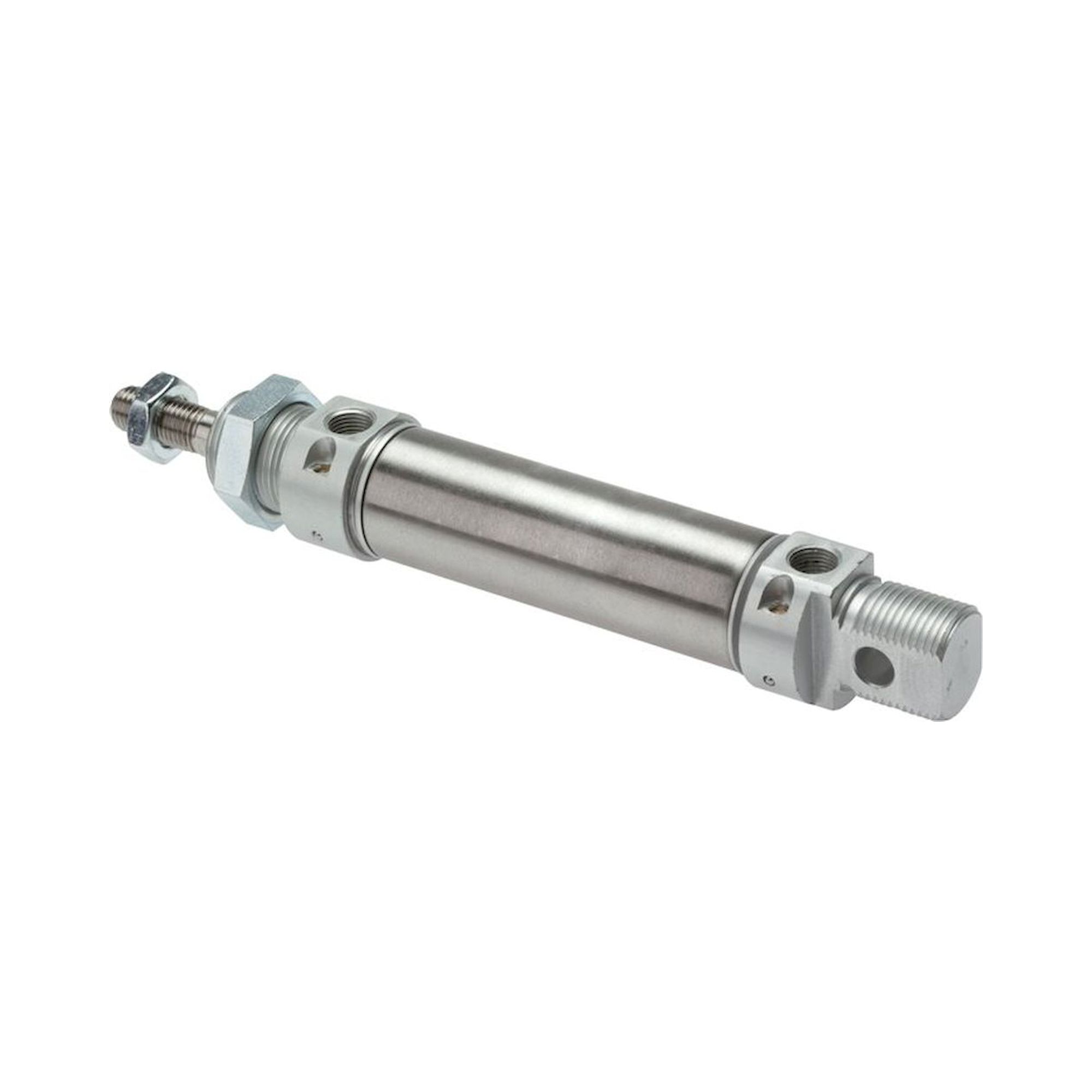

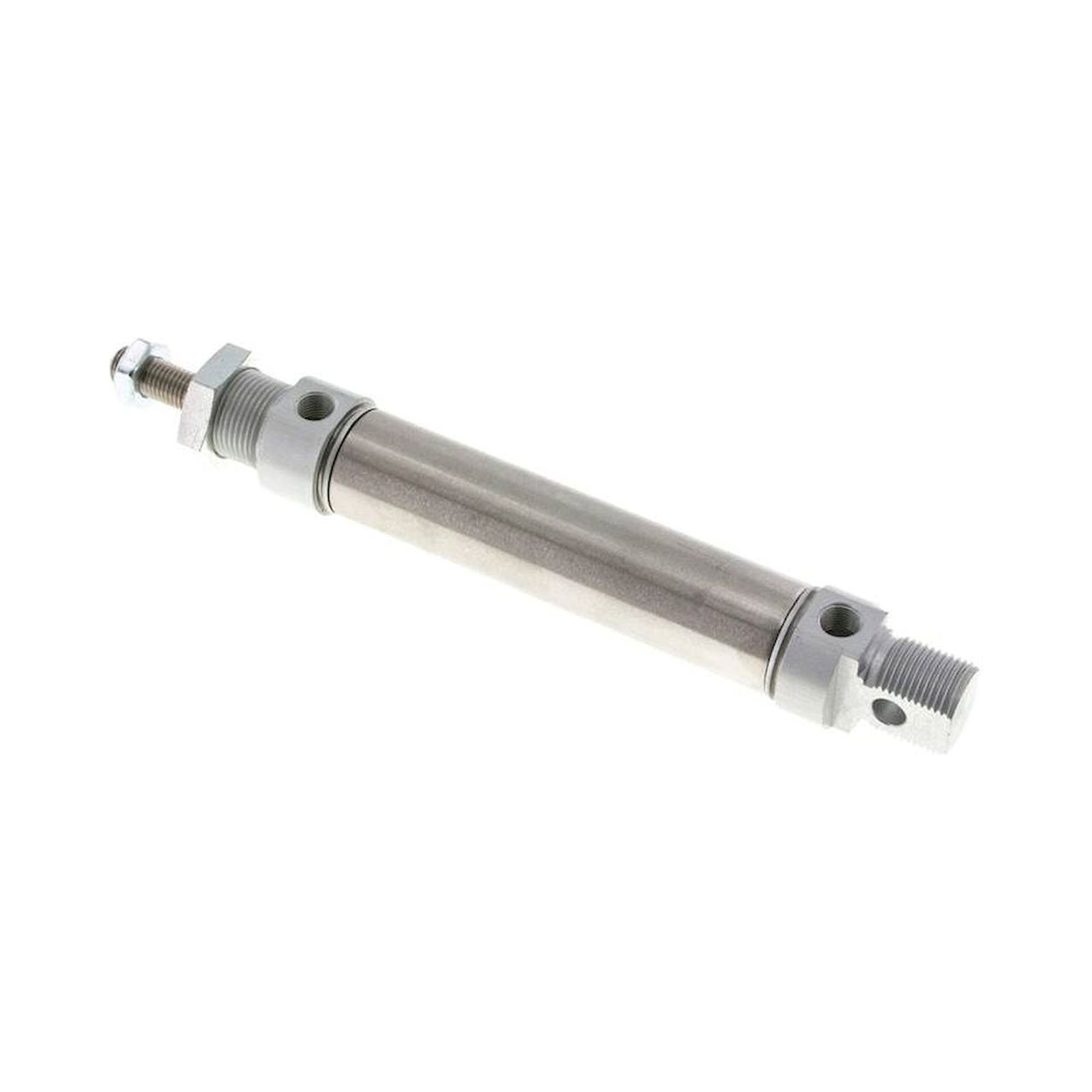

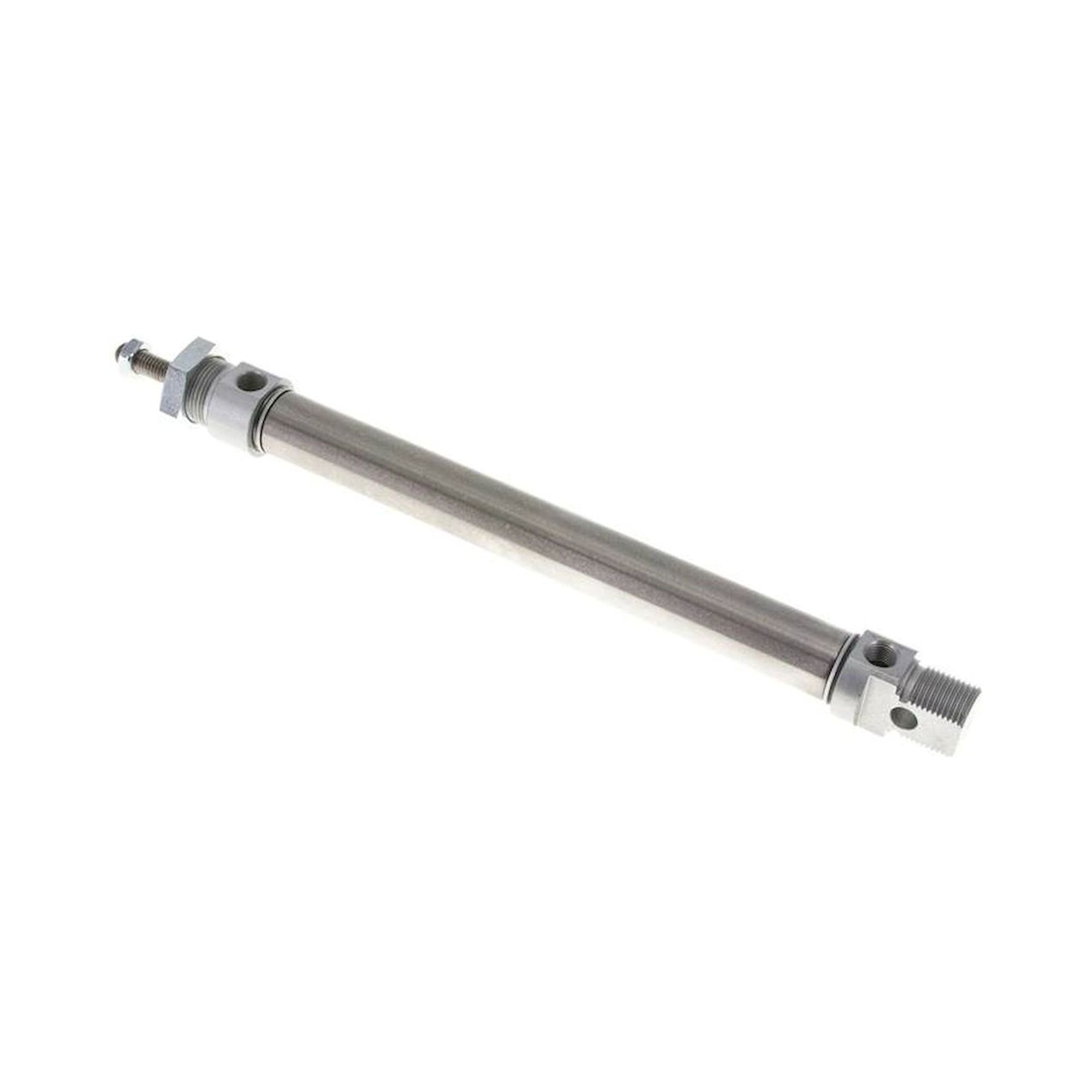

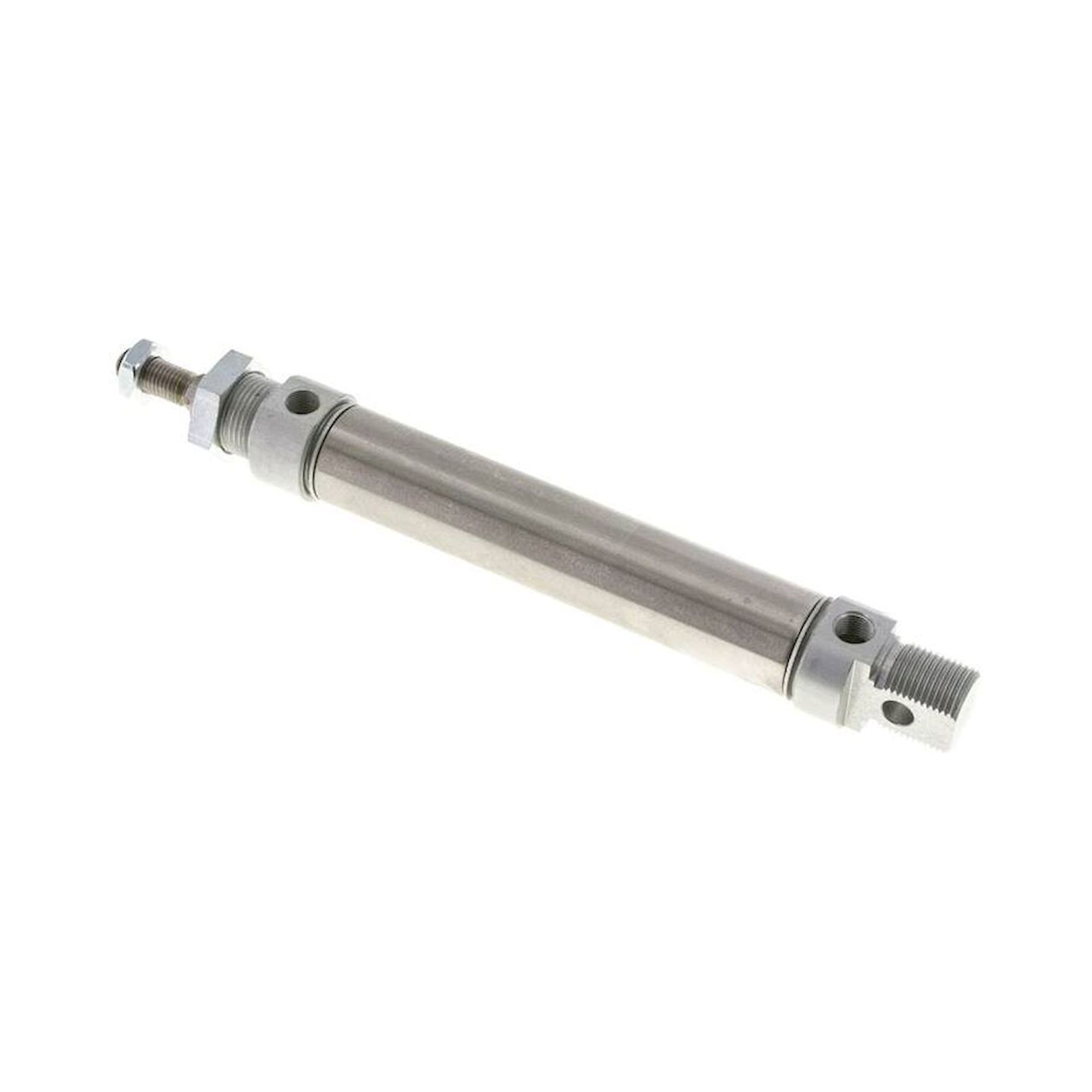

Double-acting round cylinders to ISO 6432 generate force in both directions of travel and are used wherever both push and pull force is required. The range includes Airtec cylinders types ZD and ZDM with bore diameters from 10 to 25 mm and strokes from 10 to 160 mm. ISO 6432 standardisation ensures that bore diameters, threads, port dimensions and mounting points are cross-manufacturer compatible, simplifying replacement of individual cylinders in existing installations.

Net prices plus VAT

We can't find products matching the selection.

Buying guide

How to choose Double-acting

What matters when choosing: properties, comparison and typical applications.

Technical features

⚙ Bore 10-25 mm - types ZD (bore 12/25 mm) and ZDM (bore 10-25 mm), strokes 10-160 mm

✓ ISO 6432-compliant - compatible port and mounting dimensions for multi-manufacturer interchangeability

📦 Zinc-plated steel - corrosion-protected standard version for dry and normal industrial air

⚡ 314 variants - complete stroke and bore range for precise dimensional selection

ZD and ZDM series compared

Criterion	ZD	ZDM
Bore diameter	12, 25 mm	10, 12, 16, 20, 25 mm
Stroke range	100-160 mm	10-160 mm
V-seal variants	ZD 25/160-V	on request
Material	Zinc-plated steel	Zinc-plated steel

Typical applications

Typical applications: Sliding, clamping and positioning tasks in handling systems, packaging machines, assembly stations and conveying systems where defined force in both directions is required. ISO 6432 standardisation permits direct substitution between manufacturers.

FAQ

Frequently asked questions about Double-acting

What are UNITOP compact cylinders?

UNITOP compact cylinders are pneumatic cylinders known for their compact design and efficiency in industrial applications.

How does a double acting cylinder work?

A double acting cylinder uses air pressure to move the piston in both directions, providing control and precision in movement.

What are the benefits of using UNITOP cylinders?

They offer compact design, precision, reliability, and are suitable for various industrial automation applications.

What industries use compact pneumatic cylinders?

Industries such as manufacturing, automation, and robotics commonly use compact pneumatic cylinders for efficient operation.

Are UNITOP cylinders suitable for hydraulic systems?

UNITOP cylinders are designed for pneumatic systems, but they can be integrated into systems that require compact and efficient cylinder solutions.

What materials are used in UNITOP cylinders?

UNITOP cylinders are typically made from durable materials that withstand industrial environments, ensuring longevity and performance.

How do I maintain pneumatic cylinders?

Regular inspection, cleaning, and lubrication are important for maintaining the performance and extending the life of pneumatic cylinders.
