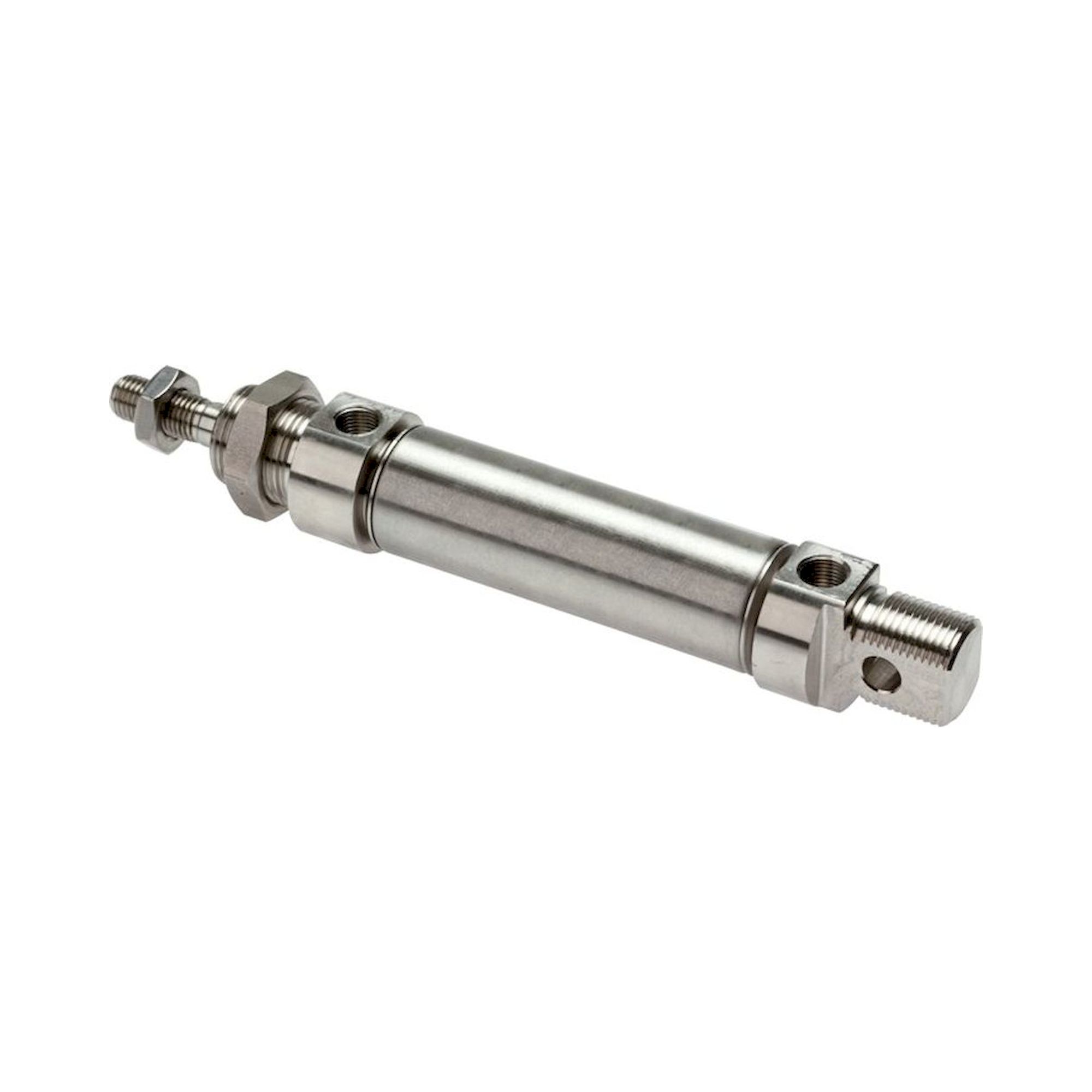

Round cylinder ISO 6432
Stainless steel double-acting
Double-acting ISO 6432 round cylinders in stainless steel are manufactured from grade 1.4301 (AISI 304) and meet the hygiene requirements of food, pharmaceutical and cleanroom applications. The range includes Airtec cylinders series ZDM ES with bore diameters of 16 and 25 mm and strokes from 10 to 250 mm. Compared with standard zinc-plated cylinders, the stainless versions offer increased resistance to cleaning and disinfection agents, humid atmospheres and mild acids.
- Net prices plus VAT
Buying guide
How to choose Stainless steel double-acting
What matters when choosing: properties, comparison and typical applications.
Technical features
ZDM ES product overview
| Bore | Available strokes | Material |
|---|---|---|
| 16 mm | 10, 25, 40, 50, 100, 125, 160, 200, 250 mm | 1.4301 |
| 25 mm | 100 mm (further on request) | 1.4301 |
Typical applications
Typical applications: Food processing and beverage production with CIP cleaning, pharmaceutical manufacturing and biotechnology, chemical and petrochemical processes in humid environments, and cleanroom and medical technology where galvanic coating is insufficient.
