Foot fixings
Round cylinder ISO 6432
Foot fixings for ISO 6432 cylinders are foot brackets that secure the round cylinder to base, wall or frame surfaces in a fixed, non-pivoting mounting position. The range includes Airtec foot brackets for bore sizes 8/10, 12/16 and 20/25 mm, each available in zinc-plated steel and stainless steel grade 1.4301. Combining two bore sizes per part simplifies stock management and allows parts to be exchanged without modifying the mounting arrangement.
Three-size range - BF 8/10, BF 12/16, BF 20/25 cover all Airtec ISO 6432 cylinders
Zinc-plated steel and stainless 1.4301 - standard and corrosion-resistant variants
Fixed mounting position - rigid, no swivel play, for defined cylinder alignment
6 items in range - complete size series, short delivery
| Type | Suitable for bore | Material |
|---|---|---|

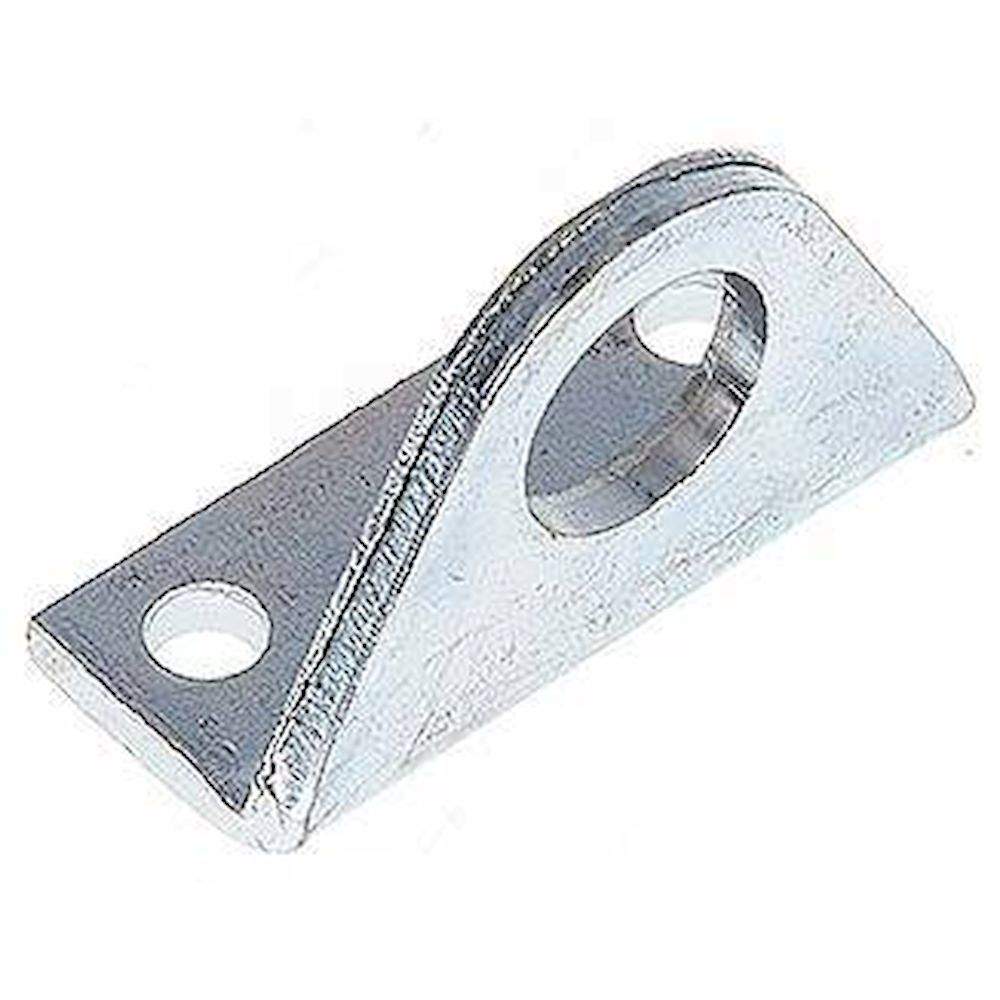

| Airtec BF 8/10 | 8 & 10 mm ISO 6432 | Zinc-plated steel |

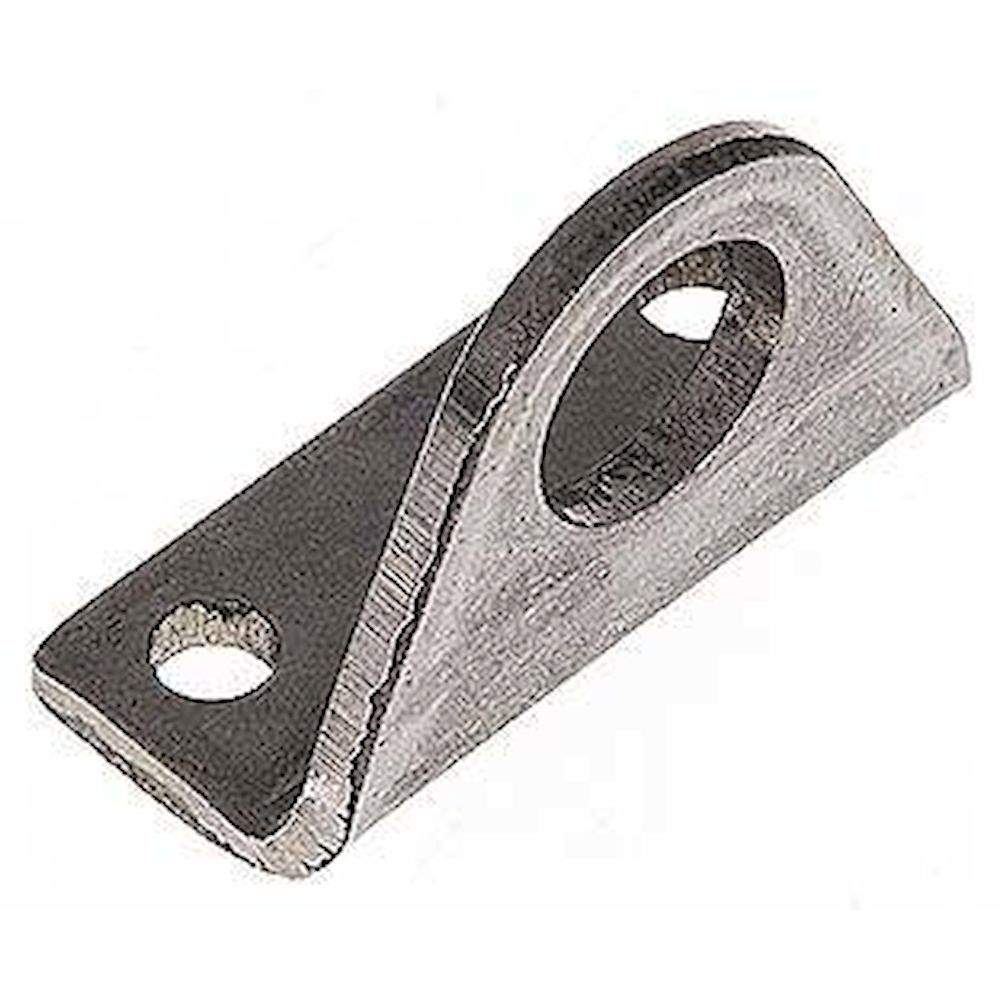

| BF 8/10 ES | 8 & 10 mm ISO 6432 | 1.4301 |

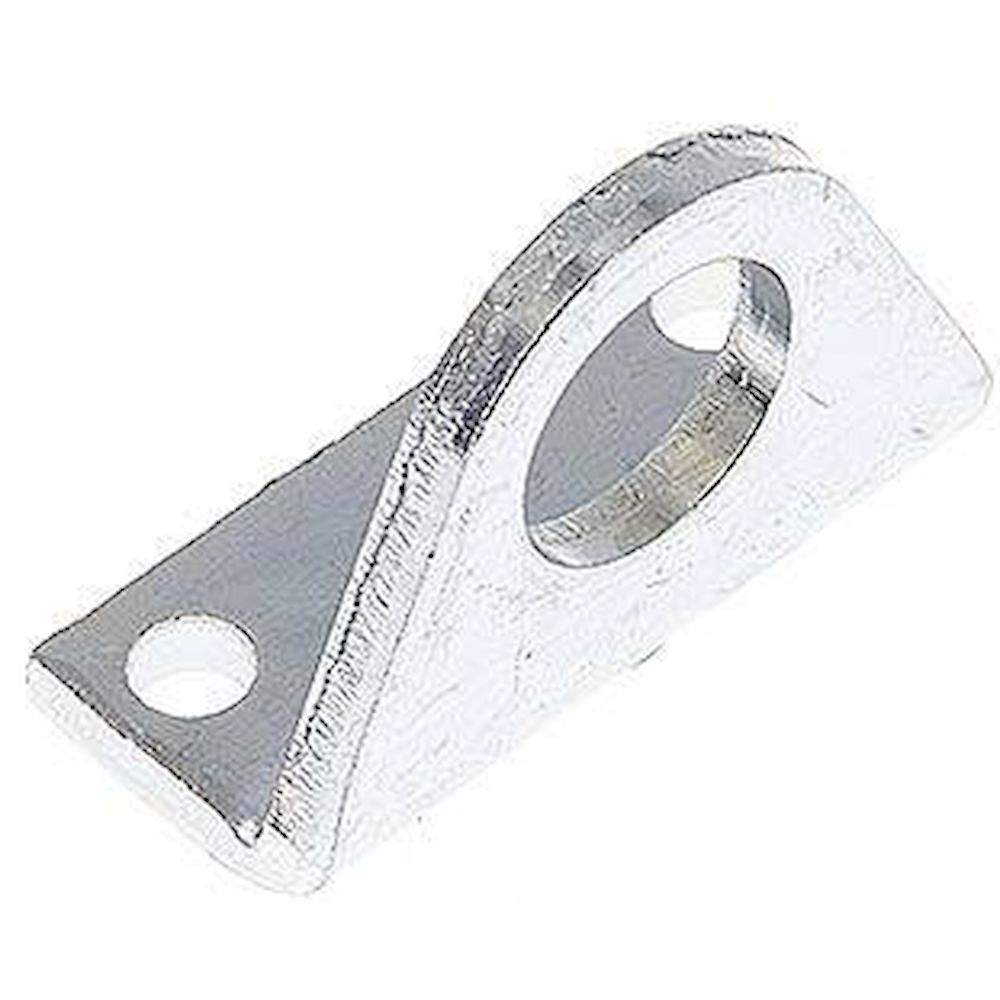

| Airtec BF 12/16 | 12 & 16 mm ISO 6432 | Zinc-plated steel |

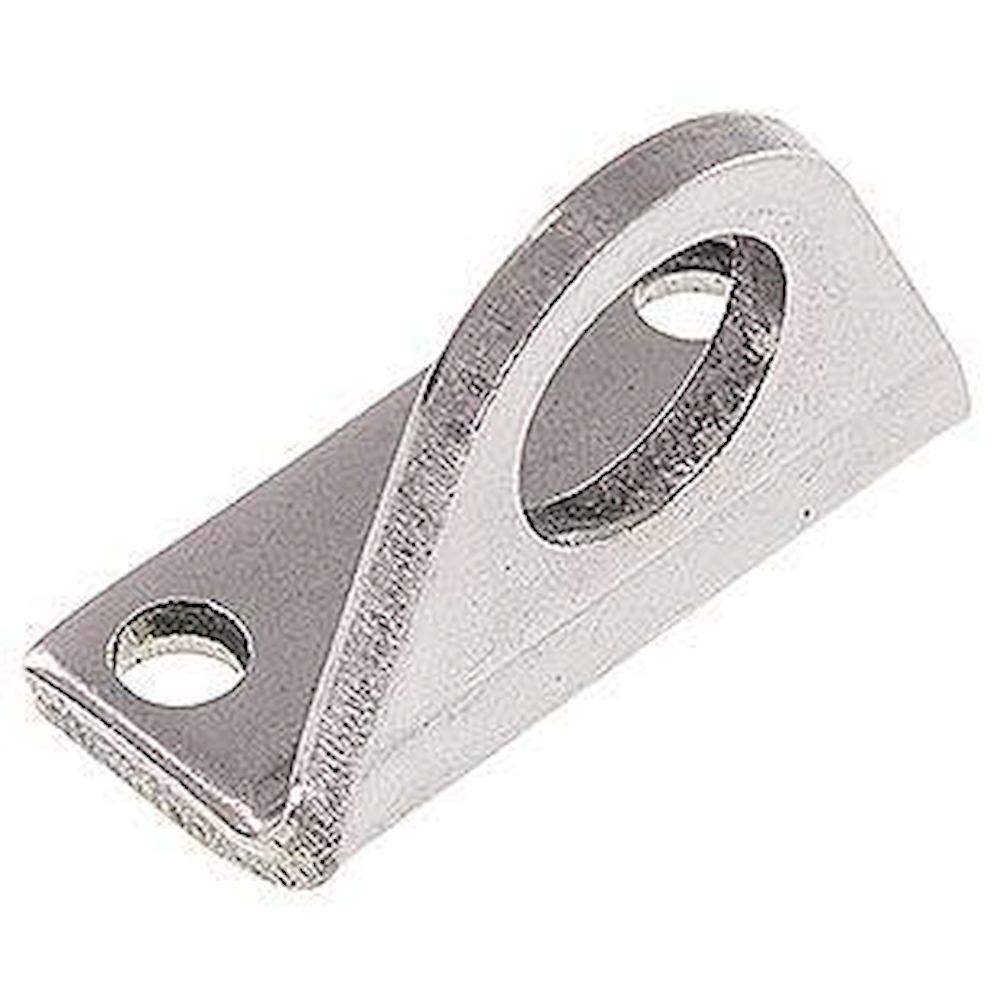

| BF 12/16 ES | 12 & 16 mm ISO 6432 | 1.4301 |

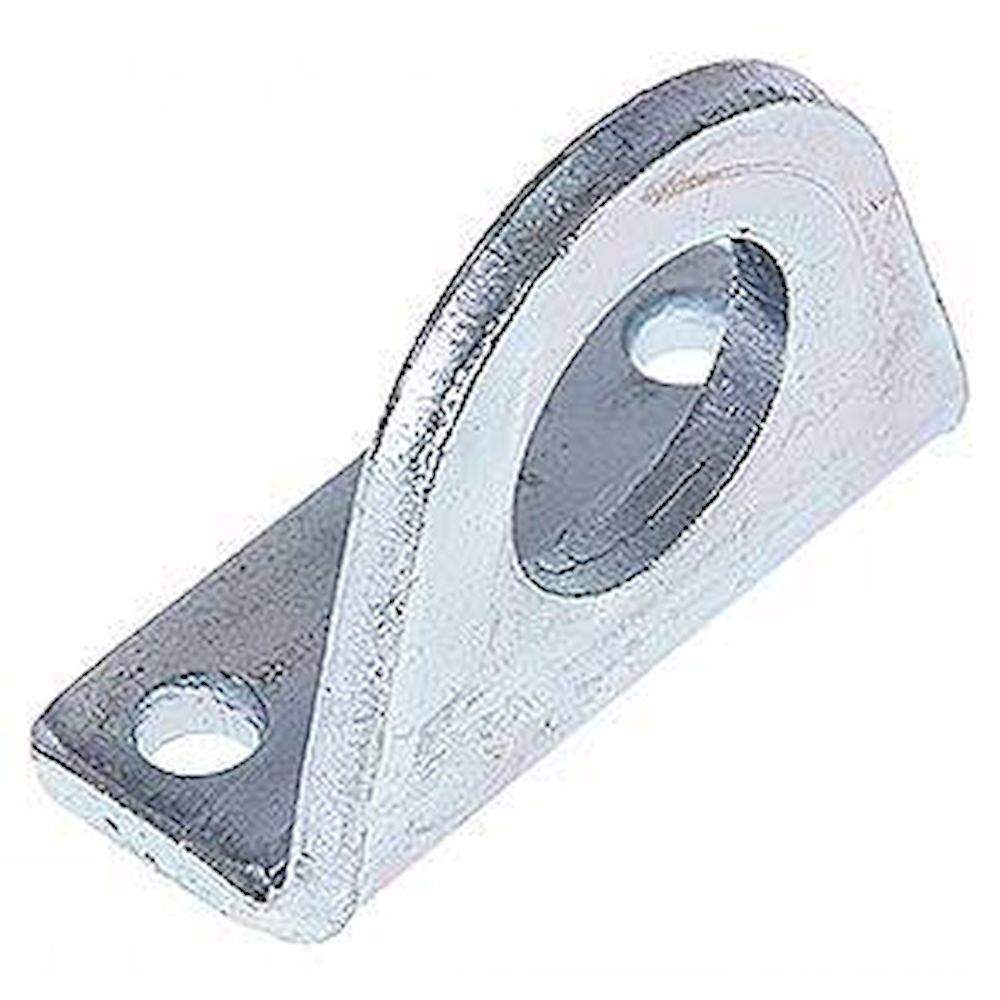

| Airtec BF 20/25 | 20 & 25 mm ISO 6432 | Zinc-plated steel |

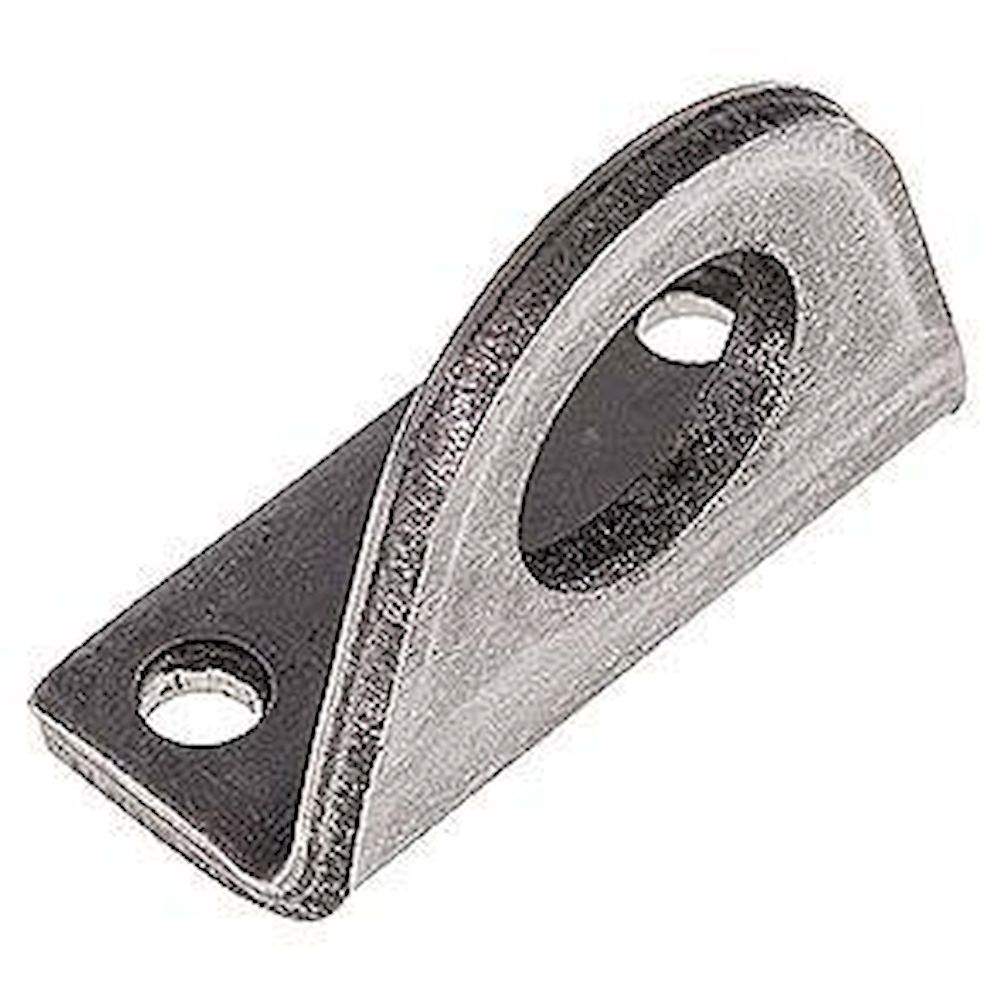

| BF 20/25 ES | 20 & 25 mm ISO 6432 | 1.4301 |
Typical applications: Fixed mounting of round cylinders on machine beds, profile frames and fixtures wherever the cylinder axis must remain in a fixed direction. Stainless-steel version for food processing, pharmaceutical and wet-area environments.
