Round cylinder ISO 6432

Bearing blocks with bolts

Bearing blocks with bolts allow the ISO 6432 round cylinder to be mounted with a swivel action, enabling the cylinder to pivot in one plane. This compensates for angular changes between the cylinder and the point of load application without transmitting lateral forces to the piston rod or cylinder body. The range includes Airtec bearing blocks (BG) in sizes 8/10, 12/16 and 20/25 mm, in zinc-plated steel and stainless-steel grade 1.4301 for corrosive conditions.

Net prices plus VAT

We can't find products matching the selection.

Buying guide

How to choose Bearing blocks with bolts

What matters when choosing: properties, comparison and typical applications.

Technical features

⚙ Swivel mounting - bearing block BG permits angular movement of the cylinder in one plane

✓ Sizes 8/10, 12/16, 20/25 mm - covers the full Airtec ISO 6432 range

📦 Zinc-plated steel and 1.4301 - standard and stainless-steel versions

⚡ Lateral-force protection - compensates for misalignment, protects piston rod from bending loads

Product overview

Type	Suitable for bore	Material

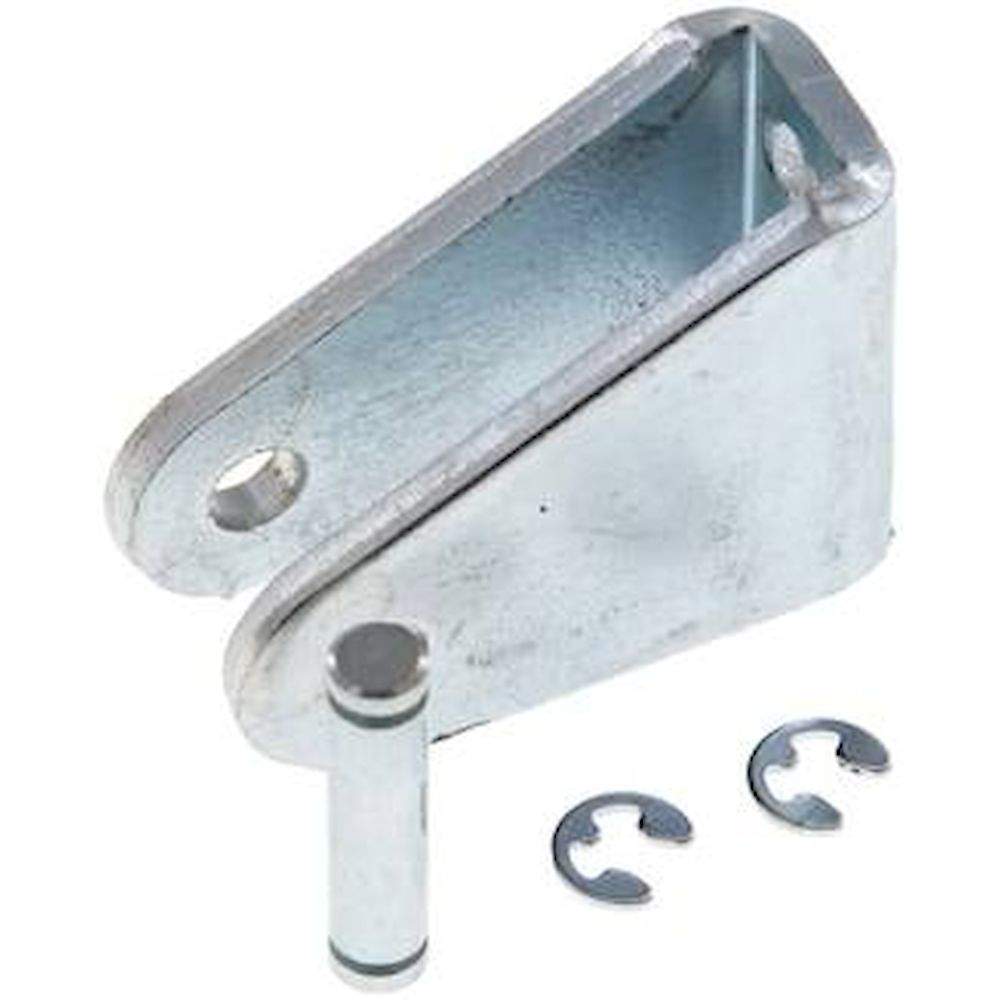

Airtec BG 8/10	8 & 10 mm ISO 6432	Zinc-plated steel

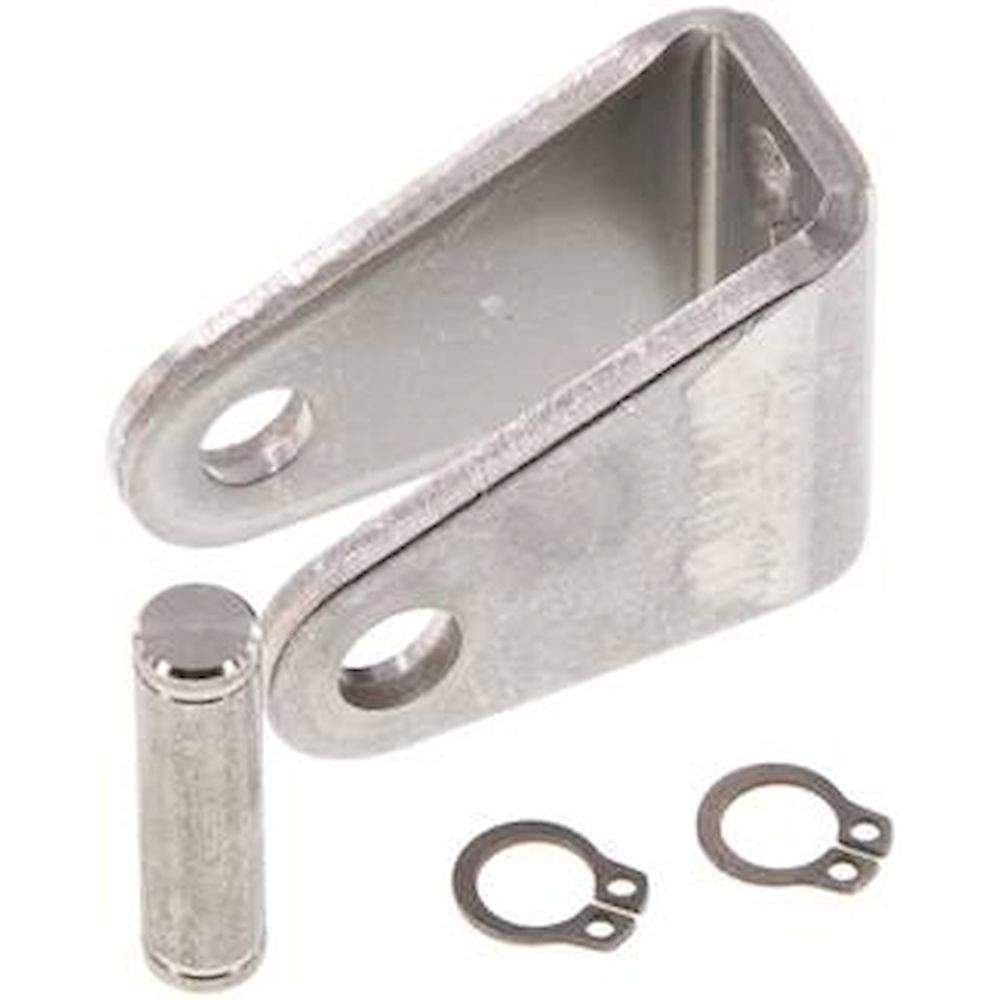

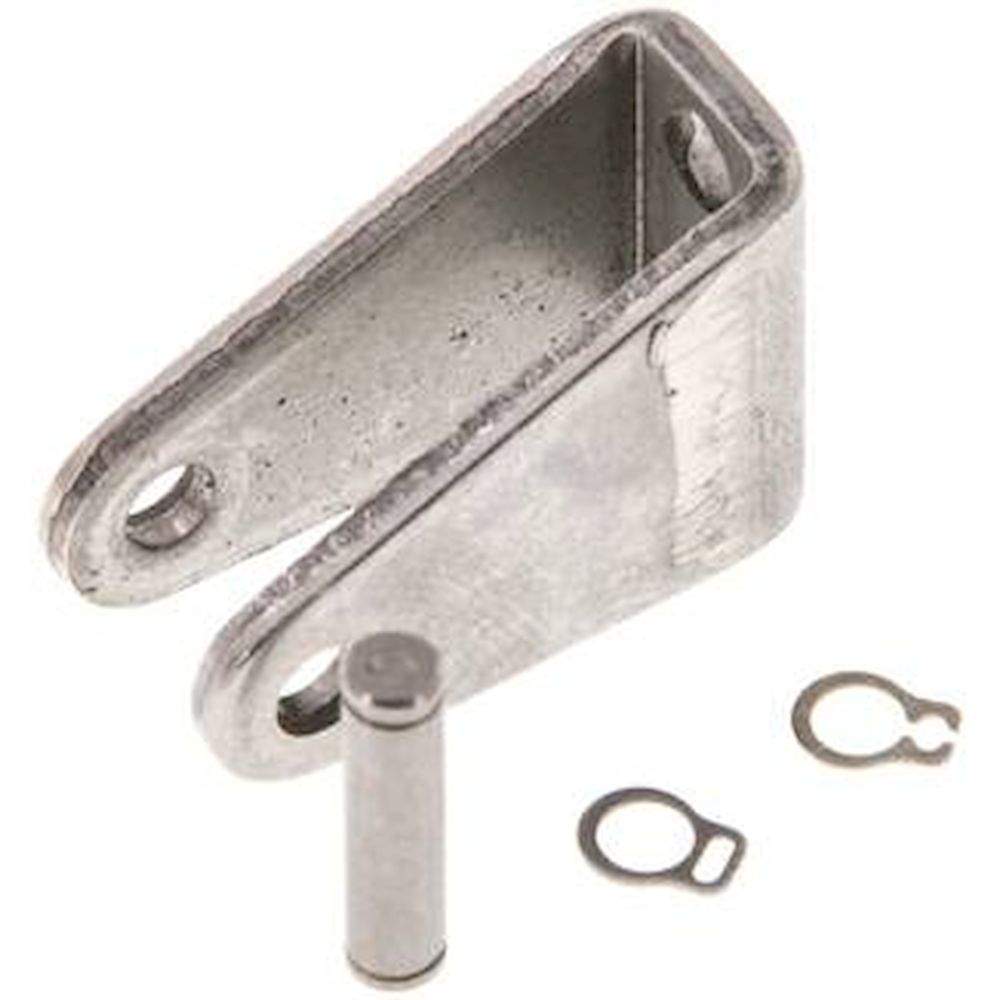

BG 8/10 ES	8 & 10 mm ISO 6432	1.4301

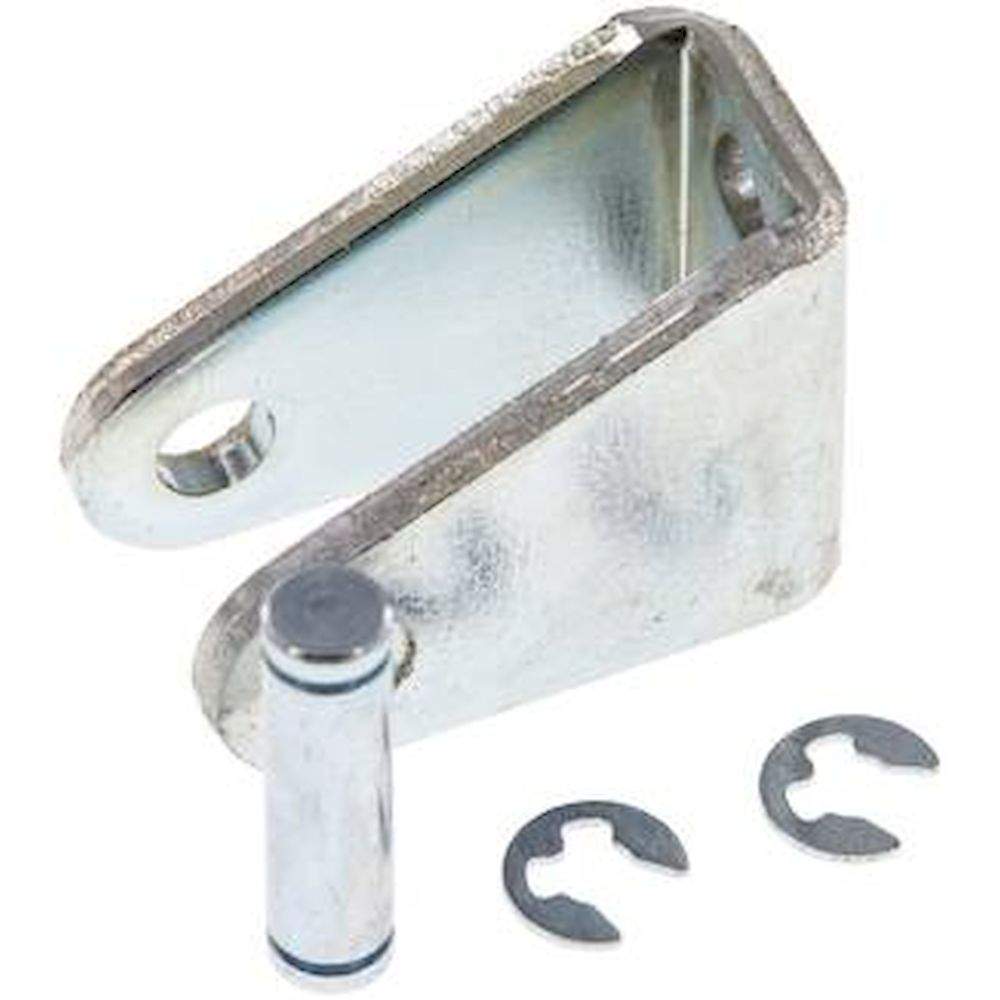

Airtec BG 12/16	12 & 16 mm ISO 6432	Zinc-plated steel
BG 12/16 ES	12 & 16 mm ISO 6432	1.4301

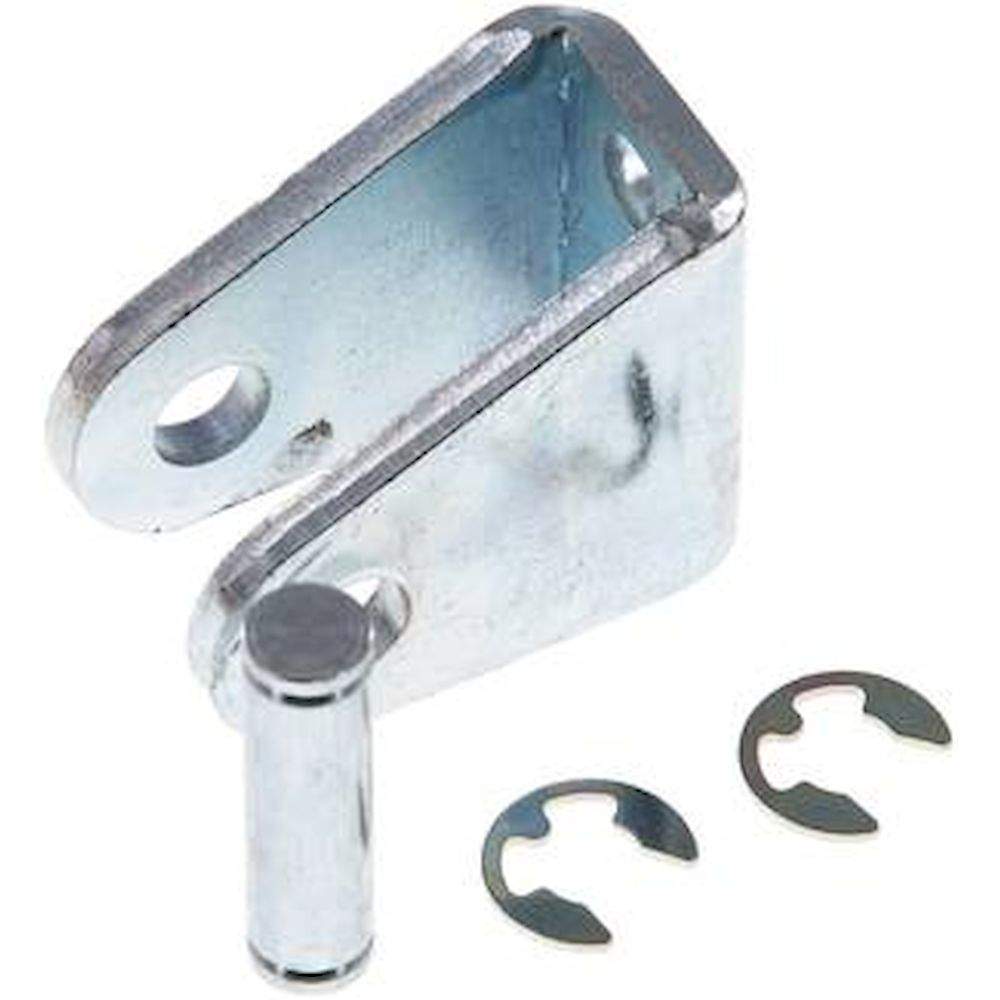

Airtec BG 20/25	20 & 25 mm ISO 6432	Zinc-plated steel
BG 20/25 ES	20 & 25 mm ISO 6432	1.4301

Typical applications

Typical applications: Cylinder articulation on clamping fixtures and flap mechanisms, swivel cylinder mounting on machine frames with non-parallel load guidance, fixture and special machine construction with varying operating angles.

FAQ

Frequently asked questions about Bearing blocks with bolts

What are pillow blocks with bolts used for?

Pillow blocks with bolts are used to securely mount ISO 6432 round cylinders in pneumatic systems.

Are these pillow blocks compatible with all round cylinders?

These pillow blocks are specifically designed for compatibility with ISO 6432 round cylinders.

What materials are pillow blocks made from?

Pillow blocks are typically made from durable materials such as stainless steel or aluminum to withstand industrial environments.

How do I install a pillow block with a bolt?

Installation involves aligning the pillow block with the cylinder and securing it with bolts to ensure stability in the system.

Can pillow blocks be used in hydraulic systems?

While primarily used in pneumatic systems, certain pillow blocks may be suitable for specific hydraulic applications.

What sizes do these pillow blocks come in?

Pillow blocks for ISO 6432 round cylinders come in various sizes to accommodate different cylinder dimensions.

Where can I purchase pillow blocks with bolts for round cylinders?

Pillow blocks with bolts for ISO 6432 round cylinders can be purchased from industrial equipment suppliers or specialized online platforms like ESD Equipment.
