Locking units for small cylinders

Locking units for small cylinders are precision mechanical devices designed to secure pneumatic cylinder pistons at specific positions within ISO 6432 compliant round cylinders. These components find primary application in automated manufacturing lines, packaging machinery, assembly stations, and precision positioning systems where consistent holding force is required during power interruptions. Industries utilizing these units include automotive manufacturing, pharmaceutical packaging, food processing equipment, and electronics assembly where precise component positioning must be maintained even when pneumatic pressure is lost. The units integrate directly with standard ISO 6432 cylinder bores ranging from 16mm to 25mm diameter specifications.

Technical selection of locking units for ISO 6432 cylinders depends on cylinder bore diameter compatibility, piston rod diameter, and required holding force specifications. The ZD 16 model accommodates 16mm bore cylinders with 6mm piston rods, while ZD 25 units fit 25mm bore cylinders with 10mm piston rods, demonstrating the critical dimensional matching required. Operating pressure compatibility typically ranges from 2 to 10 bar with compressed air media, though specific applications may require different pressure thresholds. Holding force capacity varies by unit size, with larger bore units providing proportionally higher clamping forces for heavy-duty positioning applications.

Locking units for small cylinders must comply with ISO 6432 dimensional standards for pneumatic cylinder compatibility, ensuring proper fit and function within standardized mounting configurations. Additional applicable standards include ISO 4762 for socket head cap screws used in mounting assemblies and DIN 3352 for compressed air quality requirements when these units operate in pneumatic systems. Many applications also require compliance with machinery safety standards EN ISO 13849 for safety-related control systems, particularly when locking units serve as safety holding devices in automated equipment. ATEX certification may be necessary for units installed in potentially explosive atmospheres within chemical or pharmaceutical processing environments.

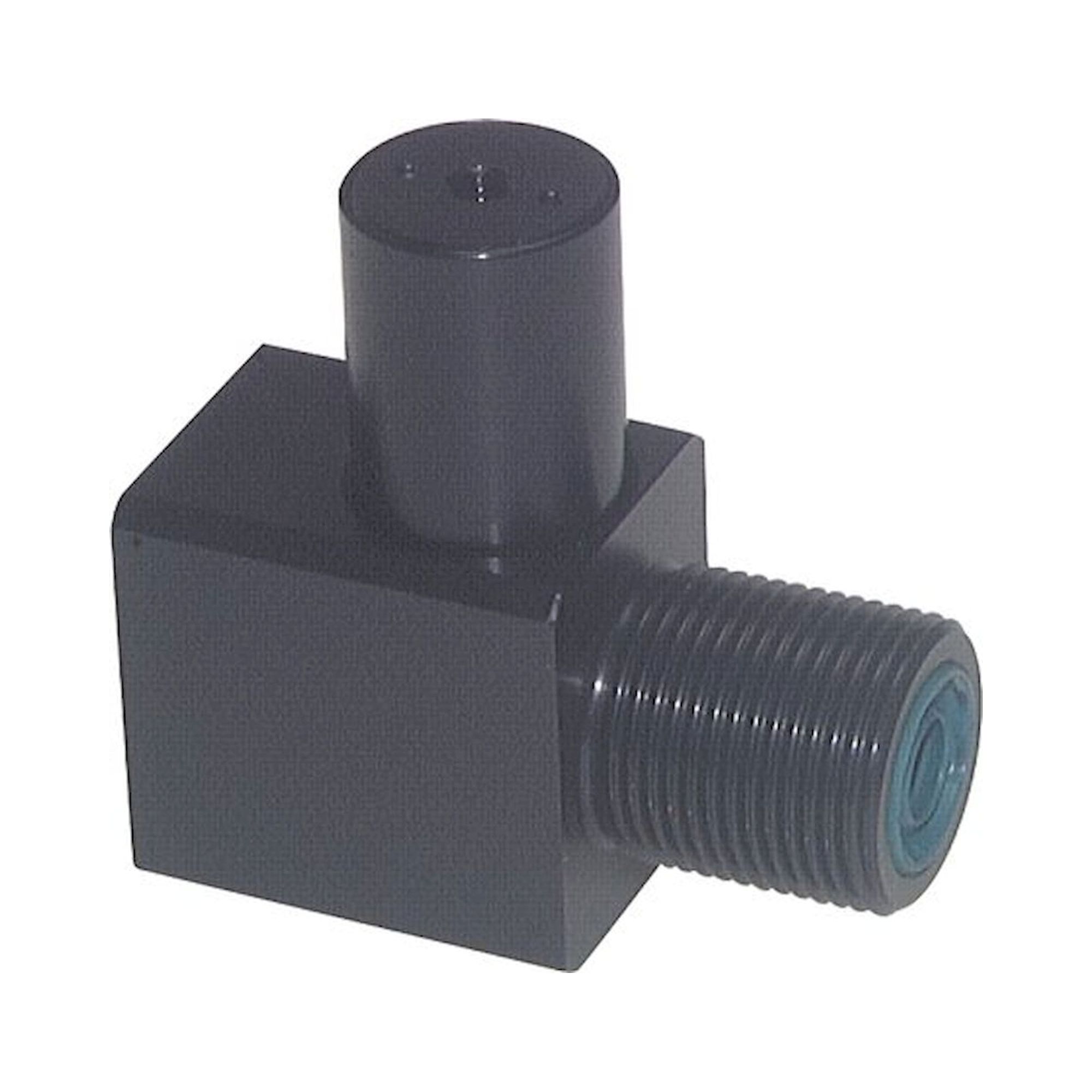

ZD brake units like the ZD 16 and ZD 25 are complete locking assemblies that mount externally to ISO 6432 cylinders and engage the entire piston rod assembly for maximum holding force. The ZD 20 brake cartridge represents a different approach, functioning as an internal component designed specifically for 8mm piston rod applications where space constraints prevent external mounting solutions. Brake cartridges install within the cylinder end cap or integrated mounting block, providing a more compact profile while maintaining equivalent holding performance. The cartridge design offers improved protection from environmental contamination and reduced overall system footprint compared to external brake unit configurations.

Installation of locking units requires proper alignment with ISO 6432 cylinder mounting threads and adequate clearance for piston rod engagement mechanisms. The units typically connect via standard G1/8 or M5 pneumatic ports for control air supply, operating at system pressure levels between 2 and 8 bar depending on application requirements. Compatibility extends to most major pneumatic cylinder manufacturers including Festo, SMC, and Aventics models that conform to ISO 6432 dimensional specifications. Proper installation also demands consideration of ambient temperature limits, typically ranging from -10°C to +80°C, and protection from direct moisture exposure in industrial environments.

Pneumatic locking units for small cylinders typically achieve IP40 to IP65 ingress protection ratings depending on sealing configuration, providing adequate protection against solid particles and moisture ingress in standard industrial environments. Operating temperature ranges generally span -10°C to +80°C for standard applications, with special high-temperature variants available for elevated thermal conditions up to +150°C. Maximum operating pressure specifications commonly reach 10 bar for control air supply with burst pressure ratings exceeding 40 bar for safety margin compliance. These units must demonstrate fail-safe operation characteristics, maintaining locked position during pneumatic supply interruptions to prevent uncontrolled movement in safety-critical applications.

Pneumatic locking units require preventive maintenance inspection every 12 months or 100,000 operating cycles, whichever occurs first, including verification of holding force consistency and air seal integrity. Service life typically extends 2 to 5 million operating cycles depending on load conditions, operating pressure, and environmental factors such as contamination levels and temperature cycling. Critical maintenance tasks include lubrication of moving components with pneumatic-grade lubricants every 6 months and replacement of sealing elements when leakage exceeds 0.1 bar pressure drop over 60 seconds during static testing. Units showing excessive wear patterns, reduced holding force below specification, or air consumption increases beyond normal parameters require immediate replacement to maintain system safety and performance standards.
