Flange mountings
Round cylinder ISO 6432
Flange mountings for ISO 6432 round cylinders allow the cylinder to be mounted end-on to a support surface using the flange plate. The range includes Airtec flange mountings (BFL) for bore sizes 8/10, 12/16 and 20/25 mm in zinc-plated steel, as well as stainless-steel versions BFL ES in grade 1.4301 for corrosive environments. Flange mounting is particularly suitable when the cylinder must be installed flush with the surrounding structure.
End-face mounting - flange plate BFL allows axial fixing of the ISO 6432 cylinder
Sizes 8/10, 12/16, 20/25 mm - compatible with all Airtec ISO 6432 round cylinders
Zinc-plated steel and stainless 1.4301 - for standard and wet/corrosive environments
6 items in stock - complete size series available
| Type | Suitable for bore | Material |
|---|---|---|

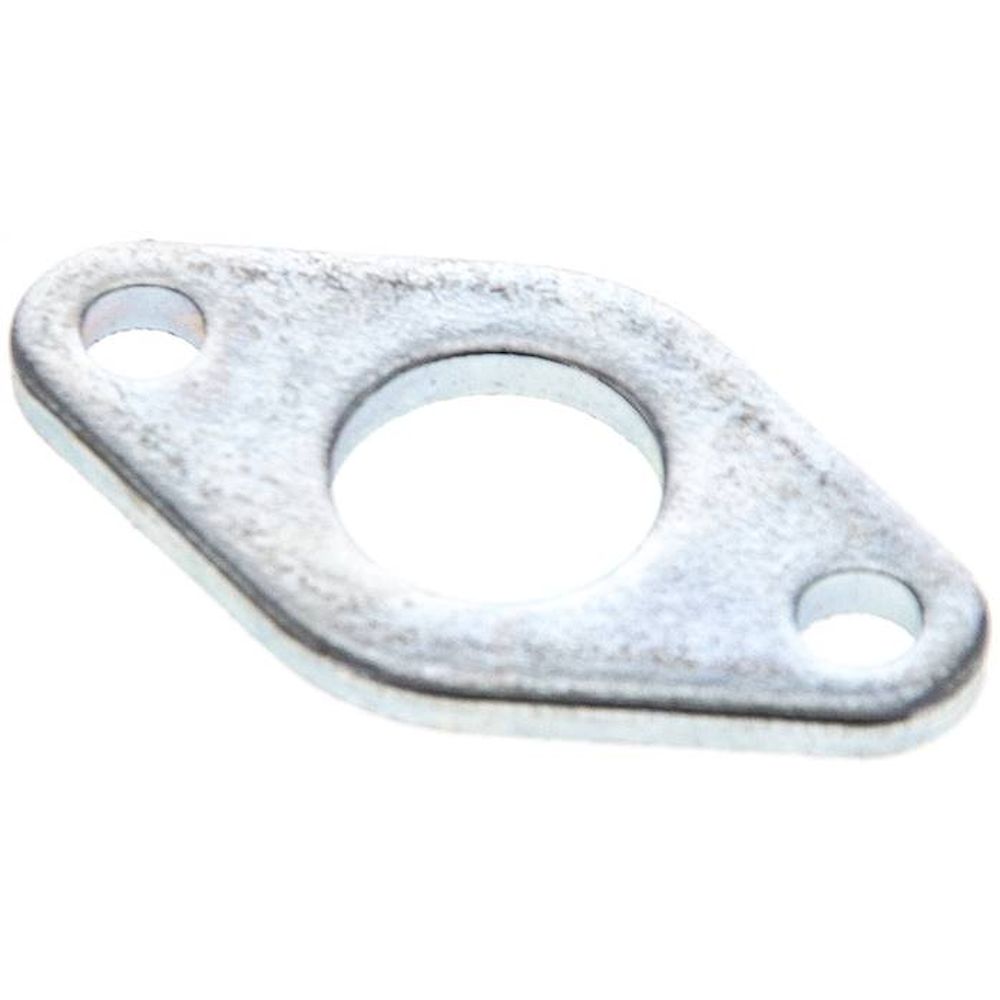

| Airtec BFL 8/10 | 8 & 10 mm ISO 6432 | Zinc-plated steel |

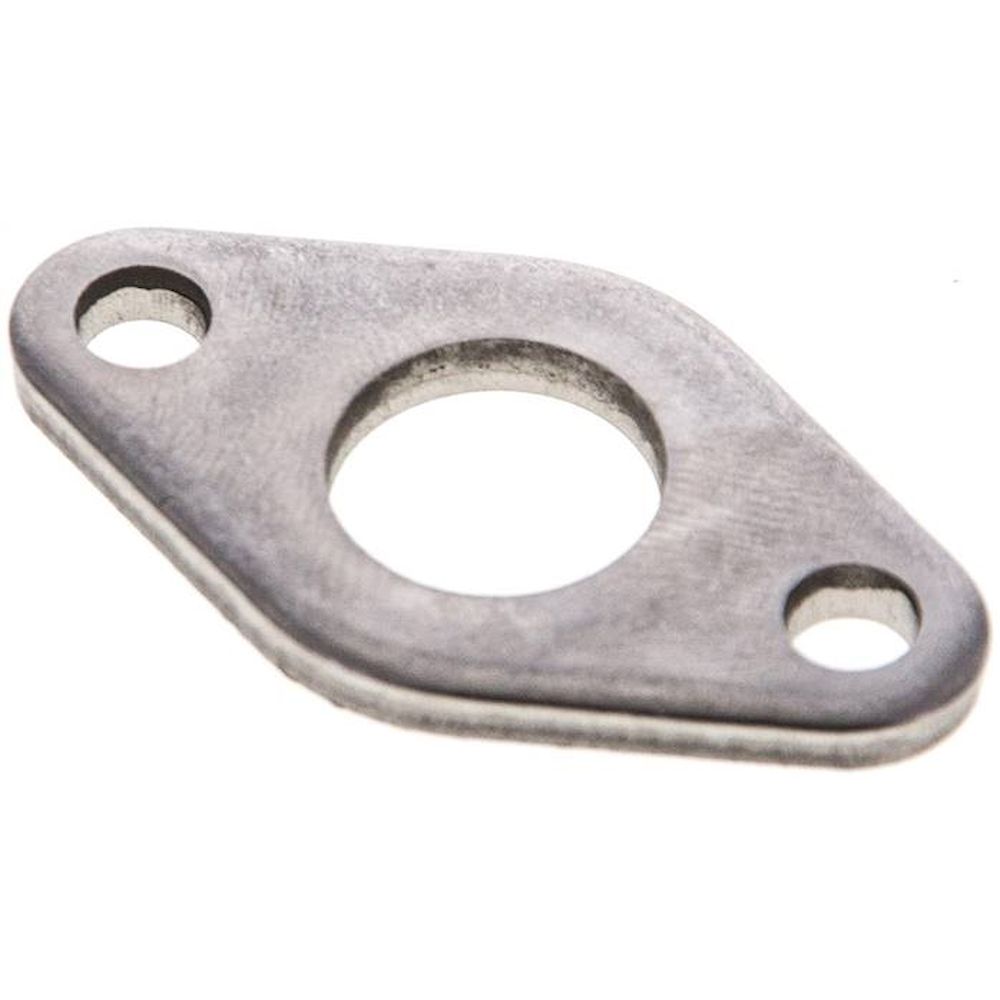

| BFL 8/10 ES | 8 & 10 mm ISO 6432 | 1.4301 |
| Airtec BFL 12/16 | 12 & 16 mm ISO 6432 | Zinc-plated steel |

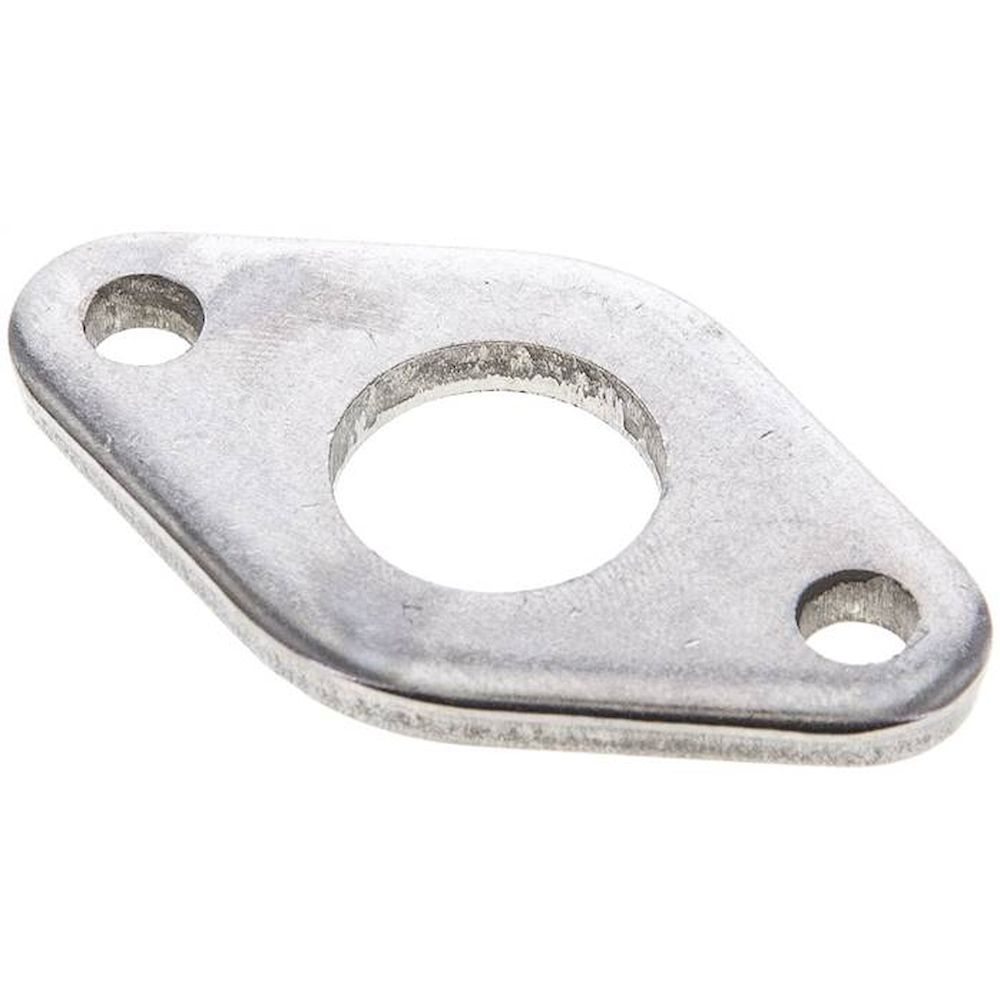

| BFL 12/16 ES | 12 & 16 mm ISO 6432 | 1.4301 |

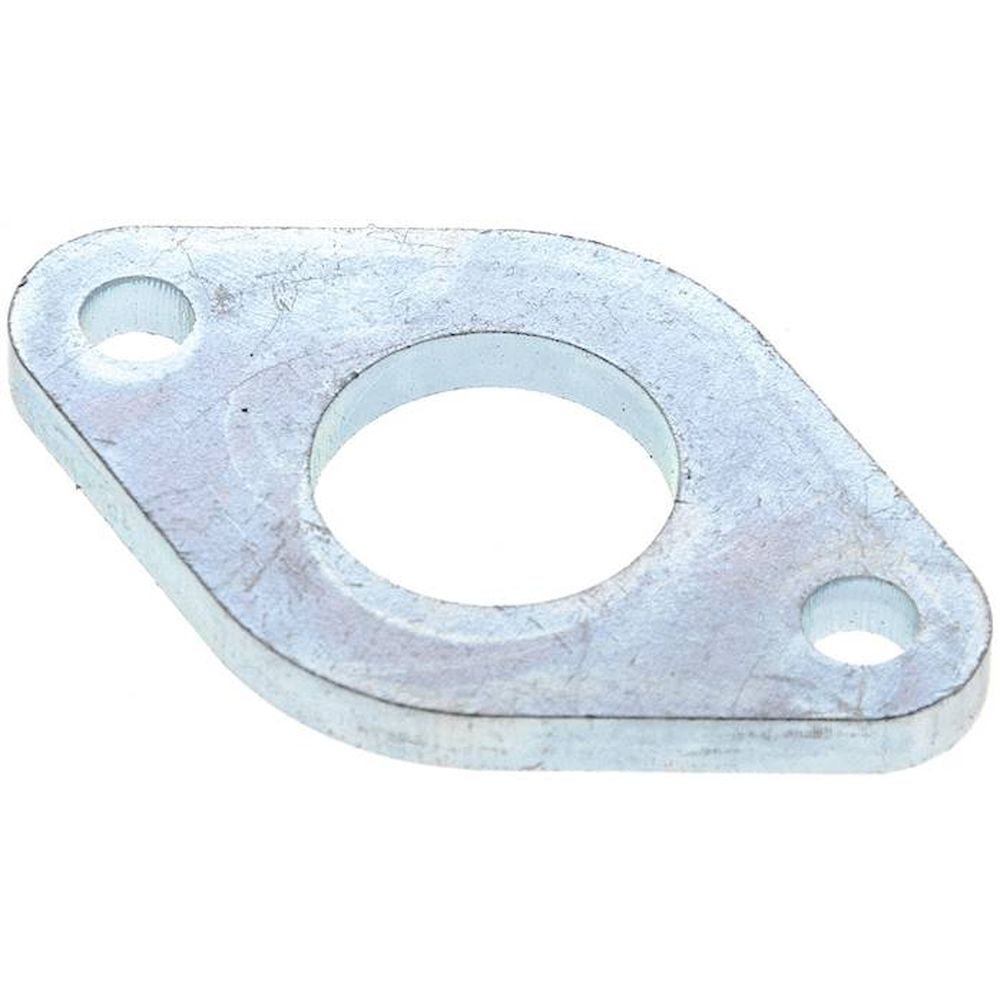

| Airtec BFL 20/25 | 20 & 25 mm ISO 6432 | Zinc-plated steel |

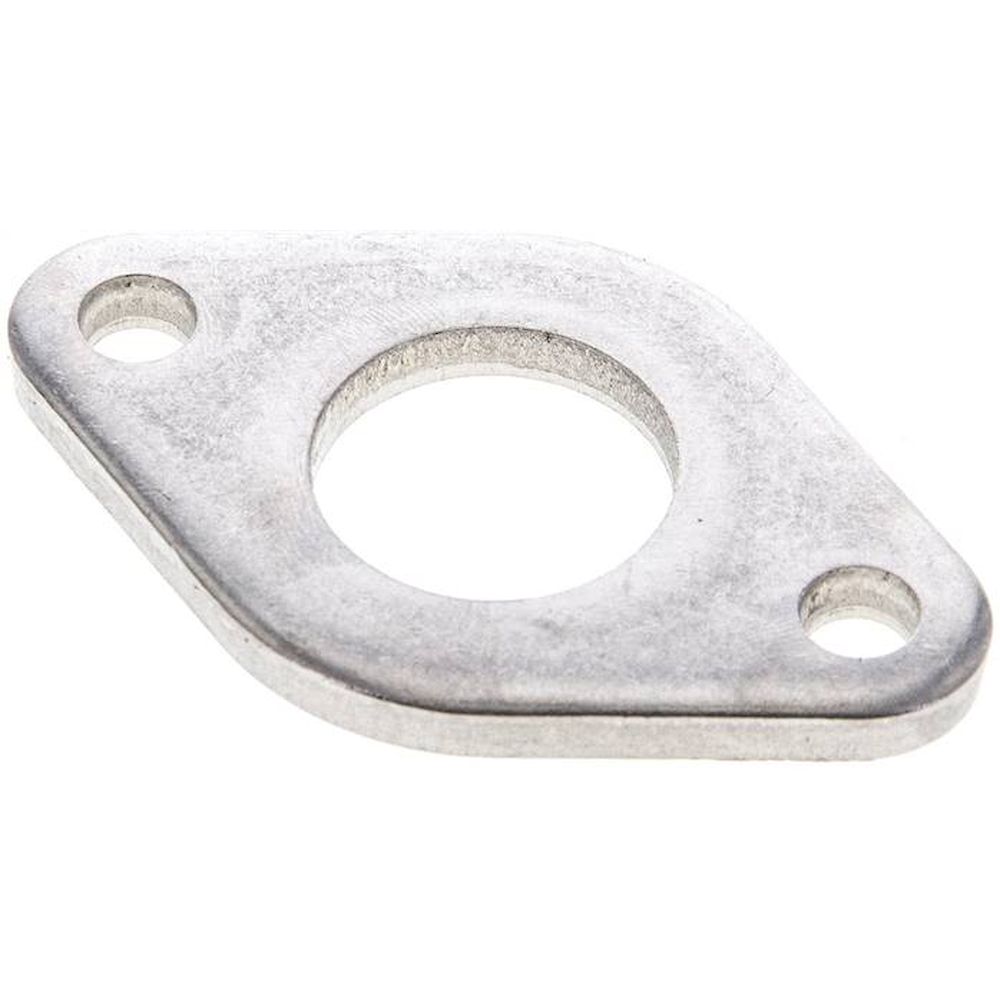

| BFL 20/25 ES | 20 & 25 mm ISO 6432 | 1.4301 |
Typical applications: End-face cylinder mounting in plates and frame structures, space-saving integration of small cylinders into machine enclosures, and food and pharmaceutical machinery (stainless version BFL ES).
