TX + Allen Socket Set 1/4" + 1/2" 42-piece - Proxxon 23290

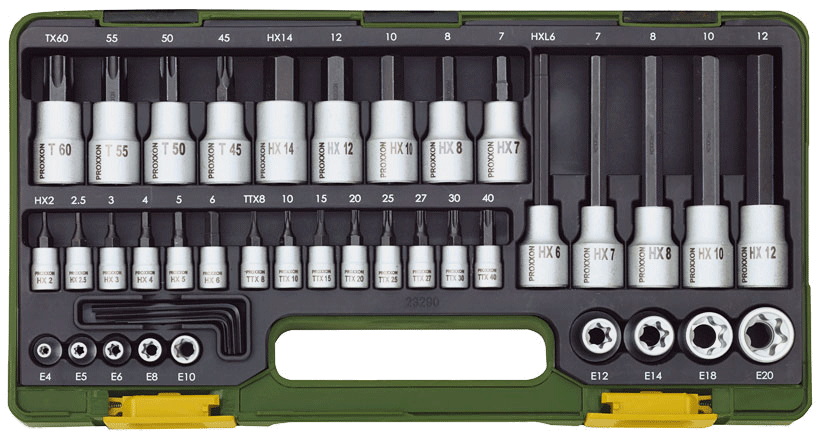

42-piece specialty set for TX and Allen screws with 1/4" and 1/2" drive for torques up to 210 Nm. With short and long bits and external TX in a plastic case. Covers a wide profile range.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The specialty set 23290 brings together HX and TX bits across 42 pieces and handles low and high torques through two drive sizes.
- 1/4" drive (6.3 mm) up to 25 Nm: HX 2 to 6 mm, TX 8 to TX 40 (with frontal hole) and external TX E4 to E10.
- 1/2" drive (12.5 mm) for 25 to 210 Nm: HX 7 to 14 mm (short 55 mm) and 6 to 12 mm (long 100 mm), TX 45 to 60, external TX E12 to E20.
- Long bits for recessed screws.
- 5 angled Allen keys 1.25 to 3.0 mm.
Technical data
| Drive | 1/4" and 1/2" |
|---|---|
| HX bits | 2 to 14 mm |
| TX bits | TX 8 to TX 60, external TX E4 to E20 |
| Tightening torque | up to 25 Nm (1/4"), 25 to 210 Nm (1/2") |
| Contents | 42 pieces |
| Weight | 2.54 kg |
| Manufacturer | Proxxon |
| Manufacturer Nr. | 23290 |
| EAN | 4006274232907 |
| HS-Code | 82079030 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |
Supplied in a compact, high-strength plastic case with snap closure and a solid tray. For machine, automotive and assembly work.
