SlimLine Double Ring Spanner 16 x 17 mm DIN 838 - Proxxon 23882
Single SlimLine double ring spanner in sizes 16 x 17 mm to DIN 838 and ISO 3318. The closed ring head grips the fastener on all corners and protects its edges. Slim and thin-walled, yet above DIN/ISO torque values.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SlimLine double ring spanner 16 x 17 mm has a closed ring head at each end to DIN 838 and ISO 3318. The ring grips the bolt all around and transfers torque while protecting the corners.
- High load capacity: hardened and tempered, torque characteristics exceed DIN/ISO requirements.
- Corrosion protection: double nickel-plated, single chrome-plated, skin-friendly finish.
- Clearly readable: durable laser-inscribed sizes 16 x 17 mm.
- Calibrated: dimensional tolerances tighter than DIN/ISO, each piece checked.

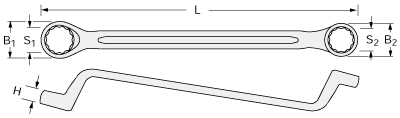

Technical data
| Sizes | 16 x 17 mm |
|---|---|
| Overall length | approx. 245 mm |
| Type | double ring spanner |
| Standard | DIN 838 / ISO 3318 |
| Finish | double nickel-plated, single chrome-plated |
| Weight | 0.208 kg |
| Manufacturer | Proxxon |
| Manufacturer Nr. | 23882 |
| EAN | 4006274238824 |
| HS-Code | 82041100 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |
| Norm | DIN 838, ISO 3318 |
For continuous professional use in workshop, assembly and maintenance.
