SlimLine Double Ring Spanner 30 x 32 mm DIN 838 - Proxxon 23900

Name: SlimLine Double Ring Spanner 30 x 32 mm DIN 838 - Proxxon 23900
Brand: Proxxon
SKU: PX-23900
Price: 20.92 EUR
Availability: InStock

Proxxon ✓ Original product Brand new Made in Taiwan

Single SlimLine double ring spanner in sizes 30 x 32 mm to DIN 838 and ISO 3318. The closed ring head grips the fastener on all corners and protects its edges. Slim and thin-walled, yet above DIN/ISO torque values.

Net

€20.92

excl. VAT

Item PX-23900

Manufacturer no. 23900

Question about this item

Datasheet (PDF) 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The SlimLine double ring spanner 30 x 32 mm has a closed ring head at each end to DIN 838 and ISO 3318. The ring grips the bolt all around and transfers torque while protecting the corners.

High load capacity: hardened and tempered, torque characteristics exceed DIN/ISO requirements.
Corrosion protection: double nickel-plated, single chrome-plated, skin-friendly finish.
Clearly readable: durable laser-inscribed sizes 30 x 32 mm.
Calibrated: dimensional tolerances tighter than DIN/ISO, each piece checked.

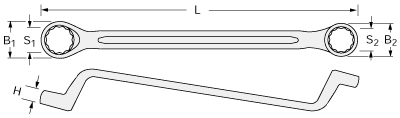

Technical data

Sizes	30 x 32 mm
Overall length	approx. 375 mm
Type	double ring spanner
Standard	DIN 838 / ISO 3318
Finish	double nickel-plated, single chrome-plated
Weight	0.572 kg
Manufacturer	Proxxon
Manufacturer Nr.	23900
EAN	4006274239005
HS-Code	82041100
GPSR manufacturer information	PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Taiwan
ESD version	TEC
Norm	DIN 838, ISO 3318
