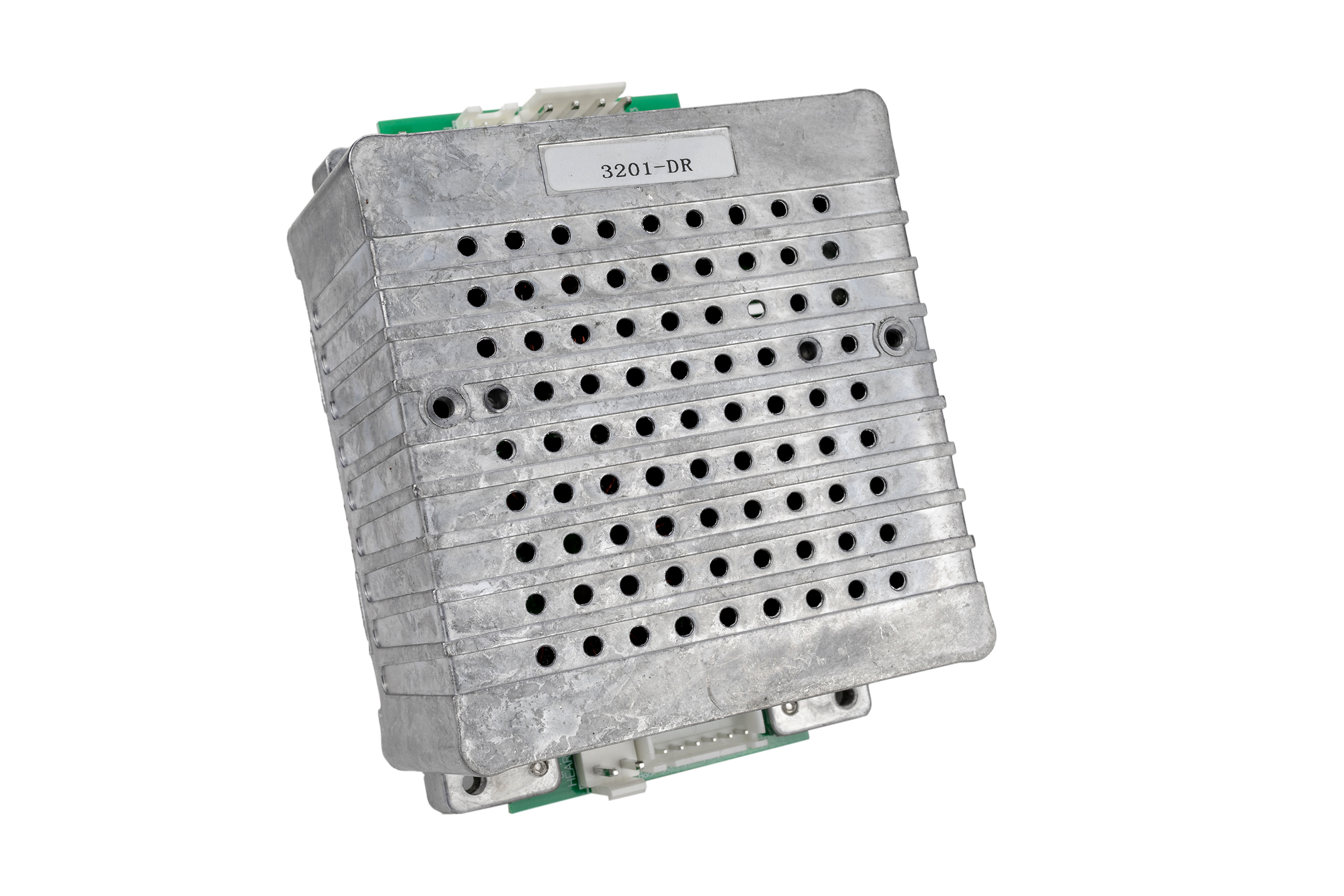

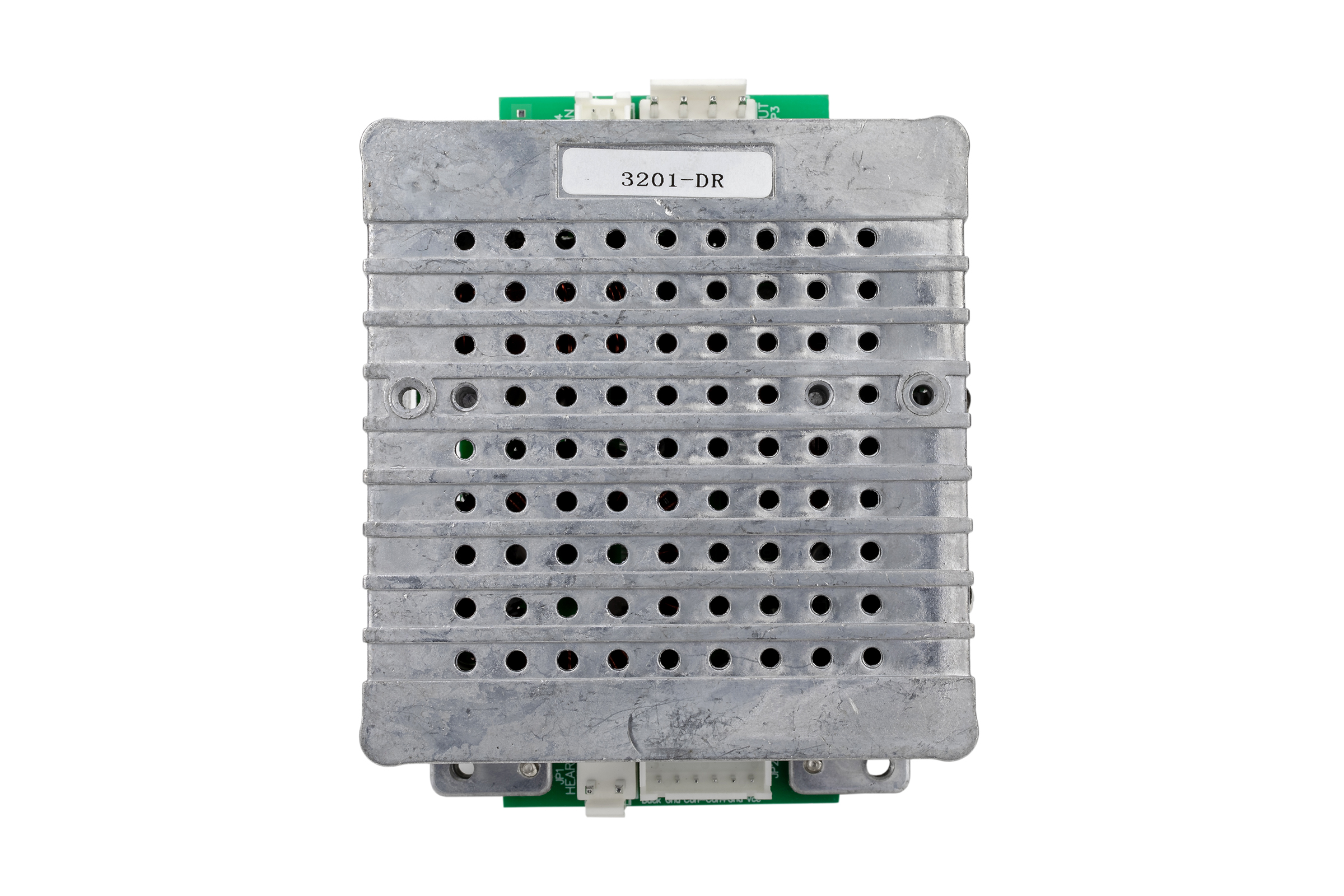

Leistungs-Regelungs-Platine für Lötstation 3205 - Quick QULP3205

A new 3205 costs a multiple of the board that carries its regulation. The QULP3205 power and control board measures 120 × 90 mm and weighs 0.22 kg, roughly a third larger than the card used in the 3202 and firmly tied to this station.

How it differs from the 3202 board

• 120 × 90 mm against 110 × 70 mm on the 3202 board, so the two cards cannot stand in for each other.
• The supplier names the Quick 3205 soldering station as the only matching device.
• 0.22 kg, power section and regulation form one assembly that is exchanged as a whole.
• Original spare part, so connector layout and mounting dimensions need no adaptation.
• Repair instead of replacement keeps transformer, housing and handpiece of the station in use.

Technical data

Applications

Repair of the Quick 3205 in repair services, electronics manufacturing, test departments and maintenance. The exchange pays off above all where the station is built into an equipped workstation.

Scope of delivery and compatibility

One QULP3205 power and control board for the Quick 3205. The 3202 uses the QULP3202 board, while the plain QULP320X power board is listed by the supplier for both stations. Cables, connectors and screws are not part of the delivery.
