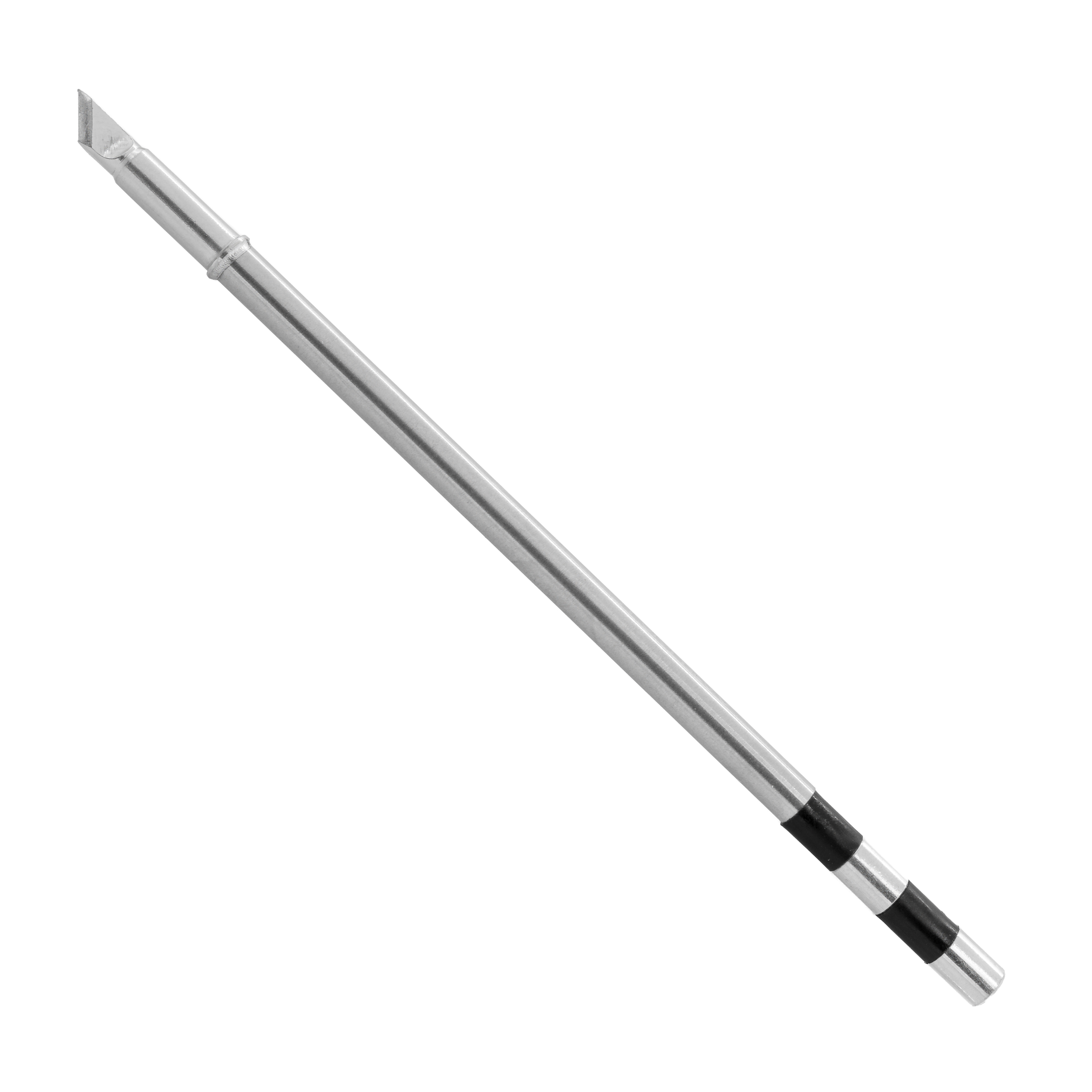

The knife tip, 3.0 mm wide and 1.2 mm thick, presents an angled edge that drags solder bridges off fine-pitch ICs. On the QUICK TS11 heat-up takes 3 seconds from 20 °C to 300 °C, with a working range of 100 to 450 °C. The classic shape for drag soldering and clearing shorts along pin rows.
Kartuschenlötspitze TS11 messerförmig 3,0 mm - extrem schnelle Aufheizzeit - Quick TSS11-SK
QUICK
Original product
Net price (excl. VAT)
€6.30
Item
QCK-TSS11-SK
Manufacturer no.
TSS11-SK
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TSS11-SK
ConditionNew
Article
QCK-TSS11-SK
Frequently Bought Together
Solder bridges between two leads cost more time than the soldering itself. The 3.0 mm knife edge pulls the surplus off in one stroke and reaches 300 °C on the QUICK TS11 in 3 seconds.
Benefits
- Knife shape 3.0 mm wide and 1.2 mm thick, the heaviest blade of the series stores heat for a pass across several pins.
- 45 degree face so the edge can be guided flat along a row of leads.
- Heat-up time of 3 seconds from 20 °C to 300 °C with the TS11 station.
- Thermocouple in the cartridge keeps temperature steady when the edge touches several leads at once.
- Working range 100 to 450 °C, enough for lead-free drag soldering.
- Overall length 92 mm, shank 3.4 mm to 3.5 mm, tool-free change.
Technical data
| Tip shape | knife |
| Version | 45 degree bevel |
| Tip width | 3.0 mm |
| Tip thickness | 1.2 mm |
| Overall length | 92 mm |
| Shank diameter | 3.4 mm / 3.5 mm |
| Temperature range with TS11 | 100 to 450 °C |
| Heat-up time with TS11 | 3 seconds from 20 °C to 300 °C |
| Tip series | TSS11 |
| RoHS | compliant |
| Manufacturer number | TSS11-SK |
Applications
Soldering on pads, pins, connectors and boards. Particularly suited to drag soldering pin rows and removing solder bridges, and to leads where a narrow edge carries too little solder.
Scope of delivery and compatibility
1x cartridge soldering tip TSS11-SK. Fits the QUICK TS11 soldering station and the TSS11 tip holder.
| Manufacturer Nr. | TSS11-SK |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
