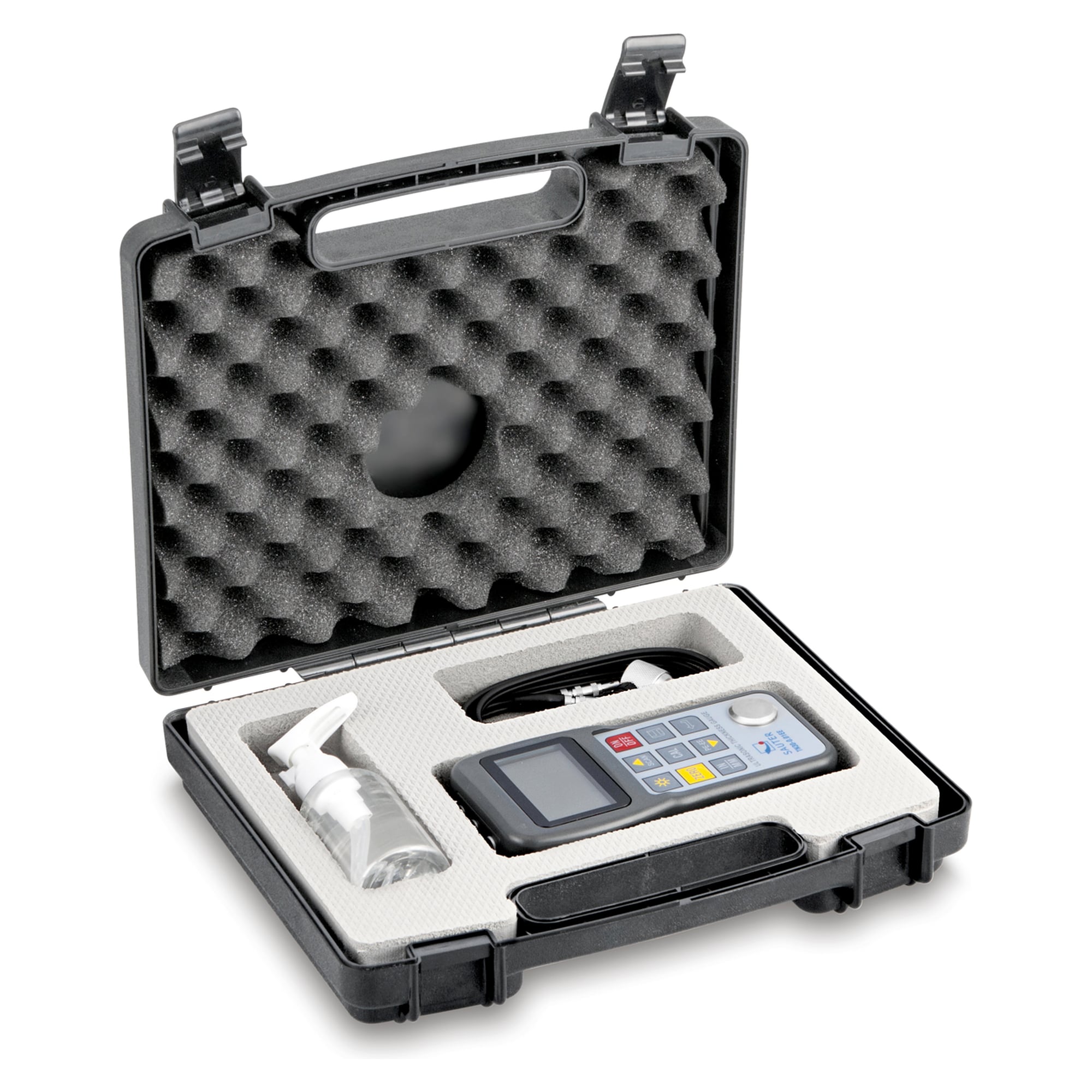

Ultrasonic Thickness Gauge - SAUTER TN 230-0.1US
The SAUTER TN 230-0.1US measures material thickness by pulse-echo from 1,2 to 230 mm with 0,1 mm readability. The scan mode captures up to 10 readings per second and quickly finds the thinnest spot.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER TN 230-0.1US measures wall thickness non-destructively from 1,2 to 230 mm at 0,1 mm readability. With the external probe (∅ 10 mm) and scan mode, surfaces are checked quickly.
Benefits
- Scan mode: up to 10 readings per second or single-point selectable.
- External probe: ∅ 10 mm for open and tight measuring points alike.
- Data memory: internal storage for up to 20 files with up to 100 readings each.
- Two units: display selectable in mm or inch.
Applications
Used in metalworking and mechanical engineering, in the oil and gas industry, in aerospace, in plastics technology and in the shipbuilding industry.
Compliance and origin
EAN 4045761139879, customs tariff number 90318080, made in China.
Technical data
| Measuring method | pulse-echo |
|---|---|
| Pulse-echo range | 1,2 to 230 mm |
| Thickness readability (d) | 0,1 mm |
| Probe frequency | 5 MHz |
| Probe diameter | 10 mm |
| Sound velocity range | 1000 to 9999 m/s |
| Tolerance | 0,5 percent of max |
| Power supply | 2 x 1,5 V AA, up to 100 h |
| Housing | plastic, 150 x 74 x 32 mm |
| Net weight | 0,30 kg |
| Weight | 1.4 kg |
| Manufacturer | Sauter |
| EAN | 4045761139879 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Display type | LCD |
