Adjustable ESD steel shelf M750, stepless depth, tilting, 720x505 mm, 50 kg - Treston 92049007P
Adjustable steel shelf with ESD mat for Treston workstations in module M750. Depth adjusts steplessly and the shelf tilts from 0 to 25°. Carries up to 50 kg and fits Concept Ergo, QuatreX, TP workbenches, industrial heavy workbenches and the Industrial Multi trolley.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
A shelf that follows your workflow. The Treston steel shelf adjusts steplessly in depth and tilts up to 25°, so components, documents or parts bins sit exactly where the reach is shortest. The 720x505 mm surface carries up to 50 kg.
Key features
- Stepless depth adjustment
- Tilts from 0 to 25°
- ESD mat for handling static-sensitive components
- Max. load 50 kg
- For module M750 Treston workstation systems
Technical data
| Dimensions WxD | 720 x 505 mm |
|---|---|
| Module | M750 |
| Max. load | 50 kg |
| Tilt | 0 to 25° |
| Material | Epoxy powder-coated steel with ESD mat |
| Colour | Light grey, RAL 7035 |
| ESD | Yes |
| Suitable for | Concept Ergo, Treston QuatreX, TP workbench, industrial heavy workbenches, Industrial Multi trolley |
| Warranty | 10 years |
| Weight | 7.5 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | 92049007P |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Width | 720 |
| Depth | 505 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 50 |
Typical uses are assembly and test stations in electronics production and workbenches in manufacturing and maintenance where material has to be ready at an ergonomic reach height.
Downloads
Accessories
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1500x750 mm, 200 kg - Treston 10149032

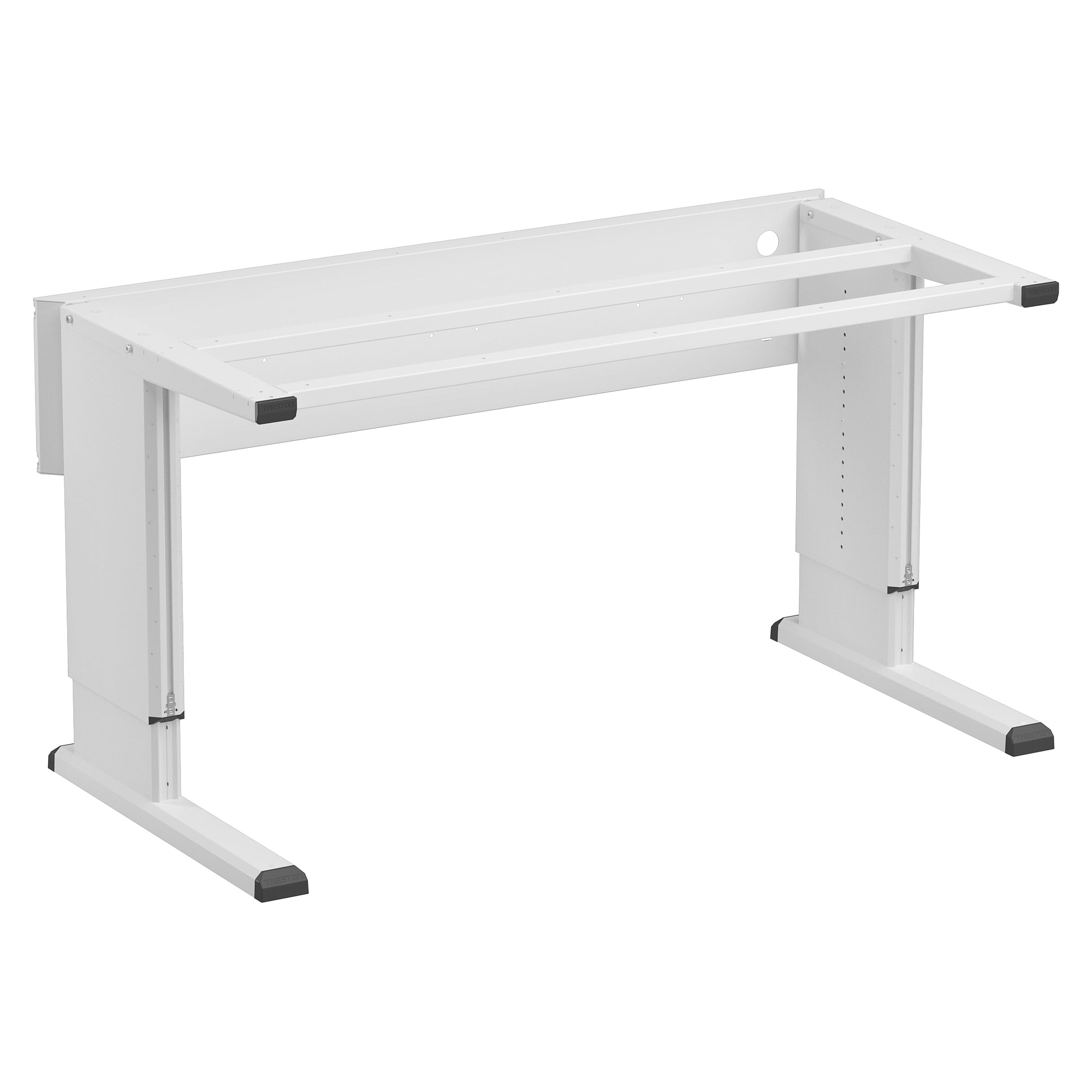

Item TR-10149032Concept Ergo bench frame ESD, Allen key height adjustable 700-1100 mm, 1500x750 mm, 500 kg - Treston CE15075-49
Item TR-CE15075-49Industrial multi trolley ESD M750, high frame, 790x760x1790 mm, 300 kg - Treston TMTFH7-49

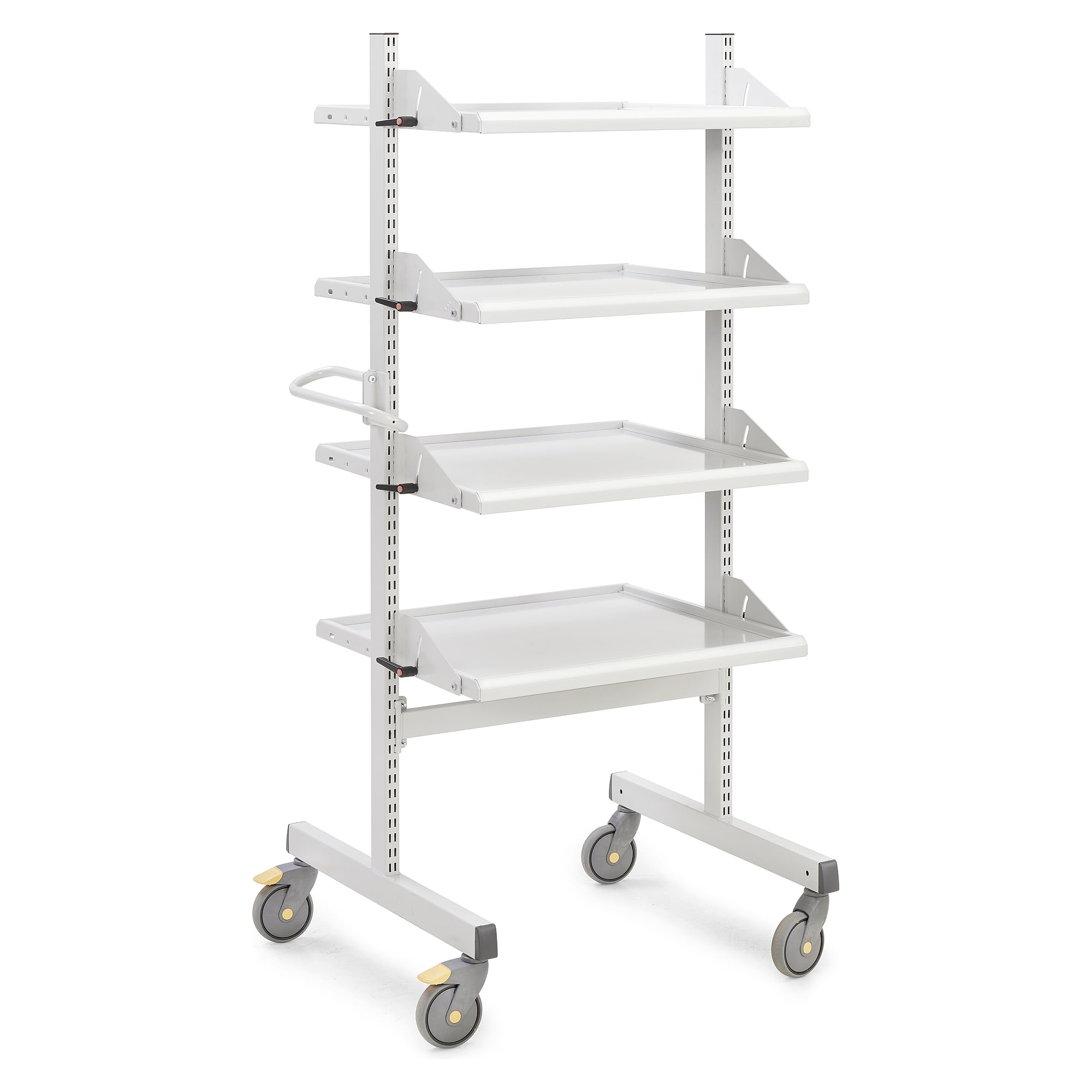

Item TR-TMTFH7-49ESD industrial multi trolley high M750, 4 adjustable steel shelves, 790x760x1790 mm - Treston TMTH7-002-49
