Concept Ergo bench frame ESD, allen key height adjustable 700-1100 mm, 1800x600 mm, 500 kg - Treston CE18060-49
ESD frame for Concept Ergo workbenches with a 1800x600 mm footprint, set to a working height between 700 and 1100 mm with an allen key. With a load capacity of up to 500 kg it suits fixed workstations in assembly, inspection and logistics.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where a bench is set to the right height once and then stays there, manual adjustment is the economical choice. The Concept Ergo frame CE18060-49 is adjusted with allen key screws to a working height of 700 to 1100 mm and carries up to 500 kg.
Key features
- Manual height adjustment with allen key screws, 700 to 1100 mm usable height including a 25 mm top
- Load capacity: up to 500 kg
- ESD safe according to the manufacturer, for use in EPAs
- Steel frame with epoxy powder coating in light grey RAL 7035
- Support bar not included, recommended when fitting castors
Technical data
| Bench size (W x D) | 1800x600 mm |
|---|---|
| Height adjustment range | 700 - 1100 mm (incl. 25 mm top) |
| Adjustment method | Allen key screws, manual |
| Max. load | 500 kg |
| ESD | Yes |
| Frame material | Epoxy powder-coated steel |
| Colour | Light grey RAL 7035 |
| Net weight | 55 kg |
| Warranty | 10 years |
| Weight | 57 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | CE18060-49 |
| EAN | 6416763095919 |
| HS-Code | 94032080 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Width | 1800 |
| Depth | 600 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 500 |
The frame is the foundation of a Concept Ergo workbench. Bench top, support bar, castors and Concept accessories are ordered separately. The result is a workstation for electronics assembly, quality inspection, packing or goods receiving.
Downloads
Accessories

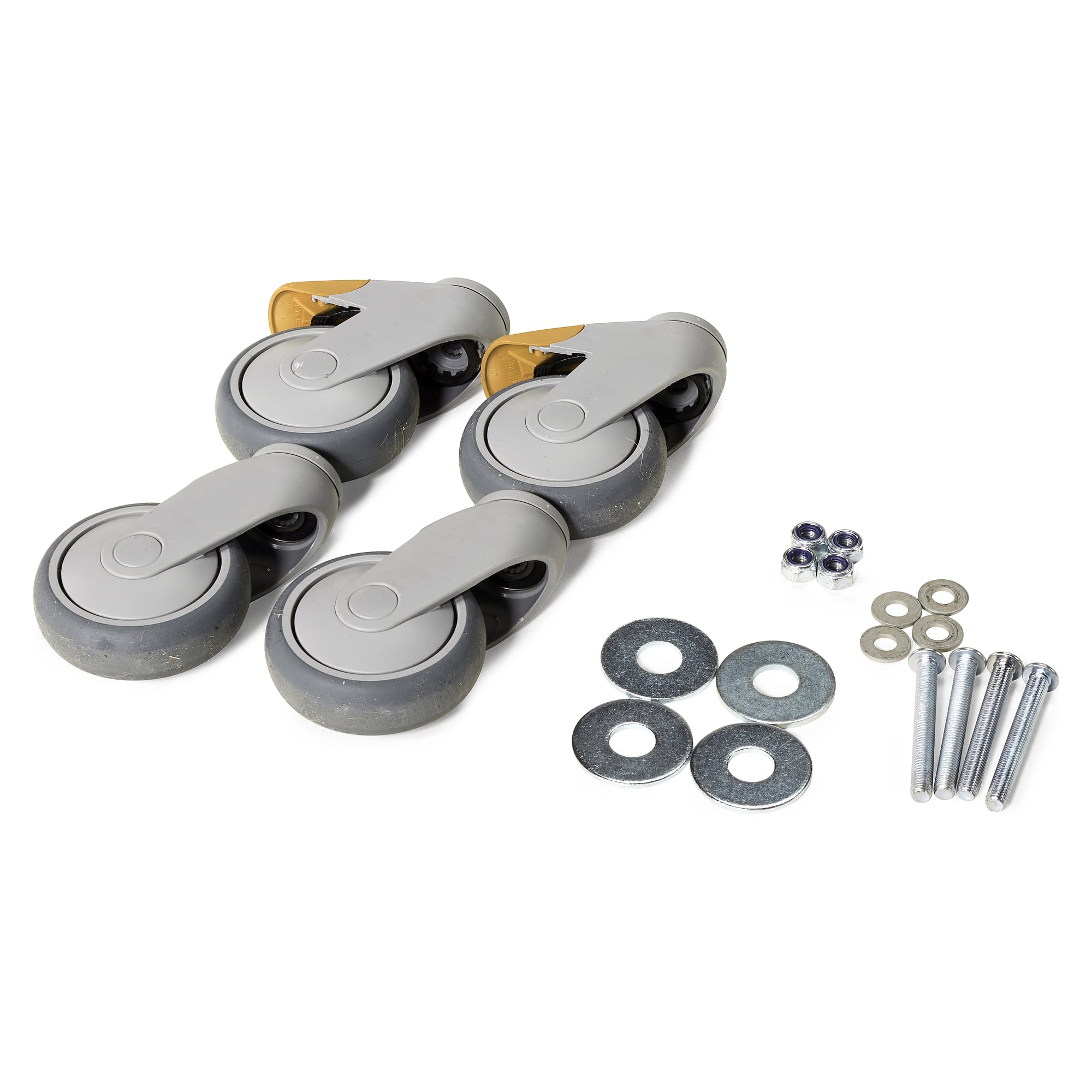

ESD Castor set 100 mm for Concept Ergo workbench, 300 kg - Treston LCS100CE-ESD
Item TR-LCS100CE-ESD
Concept accessory bar with 150 mm depth adjustment for 1800 mm bench width, ESD - Treston 860089-49
Item TR-860089-49
ESD footrest for crossbar mounting, height-adjustable 90-280 mm, tilt 5-30°, WxD 550x350 mm - Treston 860136-49
Item TR-860136-49
Perforated back panel M1800, 1778 x 389 mm, RAL 7035 grey, ESD - Treston 861531-49
Item TR-861531-49
Horizontal cable trough M1800 for Ergonomic Concept, 1793 mm, ESD - Treston 854557-49
Item TR-854557-49
Upright tube ESD, length 800 mm, WxD 30x60 mm, for Concept/TP - Treston 860142-49
Item TR-860142-49Show 7 more items
ESD drawer unit 45/56-2 with castors, 450x520x700 mm, 4 drawers, grey - Treston 60649302
Item TR-60649302

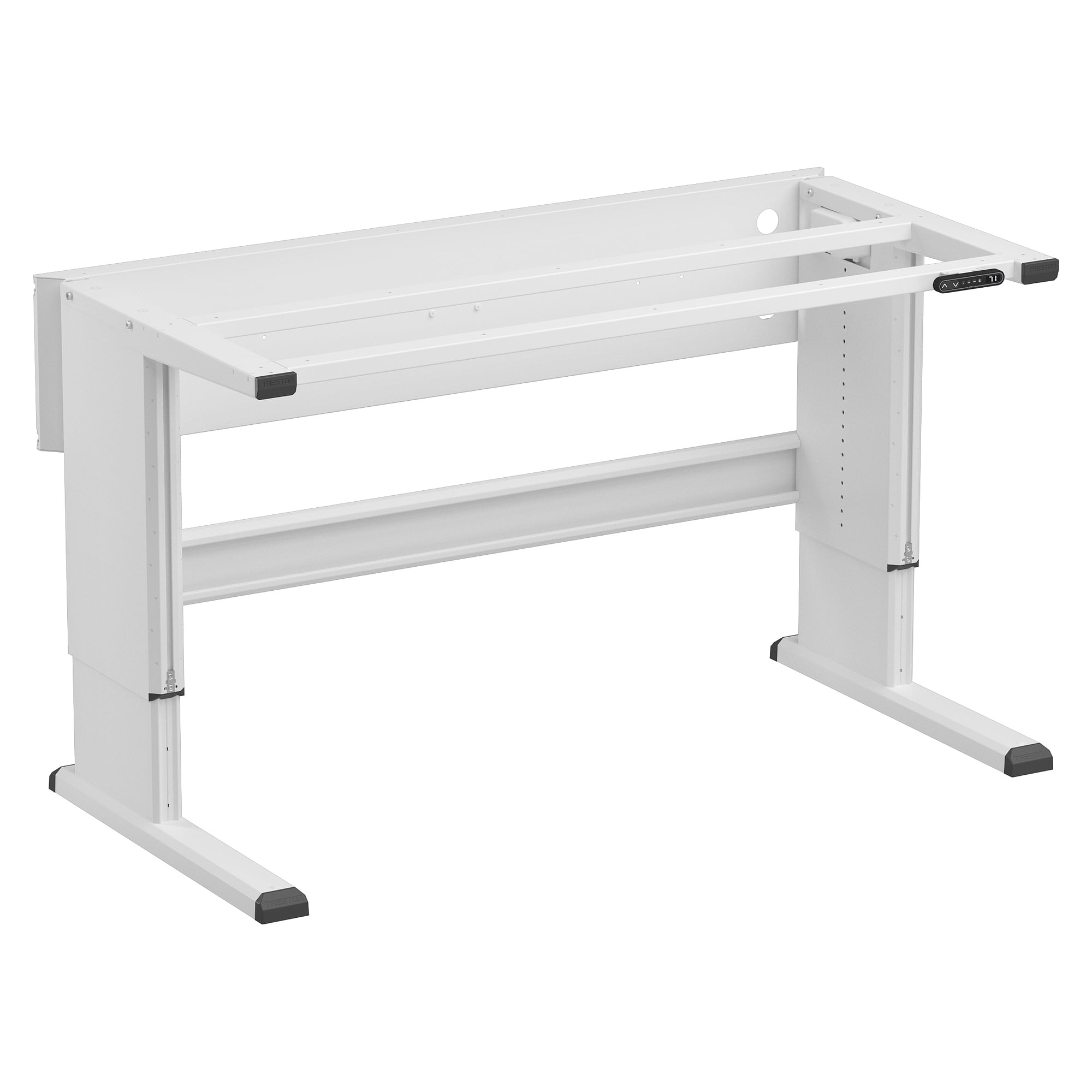

Concept Ergo bench frame ESD, electric height adjustable 700-1100 mm, 1800x600 mm, 400 kg - Treston CE18060EL-49
Item TR-CE18060EL-49
Concept Ergo bench frame ESD, allen key height adjustable 700-1100 mm, 1800x750 mm, 400 kg - Treston CE18075-49
Item TR-CE18075-49
Concept Ergo bench frame ESD, allen key height adjustable 700-1100 mm, 1800x900 mm, 500 kg - Treston CE18090-49
Item TR-CE18090-49
Concept Ergo bench frame ESD, Allen key height adjustable 700-1100 mm, 1500x600 mm, 500 kg - Treston CE15060-49
Item TR-CE15060-49

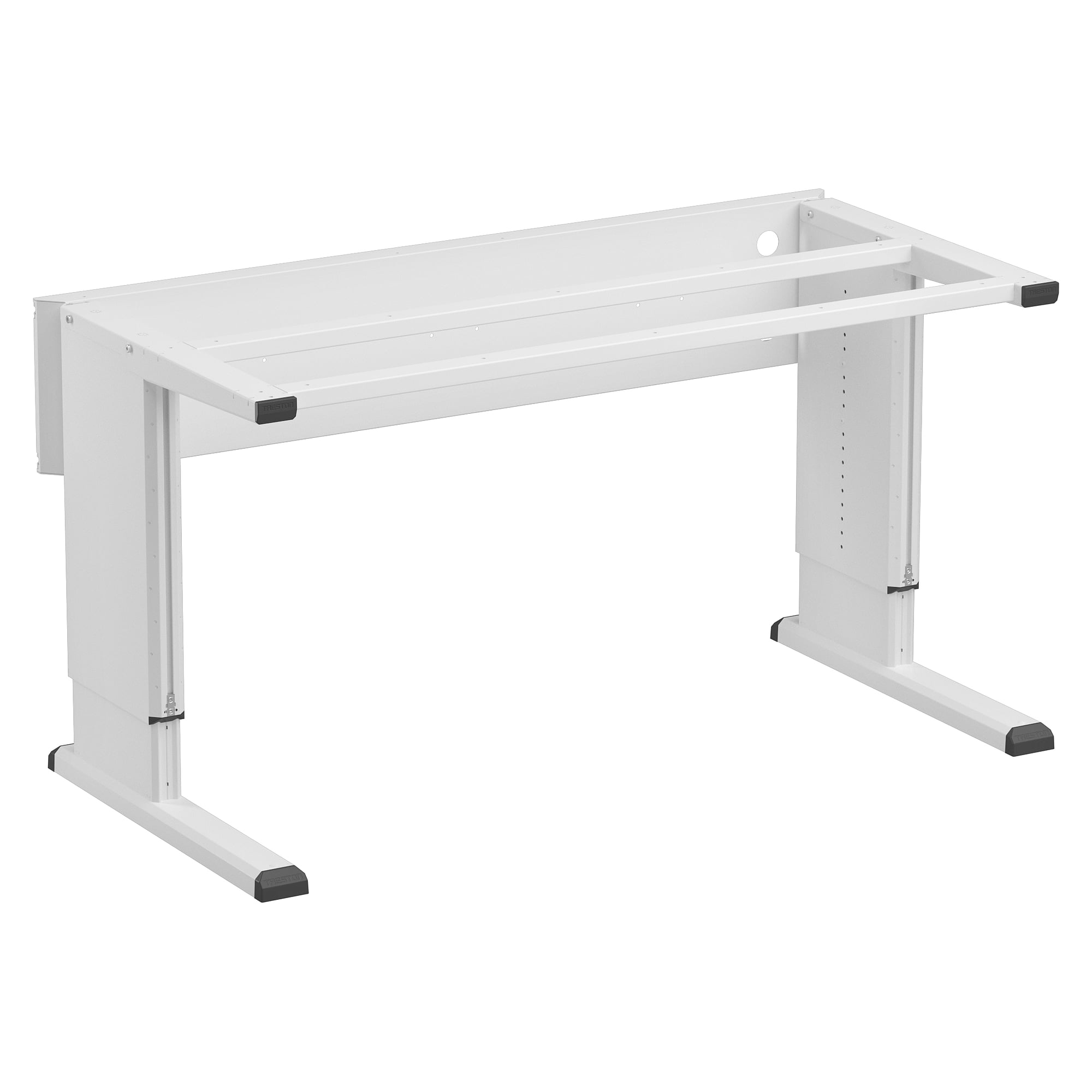

Concept Ergo bench frame ESD, allen key height adjustment 700-1100 mm, 2000x600 mm, 500 kg - Treston CE20060-49
