Pull-out cutting support for packing material holder PMH1800-49, module M1800, ESD - Treston CSM1800-49
Pull-out cutting support for the Treston packing material holder PMH1800-49 mounted on upright tubes. It gives the knife a firm base, so material taken from the roll can be cut cleanly and under control. Designed for packing stations with M1800 module width.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Cutting packing paper, film or bubble wrap straight from the roll is easier with a solid base under the blade. The CSM1800-49 cutting support attaches to the PMH1800-49 packing material holder and pulls out 150 mm towards the operator when needed. You cut the material with a utility knife without damaging the worktop.
Key features
- Pull-out cutting surface with 150 mm pull-out distance
- Mounts on the packing material holder PMH1800-49
- Distance from the upright tube adjustable from 250 to 400 mm
- Frame in epoxy powder-coated steel, light grey RAL 7035
- ESD-safe for use in electrostatic protected areas (EPA)
Technical data
| Product code | CSM1800-49 |
|---|---|
| Dimensions (W x D x H) | 1797 x 305 x 56 mm |
| Module width | M1800 |
| Pull-out distance | 150 mm |
| Distance from upright tube | 250-400 mm |
| Material | Steel, epoxy powder-coated |
| Colour | Light grey, RAL 7035 |
| ESD | Yes |
| Fits | Packing material holder PMH1800-49 |
| Suitable for | Concept Ergo, TP and QuatreX workbenches |
| Warranty | 10 years |
| Weight | 3.26 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | CSM1800-49 |
| EAN | 6416763094851 |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Height | 56 |
| Width | 1797 |
| Depth | 305 |
| ESD version | ESD (antistatic) |
The cutting support completes packing stations built on Treston Concept Ergo, TP and QuatreX workbenches with M1800 upright tubes. It suits shipping, order picking and end-of-line packing, where material is cut to varying lengths every day.
Downloads
Accessories
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1800x750 mm, 200 kg - Treston 10149033
Item TR-10149033
€1,389.42
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1800x600 mm, 200 kg - Treston 10149018
Item TR-10149018
€1,369.88
Treston
Concept frame with hand-crank height adjustment 675-1025 mm, 1800x900 mm, ESD - Treston 10149065
Item TR-10149065
€1,596.05
Treston
QuatreX four-leg electric height-adjustable bench frame, 1825x750 mm, 300 kg - Treston QX18375-41
Item TR-QX18375-41
€1,898.89
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston
Mounting Kit for Height-Adjustable SPM Shelves, ESD - Treston SPMAF-49
Item TR-SPMAF-49
€119.72
Treston

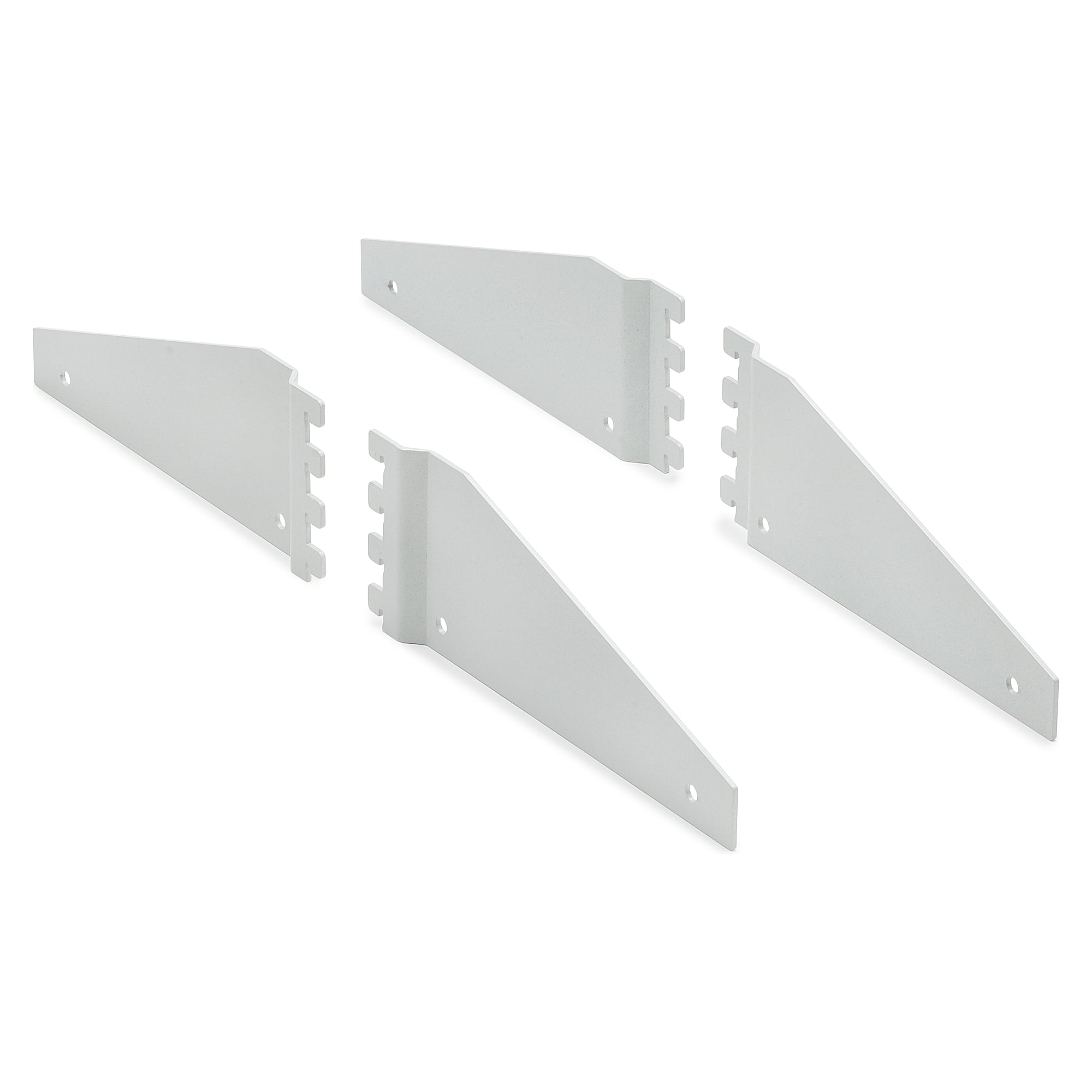

Mounting Set for Upper SPM Shelf on Grid Tube, ESD - Treston SPMBS-49
