Brushless Electric Screwdriver 0.4-1.8 Nm, 230 V, Lever Start - HIOS VB-1820X

The HIOS VB-1820X is a brushless electric screwdriver for M2.6-M4 screws with a torque range of 0.4-1.8 Nm. It connects directly to 220-240 V and needs neither a power supply nor a controller. The shut-off clutch ends the fastening cycle at the set torque, and the brushless motor runs without carbon dust and with little maintenance.

Features

• Direct connection to 220-240 V, no separate power supply or controller required
• Steplessly adjustable torque 0.4-1.8 Nm with shut-off clutch
• Brushless motor, low maintenance and free of carbon dust
• Lever start via the start lever on the grip
• Forward/reverse switch
• 1/4" hex bit holder (6.35 mm)
• Fixed 3 m cable
• Around 50 % lower power consumption and around 30 % less motor heating than earlier HIOS models (manufacturer data)

Technical data

Application

For series assembly of small screws in electronics, electrical engineering and device manufacturing where a screwdriver is to run directly at the workstation without a separate power supply.

Compatibility

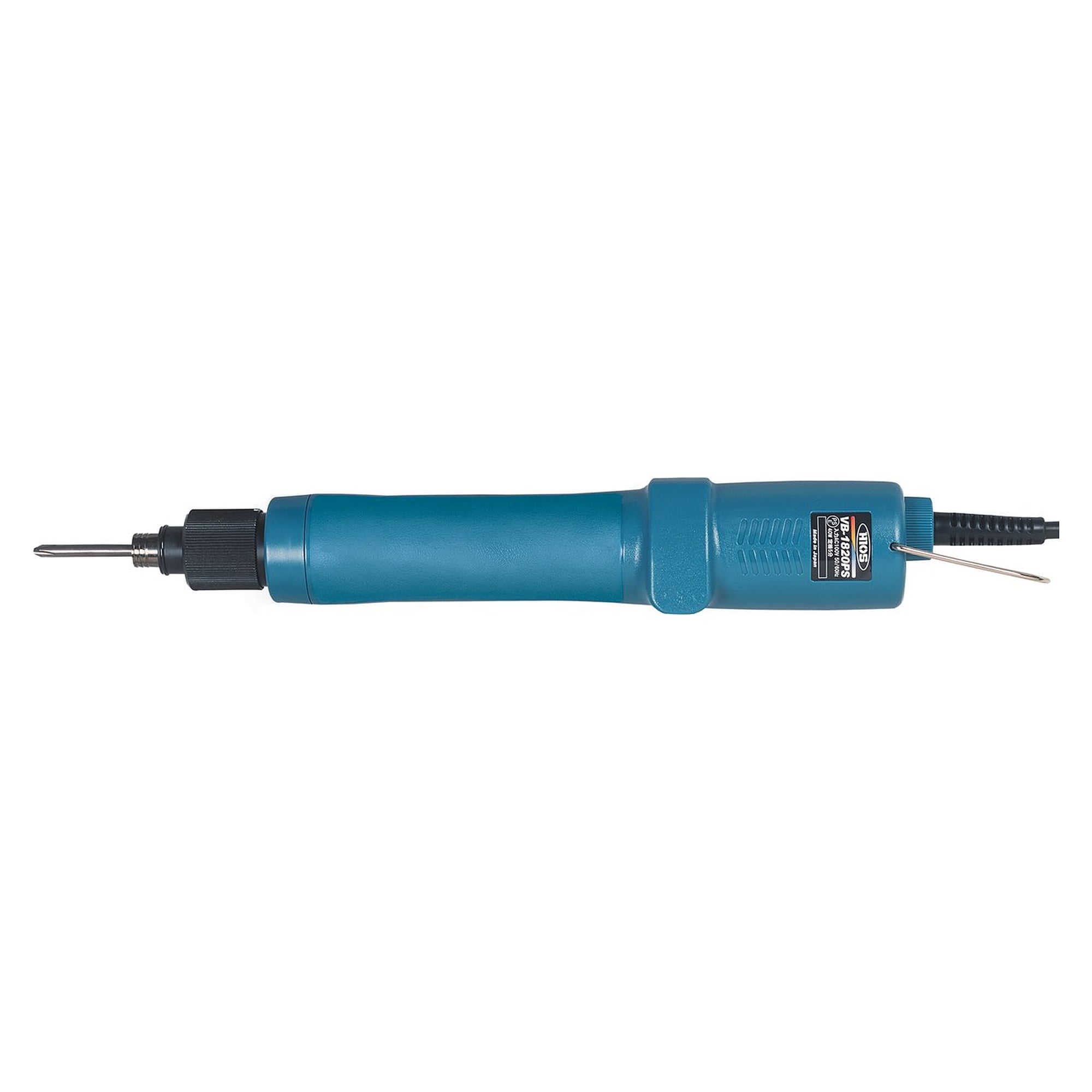

Matching HIOS accessories: pistol grip attachment PAB-18, angle head for 1/4" hex ANGLV-Z-XX1 and screwdriver holder for the VMS stand VMS-0900-PG7. The HIOS HP-100 2025 torque meter is suitable for checking the set torque. The push start version is available as VB-1820PSX, and VB-3012X and VB-4504X cover higher torques. No controller is required.
