LED workplace-system luminaire TAMETO SAHQ 66 RD, 956 mm, 2300 lm, 4000 K, DALI dimmable, through-wired - Waldmann 112976000-00555631

The TAMETO SAHQ 66 RD combines DALI dimming with through-wiring: the 0.3 m lead with GST 18i3 plug and socket links several luminaires along a row of workstations, while dimming is done via DALI or locally with Touch DIM. Each luminaire delivers approx. 2300 lm at 26 W, approx. 88 lm/W, in neutral white at 4000 K.

Benefits

• DALI dimmable, plus Touch DIM on the rocker push-button
• Through-wiring with GST 18i3 for linking several luminaires
• CRI ≥ 90 and R9 ≥ 50 with a colour tolerance of < 3 SDCM: colours and contrasts of components are rendered faithfully
• Prism aperture with cone prism structure, luminance L65 ≤ 3800 cd/m² and UGR ≤ 22 for low-glare light above the work surface
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Rows of assembly and production workstations on a shared supply
• Laboratory and dental workstations
• Watchmaking and restoration workstations
• Production areas with DALI lighting control

Installation and accessories

• Mounted on the table system with screw-on tab, mounting brackets or the two T-slots (8 mm) on the back, symmetric profile so the operating side can be chosen freely

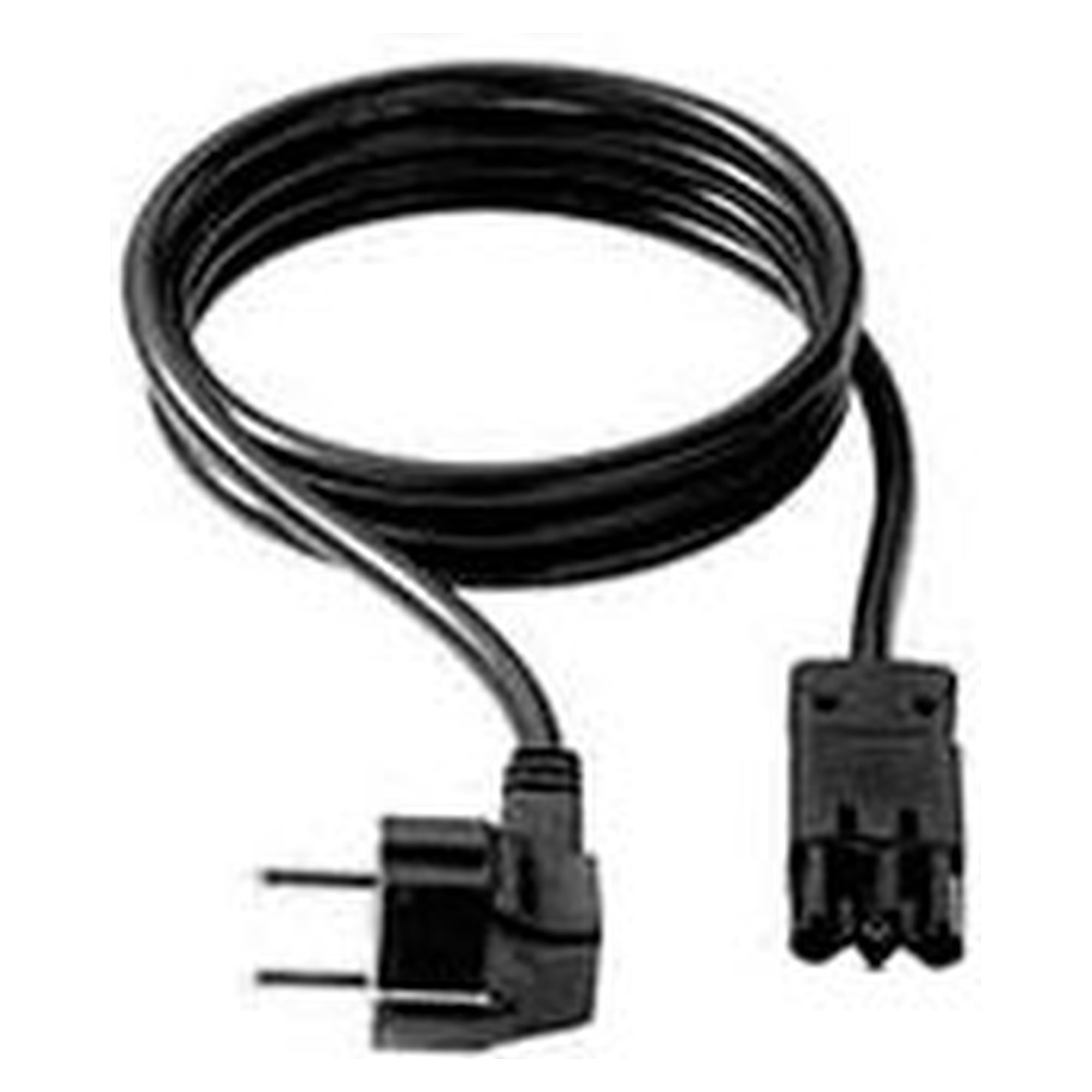

• Lead approx. 0.3 m with GST 18i3 plug and socket, supply via 3 m connection cable with grounded plug to GST 18i3, GST 18i3 connecting cables in 0.3 or 3 m

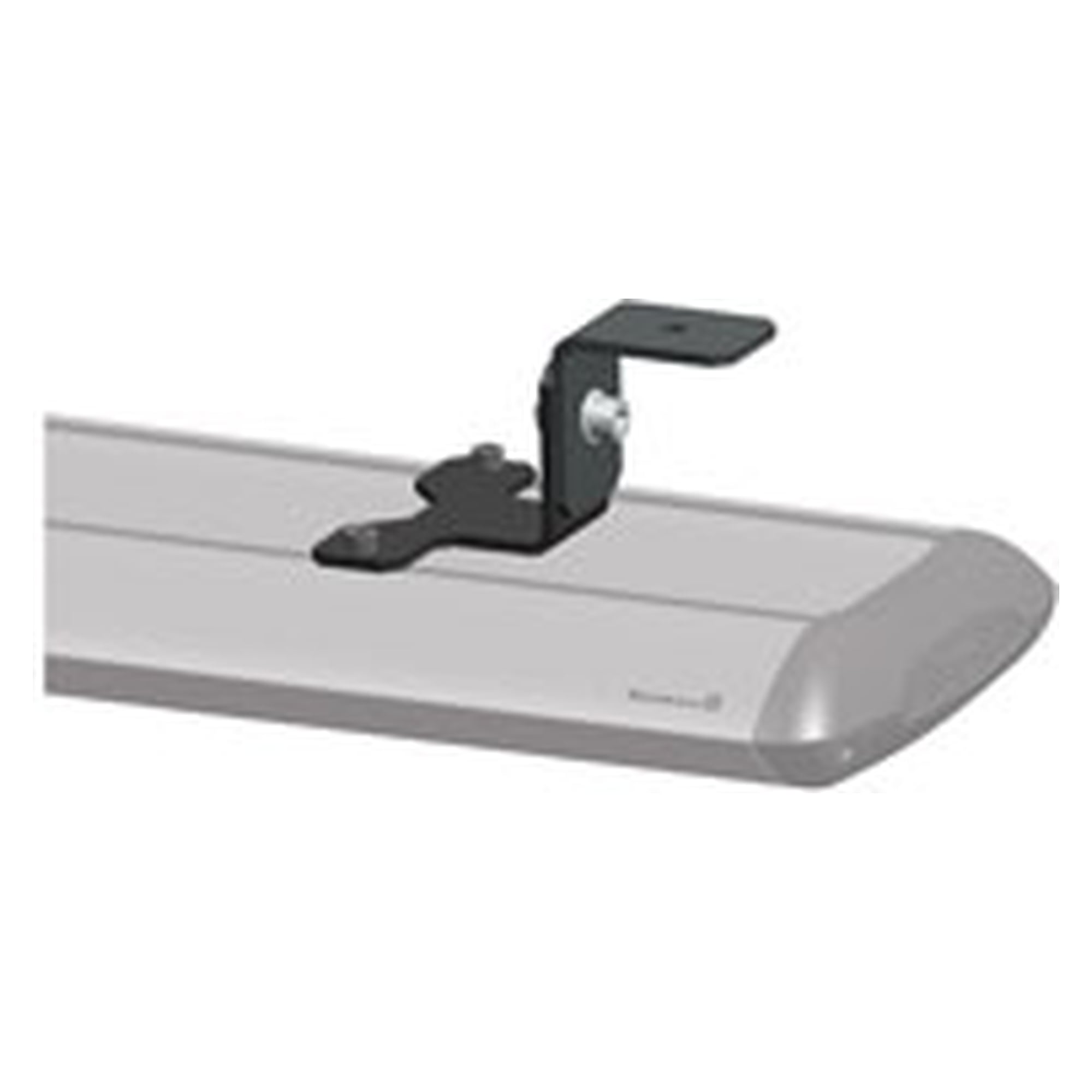

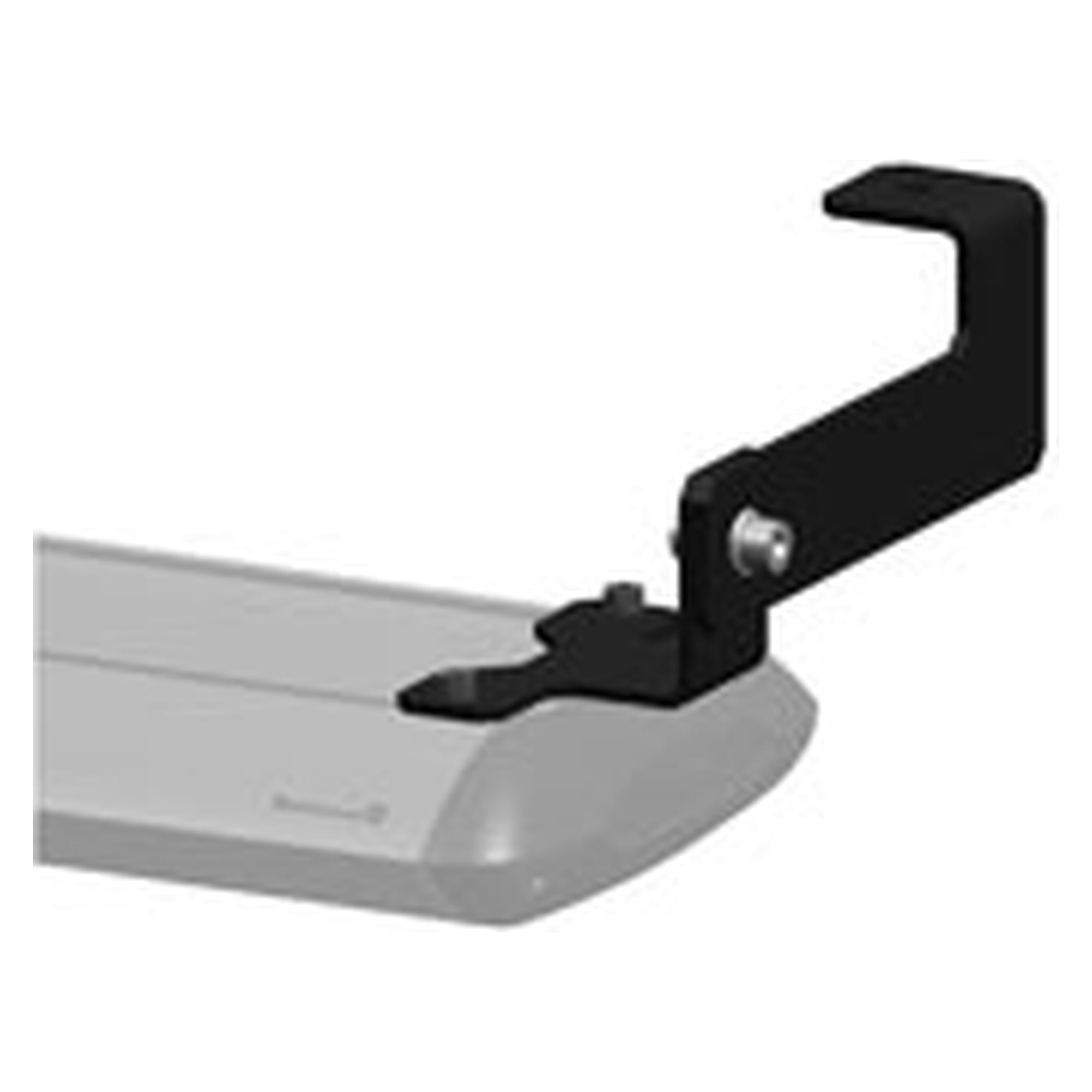

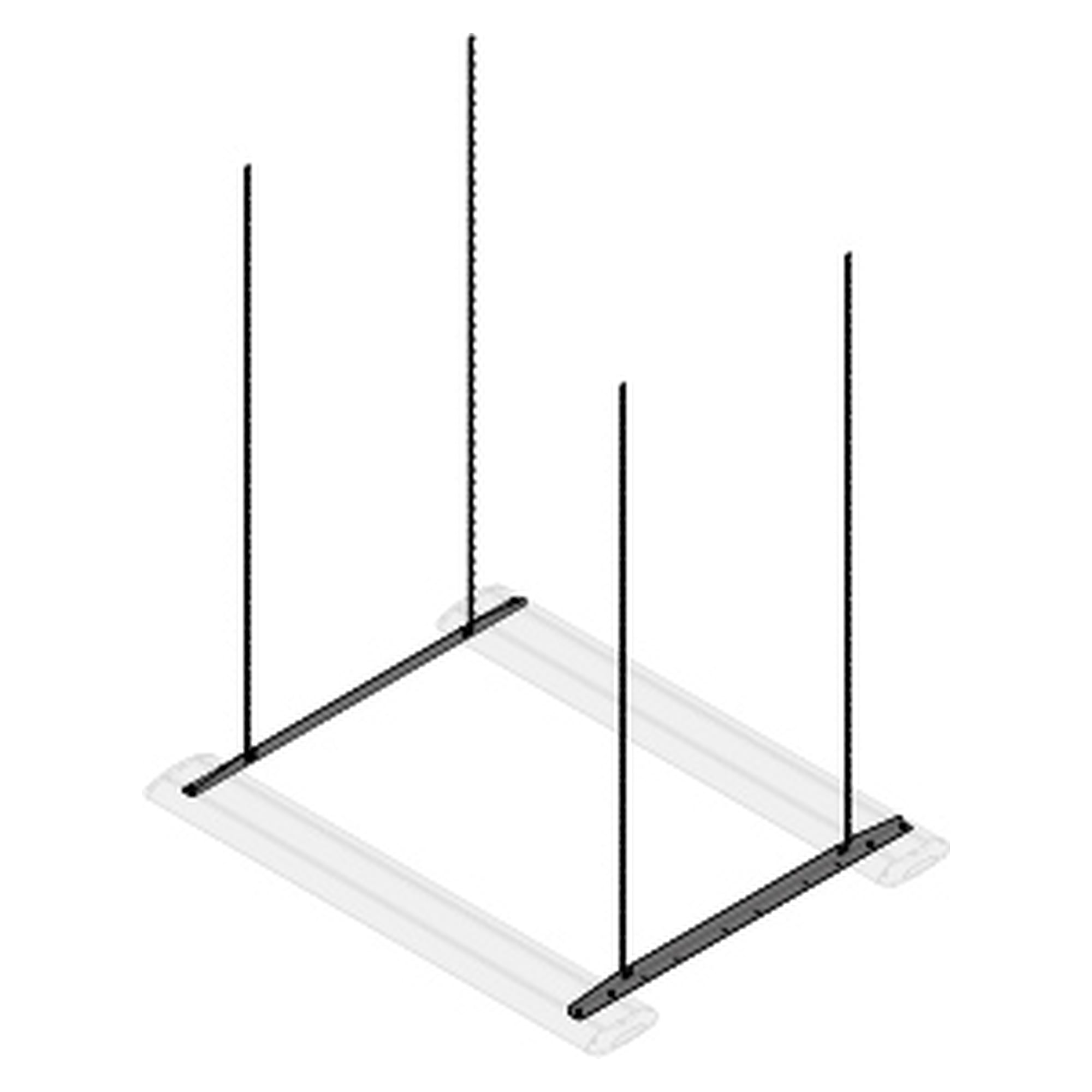

• Matching accessories: luminaire bracket set in metallic silver with several positions, adjustable luminaire brackets in black
