LED task luminaire PARA.MI MFTL 108 R, 600 lm, 4000 K, silver - Waldmann 113149000-00644014
LED task luminaire PARA.MI MFTL 108 R with a single arm and silver aluminium housing. Approx. 600 lm of neutral white 4000 K light, continuously dimmable via the button in the head. Typical uses: design and planning at the desk, dispatch and control desk. Waldmann grants a 20-year manufacturer's warranty on this luminaire.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Neutral white 4000 K light helps you stay alert during long writing and screen sessions. The silver PARA.MI MFTL 108 R delivers approx. 600 lm from an LED module drawing only about 7 W and can be dimmed continuously via the head button.
Benefits
- Approx. 600 lm at about 7 W, a luminous efficiency of approx. 100 lm/W: focused task light with low consumption.
- CRI > 90 and R9 > 50 with chromaticity tolerance < 3 SDCM: natural colours and a consistent light colour across several luminaires.
- Plastic reflector with a 90° beam angle limits glare, light falls directly and symmetrically onto the surface.
- Luminaire head can be turned and pivoted, self-locking joints adjust continuously and need no maintenance.
- 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)
Applications
- Design and planning at the desk
- Dispatch and control desk
- Screen workstation in the office
Installation and accessories
- Luminaire with spigot Ø16 mm, mounted via accessories: round or rectangular table base, table clamp TKF 1/35A or TKF 1/35B
- Adaptors for vertical or horizontal connection to furniture systems
- Mains connection via approx. 3 m lead with electronic plug-in transformer 100-240 V, 50/60 Hz, plug CEE 7/XVI, BS 1363 or NEMA 1-15P
- Protection class II with plug-in power supply, III without
Technical data
| Manufacturer part no. | 113149000-00644014 |
|---|---|
| Order number | 00644014 |
| Light source | LED |
| Work equipment | electronic plug-in transformer |
| Connected load | 100-240 V, AC, 50 Hz, 60 Hz |
| Power consumption | approx. 7 W |
| Luminous flux | approx. 600 lm |
| Luminous efficiency | approx. 100 lm/W |
| Light type/-color | cold white |
| Colour temperature | approx. 4000 K |
| Color rendering index | CRI > 90, R9 > 50 |
| Light distribution | direct, symmetric |
| Direct ratio | approx. 100 % |
| Beam angle | 90° |
| Chromaticity tolerance LED | < 3 SDCM |
| Glare control | plastic reflector |
| Class of protection | II with plug-in power supply, III without plug-in power supply |
| Technology | continuously dimmable |
| Operation | push button |
| Housing | aluminium, painted, silver |
| Cover | clear, plastic |
| Arm | silver metallic |
| Weight (net) | approx. 0.8 kg |
| Mains lead | approx. 3 m, mains plug, CEE 7/XVI, BS 1363, NEMA 1-15P |
| Fastening | adaptor (accessory), spigot Ø16 mm, table base (accessory), table clamp (accessory) |
| Special features | automatic switchoff adjustable, behaviour at net recovery adjustable, push button in luminaire head |
| Manufacturer's warranty | 20 years (Waldmann general warranty terms) |
| Weight | 0.8 kg |
| Manufacturer | Waldmann |
| Manufacturer Nr. | 113149000-00644014 |
| HS-Code | 94052140 |
| GPSR manufacturer information | WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| Colour | Silver |
| Farbe | silber |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 600 lm |
| Power (W) | 7 W |
| Colour rendering (Ra) | Ra 90 |
| Mounting type | Table clamp |
| Operating voltage | 100-240 V |
| Series | PARA.MI |
Downloads
Accessories
Table base round for PARA.MI, Ø 200 x 10 mm, approx. 2.7 kg, silver - Waldmann 190210019-00810557
Item WAL-190210019-00810557Table base round for PARA.MI, Ø 200 x 10 mm, approx. 2.7 kg, black - Waldmann 190210019-00809000
Item WAL-190210019-00809000Table base square for PARA.MI, 10 mm flat, approx. 2.8 kg, white - Waldmann 190209019-00640379
Item WAL-190209019-00640379Table base square for PARA.MI, 10 mm flat, approx. 2.8 kg, silver - Waldmann 190209019-00810556
Item WAL-190209019-00810556Table base square for PARA.MI, 10 mm flat, approx. 2.8 kg, black - Waldmann 190209019-00809005
Item WAL-190209019-00809005Table clamp TKF 1/35 A for PARA.MI, 10-35 mm, vertical connection, black - Waldmann 191112019-00639639
Item WAL-191112019-00639639Table clamp TKF 1/35 B for PARA.MI, 10-35 mm, horizontal connection, black - Waldmann 191113019-00634907
Item WAL-191113019-00634907Show 2 more items
Adaptor for PARA.MI, vertical connection, with M4 sliding block, black - Waldmann 191115029-00647782
Item WAL-191115029-00647782Adaptor for PARA.MI, horizontal connection, with M4 sliding block, black - Waldmann 191114029-00647772
Item WAL-191114029-00647772ESD version

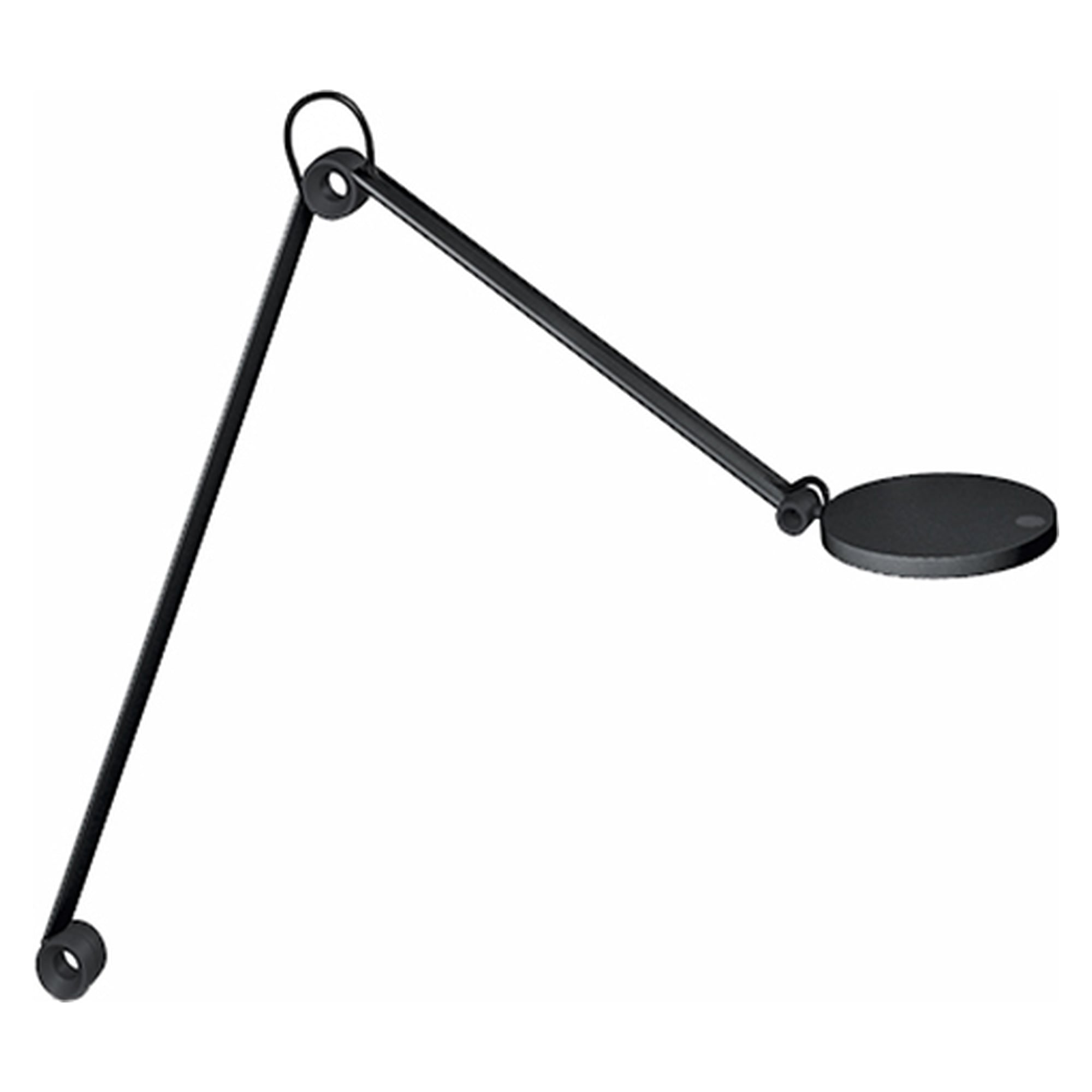

LED task luminaire PARA.MI Double Arm FTL 108 R, 600 lm, 4000 K, black - Waldmann 113148000-00644091
